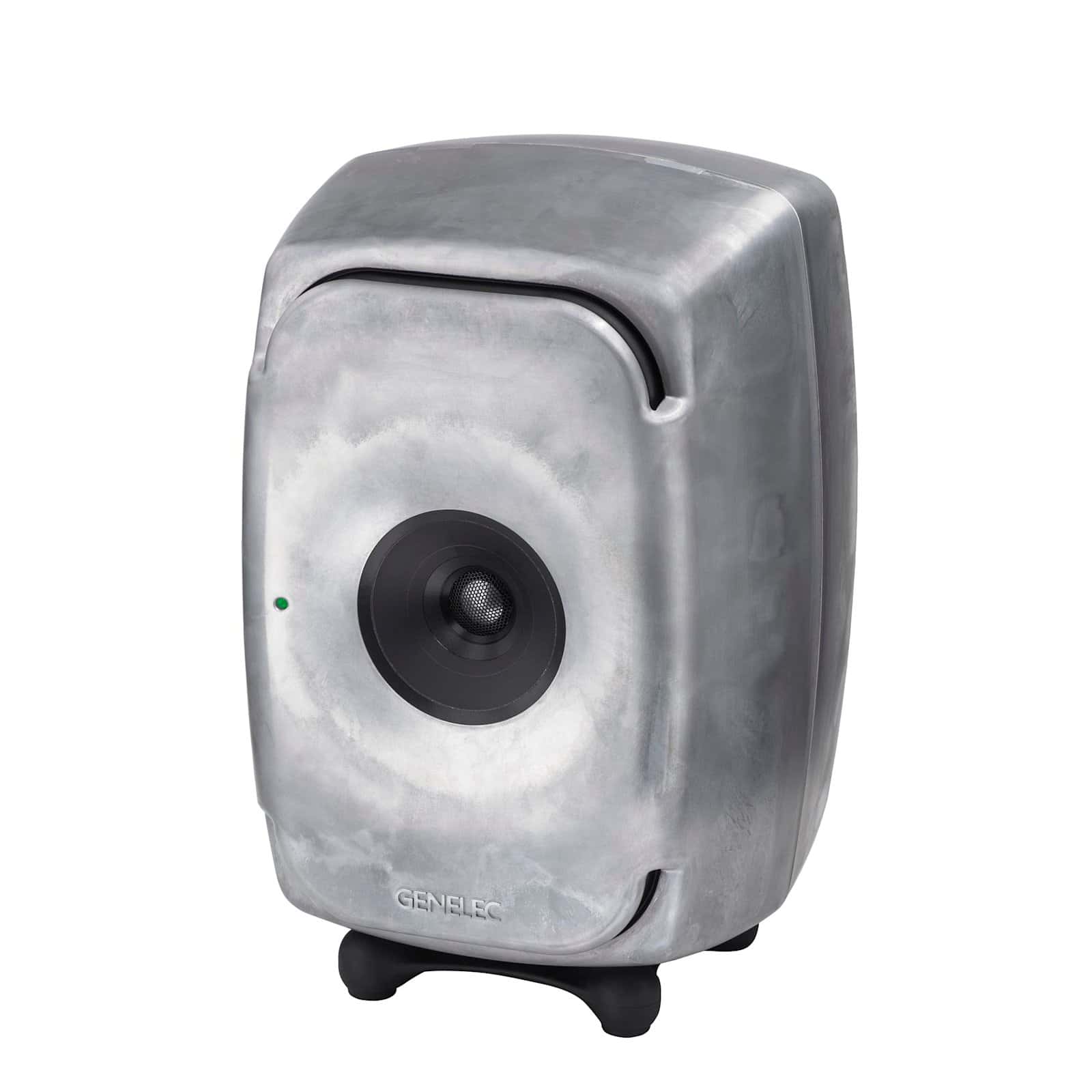

Genelec 8341A SAM™ Studio Monitor – RAW

High headroom three-way with unbelievable imaging. The 8341A is the point source monitor with the perfect blend of size and performance.

2.609,00€ (ex. VAT)

SKU: 8341ARw Categories: , , Brand:

High headroom three-way with unbelievable imaging. The 8341A is the point source monitor with the perfect blend of size and performance.

Work faster, for longer

For applications calling for extraordinary imaging, extended frequency response, short to medium listening distance or long, fatigue-free working hours, The Ones are in an elite league of their own. They promote faster and more consistent decision making, and they also extend listening time, because unnatural imaging – a main contributor to listener fatigue – is minimised.

Mixes that translate

As bigger brother to the super-compact 8331A, the 8341A offers increased LF extension and a higher SPL capability, so is ideally suited to slightly longer listening distances. In conjunction with our GLM calibration software, the 8341A will also compensate for detrimental room acoustics and distance delay, regardless of whether you work in mono, stereo or immersive formats. So now you can deliver mixes that translate beautifully – every time.

Overview

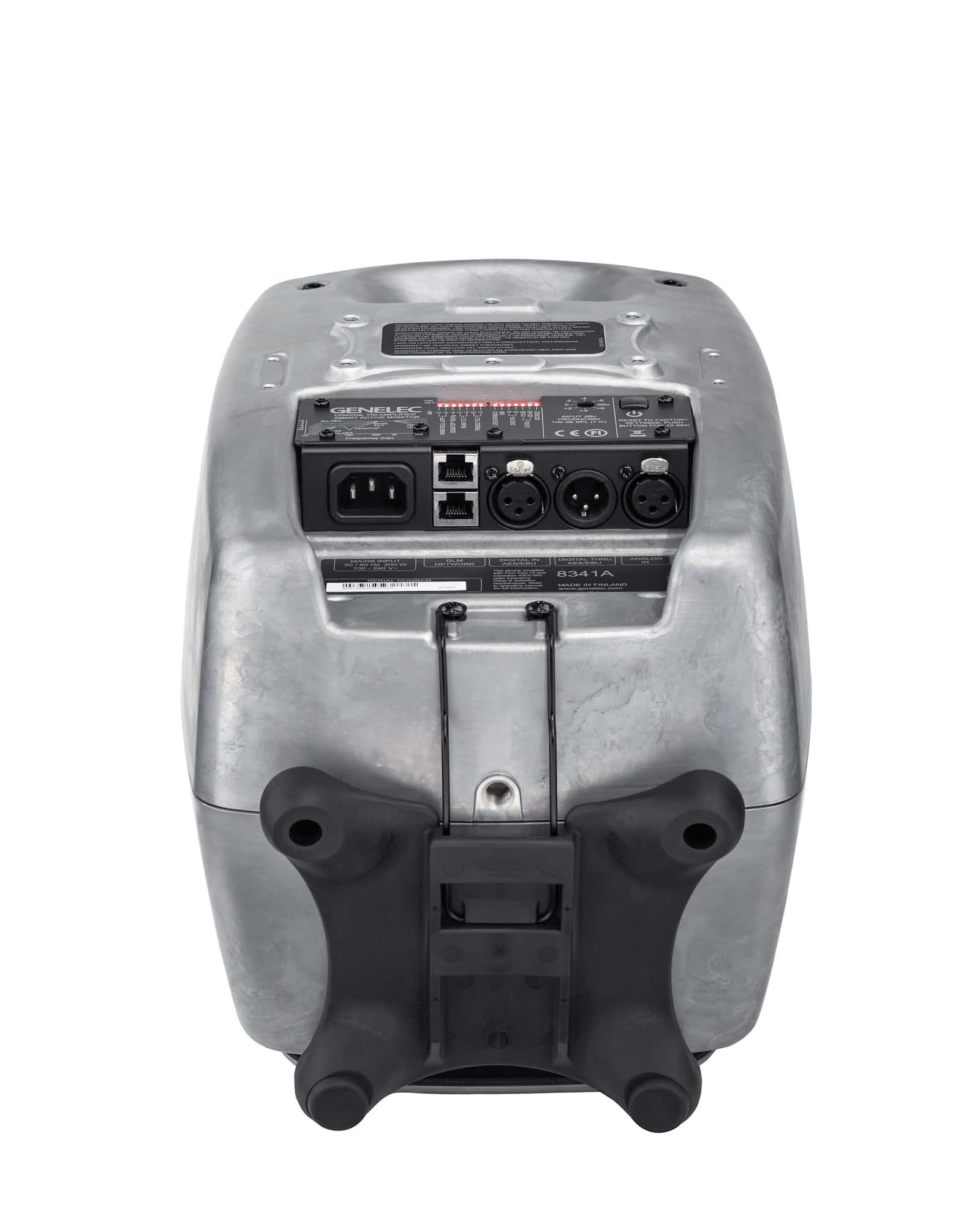

Unique point source design, recycled-aluminium cabinet with extraordinary directivity and minimum diffraction for outstanding nearfield and ultra-nearfield performance, 110 dB SPL and 38 Hz LF roll-off. Ready for precision setup, calibration and monitor control for Mac and PC with recommended GLM™ kit or 9320A (not included). Integrated DSP and amplifiers 250 W + 150 W + 150 W driving two oval Woofers 170 x 90 mm (6 5⁄8 x 3 1/2 in), Coaxial 90 mm (3 1/2 in) Midrange and 19 mm (3/4 in) Tweeter. Balanced analogue in, AES/EBU in and out (XLR). Iso-Pod™ table support included. Integrated mounts, extensive range of accessories. Dimensions with Iso-Pod™: H 370 x W 237 x D 243 mm (14 9/16 x 9 3/8 x 9 1/2 in), weight 9.8 kg (22 lb). Physical volume control option available (9310BM) – requires GLM™ kit or 9320A (not included).

Warranty & calibration

Warranty: Includes a 2-year warranty, plus an additional 3-year extended warranty when registered on MyGenelec.

GLM Calibration: Requires free GLM software and either our 9320A SAM™ Reference Controller or GLM Calibration Kit device (both sold separately) for calibration.

System Specifications
Frequency Response 45 Hz – 20 kHz (± 1.5 dB)
Frequency Response – Low cutoff -6dB 38 Hz
Frequency Response – High cutoff -6dB 37 kHz
SPL – Peak SPL ≥118 dB
SPL – Short term max SPL ≥110 dB
SPL – Long term max SPL ≥101 dB
Self-generated noise ≤3 dB SPL
Weight 9.8 kg (21.6 lb)
Dimensions – Height 351 mm
Dimensions – Height with Iso-Pod 370 mm
Dimensions – Width 237 mm
Dimensions – Depth 243 mm
Enclosure – Enclosure material Die cast aluminium
Enclosure – Enclosure type Reflex port
Bass – Driver type Racetrack
Bass 8341A bass driver
Bass – Count 2
Bass – Width 170 mm
Bass – Height 90 mm
Midrange – Driver type Coaxial
Midrange 8341A midrange driver cone (coaxial)
Midrange – Diameter 90 mm
Treble – Driver type Coaxial
Treble 8341A treble driver metal dome (coaxial)
Treble – Diameter 19 mm
Amplifier Section
Amplifiers 250 W Class D
Amplifiers 150 W Class D
Amplifiers 150 W Class D
Mains voltage 100-240 VAC 50/60Hz
Power consumption – ISS Active ≤0.5 W
Power consumption – Idle ≤16 W
Power consumption – Full output 250 W
Signal processing section
Crossover – Bass/Mid 500 Hz
Crossover – Mid/Treble 3000 Hz

Additional information

Brand

  • 1 x 8341A monitor
  • 1 x mains cable 1,8 m
  • 1 x RJ45 cable 5 m
  • 1 x operating manual
  • 1 x The Ones brochure
