IPT-10G2-SDI is designed to bridge 3G-SDI video sources into SMPTE ST 2110 networks.
The IPT-10G2-SDI receives baseband video plus up to 16 embedded audio channels over 3G-SDI, then encapsulates the data for output as SMPTE ST 2110 over 10 GigE. Associated audio from the video stream is extracted, synchronized, and embedded into the SMPTE ST 2110 stream. Alternatively stereo audio can be fed into the stream from the dual RCA inputs.
2x 10 GigE SFP+ cages are provided, allowing “hitless switching” (ST 2022-7) redundancy protection for critical contribution and transmission environments.
Features
IPT-10G2-SDI transmits a SMPTE ST 2110 essence from an incoming 3G-SDI input source. Providing two SFP+ cages for protection with “hitless switching” (ST 2022-7), it’s rugged, quiet, fanless, AJA Mini-Converter design is ideal for placement in a wide range of scenarios, from on-set to in the studio.
Key features:
- SMPTE ST 2110 audio, video transmitter
- Rugged, quiet, fanless design
- 3G-SDI Transmitter with 1x full size BNC input up to 1080 60p, 4:2:2, 10-bit, YCbCr
- Full 10-bit pixel processing pipeline
- Embedded SDI audio input (up to eight channels)
- 2x RCA analog audio input
- 2x 10 GigE SFP+ cages for media LAN (providing support for ST 2022-7 hitless switching) with status light
- 1x 1 GigE RJ-45 socket for control LAN with status light
- Complete control interface on any web browser from a built-in web server
- 1x mini-USB port providing an alternate method of initial network configuration with AJA eMini-Setup software
- Customizable control with AJA REST API
- Five year warranty

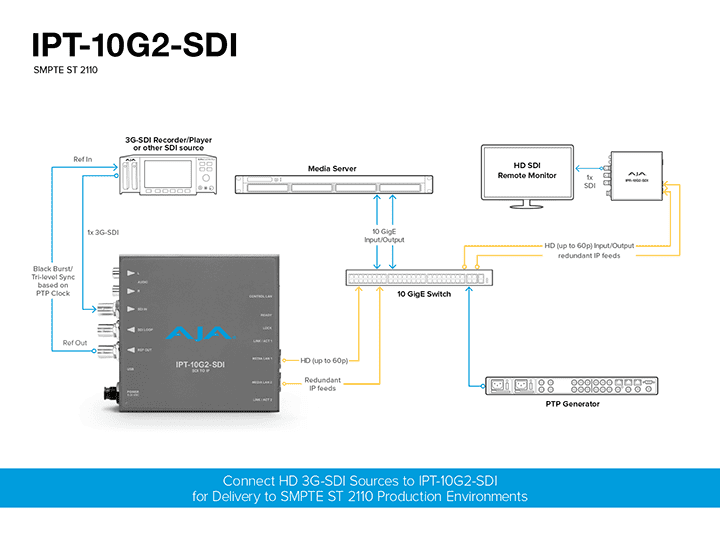

With new IP based facilities often requiring integration with traditional baseband sources, and with existing 3G/1.5G-SDI routers often at capacity while facilities undertake their transition to IP, IPT-10G2-SDI provides a solution for converting baseband camera, router or edit bay sources, and then formatting and transmitting via IP to provide that content to a range of destinations.

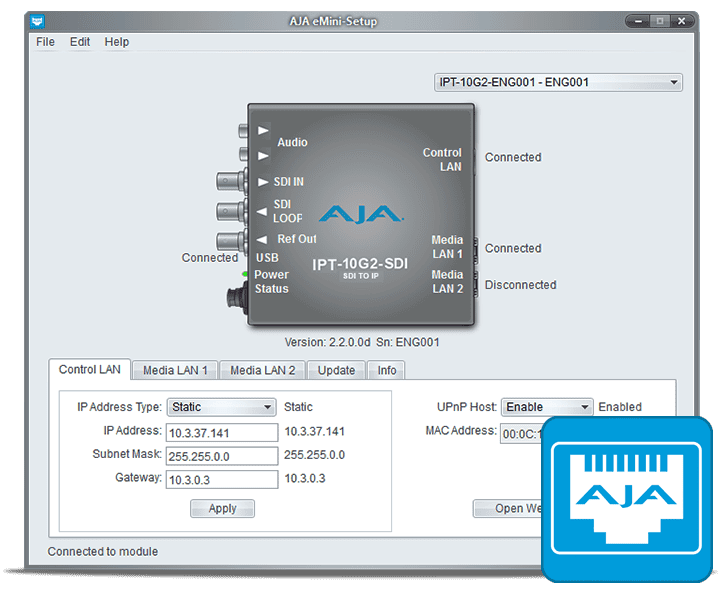

IPT-10G2-SDI provides two key methods for control. The Control LAN Ethernet port enables control of the Mini-Converter from web browsers on any platform and REST clients. The mini-USB connector facilitates quick and simple initial network configuration and firmware updates with AJA eMini Setup software.
- 1x RJ-45 (IEC 60603-7) for 10/100/1000 Base-T Ethernet (IEEE 802.3-2012)
- HTTP/1.1 (RFCs 7230, 7231, 7232, 7233, 7234, 7235)
- Web and REST clients supported
- 1x USB 2.0 Mini-B (IEC 62680-1) connector
- AJA eMini-Setup of network parameters
- NMOS transmit (Discovery, Registration and Control)
- According to standards IS-04 v1.2 & IS-05 v1.0.
- AJA REST API (Control Only)
- Discovery is supported via SSDP, allowing AJA REST API to then be used for Control
- Discovery is also supported via MDNS, allowing AJA REST API to then be used for Control
- Ember+ (no Discovery, Control only) v1.6.2
All AJA Mini-Converters ship with a universal power supply that includes international plug connections for use around the world.
AJA Mini-Converters are small enough to fit behind a monitor, in the back of a rack or directly on a camera rig. A locking power connector can’t accidentally pull loose and an optional P-TAP power cable allows for battery power in remote locations.
Information on the complete line of AJA Mini-Converters is now available as a mobile app on iOS. The Mini-Converter product line is extensive and this app helps you find the right converter for any situation, wherever you are.
Individual products have links back to the main AJA website for more details and you can email product information directly from the app. The free AJA Mini-Matrix app for iPad® and iPhone® is available now in the Apple iTunes® Store.
