Open Gear 3G-SDI Reclocking Distribution Amplifier, dual 1×4

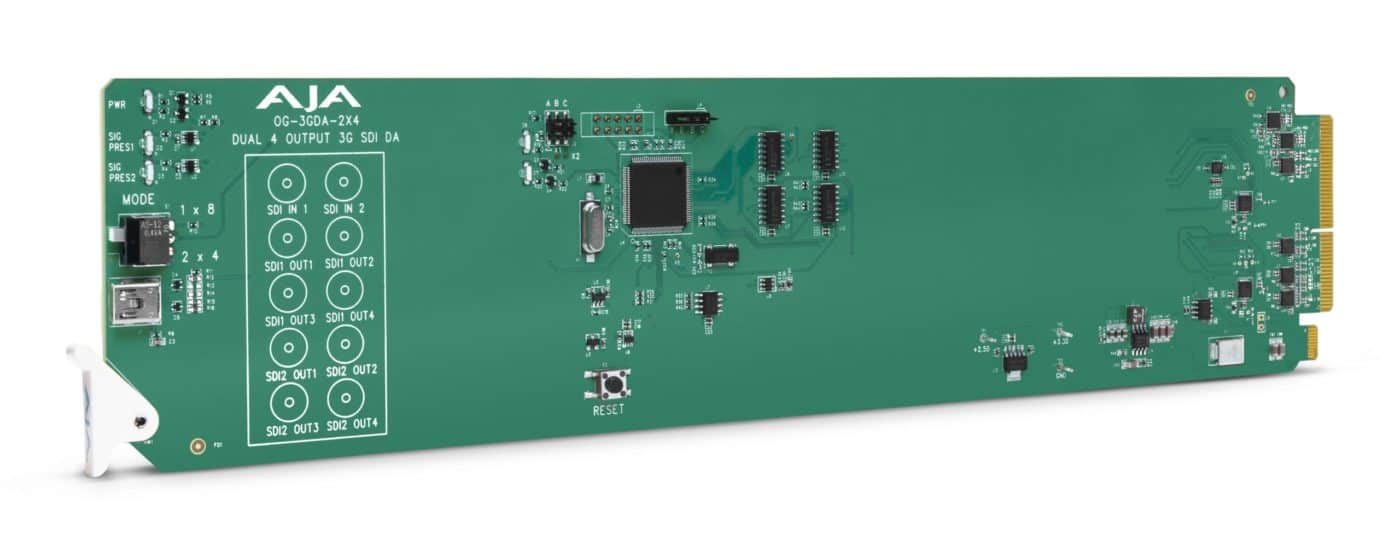

The AJA OG-3GDA-2×4 is an openGear-compatible 3G-SDI reclocking distribution amplifier, switchable between 1×8 and dual 2×4 modes, in a single-slot openGear card.

738,00€ (ex. VAT)

SKU: OG-3GDA-2X4 Categories: , , Brand:

The AJA OG-3GDA-2×4 reclocks and distributes 3G/HD/SD-SDI signals, switchable between a single 1×8 distribution amplifier or two independent 1×4 amplifiers (2×4 mode). Automatic input detection, reclocking and cable equalization are provided in the openGear platform.

The card is backed by a five year warranty.

Video Formats

  • SD, HD and 3G-SDI

Video Input Digital

  • 1 x 3G-SDI BNC (1×8 mode) or 2 x 3G-SDI BNC (2×4 mode), SMPTE-259/292/424

Video Output Digital

  • 8 x 3G-SDI BNC, SMPTE-259/292/424 (1×8 or dual 1×4)

Cable Equalization

  • Belden 1694A coax: 3 Gbps, 120m; 1.5 Gbps, 200m; 270 Mbps, 350m

Reclocking

  • 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.966 Gbps, 2.970 Gbps – Auto Select
  • All other rates are passed through and not reclocked

openGear

  • Single-slot openGear card; compatible with openGear and DashBoard-enabled frames
  • Powered by the openGear frame (no external power supply required)
  • Remote configuration and monitoring via DashBoard

Environmental Specifications

  • Safe Operating Temperature: 0 to 40°C (32 to 104°F)
  • Safe Storage Temperature (Power OFF): -40 to 60°C (-40 to 140°F)
  • Operating Relative Humidity: 10-90% noncondensing
  • Operating Altitude: <3,000 meters (<10,000 feet)

Warranty

  • Five year warranty

Additional information

Brand

  • AJA OG-3GDA-2×4 openGear card

Requires an openGear frame (sold separately).
