AJA

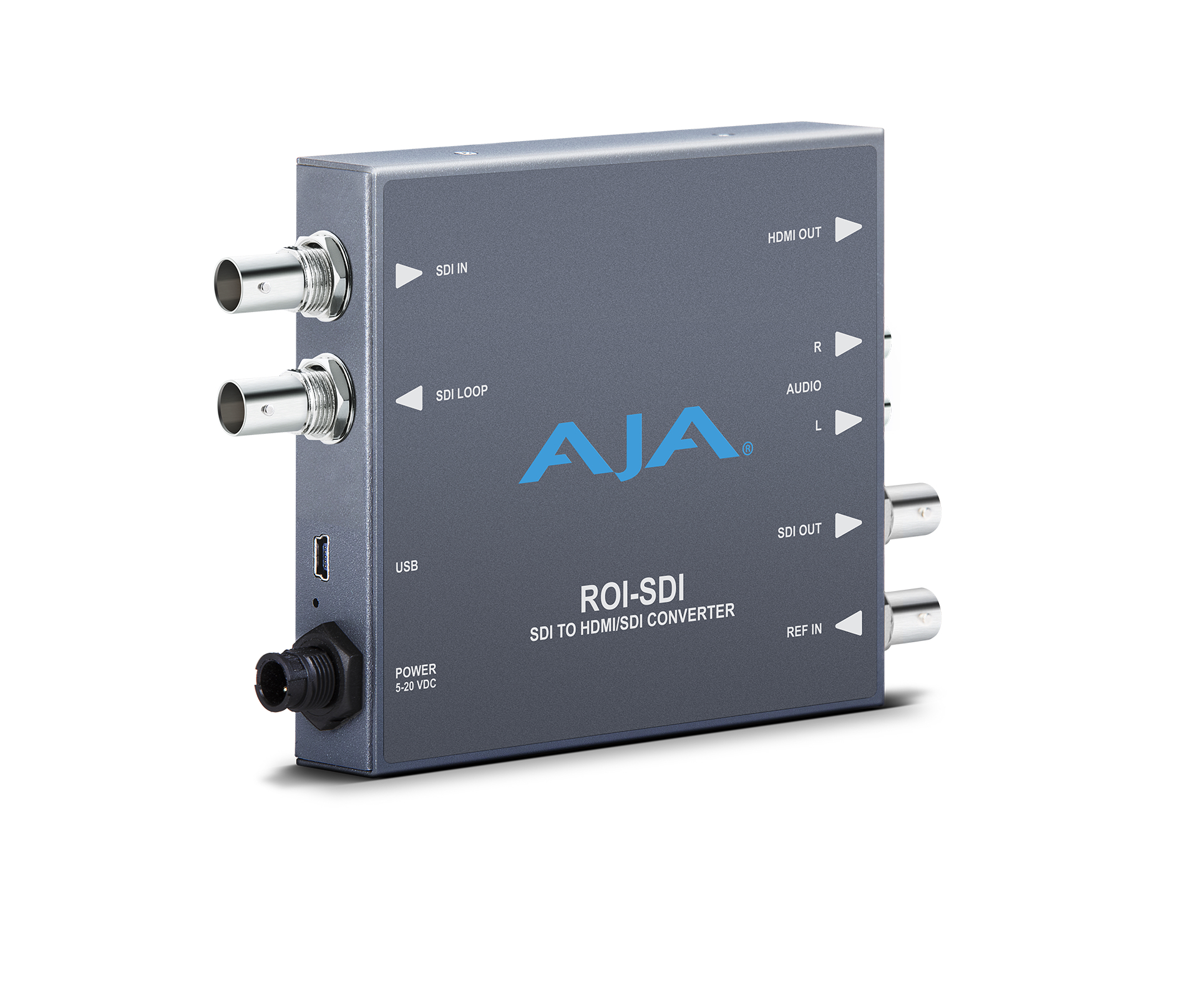

3G-SDI to 3G-SDI and HDMI convertor with region of interest scaling

1.133,00 (ex. VAT)

SKU: ROI-SDI Categories: , ,

AJA’s ROI-SDI Scan Converter allows exceptionally high quality conversion and extraction of a Region of Interest (ROI) from a 3G-SDI input to 3G-SDI and HDMI mirrored outputs at an affordable price in a very portable form factor. With incredible image scaling, extensive aspect ratio conversion and audio functionality, ROI-SDI fulfills the growing need to customize video signals for a range of display and SDI workflow needs without sacrificing budget or space.

Features

  • SDI to 3G-SDI & HDMI conversion
  • Frame Rate Conversion
  • Conversion between Deinterlace and Progressive signals
  • Region of Interest scaling
  • SDI input with loop-through
  • Accepts input SDI formats up to 1920 x 1200p 60 Hz
  • Configurable SDI & HDMI output formats from 525i 29.97 to 1920 x 1080p 60 Hz
  • Aspect ratio conversion and image flip/rotation
  • 2-channel disembedding of balanced analog audio, 2-channel or 8-channel of SDI & HDMI audio outputs
  • Reference Source (Free Run & Ext Ref)
  • Genlock input
  • Configure via USB port and supplied Mini-Config software
  • Uses 5-18VDC power (universal power supply included)
  • Five year warranty
Region of Interest

Rotate source signals, customize a portion of an image or reframe the source image to extend the creative options for what’s been captured in camera.

Connecting a ROI-SDI Mini-Converter via USB to a computer running the free Mini-Config application lets you interactively select a Region of Interest from the original signal and have full control over how that region is scaled to the output resolution using AJA’s high quality scaling algorithms for the cleanest picture quality possible.

AJA Quick Start:

ROI Scan Converters

Watch this video to learn how to configure and control your ROI with AJA’s free Mini-Config control software.

View Video

Conversion

Take full control of aspect ratio conversion with on-screen controls in the Mini-Config software that show you exactly what your source and output will look like and what formats are coming in and going out. Simple menu controls let you quickly choose the proper output for any situation.

The output will be mirrored to both the 3G-SDI and HDMI outputs for simultaneous delivery to multiple displays or continuing signal paths.

Connectivity

ROI-SDI utilizes a direct 3G-SDI loop through, allowing it to be placed in-line so you still have a connection to an external monitor while extracting to both 3G-SDI and HDMI. The reference input ensures the 3G-SDI signal out of ROI is locked for use throughout a production or facility.

Audio

ROI-SDI accepts  8-Channel embedded audio from an 3G-SDI input. The audio source and routing can be selected in the Mini-Config software and is embedded in the 3G-SDI and HDMI outputs. ROI-SDI also features a stereo RCA output for simple monitoring needs.

Universal Power Supply

All AJA Mini-Converters ship with a universal power supply that includes international plug connections for use around the world.

Compact and Portable

AJA Mini-Converters are small enough to fit behind a monitor, in the back of a rack or directly on a camera rig. A locking power connector can’t accidentally pull loose and an optional P-TAP power cable allows for battery power in remote locations.
