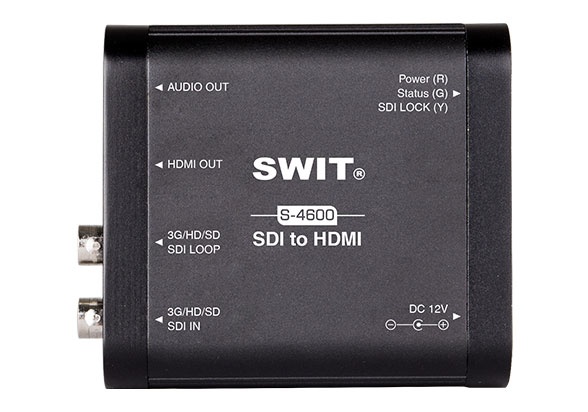

S-4600 is a mini converter for SDI to HDMI® conversion, widely used on HDMI® televisions, LED screens, projectors to display up to 3Gb/s broadcast SDI videos.
Key features
- Portable 3G/HD/SD-SDI to HDMI Converter
- 1 SDI input, 1 HDMI® output, and 1 SDI loop output
- SDI audio output via 3.5mm socket
- Embed SDI audio to HDMI® output
- Power/input/output status indicator
- Pole-tap 6-18V DC power input
- Heavy duty aluminium housing
- Bottom screw threads for installing
Portable Mini Converter
SDI to HDMI®

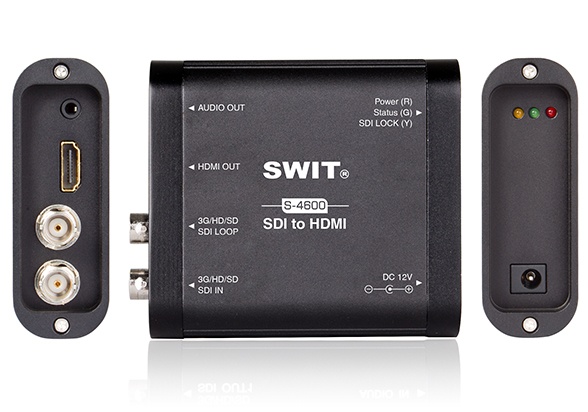

Input & Output
S-4600 offers:1× 3G/HD/SD-SDI input1× 3G/HD/SD-SDI loop output (Reclocked)1× HDMI® Type-A output1× 3.5mm audio output(The SDI to HDMI® supports the same format conversion only.)
SDI Embedded Audio Converting and Monitoring
The SDI embedded audio ch-1 & ch-2 can be converted into HDMI® and output via 3.5mm headphone socket, and support 48kHz sample rate.
Status Indicators
Power / Input / Output
S-4600 provides 3 LED indictors, to check if the power is connected, and if the input/output signal is delivered.
Power Supply
The mini converter is powered by pole-tap DC socket. The package includes an AC-DC power adaptor, and you can also connect DC cable from 6-18V batteries.

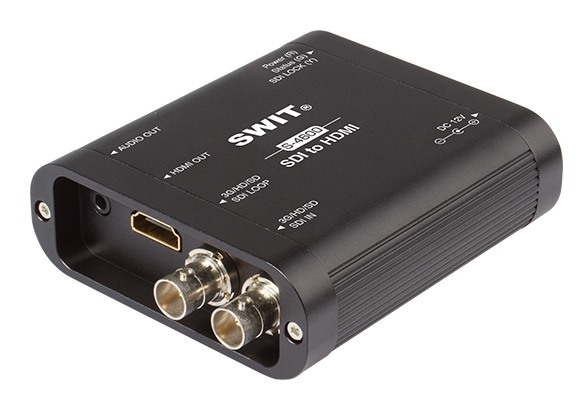

Heavy Duty Housing
The S-4600 mini converter adopts uni- body aluminium alloy housing, strong for field using and protects the BNC connec- tors effectively.

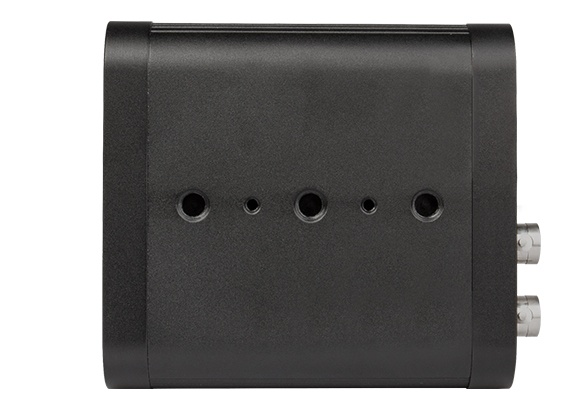

Installation
S-4600 provides the bottom 1/4-inch screw threads for fixing on cameras, and an installing plate A-IP00 is supplied in the package, for fixing on wall and binding the BNC/HDMI® cables.
