Convert Quad Link SDI to 12G-SDI so you can connect Quad Link Ultra HD equipment to the latest 12G-SDI Ultra HD equipment. Allows equipment that uses four BNC cables to be connected using a single 12G-SDI BNC cable for connecting to the latest routers, switchers, projectors and more! Supports both Level A and Level B 3G-SDI equipment.
Blackmagic Design

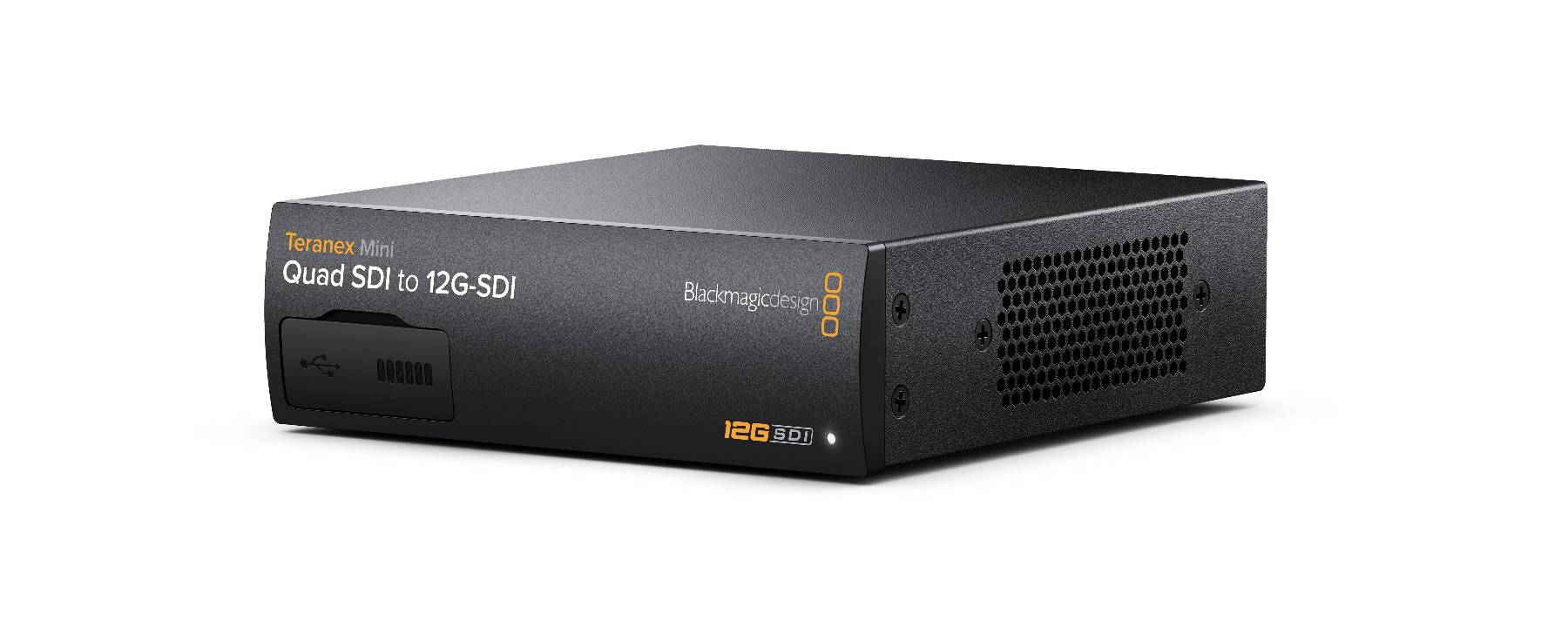

Teranex Mini – Quad SDI to 12G-SDI
Convert Quad Link SDI to 12G-SDI so you can connect Quad Link Ultra HD equipment to the latest 12G-SDI Ultra HD equipment. Allows equipment that uses four BNC cables to be connected using a single 12G-SDI BNC cable for connecting to the latest routers, switchers, projectors and more!
518,00€ (ex. VAT)
Connections

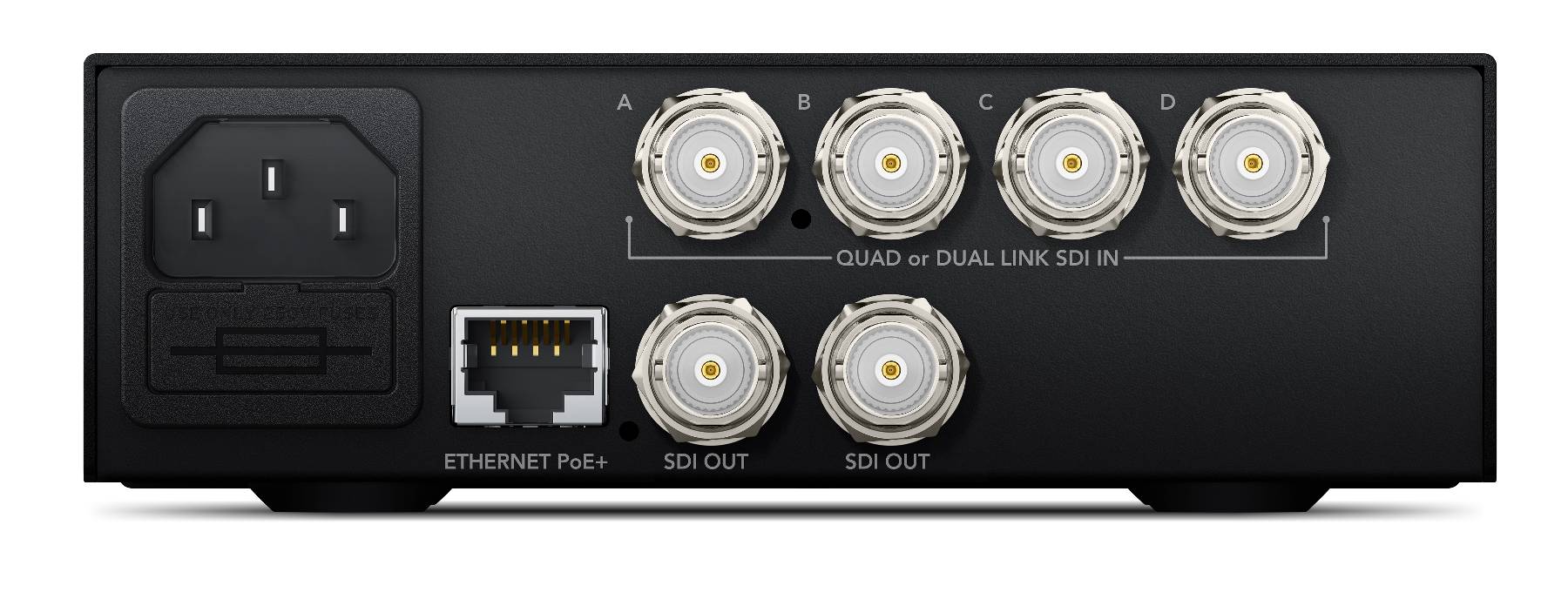

- SDI Video Inputs: 4 x 12G-SDI SD/HD/2K/4K auto switching.
- SDI Video Outputs: 2 x 12G‑SDI.
- Multi Rate Support: Automatic switching between SD/HD/2K and 4K
- Embedded Audio Support: 16 channels.
- Updates and Configuration: USB or Ethernet
- Reclocking: Yes
Standards
- SD Video Standards: 525i59.94 NTSC, 625i50 PAL
- HD Video Standards: 720p50, 720p59.94, 720p60
1080i50, 1080i59.94, 1080i60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 - 2K Video Standards: 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI
2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI - Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
- 4K Video Standards: 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI
- SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1 and SMPTE 2082‑10
- SDI Video Rates: SDI video connections are switchable between standard definition, high definition level A and level B 3G-SDI, 6G-SDI and 12G-SDI.
- SDI Video Sampling: 4:2:2 and 4:4:4
- SDI Audio Sampling: Television standard sample rate of 48 kHz and 24-bit.
- SDI Color Space: YUV & RGB
Software
- Software Control: Mac™ and Windows™ software upgrade via USB and Ethernet.
- Internal Software Upgrade: Via included updater application.
Operating Systems
- Mac 10.15 Catalina,
Mac 11.1 Big Sur or later. - Windows 10, 64-bit.
Settings Control
- Basic Settings Control: Mini Switches, USB and Ethernet via free software utility.

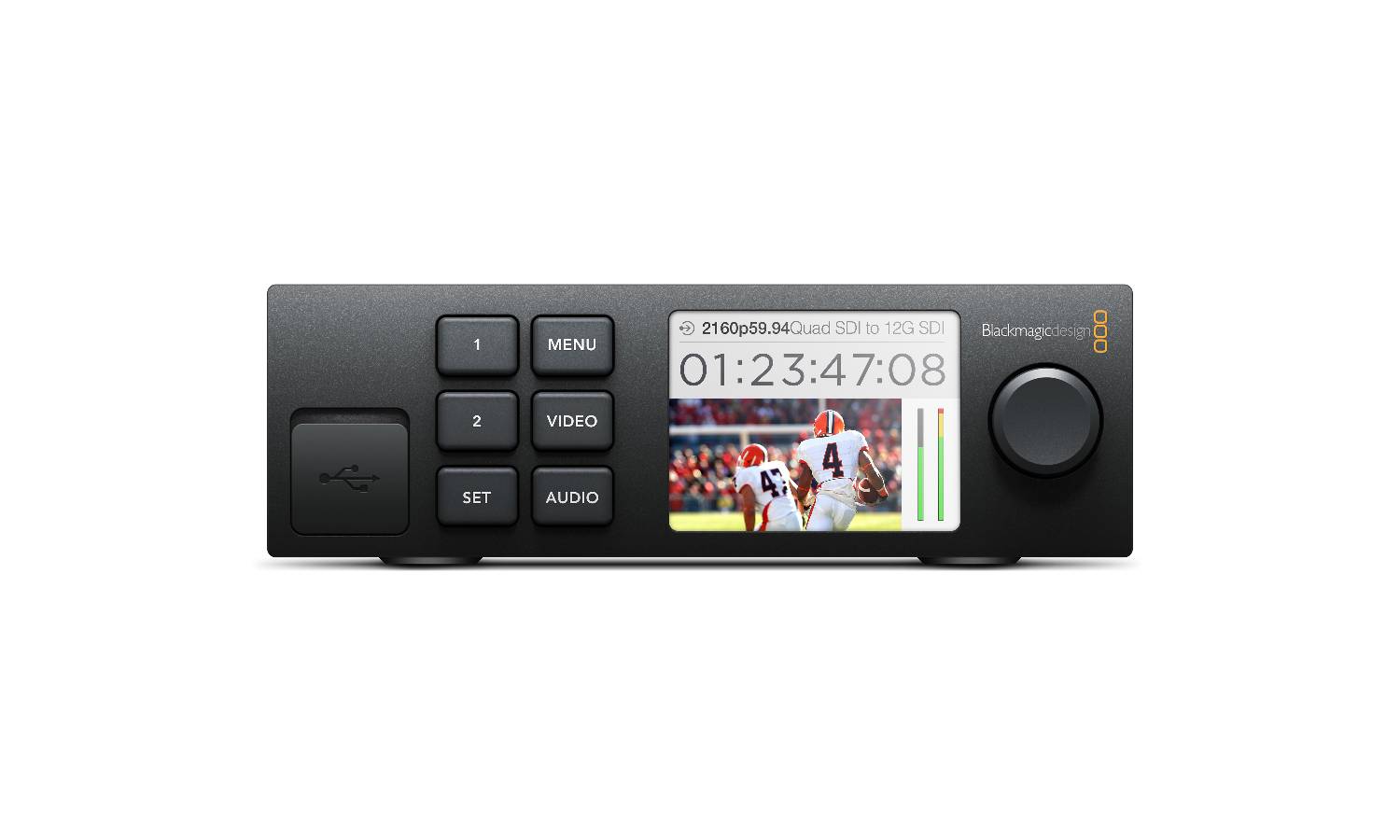

- Optional Front Panel Control: Front mounted Smart Panel with LCD, rotary knob and six settings buttons.
Power Requirements
- Power Supply: 1 x built-in international AC power supply with IEC C14 inlet. IEC Power cable required. 100 – 240V AC Input.
- Power Over Ethernet: Can be powered via 48V DC using PoE+ (power over ethernet).
- Power Consumption: 16 Watts
- Operational Voltage Range: 100 – 240V AC
Environmental Specifications
- Operating Temperature: 0° to 40°C (32° to 104°F)
- Storage Temperature: -20° to 60°C (-4° to 140°F)
- Relative Humidity: 0% to 90% non‑condensing
Warranty
3 Year Limited Manufacturer’s Warranty.
Additional information
| Brand |
|---|
- Teranex Mini Quad SDI to 12G‑SDI
- Welcome wallet with QR code for software download
Blackmagic software is available as a free download from the Blackmagic Design support website.
