The AJA KUMO 3232 provides 32×32 routing of 3G-SDI / 1.5G-SDI signals with ganged dual and quad-port routing control for grouping inputs and outputs. It is controlled over the network via web UI, hardware control panels or third-party systems, in a compact 2RU chassis.
AJA
2RU KUMO 32×32 3G-SDI Router, 1 PSU included

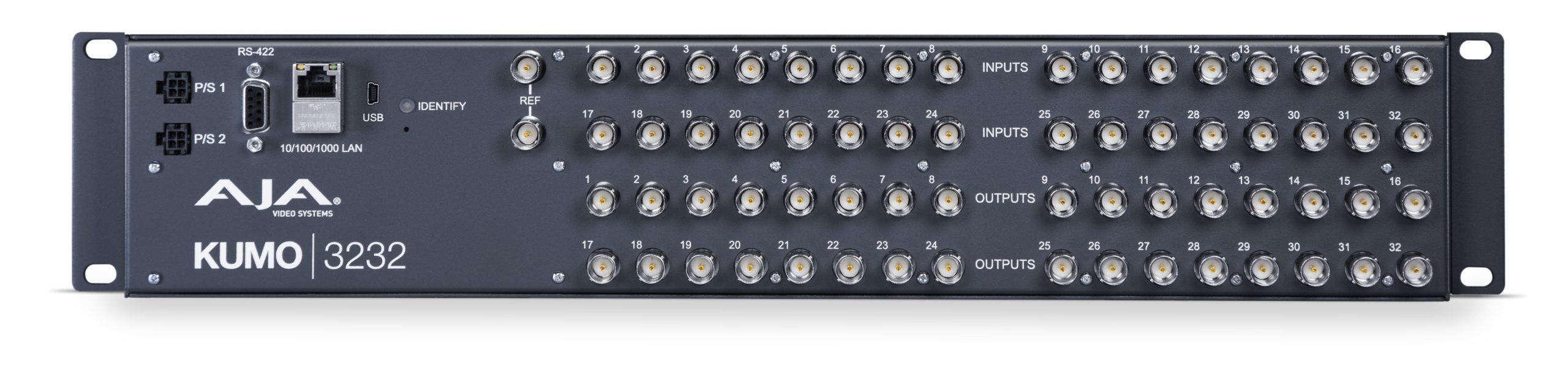

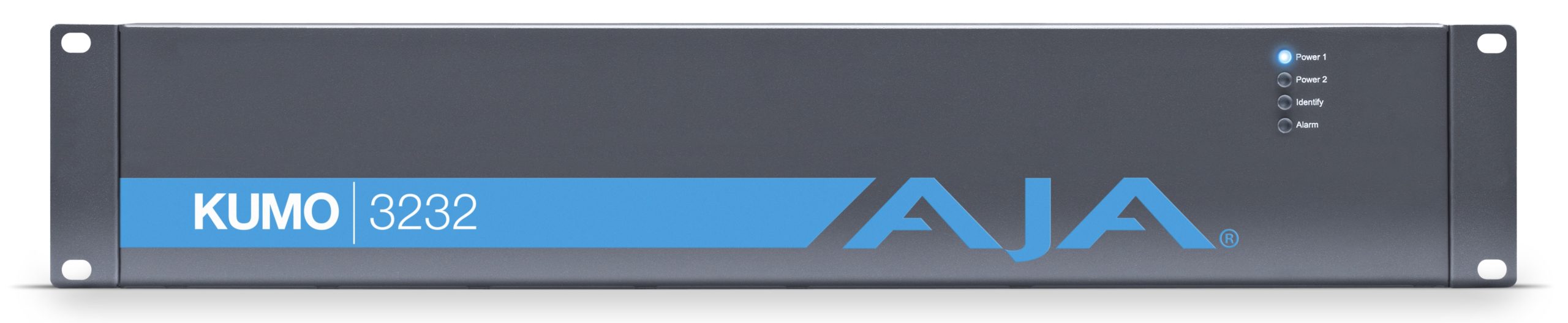

The AJA KUMO 3232 is a compact 32×32 3G-SDI router in a 2RU profile, with 32 inputs and 32 outputs and network-based control.
4.582,00€ (ex. VAT)
Routing
- 32 x 32 crosspoint router
- 3G-SDI / 1.5G-SDI
- Ganged dual and quad-port routing control
Control
- Network control via embedded web UI, KUMO hardware control panels and third-party systems
Form Factor
- 2RU rack-mount chassis
Environmental Specifications
- Safe Operating Temperature: 0 to 40°C (32 to 104°F)
- Safe Storage Temperature (Power OFF): -40 to 60°C (-40 to 140°F)
- Operating Relative Humidity: 10-90% noncondensing
- Operating Altitude: <3,000 meters (<10,000 feet)
Additional information
| Brand |
|---|
- AJA KUMO 3232
- Power supply
