Blackmagic Design

ATEM Constellation 8K

Ultra HD live production switcher with so many features they combine into a powerful 8K switcher.

9.809,00€ (ex. VAT)

SKU: SWATEMSCN4/1ME4/8K Categories: , , Brand:

ATEM Constellation 8K is an Ultra HD live production switcher with so many features that you can combine them all to make an incredibly powerful 8K switcher.

Key features

  • 4 M/Es, 40 x 12G-SDI inputs and 24 x 12G-SDI aux outputs with standards conversion on every input
  • 4 DVEs, 16 keyers, 4 media players, 4 multiviewers and 2 SuperSource processors
  • Built in talkback and a professional 156 channel Fairlight audio mixer with EQ and dynamics

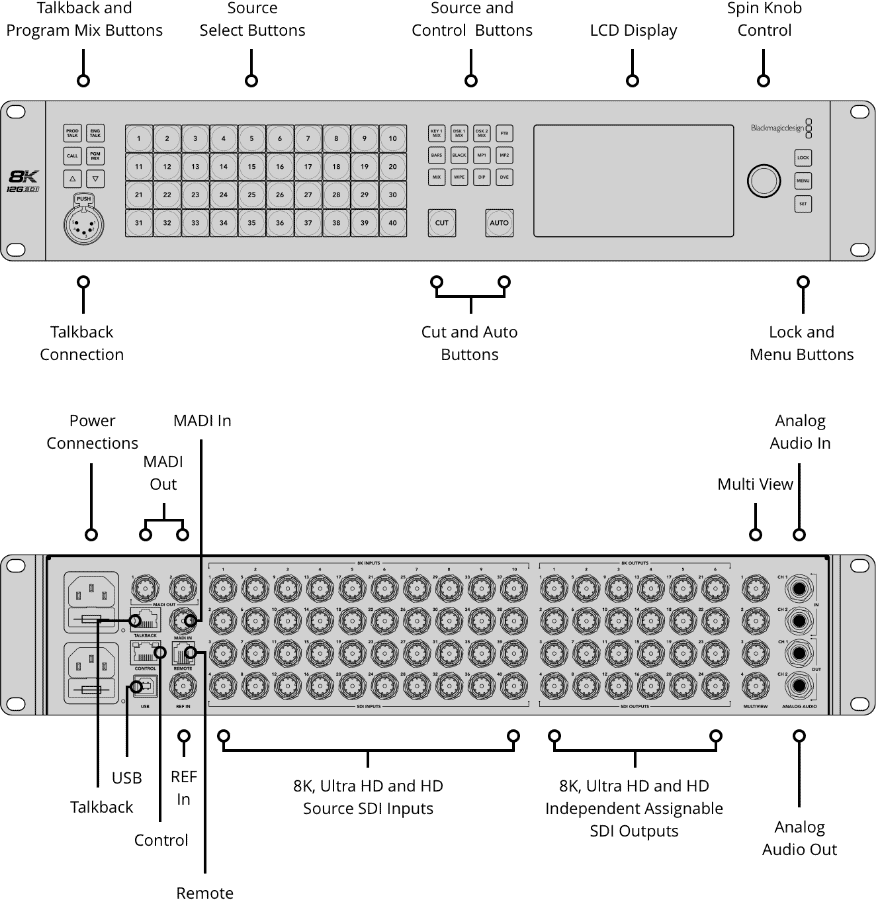

  • Compact 2RU design with a built in control panel and large LCD for setup and emergency use
  • When switched to 8K, the 40 inputs transform into 10 Quad Link 12G-SDI 8K inputs

Specifications

  • Supports HD, Ultra HD and 8K via Quad Link 12G-SDI
  • 40 x 12G-SDI inputs, 24 x 12G-SDI aux outputs
  • 2RU rack mount with built in control panel
  • Controlled via ATEM Software Control or ATEM Advanced Panels

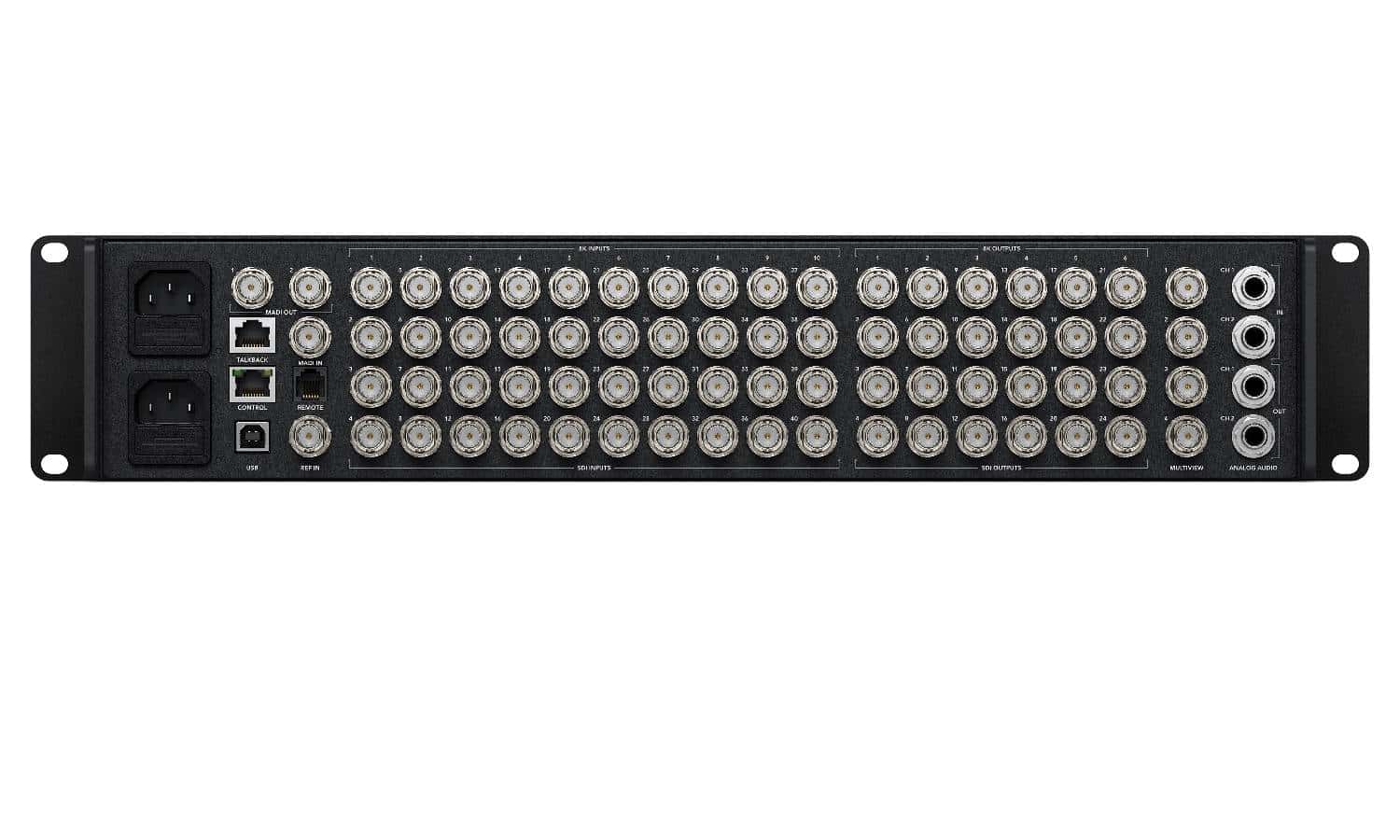

Connections

SDI video inputs 40 x 12G-SDI (or 10 Quad Link 12G-SDI in 8K mode), standards conversion on every input
SDI aux outputs 24 x 12G-SDI
Audio Balanced analog, BNC MADI, 5 pin XLR talkback
Reference Tri-Sync or Black Burst
Control Built in 2RU control panel with LCD; Ethernet; free ATEM Software Control and ATEM Advanced Panels

Production

Mix effects 4 M/E
Video standards HD, Ultra HD and 8K (Quad Link 12G-SDI)
Keyers / DVE 16 keyers, 4 DVEs, 2 SuperSource
Media players 4
Multiviewers 4
Audio mixer 156 channel Fairlight with EQ and dynamics
Talkback Built in

Additional information

Brand

ATEM Constellation 8K is an Ultra HD live production switcher with so many features that you can combine them all to make an incredibly powerful 8K switcher. It features 4 M/Es, 40 x 12G-SDI inputs and 24 x 12G-SDI aux outputs with standards conversion on every input, 4 DVEs, 16 keyers, 4 media players, 4 multiviewers and 2 SuperSource processors, built in talkback and a professional 156 channel Fairlight audio mixer with EQ and dynamics.

The compact 2RU design includes a built in control panel with a large LCD for operation during setup or emergency use. When switched to 8K, the 40 inputs transform into 10 Quad Link 12G-SDI 8K inputs.
