Blackmagic Design

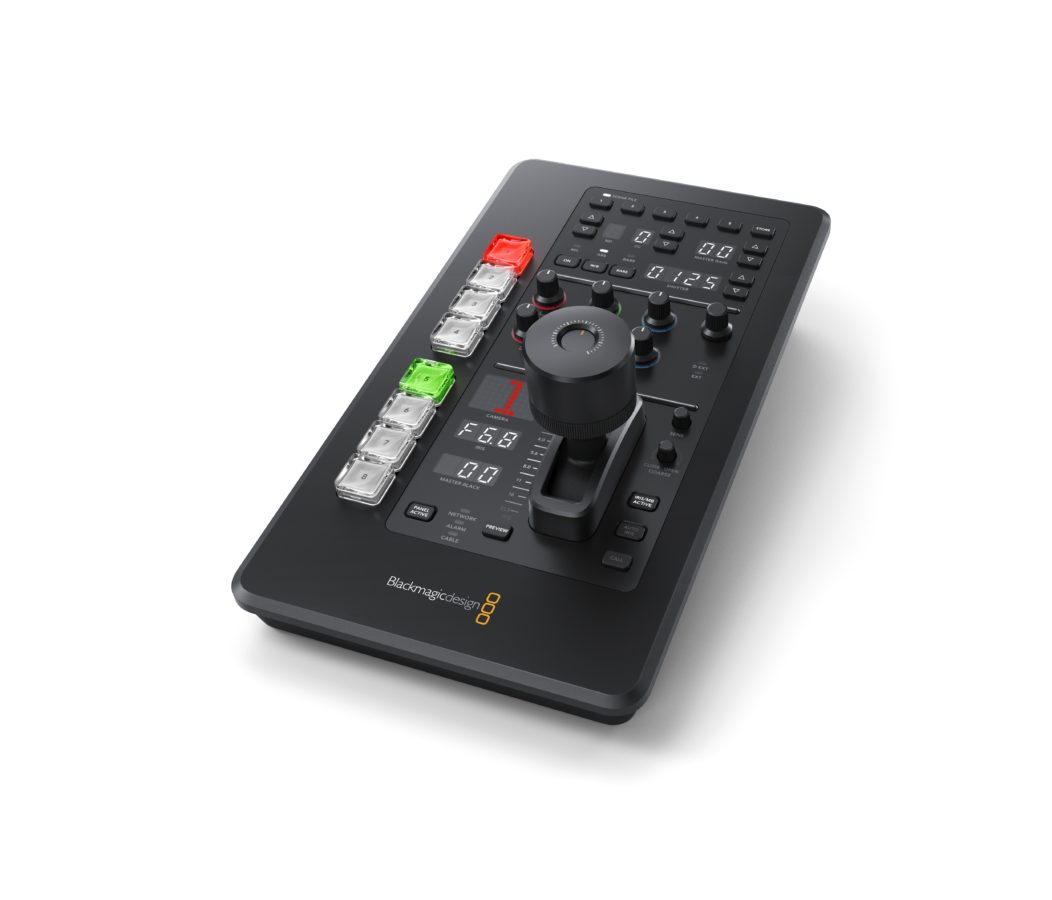

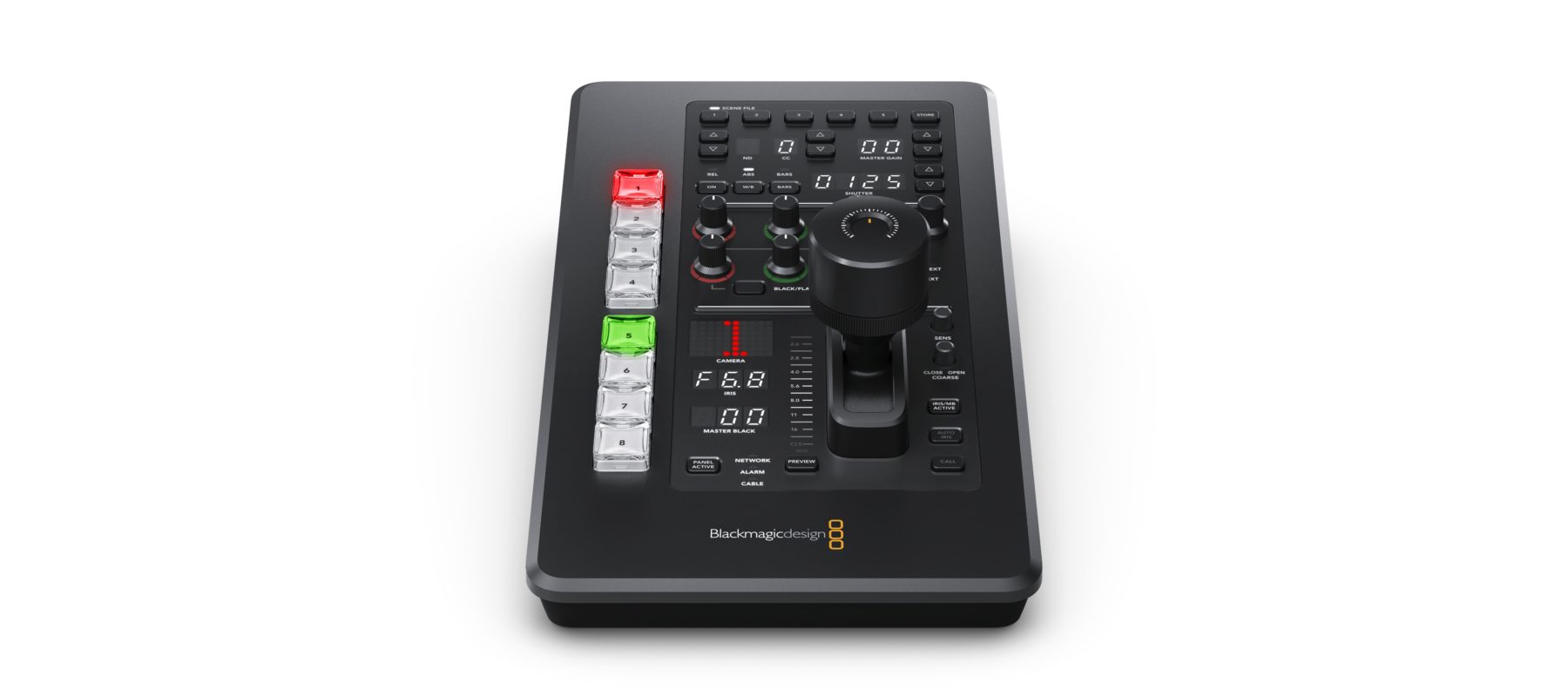

ATEM Micro Camera Panel

ATEM Micro Camera Panel is a portable camera panel with high end broadcast CCU controls. Control iris, pedestal, shutter, white balance, master gain, RGB balance and more for up to 8 cameras from a single panel. Connects to ATEM Software Control via Bluetooth or USB‑C.

508,00€ (ex. VAT)

SKU: SWPANELCCU1 Categories: , , Brand:

ATEM Micro Camera Panel is a portable camera panel with high end broadcast CCU controls. Control iris, pedestal, shutter, white balance, master gain, RGB balance and more for up to 8 cameras from a single panel. Connects to ATEM Software Control via Bluetooth or USB‑C.

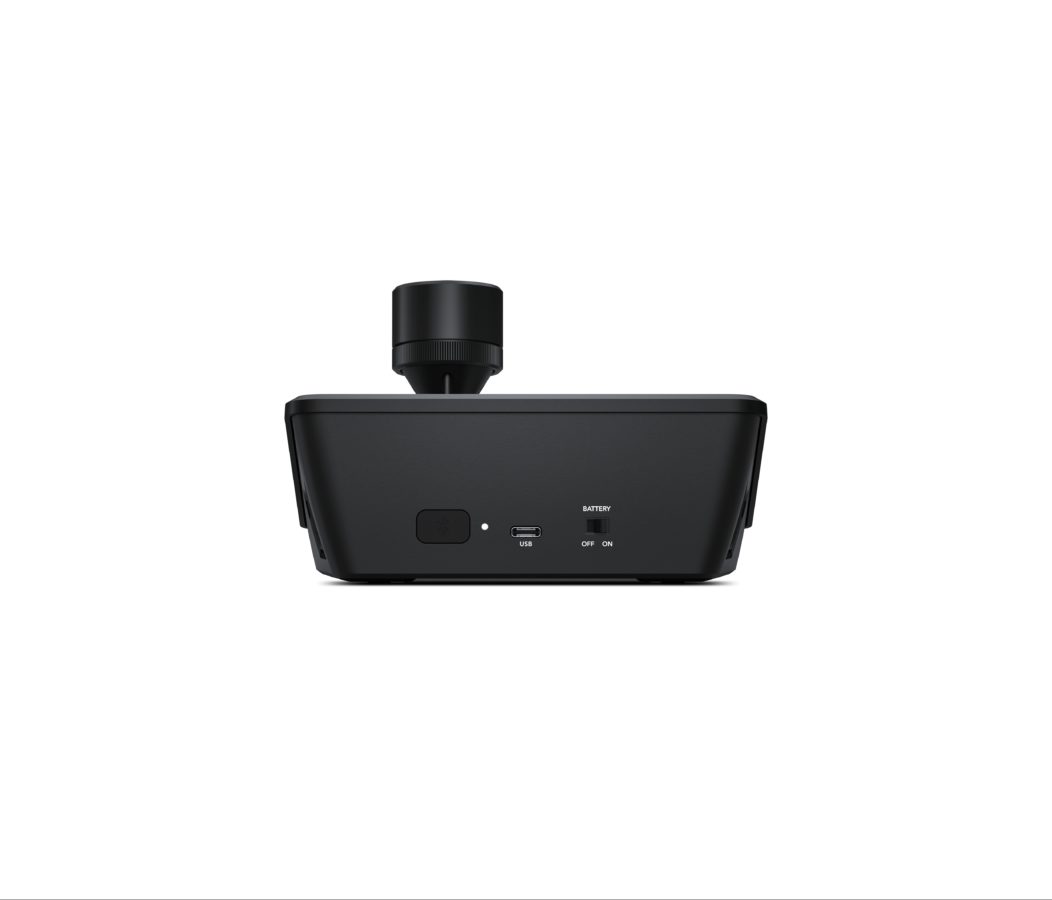

Connections

  • Computer Interface: USB Type‑C.
  • Bluetooth: Bluetooth 5.1 LE
  • Software Updates: 1 x USB‑C for firmware updates.

Product Specifics

  • Camera Selection buttons: 8 x NKK buttons. Assignable via setup utility.
  • Camera Number Display: Green off air, red on air.
  • Setup: White and black balance setup. Flare via modifier key.
  • 3 Axis Joystick: 1
  • Preview Button: 1
  • Iris Control: Auto Iris On, Coarse control.
  • Iris Range: CLS f32 to f1.2
  • Gain Range: -12dB to +32dB
  • ND Filters: 0, 2, 4, 6.
  • Shutter Range: 1/24 to 1/2000
  • White Balance Range: 2500K to 10,000K
  • Recallable Scenes: 5 per camera.
  • Panel Active: Protects settings.

Software

  • Software Applications: ATEM Micro Panel controls ATEM Software Control Panel running on the host computer.

Operating Systems

  • Mac 14.0 Sonoma,
    Mac 15.0 Sequoia or later.
  • Windows 10 and 11.
    Windows 11 for ARM

Power Requirements

  • Power Supply: Internal battery with power switch. USB-C port for external power supply and battery charging.
  • Power Usage: 4 W max.
  • Battery Life: Minimum 3 hours. (under normal use)

Environmental Specifications

  • Operating Temperature: 5° to 40° C (41° to 104° F)
  • Storage Temperature: -20° to 45° C (-4° to 113° F)
  • Relative Humidity: 0% to 90% non‑condensing

Warranty

  • 1 Year Limited Manufacturer’s Warranty.

Additional information

Brand

  • ATEM Micro Camera Panel
  • Welcome wallet with QR code for software download
  • 1 x USB‑C cable

Blackmagic software is available as a free download from the Blackmagic Design support website.
