AV-HLC100E Live Streaming Production Center Video Input
• Total 8 input: 4x3G SDI + HDMI input + IP inputs (RTSP/NDI + PTZ Auto Detect (EasyIP)
Audio Input
• SDI/IP Embedded
• 2x Balanced ¼ Audio jack
• Mic input 1/8jack via CPU board
Video Output
• 1x HDMI
• 2x3G SDI output
• RTMP Streaming Output
• NDI Program & Preview outputs
Audio Output
• SDI/HDMI/NDI Embedded
• 2x Balanced ¼ Audio jack (Line Level)
• 1/8Headphone Level jack
Video format
• 1080/59.94P (and 50P, 59.94i, 50i, 29.97P, 25P, 23.98P)
• 720/59.94P, 50P (and 29.97P, 25P, 23.98P)
Cross Conversion at Input (No Conversion between 60Hz-50Hz)
• Dissolve, WIPE, PinP, Title, Audio Control via GUI
PTZ Control
• 3D Joystick (PTZ Control by one hand)
• PST Store/Recall, Basic Camera control via GUI
2 Years European Warranty – 5 Day Guarantee Turn Around

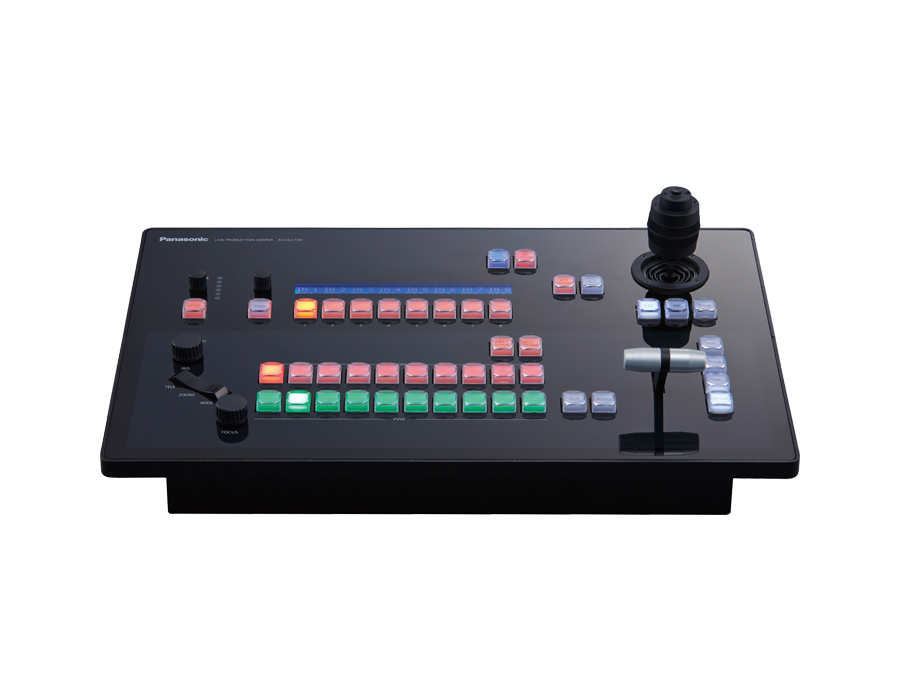

The AV-HLC100 combines a live switcher, remote camera controller and audio mixer in one unit. Live audio production for small live musical performances, lectures and presentations can now be done easily by one operator, instead of the multiple operators that are usually required. It is also compliant with the NDI® and NDI®｜HX*1 standards, enabling connection and control of the remote camera to be performed through the same LAN cable with power provided*2 for smooth remote shooting. RTMP (Real-Time Messaging Protocol) is also supported. Footage can be directly uploaded to various streaming services such as YouTube Live.
*1: In this instance, NDI® is used to indicate low latency with high bandwidth NDI®, NDI®|HX is used to indicate high efficiency low bandwidth NDI®|HX. NDI® is a new protocol developed by NewTek, Inc. that supports IP video production workflow. NDI® is a registered trademark of NewTek, Inc. in the United States and other countries.
8
• NDI® input from Panasonic PTZ Camera that supports NDI® | HX and NDI® compatible equipment
• IP input from Skype TX compatible PC
Audio Input
15
• 4-channel SDI/HDMI embedded audio x 4
• 4-channel NDI® embedded audio x 8
• 6.35 mm balanced line x 2
• 3.5 mm diameter, stereo mini jack x 1

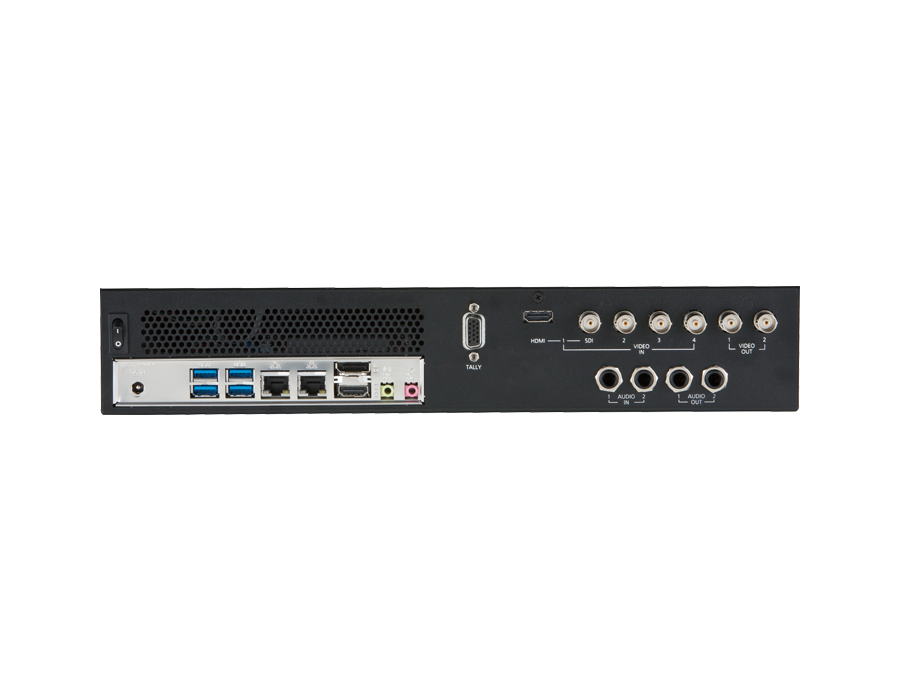

Video Output
4
• BNC x 1 3G-SDI (PGM)*1
• BNC x 1 3G-SDI (selectable from PGM / PVW / AUX)*1
• HDMI x 1 or Display Port (for GUI)*4 x 1
• Network output x 1
Network Video Output
1
selectable from MIX (PGM or PVW) / AUX
• NDI® output
• RTMP format streaming output*5
Audio Output
6
• SDI embedded audio x 2
• 6.35 mm balanced line x 2
• 3.5 mm diameter, stereo mini jack x 1
• NDI® embedded audio x 1
Effects and Transitions
Wipe / Mix / Cut
• Background Video
• PinP
• Title
Audio Mixing
• 4 ch. Master (Program) mix
• 12 x faders: 1 for each of 8 external audio inputs, plus 1 x internal Clips player and 1 x Skype TX Talkback input;
plus 1 x Master output and 1 x Headphones
• Plus 1 x separate audio fader for video Streaming output
• Seven-band equalizer and stereo compressor / limiter per input and output, with per-input audio delay control
Video Clip Memory
DDR x 1 ch*6
Still Store Memory
DDR x 1 ch*6
Title Buffer
1 Title Buffer (displays 1 of 8 Buffer presets)
Reference Input
Internal only

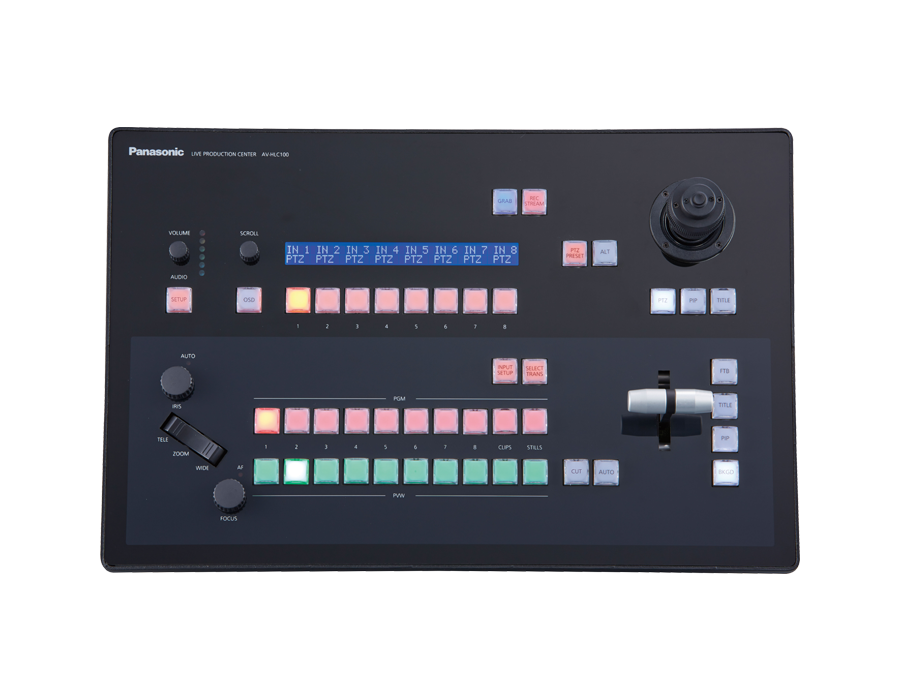

PTZ Camera Control (Via IP)
Number of connected cameras: Up to 8 cameras
Pan / Tilt / ZOOM / FOCUS control: 3 axis joystick (ZOOM / FOCUS is switched by pressing the upper button)
ZOOM control
Independent rocker switch
IRIS control
Independent IRIS knob, pressed AUTO / manual switching
FOCUS control
Independent FOCUS knob, pressed AUTO / manual switching /
Preset control
Store / recall, up to 100 positions
OSD menu control
OSD button*7
White balance control
GUI screen Camera menu or OSD screen (Auto / PST A / PST B / Execute)*7
