SmallHD

Cine 13

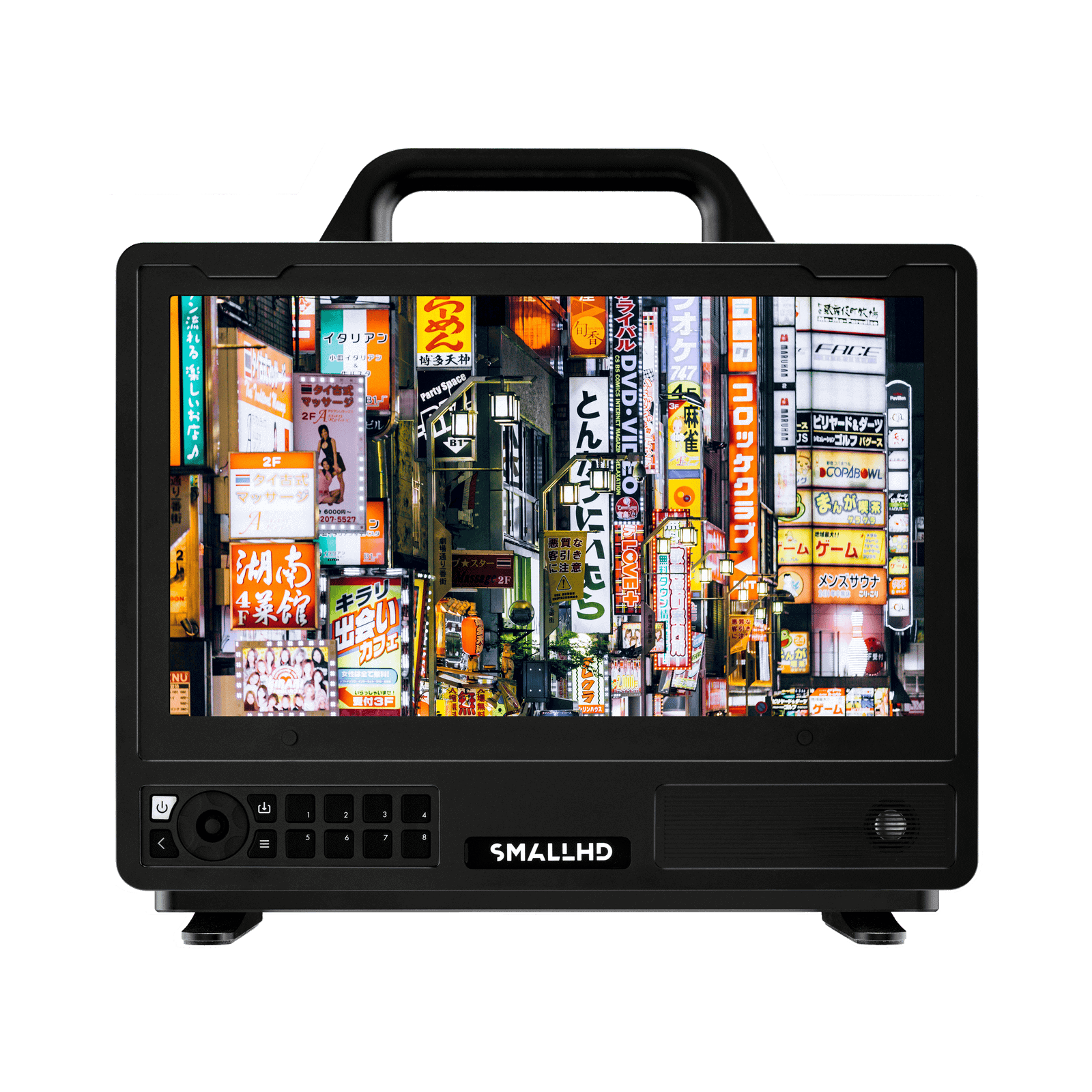

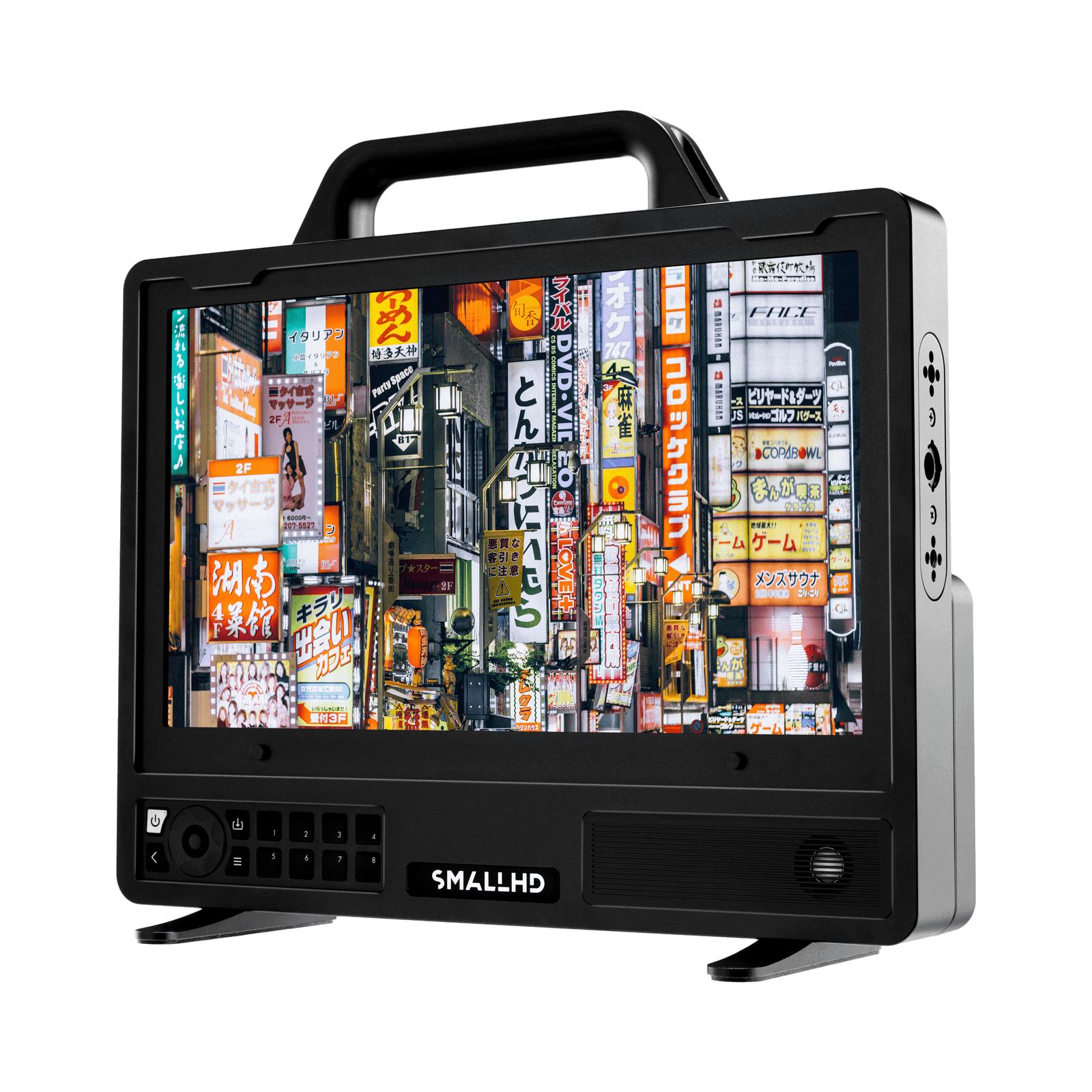

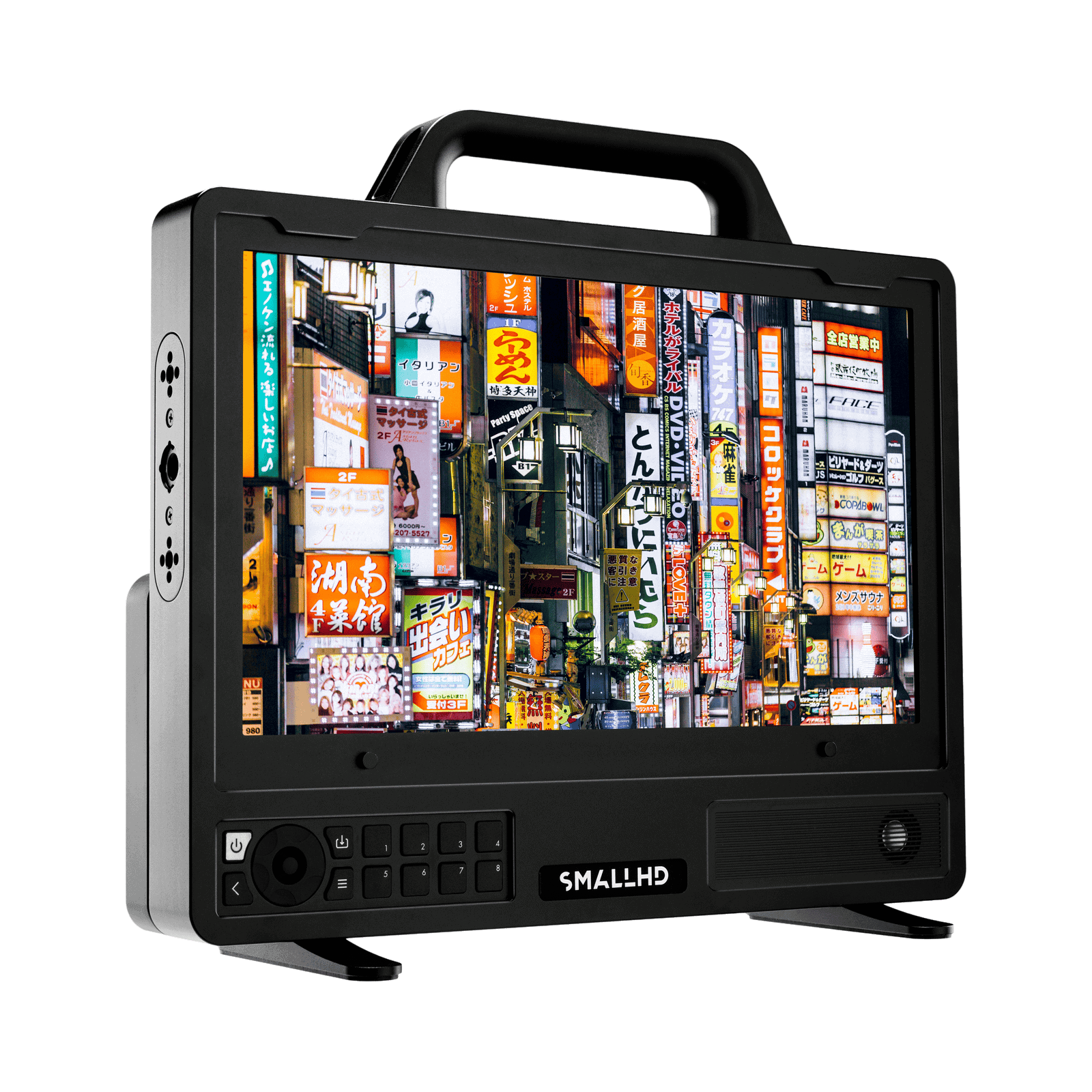

Cine 13 is an agile, brilliantly bright, and pixel-dense 4K production monitor designed for those on-set creatives who require critical focusing capability and a large display. Low-profile in design, this field companion can be rigged for almost any situation.

4.764,84€ (ex. VAT)

SKU: MON-CINE-13 Categories: , , Brand:

Cine 13 is an agile, brilliantly bright, and pixel-dense 4K production monitor designed for those on-set creatives who require critical focusing capability and a large display. Low-profile in design, this field companion can be rigged for almost any situation. And, weighing in at only 6.8lbs, the Cine 13 is making monitoring in 4K more portable than ever.

The Cine 13” 4K High-Bright Monitor boasts over 1500nits of brightness, ensuring an unobstructed look at your production in full sunlight without the need for a sunhood or viewing tent. The 13-inch screen has a 3840 x 2160 resolution and full 4K clarity, as well as 10-bit color depth for color-accurate images.

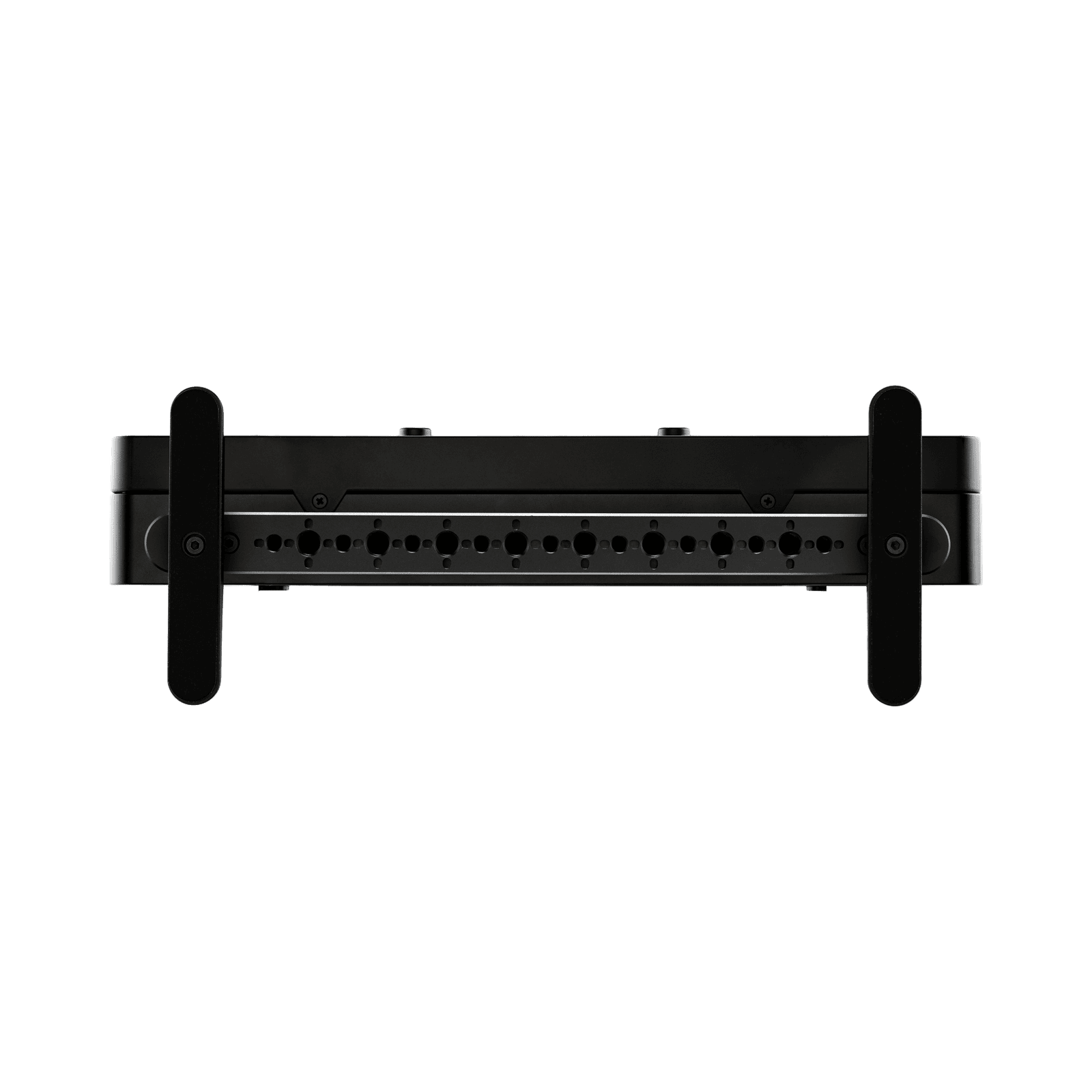

Cine 13 features four 12G SDI inputs and outputs as well as one HDMI 2.0 input. The Unibody Smart Chassis offers an Arca Slide on Rail for battery and accessory mounting, a lower mounting rail for ultimate flexibility, and 2x 2-pin accessory power outputs. Hot-swappable dual inputs allow you to add on Gold Mount or V-Mount battery plate attachments.

Meet Our Smart PageOS Software

With the power of SmallHD PageOS software, build customized Page Profiles, and utilize all of the dependable SmallHD features such as personalized frame guides, Focus & Exposure Assist, high-resolution 3D LUT overlays, histogram, vectorscope, waveform, and more. Learn more about PageOS.

Model Cine 13
Environmental
Item Weight (oz) 6.8lbs/3.09kg
Package Weight (oz) 16lbs
Height (in) 10.11 w/o feet and handle, 12.46 w/ feet and handle
Width (in) 13.25
Length/Depth (in) 2.4 w/o feet, 4.72 w/feet
Compliance FCC, IC, CE, UKCA, BIS, RCM, ROHS
Operating Temperature 32 F – 105 F
Storage Temperature 0F to 120F
Screen Protection Hardened

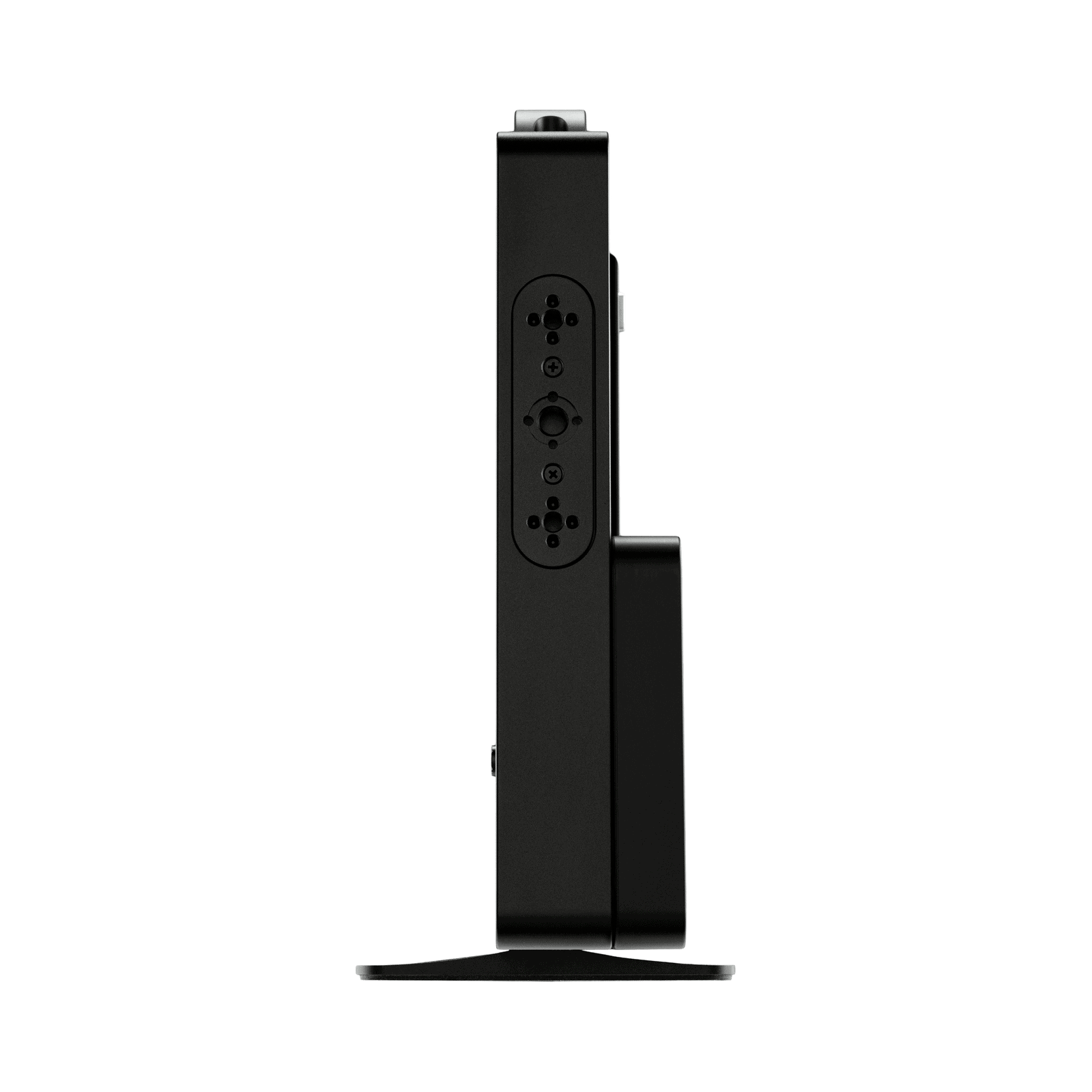

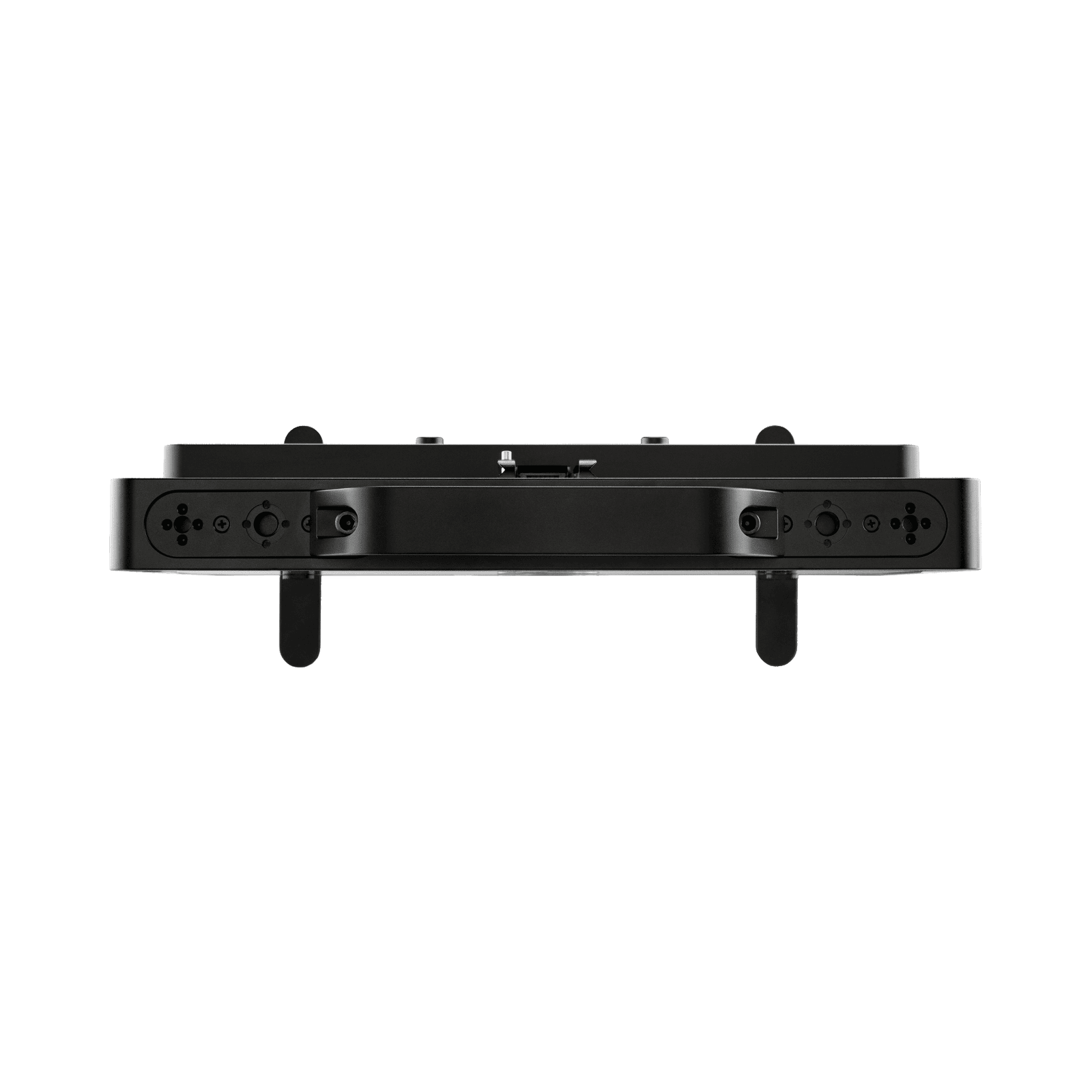

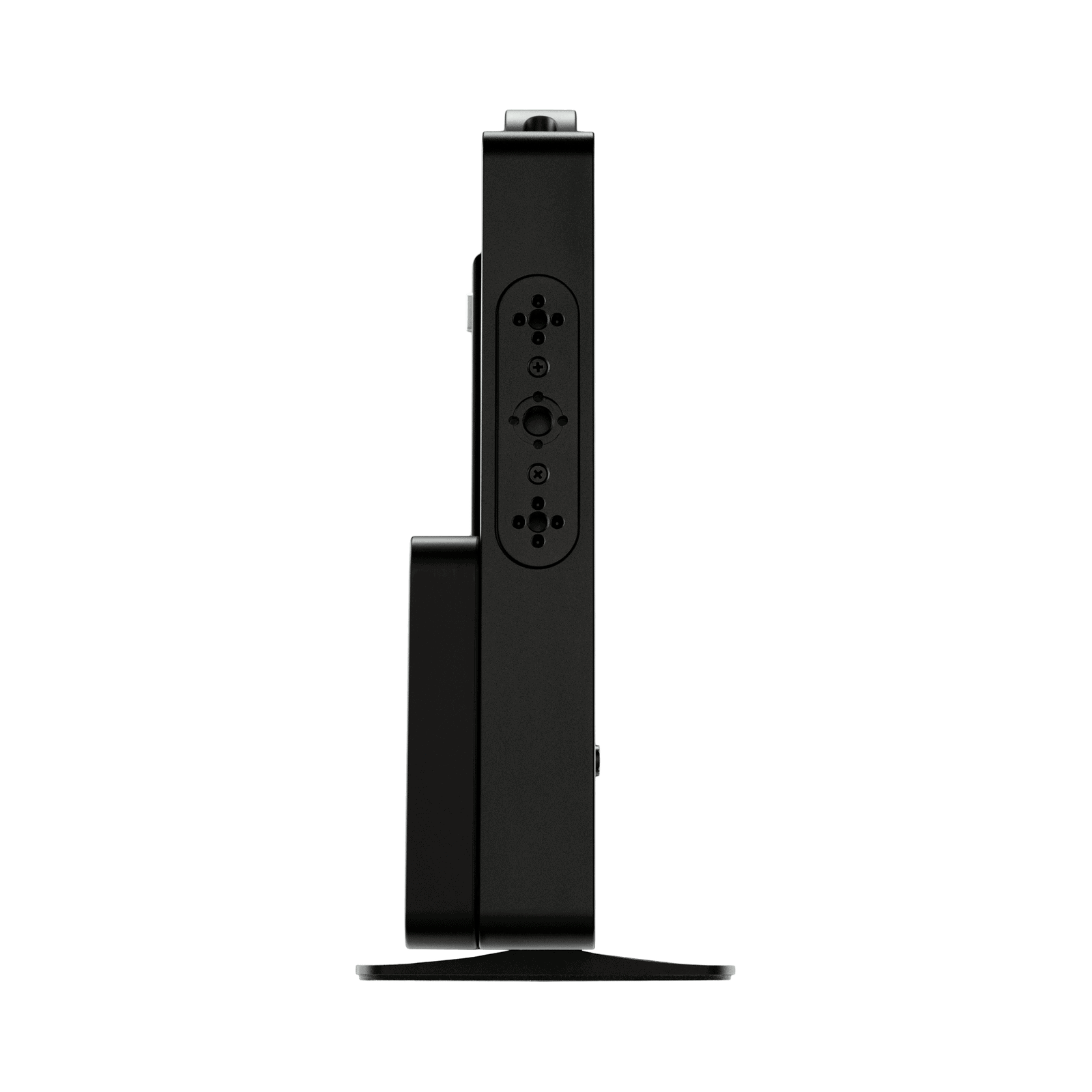

Mount Points Interchangeable accessory mount plates on top and sides with multiple ¼”-20 and/or ⅜”-16 options
Construction Anodized Aluminum unibody
Display
Panel Type IPS LCD
Diagonal Size 13.3″
Resolution 3840×2160
Pixel Density 332 PPI
Aspect Ratio 16:9
Active Area 293.76 (H) x 165.24 (V) mm
Max Brightness 1500nits
Contrast 1300:1
Gamut 99% Rec709
Color Depth 10-bit (8+2)
Backlight Type Edgelit
Refresh Rate Synchronizes with input from 48Hz to 60Hz
Display Size 13″
Panel Resolution 3840 x 2160
Color Bit Depth 10-bit (8+2)
Input Signal
3G-SDI Input Types YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100
YCC 4:4:4, YCC+A 4:4:4:4, RGB, RGB+A @ 10 bits: DCI-2Kp30, DCI-2Kp29.97, DCI-2Kp25, DCI-2Kp24, DCI-2Kp23.98, 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98
YCC 4:4:4, YCC+A 4:2:2:4, RGB @ 12 bits: DCI-2Kp30, DCI-2Kp29.97, DCI-2Kp25, DCI-2Kp24, DCI-2Kp23.98, 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98
6G-SDI Input Types YCC 4:2:2 @ 10 bits: DCI-4Kp30, DCI-4Kp29.97, DCI-4Kp25, DCI-4Kp24, DCI-4Kp23.98, 2160p30, 2160p29.97, 2160p24, 2160p23.98
YCC 4:4:4, YCC+A 4:4:4:4, RGB, RGB+A @ 10 bits: DCI-2Kp60, DCI-2Kp59.94, DCI-2Kp50, DCI-2Kp48, DCI-2Kp47.95, 1080p60, 1080p59.94, 1080p50, 1080p48, 1080p47.95
YCC 4:4:4, YCC+A 4:2:2:4, RGB @ 12 bits: DCI-2Kp60, DCI-2Kp59.94, DCI-2Kp50, DCI-2Kp48, DCI-2Kp47.95, 1080p60, 1080p59.94, 1080p50, 1080p48, 1080p47.95
12G-SDI Input Types YCC 4:2:2 @ 10 bits: DCI-4Kp60, DCI-4Kp59.94, DCI-4Kp50, DCI-4Kp48, DCI-4Kp47.95, 2160p60, 2160p59.94, 2160p48, 2160p47.95
YCC 4:4:4, YCC+A 4:4:4:4, RGB, RGB+A @ 10 bits: DCI-4Kp30, DCI-4Kp29.97, DCI-4Kp25, DCI-4Kp24, DCI-4Kp23.98, 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98
YCC 4:4:4, YCC+A 4:2:2:4, RGB, @ 12 bits: DCI-4Kp30, DCI-4Kp29.97, DCI-4Kp25, DCI-4Kp24, DCI-4Kp23.98, 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98
HD-SDI Input Types YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98
SD-SDI Input Types YCC 4:2:2 @ 10-bits: 480i59.94, 576i50
HDMI Input Types YCC 4:2:2 @ 12 bits, RGB & YCC 4:4:4 @ 8bits: DCI-4Kp60, DCI-4Kp59.94, DCI-4Kp50, DCI-4Kp48, DCI-4Kp47.95, 2160p60, 2160p59.94, 2160p48, 2160p47.95
YCC 4:2:2: @ 12 bits, RGB & YCC 4:4:4 @8/10/12/16 bits: DCI-4Kp30, DCI-4Kp29.97, DCI-4Kp25, DCI-4Kp24, DCI-4Kp23.98, 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98, DCI-2Kp60, DCI-2Kp59.94, DCI-2Kp50, DCI-2Kp48, DCI-2Kp47.95, DCI-2Kp30, DCI-2Kp29.97, DCI-2Kp25, DCI-2Kp24, DCI-2Kp23.98, 1080p60, 1080p59.94, 1080p50, 1080p48, 1080p47.95, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98,1080i120, 1080i119.88, 1080i60, 1080i59.94, 1080i50, 1080i30, 1080i29.97, 1080i25, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p120, 480p119.88, 480p100, 480p60, 480p59.94, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 480i30, 480i29.97, 480i24, 480i23.98, 576i200, 576i100, 576i50, 576i25
Audio Input Types HDMI & SDI – Monitor through Speakers in Front Bezel or Through Headphone Jack – Metering up to 8 channels
Output Signal
3G-SDI Output Types YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100
YCC 4:4:4, YCC+A 4:4:4:4, RGB, RGB+A @ 10 bits: DCI-2Kp30, DCI-2Kp29.97, DCI-2Kp25, DCI-2Kp24, DCI-2Kp23.98, 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98
YCC 4:4:4, YCC+A 4:2:2:4, RGB @ 12 bits: DCI-2Kp30, DCI-2Kp29.97, DCI-2Kp25, DCI-2Kp24, DCI-2Kp23.98, 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98
6G-SDI Output Types YCC 4:2:2 @ 10 bits: DCI-4Kp30, DCI-4Kp29.97, DCI-4Kp25, DCI-4Kp24, DCI-4Kp23.98, 2160p30, 2160p29.97, 2160p24, 2160p23.98
YCC 4:4:4, YCC+A 4:4:4:4, RGB, RGB+A @ 10 bits: DCI-2Kp60, DCI-2Kp59.94, DCI-2Kp50, DCI-2Kp48, DCI-2Kp47.95, 1080p60, 1080p59.94, 1080p50, 1080p48, 1080p47.95
YCC 4:4:4, YCC+A 4:2:2:4, RGB @ 12 bits: DCI-2Kp60, DCI-2Kp59.94, DCI-2Kp50, DCI-2Kp48, DCI-2Kp47.95, 1080p60, 1080p59.94, 1080p50, 1080p48, 1080p47.95
12G-SDI Output Types YCC 4:2:2 @ 10 bits: DCI-4Kp60, DCI-4Kp59.94, DCI-4Kp50, DCI-4Kp48, DCI-4Kp47.95, 2160p60, 2160p59.94, 2160p48, 2160p47.95
YCC 4:4:4, YCC+A 4:4:4:4, RGB, RGB+A @ 10 bits: DCI-4Kp30, DCI-4Kp29.97, DCI-4Kp25, DCI-4Kp24, DCI-4Kp23.98, 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98
YCC 4:4:4, YCC+A 4:2:2:4, RGB, @ 12 bits: DCI-4Kp30, DCI-4Kp29.97, DCI-4Kp25, DCI-4Kp24, DCI-4Kp23.98, 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98
HD-SDI Output Types YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98
SD-SDI Output Types YCC 4:2:2 @ 10-bits: 480i59.94, 576i50
HDMI Output Types YCC 4:2:2 @ 12 bits, RGB & YCC 4:4:4 @ 8bits: DCI-4Kp60, DCI-4Kp59.94, DCI-4Kp50, DCI-4Kp48, DCI-4Kp47.95, 2160p60, 2160p59.94, 2160p48, 2160p47.95
YCC 4:2:2: @ 12 bits, RGB & YCC 4:4:4 @8/10/12/16 bits: DCI-4Kp30, DCI-4Kp29.97, DCI-4Kp25, DCI-4Kp24, DCI-4Kp23.98, 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98, DCI-2Kp60, DCI-2Kp59.94, DCI-2Kp50, DCI-2Kp48, DCI-2Kp47.95, DCI-2Kp30, DCI-2Kp29.97, DCI-2Kp25, DCI-2Kp24, DCI-2Kp23.98, 1080p60, 1080p59.94, 1080p50, 1080p48, 1080p47.95, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98,1080i120, 1080i119.88, 1080i60, 1080i59.94, 1080i50, 1080i30, 1080i29.97, 1080i25, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p120, 480p119.88, 480p100, 480p60, 480p59.94, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 480i30, 480i29.97, 480i24, 480i23.98, 576i200, 576i100, 576i50, 576i25
Audio Output Types 1x 3.5mm 3-pin Stereo Headphone Jack and built in speaker
Connector Type

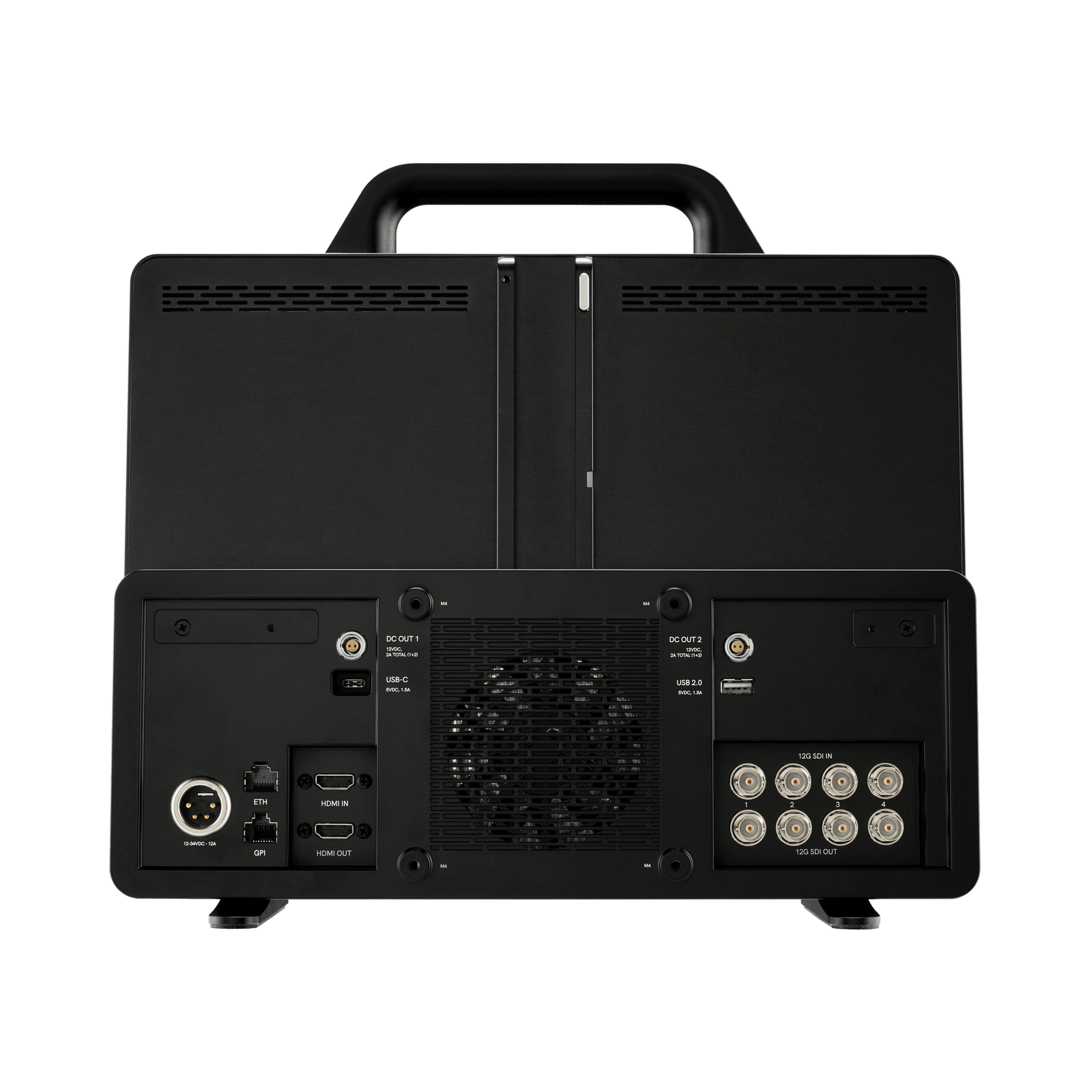

SDI 4x BNC 12G input and 4x BNC 12G output
HDMI 1 input and 1 output: HDMI Type-A Receptacles (full size)
Audio HDMI & SDI – Monitor through Speakers in Front Bezel or Through Headphone Jack – Metering up to 8 channels
Power In 4-pin XLR
Power Out 2x 2-pin locking (12VDC @ 2A Max), 1 USB type C (5V @ 1.5A max)
USB 2x USB A, 1x USB C
Controls
Primary RJ45 for GPI
Record Capture Image Capture Tool
Wireless 2.4GHz WLAN
USB 2x USB A, 1x USB C
Data I/O
Connector Type 1x SD Card Slot,
1x RJ45 Ethernet,
1x RJ45 GPI
SDI 4x BNC 12G input and 4x BNC 12G output
HDMI 1 input and 1 output: HDMI Type-A Receptacles (full size)
Audio 1x 3.5mm 3-pin Stereo Headphone Jack
Ethernet RJ45
Storage Media 1x SD Card Slot
USB 2x USB A, 1x USB C
Wireless 2.4GHz WLAN
Wi Fi 2.4GHz WLAN
Power
Input 1x XLR 4-pin 12 – 34VDC IN
(210W max, 12V-34V, 18A max)
1x Dual-GM/VM Batt. Plate (14V/26V) sold separately
Output 2x 2pin (12V / 2A combined), 1x USB-A (2.4A) (Front), 1x USB-A (1.5A) (Rear), 1x USB-C (5V / 1.5A) (Rear)
Consumption 36.7w (monitor only) 117.9w (w/max access. power draw)
Battery Plate Included No
Power Supply Recommended DC 15V, 180W. DC 15V, 45W for Monitor Only
Battery Types 1x Dual-GM/VM Batt.Plate (14/26V) (sold as accessory)

Additional information

Brand

  • 1 x SmallHD 4K Monitor Feet (Set)
  • 1x 8GB SD Card
  • 1x SmallHD Cleaning Cloth
  • 1x 24V Power Supply
  • 1x Mounting Rail for Cine 13
  • 1x Premium Monitor Handle for 4K Monitors
  • 1x Cine 13 Transport Screen Protector
