FM-215HDR is a 21.5-inch 4K 12G-SDI input high bright HDR monitor for filmset or live streaming productions, go with flight case, screen protector and could be installed on C-stand for convenience field video productions.
Key features
- 21.5-inch 1920×1080 QD-LED Panel
- 1000nits high bright PQ/HLG HDR
- 100% DCI-P3 wide color gamut coverage
- VICO 1.97 A-class Eye Protecting LCD
- 12G-SDI, 4x3G-SDI, HDMI®2.0 4K input
- 4-ch SDI/HDMI® mixed formats multiview
- Any 2 inputs mixed PBP or PIP view

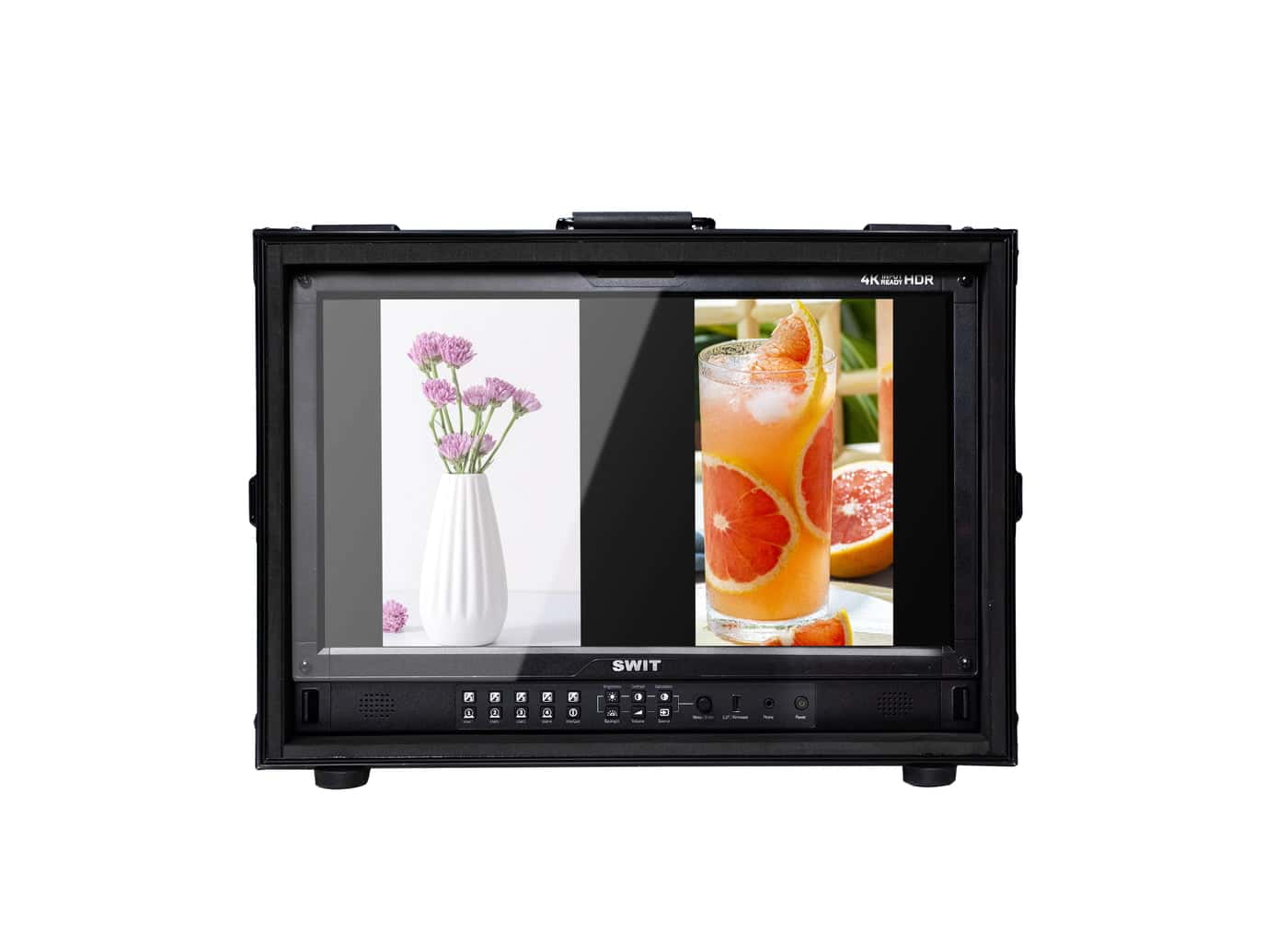

- Horizontal and Vertical (cropped) PBP view
- Zero latency video processing (0.01frame)
- 3DLUT Auto Self-calibration without PC
- Built-in Multi camera Delog LUTs
- User 3DLUTs upload via USB

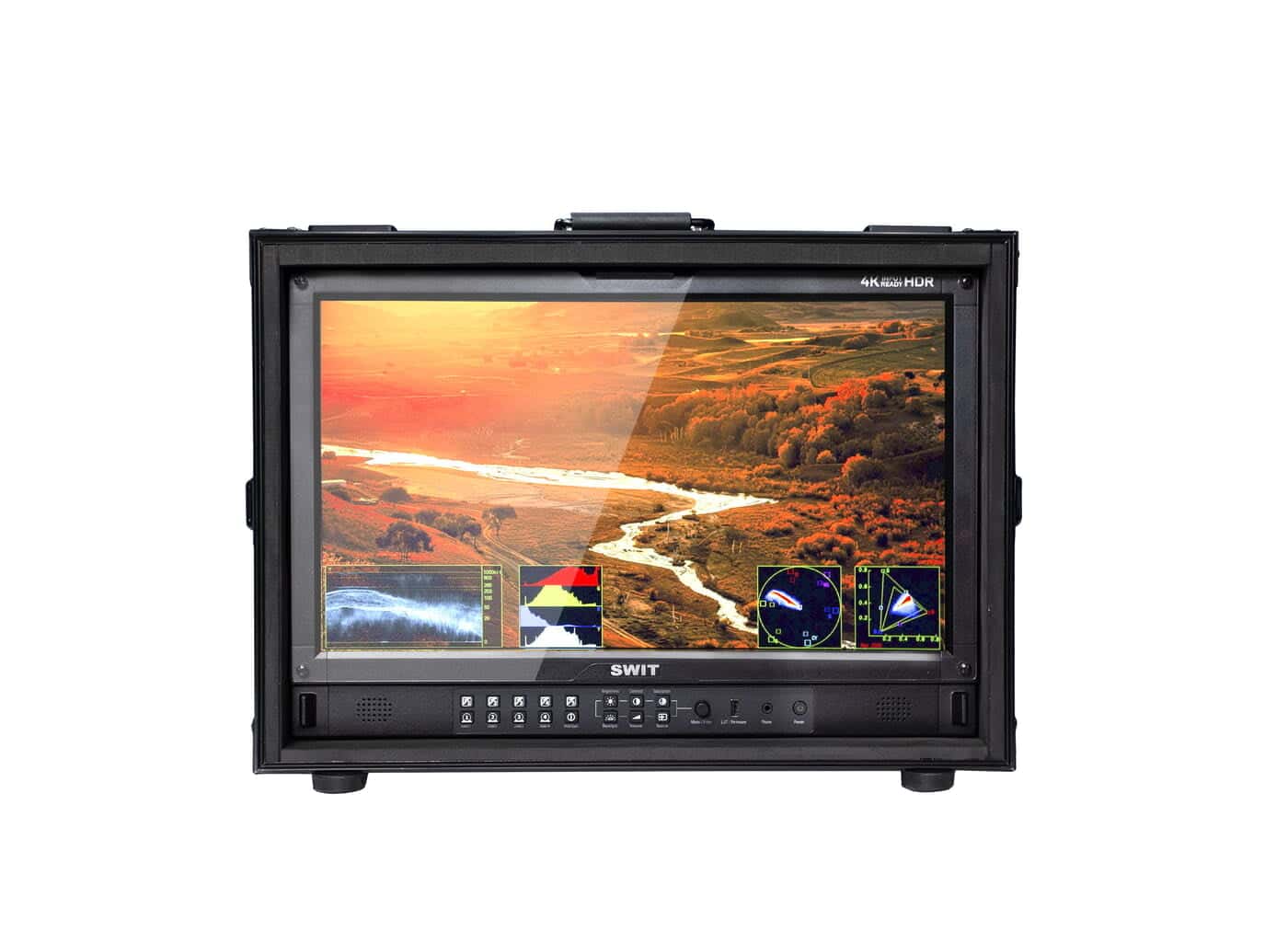

- Waveform / Focus assist / False color / Zebra
- With flight case and screen protector
- With VESA to C-stand adaptor
21.5” Field Production Monitor
4K inputs, 1000nits, HDR, Multi-view
1000nits Sunlight View HDR
The monitor is equipped with an advanced Quantum Dot LED (QD-LED) panel of 1000nits high bright backlight, outdoor sunlight viewable, and support PQ/HLG/S-log3 HDR monitoring.
All 4K Input Interfaces
FM-215HDR supports various 4K inputs including:- 12G-SDI 4K in and out- 4× 3G-SDI Quadlink 4K input- HDMI® 2.0 4K input

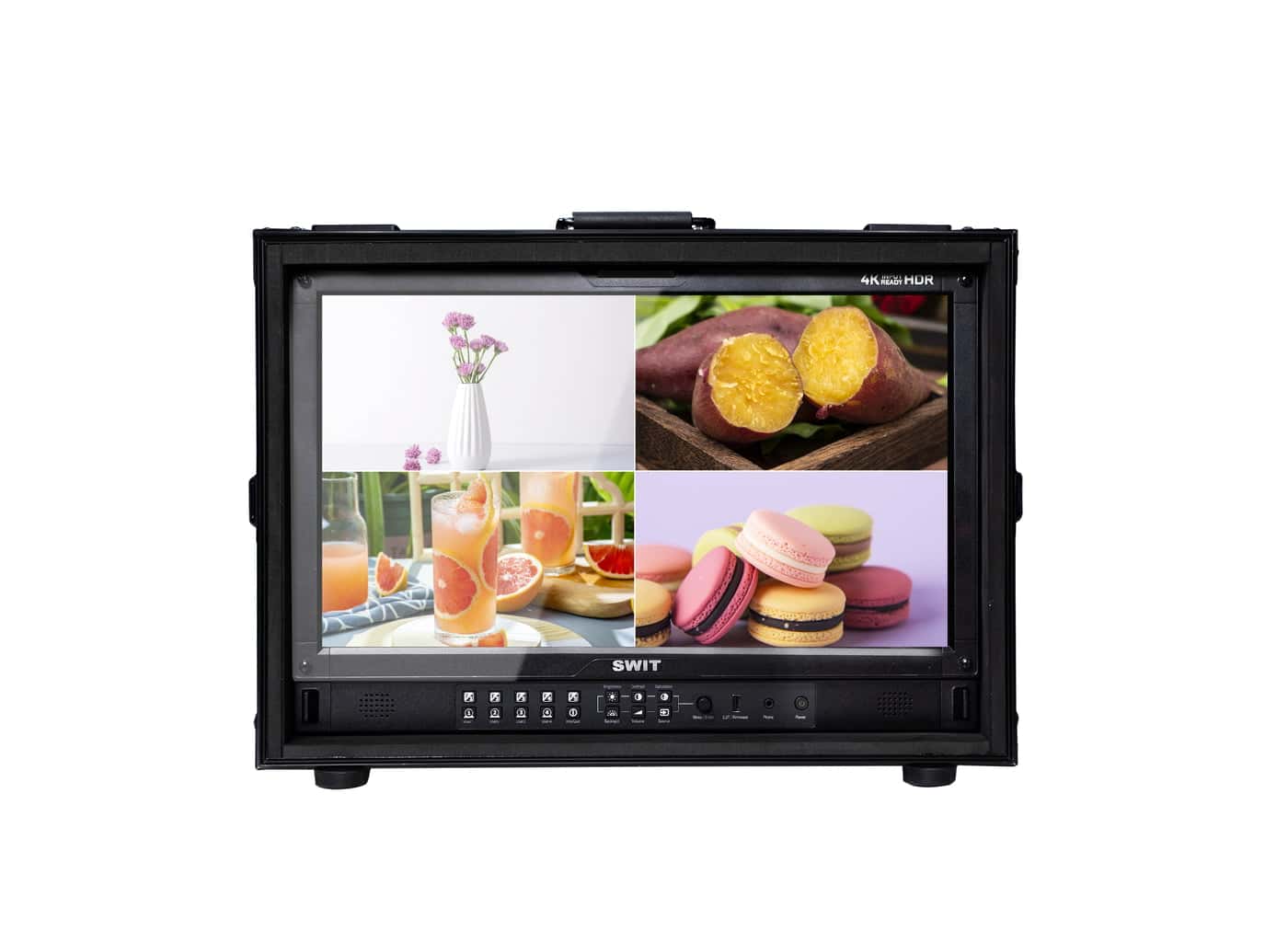

Multiview Display Mode

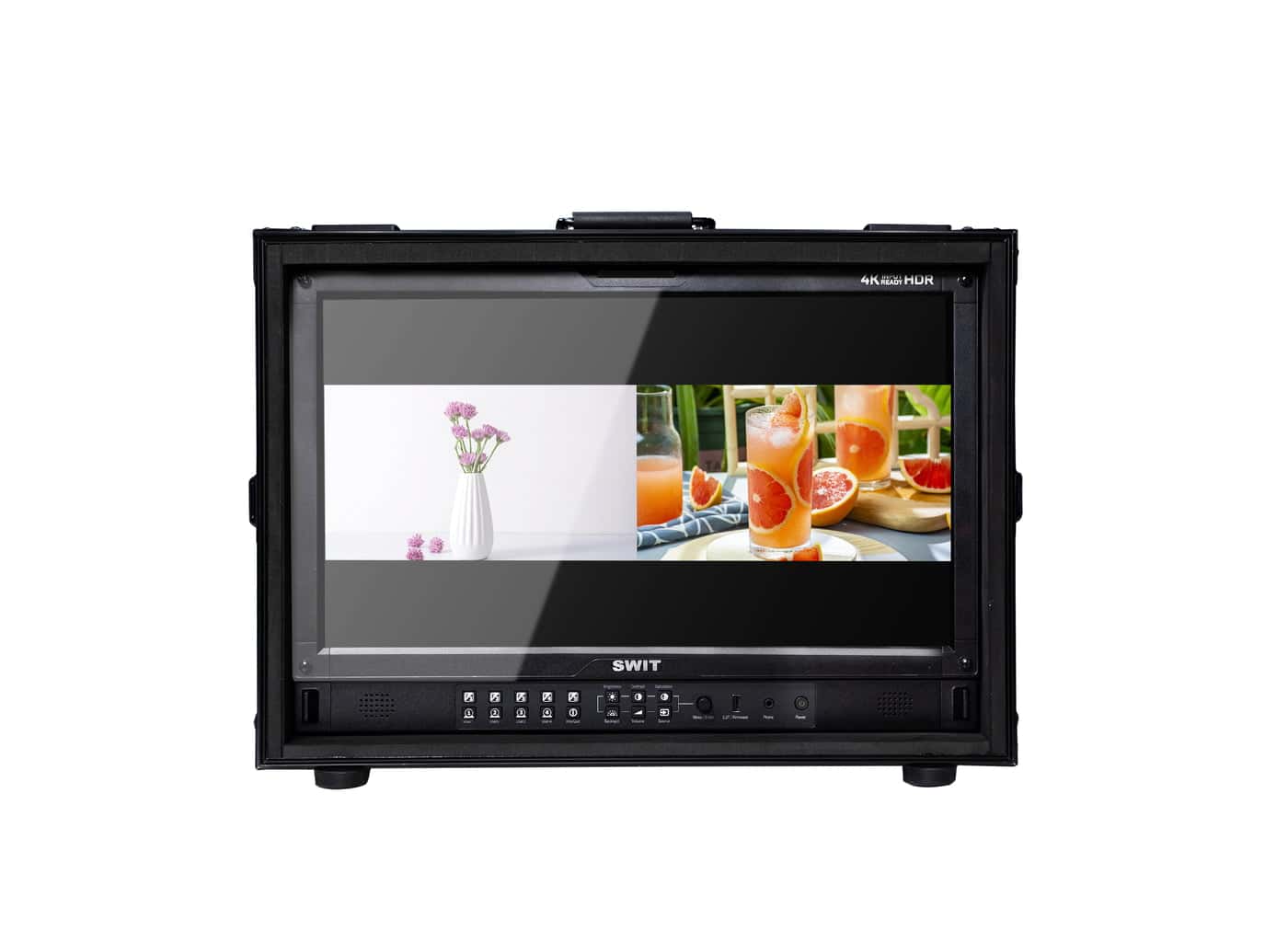

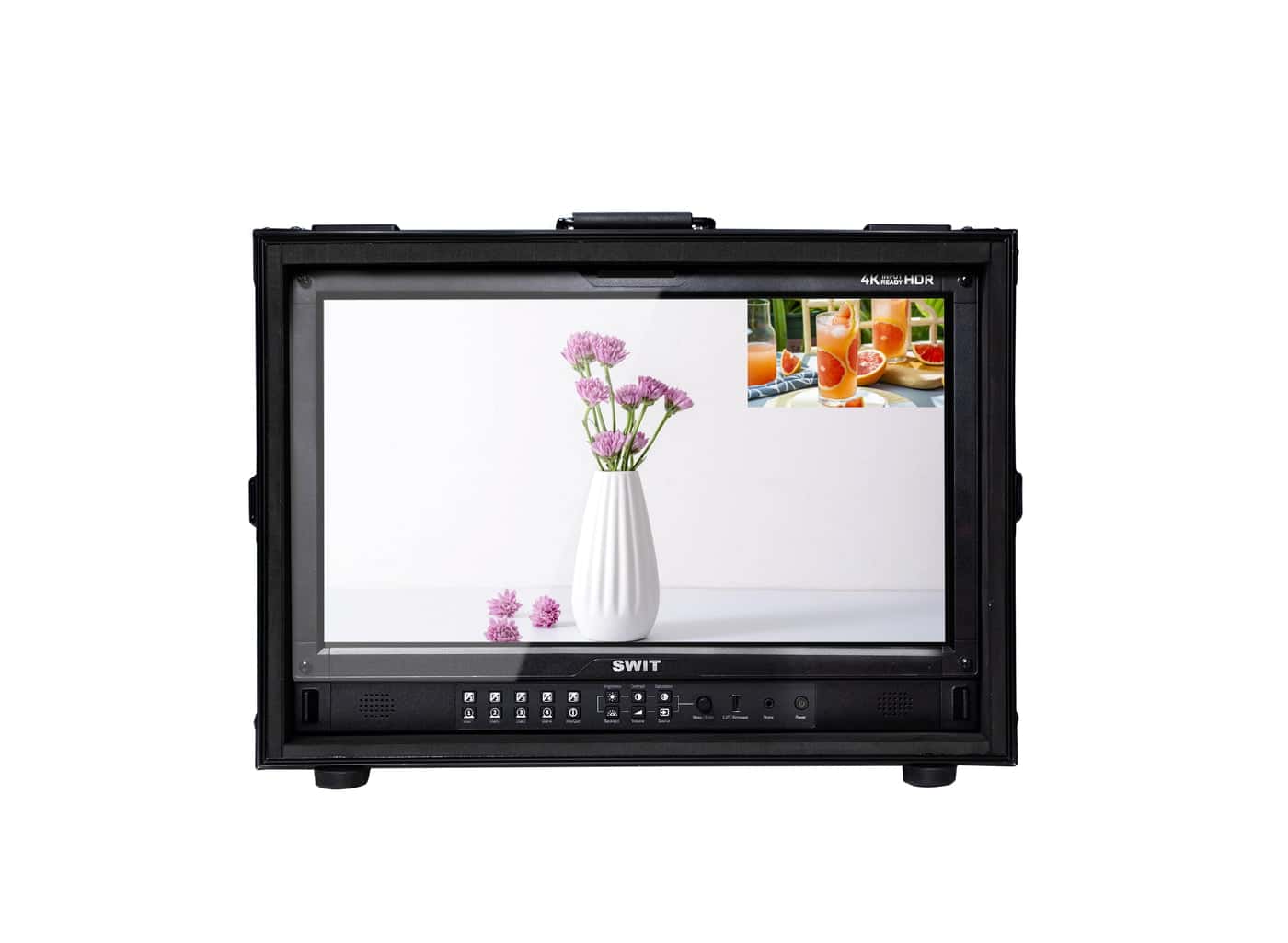

Supports 4x input video of mixed formats quadview display, or any 2x inputs Pic-by-Pic or Pic-in-Pic view, and any 2x inputs vertical (Cropped) display mode. You can select HDR/SDR gamma, color gamut independently for each input.

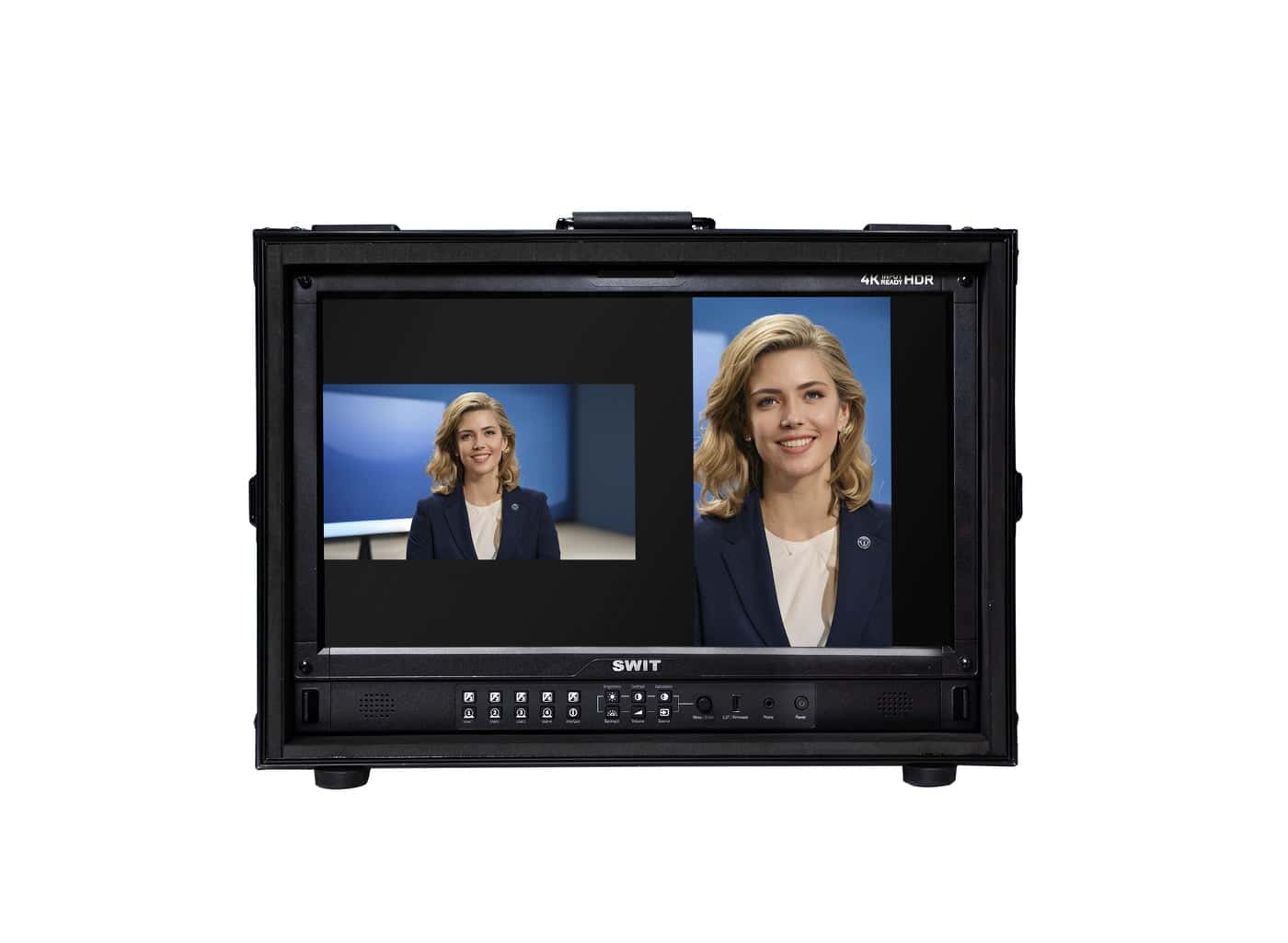

H/V Multi-platform Livestreaming View
1× input source to display regular horizontal view and cropped vertical view side by side simultaneously, for multi-platform livestreaming productions.

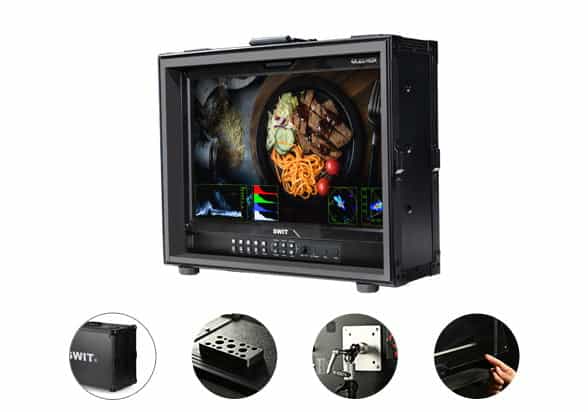

Go with Flight Case
The FM-215HDR monitor is shipped with strong aluminium flight case, for all-around protections on filmset.
Equipped with Screen Protector
The FM-215HDR monitor provides an acrylic screen protector, with high transparency and anti-reflection.
2× Top Cheese Boards
On the top of the flight case, 2× cheese boards are provided to install accessories like wireless video receiver, with multiple 1/4” and 3/8” screw threads.

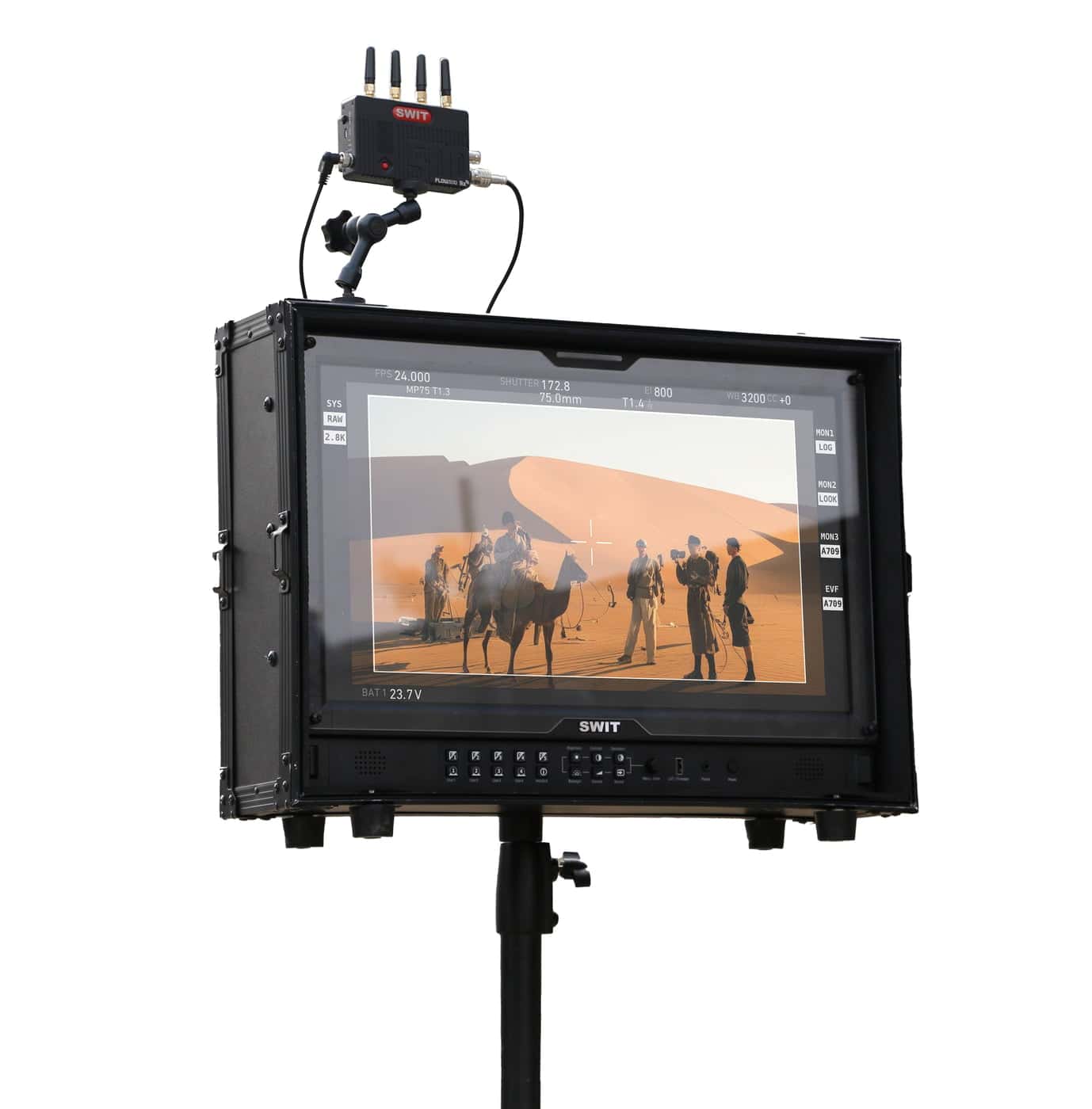

Provide VESA to C-stand Bracket
The monitor has standard 10×10 VESA mount, and provides VESA to 5/8” baby-pin C-stand / Light stand adaptor bracket in the package.
