High quality wideband transmitter with three audio codec modes providing low audio latency and more reliable transmission

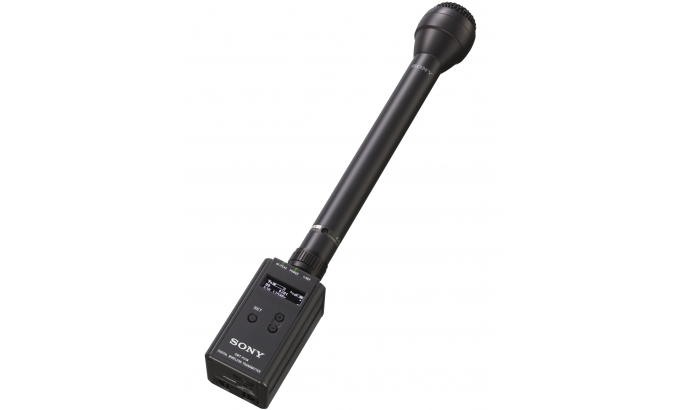

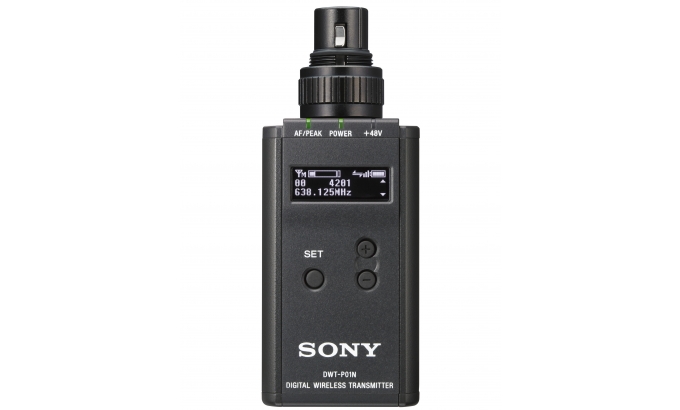

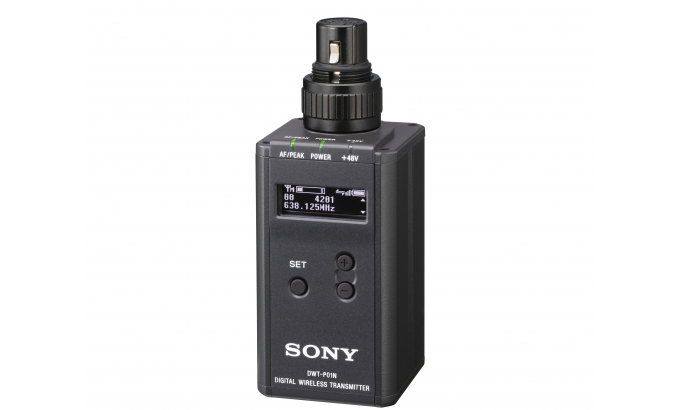

The DWT-P01N XLR plug-in transmitter is part of the DWX series of digital wireless microphones, which ensure high-quality all-digital operation, shorter latency and more reliable RF transmission mode. It is ideal for high quality ENG/EFP applications.
The DWX Series system offers superb wireless transmission quality with 24-bit digital audio. Its improved codec and new hardware promote superior sound quality with low audio latency.
NOTE: This model is available in multiple versions to accommodate the widest possible frequency range. Please refer to the technical specifications for more information.
Three codec modes designed for a wide variety of applications
MODE1 ensures compatibility with DWX series applications, MODE2 provides superior sound quality and low latency ideal for theatre, touring and broadcast applications, and MODE3 ensures more reliable RF transmission ideal for applications of speech.
Low audio latency and high quality sound
MODE2 offers higher sound quality with a 96kHz sampling rate and ultra-low audio latency of 1.5msec*.
More reliable RF transmissions with an expanded operating range
MODE3 is optimized for reliable transmission by avoiding signal loss due to interference and with additional error correction
DWX Series Compatibility
MODE1 audio quality, reliability and latency are in line with the previous DWX series.
NOTE:
*Analog output, 2.5 msec digital output
Wide frequency range and large selection of channels available
The ultra-wide switchable bandwidth covers a wide area, with a huge choice of channels available across multiple models. Please refer to the technical specifications for more information.
14UC: 470.125 MHz to 541.875 MHz (UHF TV channels 14 to 25)
30A UC: 566.125 MHz to 607.875 MHz (UHF TV channels 30 to 36), 25 kHz
steps 42LA: 638.125 MHz to 697.875 MHz (UHF TV channels 42 to 51), 25 kHz steps (not available in USA and Canada)
14UC: 470.125 MHz to 541.875 MHz (UHF TV channels 14 to 25)
30A UC: 566.125 MHz to 607.875 MHz (UHF TV channels 30 to 36), 25 kHz
steps 42LA: 638.125 MHz to 697.875 MHz (UHF TV channels 42 to 51), 25 kHz steps (not available in USA and Canada)
For customers in North America
The DWT-P01N/30 and DWT-P01N/42 models operate on the 617 MHz to 652 MHz or 663 MHz to 698 MHz frequency band. Since 2017, the Federal Communications Commission (FCC) has moved these frequencies to the 600 MHz band to meet the growing demand for high-speed wireless services. Users of these models must stop using these frequencies no later than July 13, 2020. In addition, they may be asked to cease their activities before this date, if they cause interference with the wireless operations of a licensee of the 600 MHz band on these frequencies. For more information, please contact the FCC.
For customers in Canada, please see ISED’s Spectrum Advisory Bulletin for the latest information regarding the transition to the 600 MHz band.
