Design and Compatibility

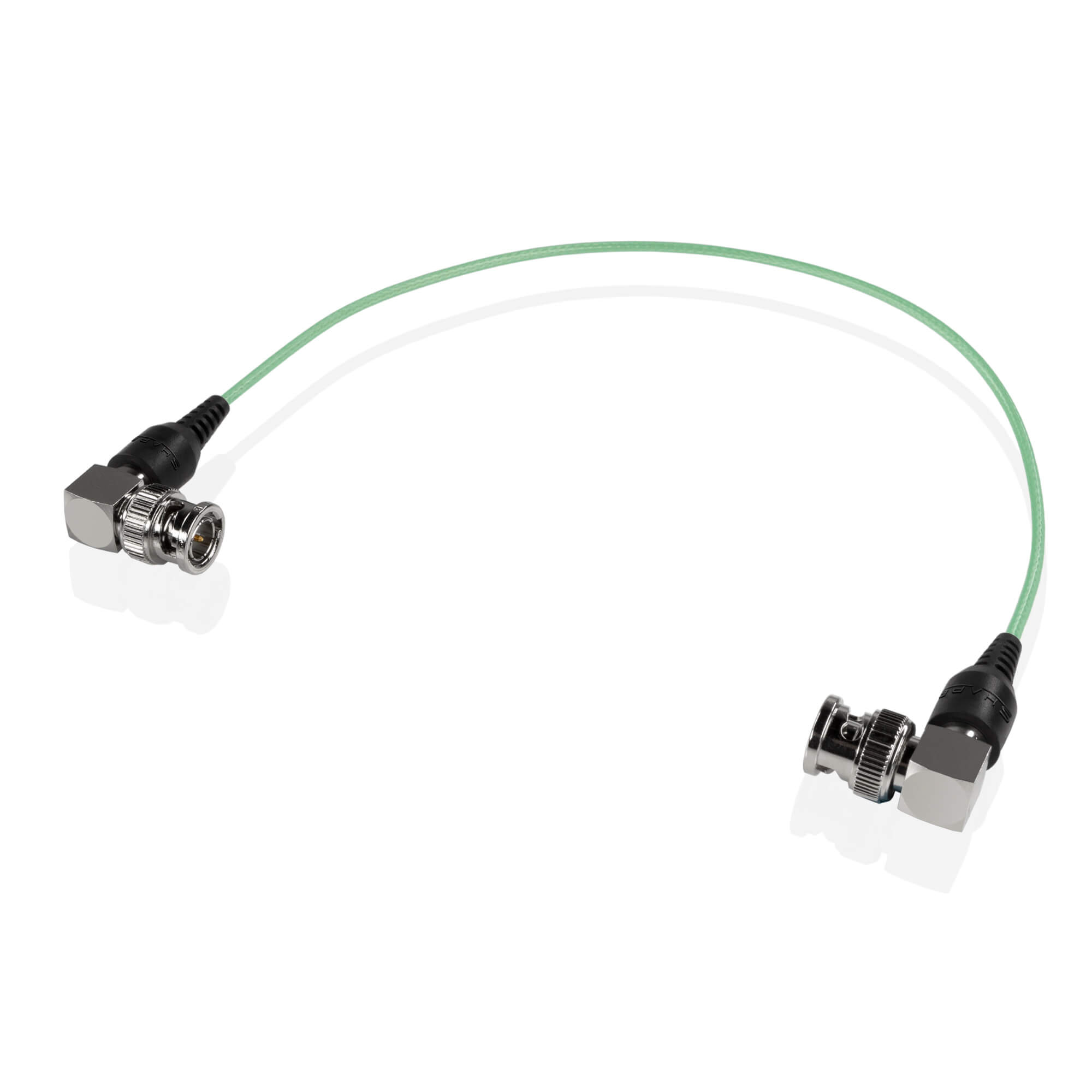

This thin 90-degree male to male BNC cable from SHAPE has a diameter of 2.5 mm and is designed to connect a wide range of components in professional video rigs.
Signal Support and Performance
The cable supports both serial data and video signals including 3G-SDI, with an impedance of 75 ohms, frequency range from DC to 1 GHz, and a VSWR of 1.2 maximum, ensuring accurate signal transfer.
Application
It is compatible with HD cameras, gimbals, monitors, electronic viewfinders, antennas, SDI wireless transmitter/receiver sets, and other equipment employing Serial Digital Interface (SDI).
Key features
- Thin and high-quality 90-degree male to male BNC cable designed to support the transfer of both serial data and video signals
- Thin Gauge Outer Diameter: 2.5 mm
- 90-degree Male BNC, 90-degree Male BNC
- Impedance: 75 ohms
- Frequency: DC to 1 GHz
- VSWR (Voltage Standing Wave Ratio): 1.2 MAX
- Connect SDI equipments
- 3G-SDI rated cable
