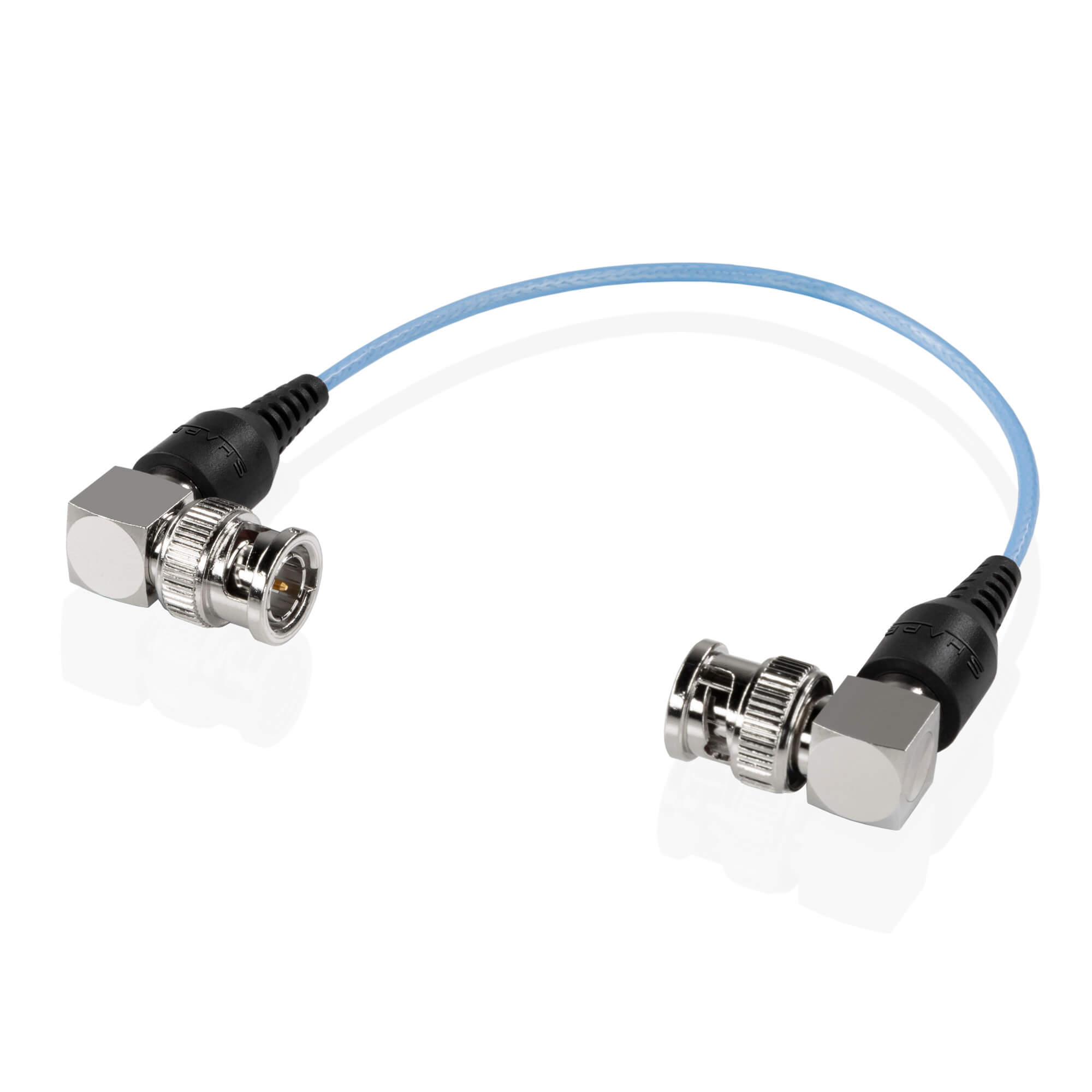

Skinny 90-degree BNC cable 6 inches Blue

Skinny 90-degree male-to-male BNC cable, 6 inches long with a slim 2.5 mm outer diameter. Featuring 75 ohm impedance, DC to 1 GHz bandwidth and a max VSWR of 1.2, it suits 3G-SDI equipment connections in tight setups.

19,00€ (ex. VAT)

SKU: SKI6B Categories: , , Brand:

Cable Design and Compatibility

This skinny BNC cable features a 90-degree male to male configuration with a thin gauge outer diameter of 2.5 mm, optimized for serial data and video signal transmission. It is 3G-SDI rated and supports connection between SDI equipment.

Electrical Properties

The cable has an impedance of 75 ohms, operates from DC up to 1 GHz frequency, and maintains a voltage standing wave ratio (VSWR) max of 1.2, ensuring signal integrity for professional use.

Physical Dimensions

The cable measures 6 inches (15.24 cm) in length with a thickness of 0.10 inches (0.25 cm) in both width and height, providing a slim profile suitable for tight installations.

Key features

  • Thin and high-quality 90-degree male to male BNC cable designed to support the transfer of both serial data and video signals
  • Thin Gauge Outer Diameter: 2.5 mm
  • 90-degree Male BNC, 90-degree Male BNC
  • Impedance: 75 ohms
  • Frequency: DC to 1 GHz
  • VSWR (Voltage Standing Wave Ratio): 1.2 MAX
  • Connect SDI equipments
  • 3G-SDI rated cable
Brand Shape
Reference SKI6B
EAN 629266009178
Country of origin South Korea

Additional information

Weight 0,05 kg
Dimensions 15,24 × 0,25 × 0,25 cm
Brand

  • 1 × 6 inches 90-degree male to male BNC Cable
