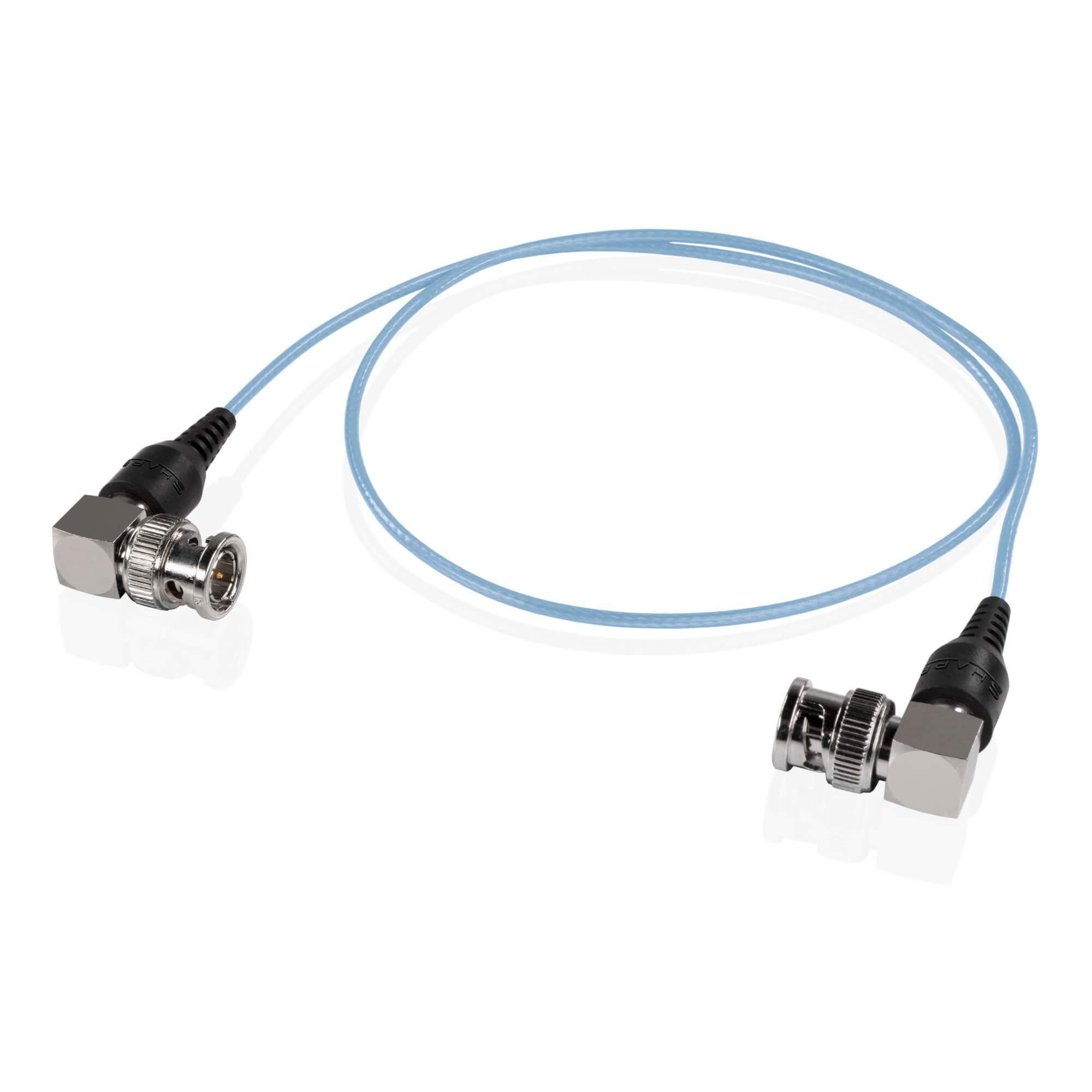

Skinny 90-Degree BNC Cable 24 inches Blue

• Thin 90-degree male to male BNC cable with a 2.5 mm outer diameter.
• Supports transfer of serial data and video signals with 75 ohm impedance.
• Operates at frequencies from DC to 1 GHz with a maximum VSWR of 1.2.
• Compatible with HD cameras, gimbals, monitors, EVF, antennas, and SDI Wireless TX/RX sets.

22,00€ (ex. VAT)

SKU: SKI24B Categories: , , Brand:

Product Overview

The SHAPE Skinny 90-Degree BNC Cable is a thin, high-quality cable designed for accurate signal transfer in video production setups. Its 2.5 mm diameter allows it to integrate seamlessly with various rig components while maintaining signal integrity.

Technical Compatibility

This cable supports serial digital interface (SDI) equipment including HD cameras, gimbals, monitors, electronic viewfinders, antennas, and SDI wireless transmitters and receivers. It is designed to manage both serial data and video signals effectively.

Key features

  • Thin and high-quality 90-degree male to male BNC cable designed to support the transfer of both serial data and video signals
  • Thin Gauge Outer Diameter: 2.5 mm
  • 90-degree Male BNC, 90-degree Male BNC
  • Impedance: 75 ohms
  • Frequency: DC to 1 GHz
  • VSWR (Voltage Standing Wave Ratio): 1.2 MAX
  • Connect SDI equipments
  • 3G-SDI rated cable
Brand Shape
Reference SKI24B
EAN 629266009253
Country of origin South Korea

Additional information

Weight 0,05 kg
Dimensions 60,96 × 0,25 × 0,25 cm
Brand

  • 1 × 24 inches 90-degree male to male BNC Cable
