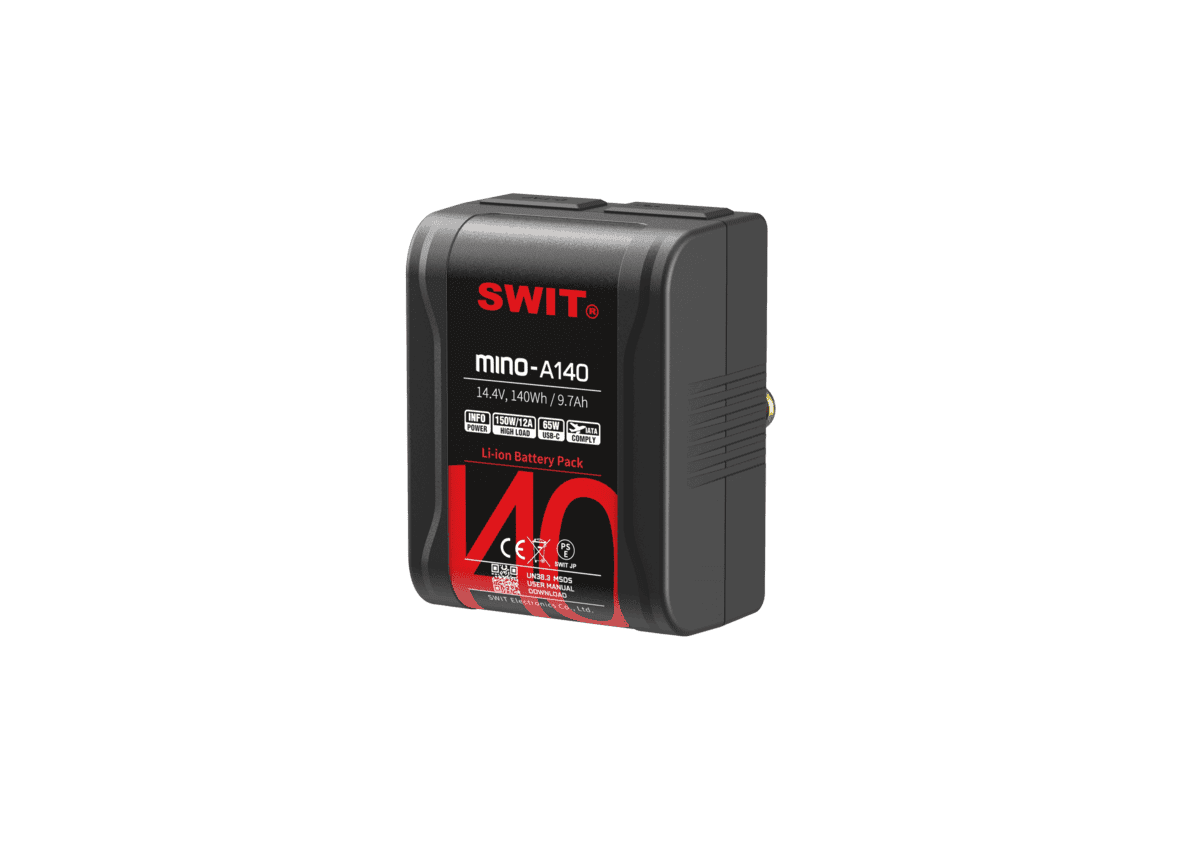

MINO-A140 is a compact 140Wh Gold mount Li-ion battery designed for the ENG and film set, delivers a constant high load of 150W/12A and features a 65W USB-C port, making it compatible with cameras, monitors, laptops, tablets, and other essential production accessories.
Key features
- Tiny Gold Mount battery, Pocket fit
- 14.4V 140Wh/9.7Ah high capacity
- 150W/12A constant high load
- 1x D-tap 120W out, charging in support
- 1x USB-A 5V/2A 10W out
- 1x USB-C 48W in & 65W out
- 4-step LED power indicator
- 20°C low temp power up
- Antonbauer charger compatible
- Wire-Free internal technic
- Strong 1.2 meters drop-off proof
- Multiple circuit protections
Large Capacity Right in your Hand
The MINO-A140 redefines portability in Gold Mount batteries. Despite its palm-sized form, it holds a substantial 140Wh capacity, enough to power an ENG camera through a full day of shooting. Compact, lightweight, and easy to handle, it gives you the freedom to move seamlessly across the film set, reducing gear fatigue and keeping your workflow agile.br/>
Size Matters. We Made It the Smallest.
Among Gold Mount batteries with around 140Wh capacity, the MINO-A140 is the smallest available, which means less weight in your bag, easier handling on set, and more room for other essential gear.
D-tap, USB-A and USB-C
The tiny size MINO-A140 didn’t compromize on DC sockets.D-tap x1 – 14.4V 120W/10A output (Support charging input) USB-A x1 – 5V/2A outputUSB-C x1 – 65W output and 48W charging input
USB-C 48W Charging Input
MINO-A140 battery can be charged by USB-C charger, supports PD 5V 2.4A, 9V 2.4A, 12V 2.4A, 15V 2.4A and Max 20V 2.4A, which means you can fully charge the 140Wh battery within 3.5 hours.
USB-C 65W Power Output
You can power laptop via USB-C by MINO-A140 battery on the filmset. Supports 5V 3.25A, 9V 3.25A, 12V 3.25A, 15V 3.25A and Max 20V 3.25A, BC1.2, PD2.0/3.0, QC2.0/3.0, FCP, SCP multiple protocols. (For Macbook Air/13, Macbook Pro 13/15/16, Huawei Matebook E/12/X13/XPRO, Thinkpad, HP, ASUS, Dell and almost all laptops with USB-C ports)
Wire-Free Internal Tech
MINO-A140 has innovative “Wire-Free” internal technic. All the cells, D-tap, USB-A, USB-C, power indicator devices are directly soldered onto PCB, no connecting wires, to reduce internal resistance effectively, and make the circuit stable, safe, and reliable.
Power Up under -20°C Enviroment
The MINO-A140 cells featured cold-resistant and with SWIT’s unique low-temperature cold startup process, allows for normal discharge even in extreme cold environments as low as -20°C, perfect for filming in freezing regions, guaranteeing a dependable power source even in the most severe conditions.
Ultra Low Standby Power
Holds Power for Years Without Losing Charge
Ordinary batteries can be damaged after long-term storage due to complete power drainage. SWIT batteries adopt a unique low-power design that could hold the charge for several years without losing power. There is no need for regular charge-discharge maintenance, just effortless, reliable storage when you need it.
