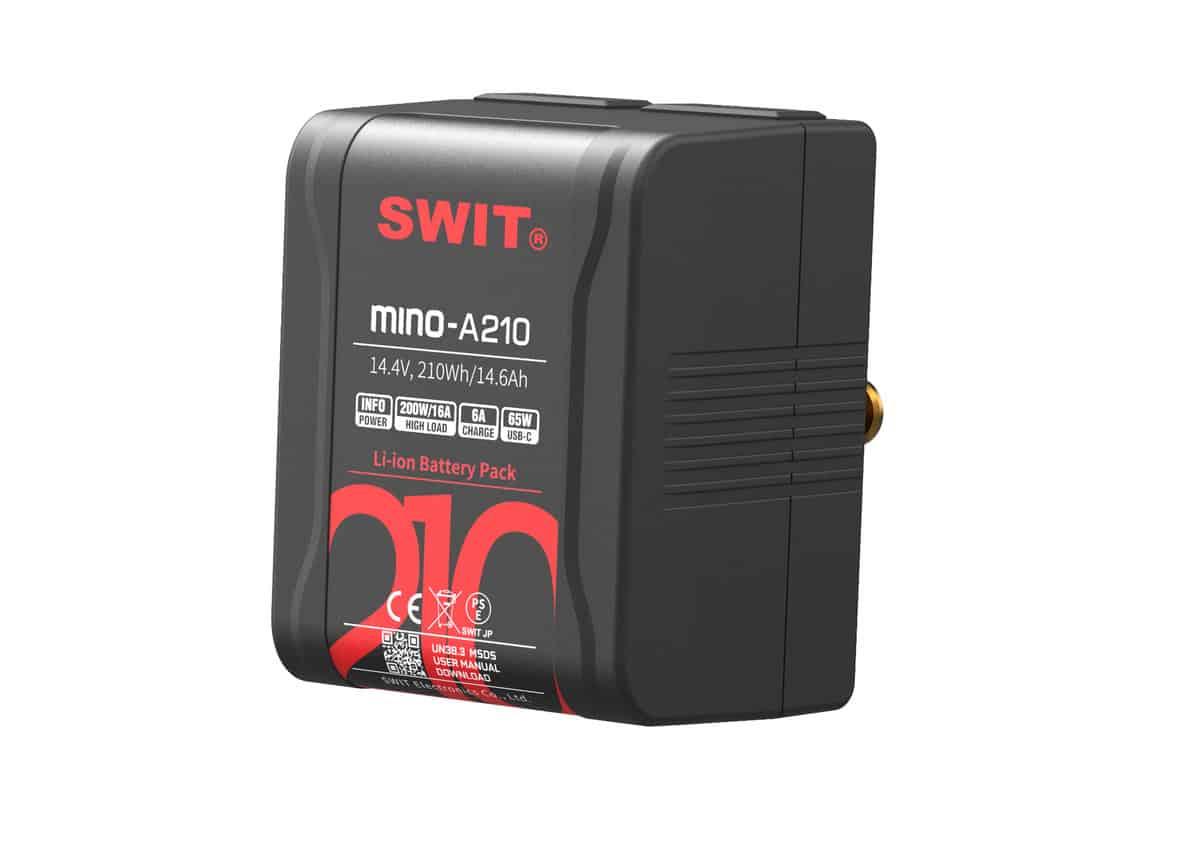

MINO-A210 is a compact 210Wh Gold mount Li-ion battery designed for the ENG and film set, delivers a constant high load of 200W/16A and features a 65W USB-C port, making it compatible with cameras, monitors, laptops, tablets, and other essential production accessories.
Key features
- Tiny Gold Mount battery, Pocket fit
- 14.4V 210Wh/14.6Ah high capacity
- 200W/16A constant high load
- 100W/6A ultra fast charging
- 1x D-tap 120W out, charging in support
- 1x USB-A 5V/2A 10W out
- 1x USB-C 48W in & 65W out
- 4-step LED power indicator
- 20°C low temp power up
- Antonbauer charger compatible
- Wire-Free internal technic
- Strong 1.2 meters drop-off proof
- Multiple circuit protections
Large Capacity Right in your Hand
The MINO-A210 redefines portability in Gold Mount batteries. Despite its palm-sized form, it holds a substantial 210Wh capacity, enough to power an ENG camera through a full day of shooting. Compact, lightweight, and easy to handle, it gives you the freedom to move seamlessly across the film set, reducing gear fatigue and keeping your workflow agile.
Size Matters. We Made It the Smallest.
Among Gold Mount batteries with around 210Wh capacity, the MINO-A210 is the smallest available, which means less weight in your bag, easier handling on set, and more room for other essential gear.
100W 6A Ultra Fast Charging
MINO-A210 supports 100W/6A fast charging by SWIT PC-P461A / MATRIX-A8 / S-3812A chargers, twice the charging speed, and the 6A fast charging will not affect the lifespan of ternary lithium cells.The 210Wh battery can be charged from 0 to 80% after 2.1 hours, and fully charged within 3 hours.
D-tap, USB-A and USB-C
The tiny size MINO-A210 didn’t compromize on DC sockets. D-tap ×1 – 14.4V 120W/10A output (Support charging input)USB-A ×1 – 5V/2A outputUSB-C ×1 – 65W output and 48W charging input
USB-C 48W Charging Input
MINO-A210 battery can be charged by USB-C charger, supports PD 5V 2.4A, 9V 2.4A, 12V 2.4A, 15V 2.4A and Max 20V 2.4A, which means you can fully charge the 210Wh battery within 5 hours.
USB-C 65W Power Output
You can power laptop via USB-C by MINO-A210 battery on the filmset. Supports 5V 3.25A, 9V 3.25A, 12V 3.25A, 15V 3.25A and Max 20V 3.25A, BC1.2, PD2.0/3.0, QC2.0/3.0, FCP, SCP multiple protocols. (For Macbook Air/13, Macbook Pro 13/15/16, Huawei Matebook E/12/X13/XPRO, Thinkpad, HP, ASUS, Dell and almost all laptops with USB-C ports)
Wire-Free Internal Tech
MINO-A210 has innovative “Wire-Free” internal technic. All the cells, D-tap, USB-A, USB-C, power indicator devices are directly soldered onto PCB, no connecting wires, to reduce internal resistance effectively, and make the circuit stable, safe, and reliable.
Power Up under -20°C Enviroment
The MINO-A210 cells featured cold-resistant and with SWIT’s unique low-temperature cold startup process, allows for normal discharge even in extreme cold environments as low as -20°C, perfect for filming in freezing regions, guaranteeing a dependable power source even in the most severe conditions.
Ultra Low Standby Power
Holds Power for Years Without Losing Charge
Ordinary batteries can be damaged after long-term storage due to complete power drainage. SWIT batteries adopt a unique low-power design that could hold the charge for several years without losing power. There is no need for regular charge-discharge maintenance, just effortless, reliable storage when you need it.
