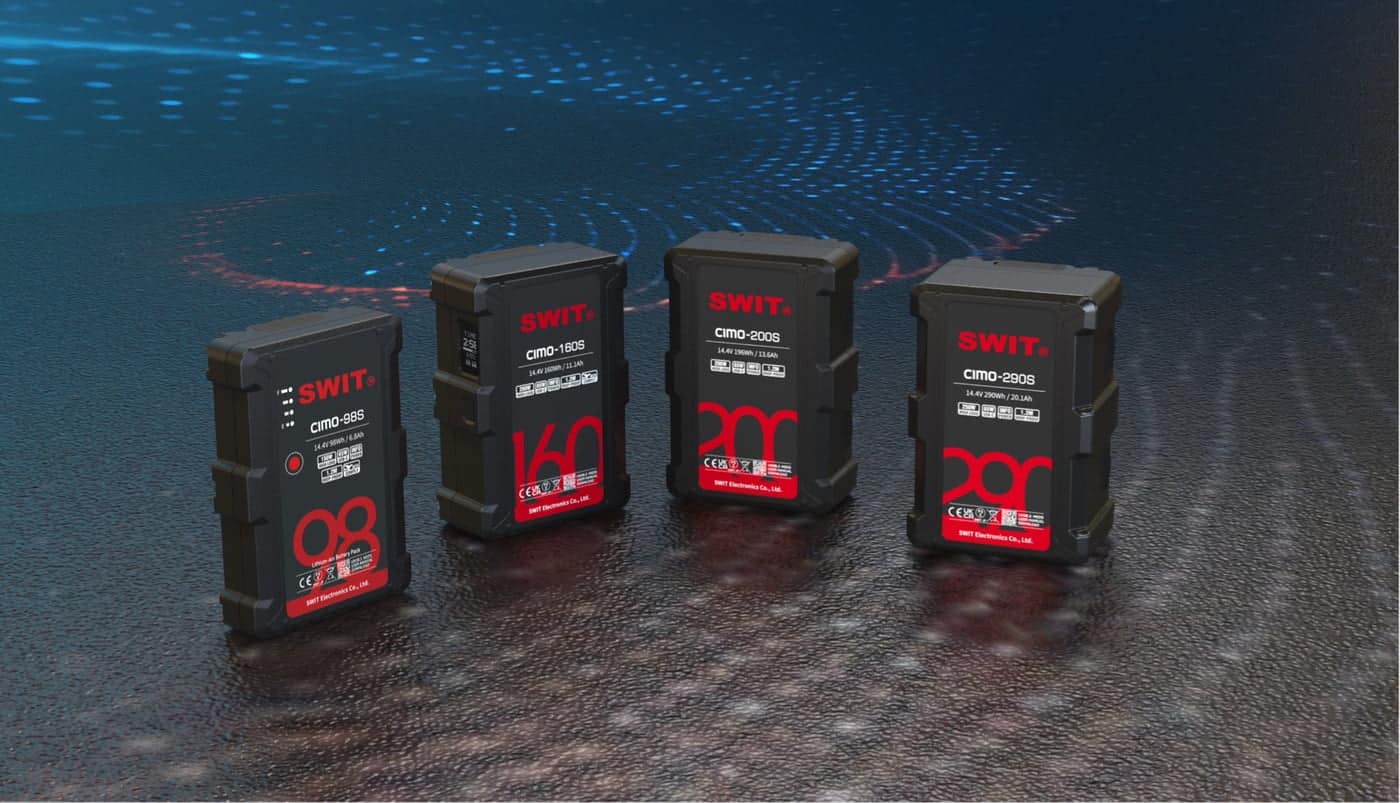

The CIMO series cine class V-mount batteries featured high power load, 2× D-tap, 65W USB-C, OLED power info display, battery life inspection and 1.2m drop-off proof for professional cinematographers.
Key features
- Cine style V-mount battery
- 160Wh/11.1Ah fly-friendly capacity
- 200W/16A constant high load, 270W peak
- 2×D-tap output & charging input
- 1x USB-A 5V/9V 2A 18W output
- 1x USB-C 65W output & 60W input
- OLED remaining run time display
- Rear LED torch for dark environment
- Strong housing 1.2m drop-off proof
- Multiple circuit protections – overcharging, overdischarging, high temperature, low temperature, etc.
14.4V, 160Wh Capacity

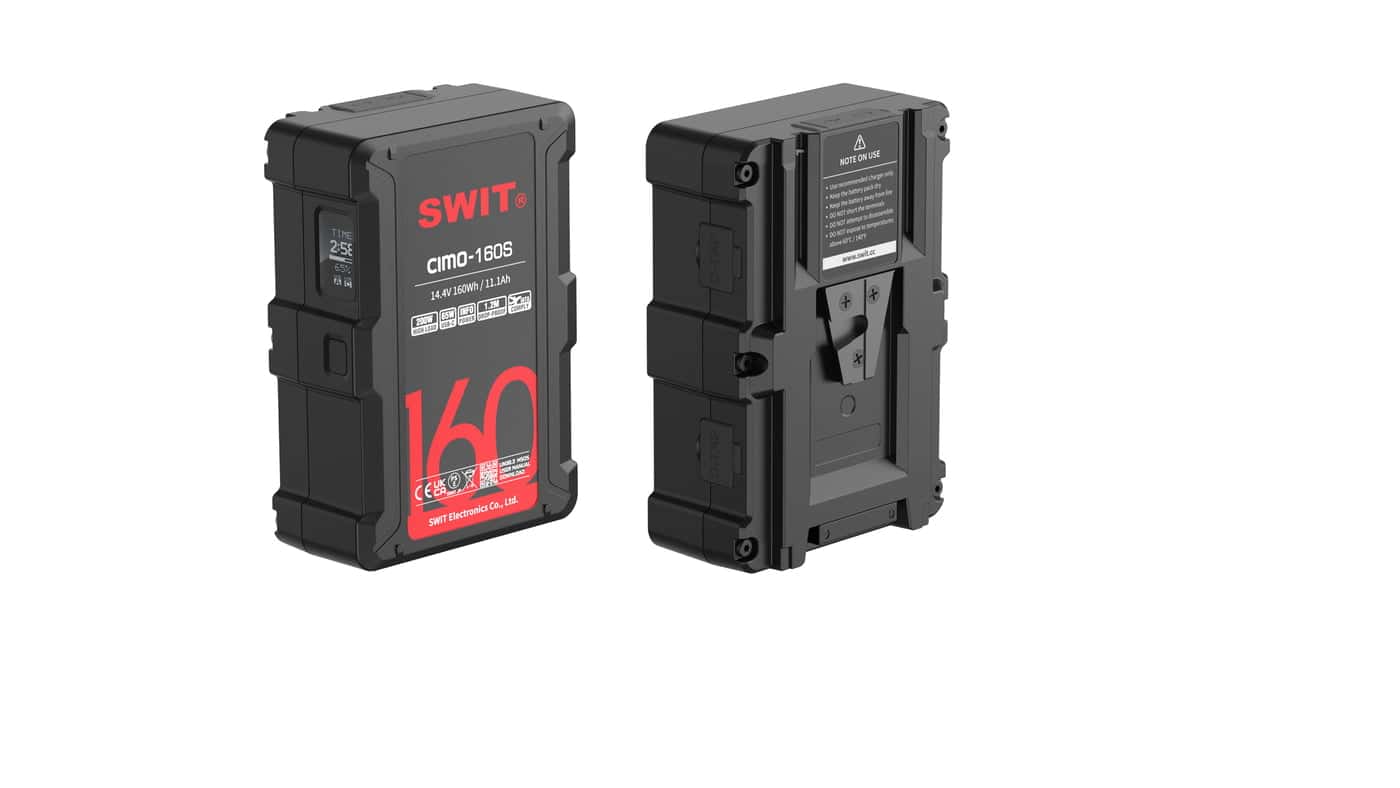

CIMO-160S consists of 16pcs ternary lithium cells, 14.4V nominal voltage, 160Wh, 11.1Ah large capacity. The ternary lithium cells provide higher energy density, achieve higher capacity with a smaller size, and excellent low-temperature performance, capable of supplying power under -20°C cold environment.
200W Constant / 270W Peak High Load Output
CIMO-160S outputs at least 200W/16A high load even at 1% capacity (Peak load up to 270W), to drive high power Cine cameras and on-camera devices together. The high load cells will also ensure battery life comparing to normal load batteries if long time full load output.
100W 6A Fast Charging
CIMO-160S supports 100W/6A fast charging by SWIT PC-P461S / MATRIX-S8 / S-3812S chargers, twice the charging speed, and the 6A fast charging will not affect the lifespan of ternary lithium cells. The 160Wh battery can be charged from 0 to 80% after 1.5 hours, and fully charged within 2.5 hours.
OLED Power Info / Health Level Display
CIMO-160S battery provides an OLED screen to display battery status and power information, includes power percentage, remaining running time, and long press the power check button to display battery cycle times, health level for battery management.
2×D-tap, USB-A & USB-C
CIMO-160S provides with2x D-tap 200W in total;1x USB-A 5V/9V 2A out;1x USB-C 60W input and 65W outputfor various on-camera devices.
USB-C 65W Output
The USB-C port of CIMO-160S outputs 5V/9V/12V/15V 3A, 20V(Max) 3.25A, 65W high power for laptops and various smart devices, with BC1.2, QC2.0/3.0, FCP, SCP, PD2.0/3.0 universally compatible protocols.
USB-C 60W Charging Input
The battery can also be charged by USB-C charger of PD2.0/3.0 ≥60W power, fully charged within 4 hours.* Please note that<60W low power USB-C chargers are unable to charge this battery.
LED Torch
You can double press the Power Check button to switch on LED torch on the rear side of the battery, to help you to find V-mount plate in dark production environment.Double press the Power Check button again to switch the light off, and it will be automatically switched off after 60 seconds.
1.2 meters Drop-off Proof
CIMO series batteries are dual housing designed and can survive from 1.2 meters drop-off at any angles, strong and reliable for filmmakers.
Ultra Low Standby Power
Holds Power for Years Without Losing Charge
Ordinary batteries can be damaged after long-term storage due to complete power drainage. SWIT batteries adopt a unique low-power design that could hold the charge for several years without losing power. There is no need for regular charge-discharge maintenance, just effortless, reliable storage when you need it.
