PB-S series camera batteries are compact designed, shorter than normal V/Gold mount batteries, and match perfectly with most of the Cine-cameras.
Key features
- Square shape design for Cine-cameras
- At least 200W, 16A constant load
- 4× D-tap output sockets
- 1× USB 5V/2A power output sockets
- All 4x D-tap support charging input
- 6A super fast charging
- OLED display accurate remaining run time
- Display power info in both SONY & RED
- Multiple circuit protections
220Wh / 15.3Ah Capacity
Consists of 24pcs of high class 18650 battery cells, nominal voltage is 14.4V and reaches 220Wh / 15.3Ah high capacity. Can run approx 7 hours for normal ENG cameras and approx 2.5 hours for ARRI ALEXA.
High Load for Cine Cameras
At least 200W / 16A load
PB-S220S provides at least 200W/16A high load even at 1% capacity, to drive high power Cine cam- eras and on-camera devices together. The high load cells will also ensure battery life comparing to normal load batteries if long time full load output.

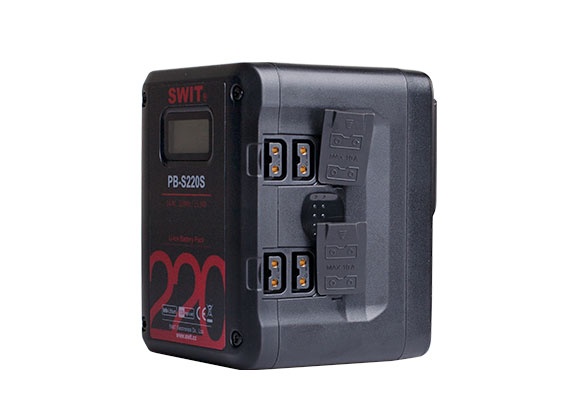

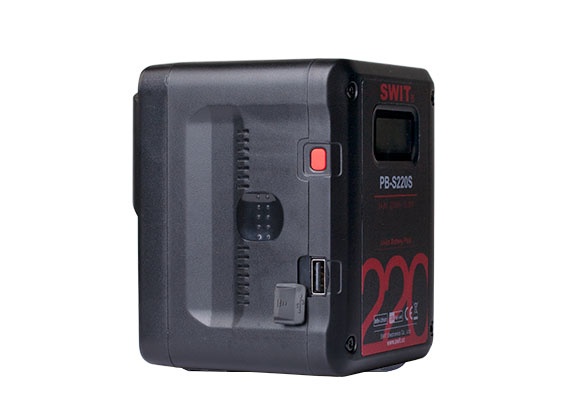

4× D-tap, 1× USB
PB-S220S provides 4x D-tap output sockets with 10A/120W load, and all of them support charging input. The USB socket outputs 5V/2A.
6A Fast Charging
Using SWIT 6A fast charger
PB-S220S supports 6A fast charging by SWIT PC-P461S or S-3812S fast charger, to save more than 50% charging time. The 220Wh PB-S220S battery can be charged from 0 to 80% after 2.3 hours, and fully charged within 3.5 hours.

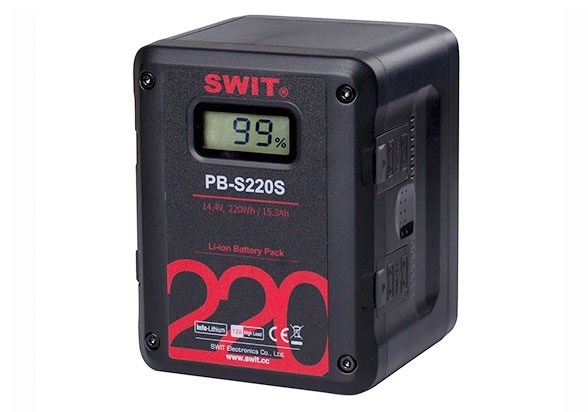

Digital Power Info
OLED display accurate remaining run time
The build-in OLED can displays remaining power percentage, remaining working time, and battery cycle times, and support viewfinder info display on both SONY and RED cameras.
Battery Protection Display
When any over load, over charging, short circuit, high/low temperature detected, the battery will protect itself and display protection information. You can take steps to re-active battery, to ensure the best battery condition and prolong battery life.
Ultra Low Standby Power
Holds Power for Years Without Losing Charge
Ordinary batteries can be damaged after long-term storage due to complete power drainage. SWIT batteries adopt a unique low-power design that could hold the charge for several years without losing power. There is no need for regular charge-discharge maintenance, just effortless, reliable storage when you need it.
