SHAPE J-Box camera power and charger for Sony A7R3 and a73 series

J-Box Power & Charger (V-Mount)
Lightweight battery plate and rod bracket (1.1 lbs; 0.45 kg)
Compatible with Sony a7 III, a7R III, a7S III, a7 IV, a7R IV, FX3_
Up to 100W Power Consumption
AC Power Cable
8/12V Cable Output Connector
a7 III, a7R III, a7S III, a7 IV, a7R IV Cable Connector
15 mm Rod Mount Bracket
Removable Delta Plate
Tool Box Kit

417,25

SKU: BXA73 Categories: , ,

Use the J-Box Camera Power and Charger from SHAPE to power your Sony a7 III, a7R III, a7S III, a7 IV, a7R IV, FX3 camera and other accessories simultaneously with a V-Mount battery (not included) and continuous AC power. Multiple LED indicators on the J-Box show battery and power status. The J-Box is designed to power your camera while also powering items like a monitor, smartphone, or lights, and when plugged into an AC outlet with the included AC adapter, you can remove the battery safely without powering down your camera. The J-Box has a V-Mount battery plate, and on the side, there are four power outputs: one 20W, 5V/4A, one 40W, 8V/5A, one 60W, 12V/5A, and one D-Tap 100W, 16.8V/6A. On top there’s a 5V/4A USB Type-A port to power your smartphone or USB accessory. You can power multiple items simultaneously with up to 100W of total power consumption. There are also threaded holes on the back of the plate for mounting options. The charger comes with a cable connector to power your Sony A7R3,  a73, FX3 series camera, an 8V output cable, a 15 mm rod mount to use with your 15 mm LWS rod system, a removable Delta plate, and an Allen wrench and screws for mounting your gear. There is also a 15 mm Rod Mount with a knob system to lock and adjust the position of the J-box unit.

  • Compatible with Sony a7 III, a7R III, a7S III, a7 IV, a7R IV, FX3;
  • V-Mount Battery Plate with Safe Lock (Optional Gold Mount converter GVRPC);
  • Small size and lightweight battery plate (0.8 lbs; 0.36 kg);
  • When the J-Box is plugged in, safely disconnect and reconnect the battery without powering down your rig;
  • 5 outputs: (1) 5V:4A:20W, (1) 8V:5A:40W, (1) 12V:5A:60W, (1) 16.8V:6A:100W, (1) USB 5V:4A;
  • Supports up to 100W power consumption from the device;
  • Comes with a robust 15 mm Rod Mount with locking and angle adjustment system;
  • Threaded holes at the back of the plate for mounting on a cheeseplate;
  • LED indicators for power features;
  • Delta plate to mount on the J-box main unit.

Connectors

(1) Cable (15’’) compatible with Sony a7 III, a7R III, a7S III, a7 IV, a7R IV, FX3
(1) Output Cable compatible with 8V or 12V outputs
(1) output 5V:4A ; (1) output 8V:5A ; (1) output 12V:5A
(1) D-TAP output 16.8V:6A
(1) USB output 5V:4A
*5V output cable not included)

Charger and Power Devices_

(1) Power Supply. Input (110-240V:2A 50/60Hz); Output (16.8V:6A)
(1) BP Charger input to use and charge battery at the same time
(1) Ac Adapter input to use without a battery
(1) AC Power Cable

Additional information

Weight 1,05 g
Brand

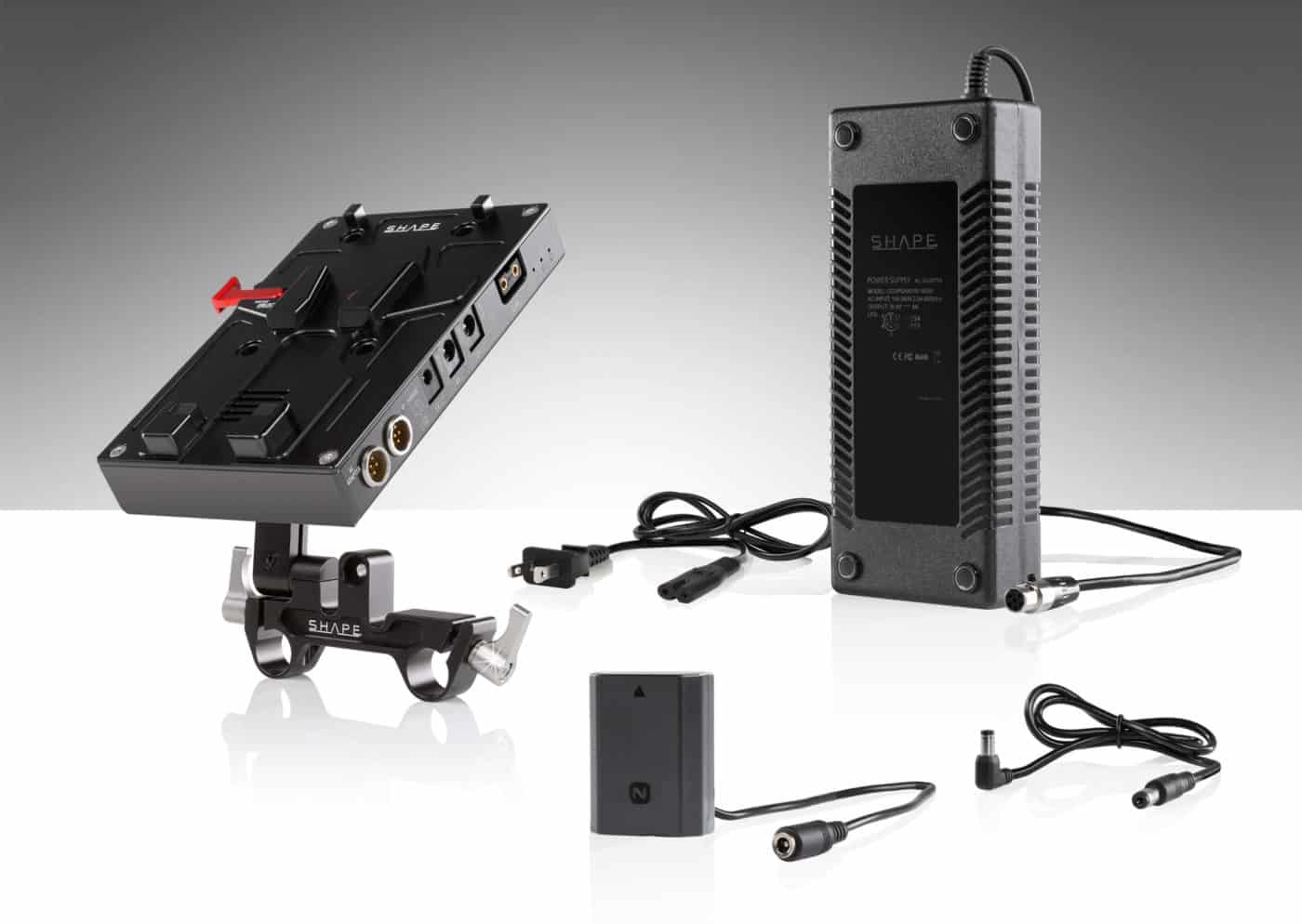

(1) J-Box POWER AND CHARGER (V-MOUNT, (1) POWER SUPPLY, (1) AC POWER CABLE, (1) CABLE OUTPUT CONNECTOR (8V 12V), (1) CABLE CONNECTOR (A73 AND A7R3), (1) 15MM ROD MOUNT DEVICE, (1) REMOVABLE DELTA PLATE, (1) TOOL BOX KIT (ALLEN KEY AND MOUNTING SCREWS)
