SmallHD

Cine 5

Cine 5 is lightweight, compact, and offers 2000nits brightness for full visibility even in direct sunlight. Optional camera-control functionality (software license and cable sold separately) allows users to start, stop, record, and more from the convenience of their Cine 5.

1.571,76€ (ex. VAT)

SKU: 16-0526 Categories: , , Brand:

Cine 5 is lightweight, compact, and offers 2000nits brightness for full visibility even in direct sunlight. Optional camera-control functionality (software license and cable sold separately) allows users to start, stop, record, and more from the convenience of their Cine 5. Experience all your favorite PageOS 5 tools, functions, and settings pages on this field-ready 5-inch monitor.

1080p resolution ensures a clear look at your production, while 10-bit color processing offers excellent color accuracy. The added joystick and back button allow you to use this smart monitor in nearly all conditions, even on cold days when taking off your gloves is not an option.

Cine 5 is designed for high-end camera use – with bright imagery, optional Camera Control, and 2-pin locking power input – making it ideal field monitor for First ACs, Camera Operators, and DPs.

Camera Control for RED® DSMC2® & RCP2™

Transform your touchscreen into the central command hub of your camera. SmallHD’s proprietary software enables unfettered access to RED DSMC2, KOMODO®, and V-RAPTOR™ camera functions and project settings such as Start/Stop Record, FPS, Shutter Speed, ISO, Color Temperature/White Balance, Clip Playback, and more. *Individual Camera Control software licenses are sold separately.

Additional Camera Control compatibility coming soon.

Model Cine 5
Environmental
Item Weight (oz) 14.7
Package Weight (oz) 3lbs
Height (in) 3.39
Width (in) 5.28
Length/Depth (in) 1.52
Compliance FCC, IC, CE, UKCA, RCM, BIS, ROHS
Operating Temperature 32 F – 105 F
Storage Temperature 0F to 120F
Screen Protection Clear or Matte
Mount Points 6x 1/4-20 Mounting Points (3 Bottom, Left, Right, Top)
Construction Anodized Aluminum unibody

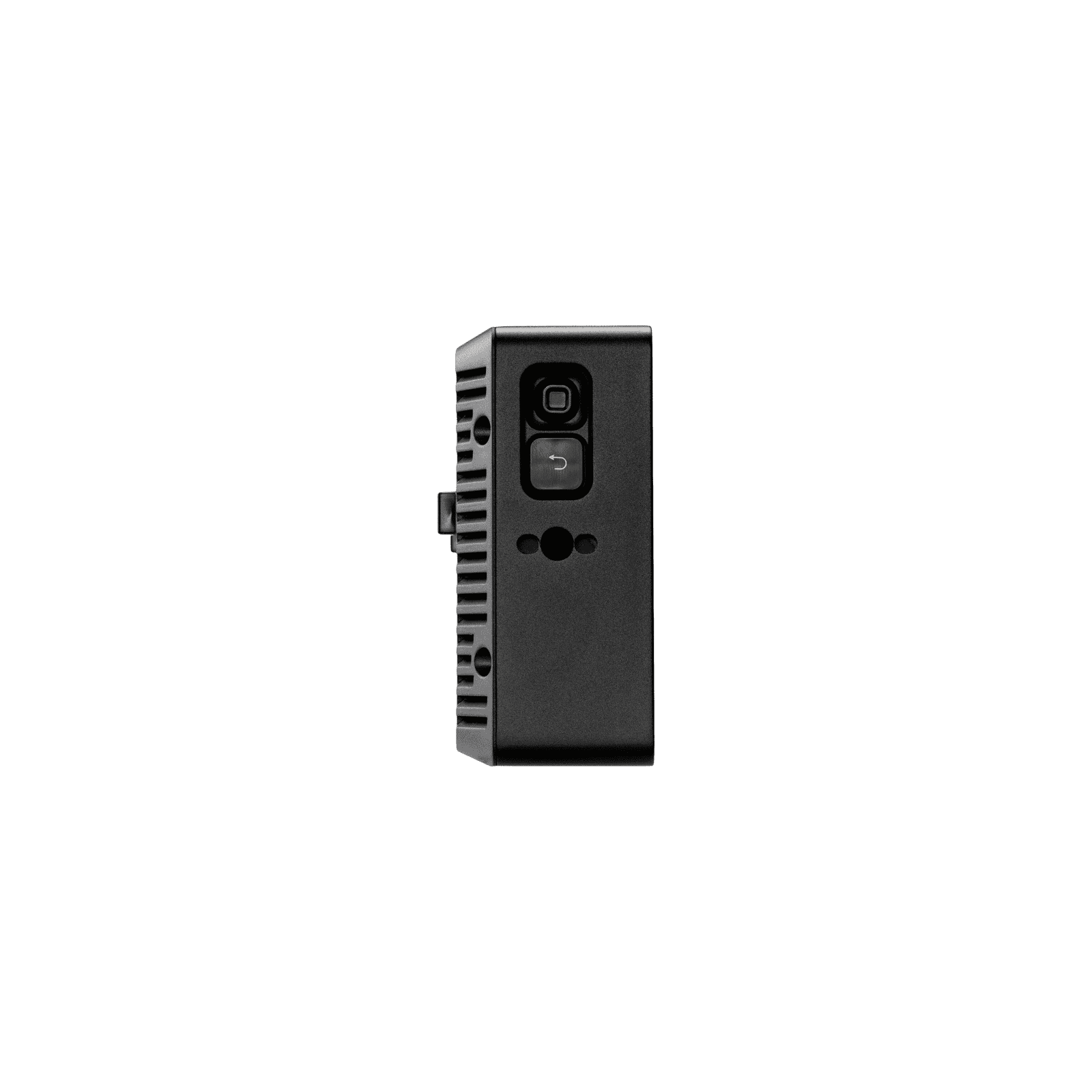

User Function Buttons Side Joystick
Side Back-Button
Display
Panel Type IPS LCD with touch
Diagonal Size 4.97″
Resolution 1920 x 1080
Pixel Density 443 PPI
Aspect Ratio 16:9
Active Area 61.88 x 110.02 mm
Max Brightness 2000nits
Contrast 1000:1
Gamut 97% Rec709
Backlight Type Edgelit
Refresh Rate Synchronizes with input from 48Hz to 60Hz
Input Signal
3G-SDI Input Types YCC 4:2:2 @ 10-bits:

1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100
HD-SDI Input Types YCC 4:2:2 @ 10-bits:

1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98
SD-SDI Input Types YCC 4:2:2 @ 10-bits:

480i59.94, 576i50
HDMI Input Types YCC 4:2:2 @ 12 bits, 8 bit color in RGB & YCC 4:4:4:

2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98, 1080p120, 1080p119.88, 1080p100, 1080i120, 1080i119.88, 1080i100, 1080i60, 1080i59.94, 1080i50, 720p240, 720p239.76, 720p200

YCC 4:2:2 @ 12 bits, 8/10/12/16 bit color in RGB & YCC 4:4:4
1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p240, 480p239.76, 480p120, 480p119.88, 480p60, 480p59.94, 576p200, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 576i200, 576i100, 576i50
Audio Input Types HDMI & SDI – Monitor through Speakers in Front Bezel or Through Headphone Jack – Metering up to 8 channels
Output Signal
3G-SDI Output Types YCC 4:2:2 @ 10-bits:

1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100
HD-SDI Output Types YCC 4:2:2 @ 10-bits:

1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98
SD-SDI Output Types YCC 4:2:2 @ 10-bits: 480i59.94, 576i50
HDMI Output Types YCC 4:2:2 @ 12 bits, 8 bit color in RGB & YCC 4:4:4:

2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98, 1080p120, 1080p119.88, 1080p100, 1080i120, 1080i119.88, 1080i100, 1080i60, 1080i59.94, 1080i50, 720p240, 720p239.76, 720p200

YCC 4:2:2 @ 12 bits, 8/10/12/16 bit color in RGB & YCC 4:4:4:

1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25,
1080p24, 1080p23.98, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p240, 480p239.76, 480p120, 480p119.88, 480p60, 480p59.94, 576p200, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 576i200, 576i100, 576i50
Audio Output Types HDMI & SDI – Incoming Audio Stream is sent downstream via HDMI or SDI connection and 1x 3.5mm 3-pin Stereo Headphone
Connector Type

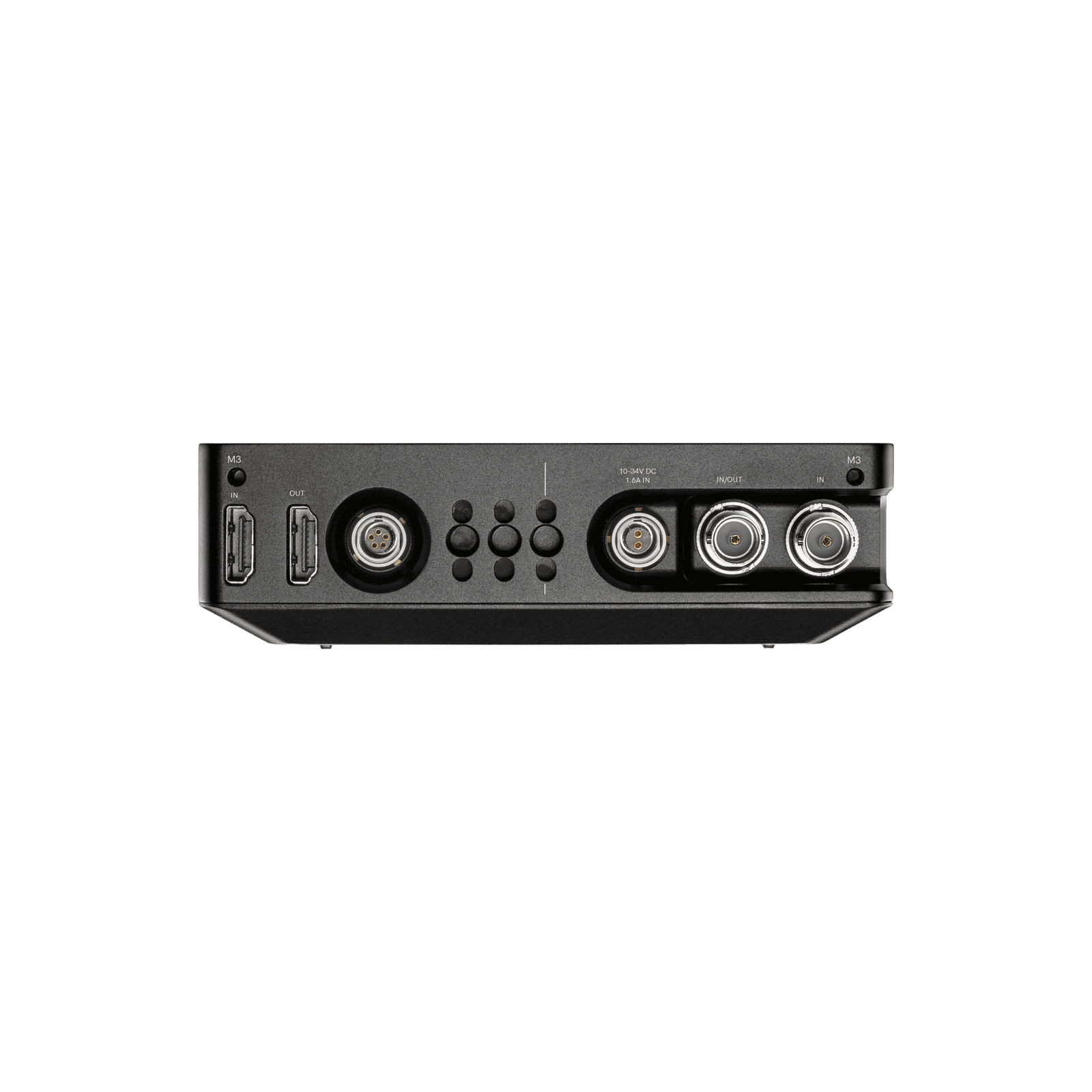

SDI 1x BNC 3G input and 1x BNC 3G selectable input/output
HDMI 1 input and 1 output: HDMI Type-A Receptacles (full size)
Audio HDMI & SDI – Monitor through Headphone Jack – Metering up to 8 channels
Power In 2-pin Locking
USB 5-pin locking USB 2.0
Controls
Record Capture Image Capture Tool
USB 5-pin locking USB 2.0
Data I/O
SDI 1x BNC 3G input and 1x BNC 3G input/output
HDMI 1 input and 1 output: HDMI Type-A Receptacles (full size)
Audio 1x 3.5mm 3-pin Stereo Headphone Jack

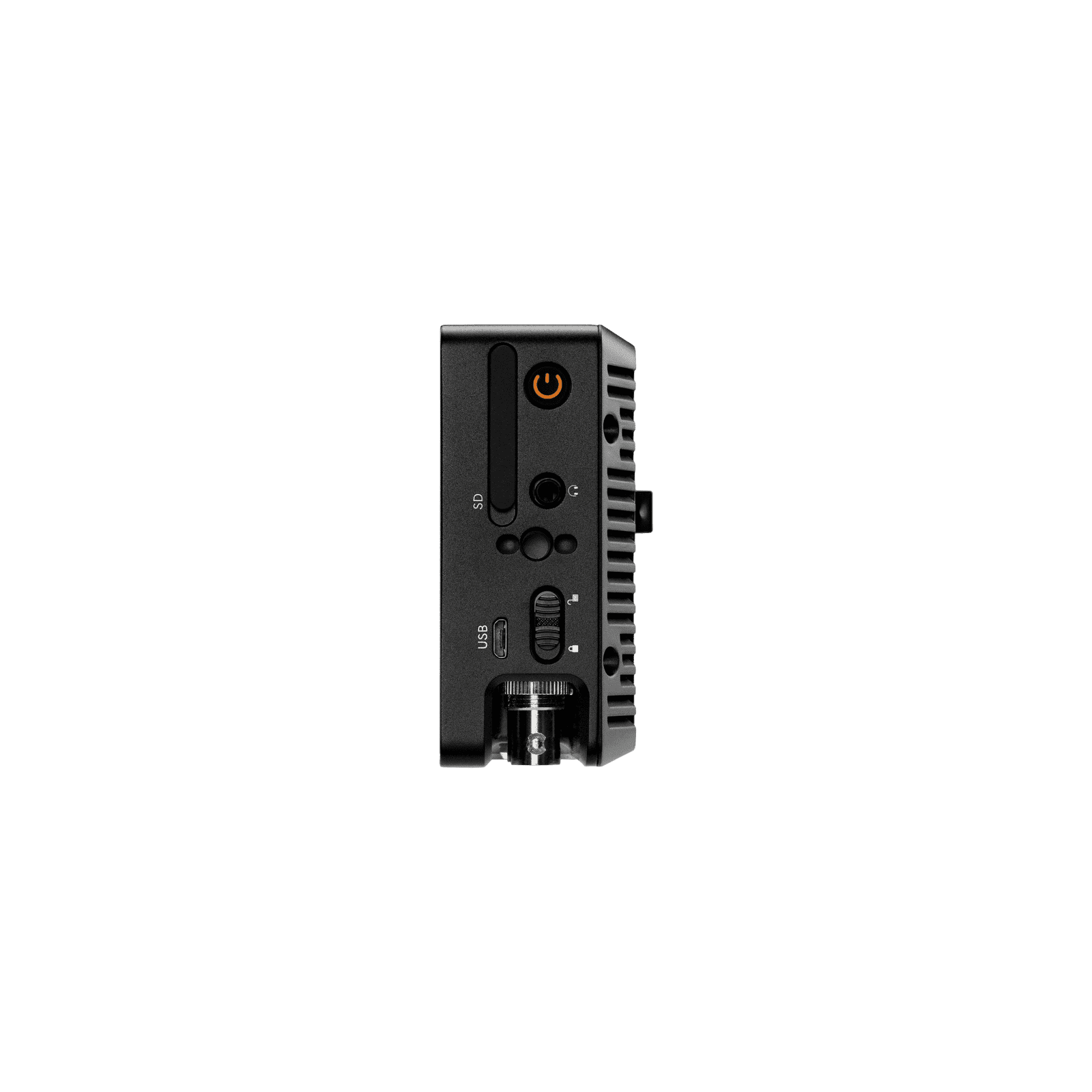

Storage Media 1x SD Card Slot
USB 5-pin locking USB 2.0
Power
Input 2-pin Locking Power Input
(10-34V DC, 1.6A)
Software
Pixel Zoom Yes
Focus Assist Yes
Peaking Yes
False Color Customizable False Color Overlays
Waveform Customizable 4K Waveform w/Region of Interest Highlighting (Coming Soon)
Custom LUTS 17pt 3D-LUT on Output/Input
33pt 3D-LUT on Output/Input
Camera Control
Camera Control Compatibility Camera Control for RED® DSMC2™
Camera Control for RED® RCP2™ Cameras (KOMODO®, DSMC3™)
*Additional camera control compatibility coming soon

Additional information

Brand

  • 1 x Cine 5
