SmallHD

Indie 5 RED® RCP2™ Kit (KOMODO®, DSMC3™)

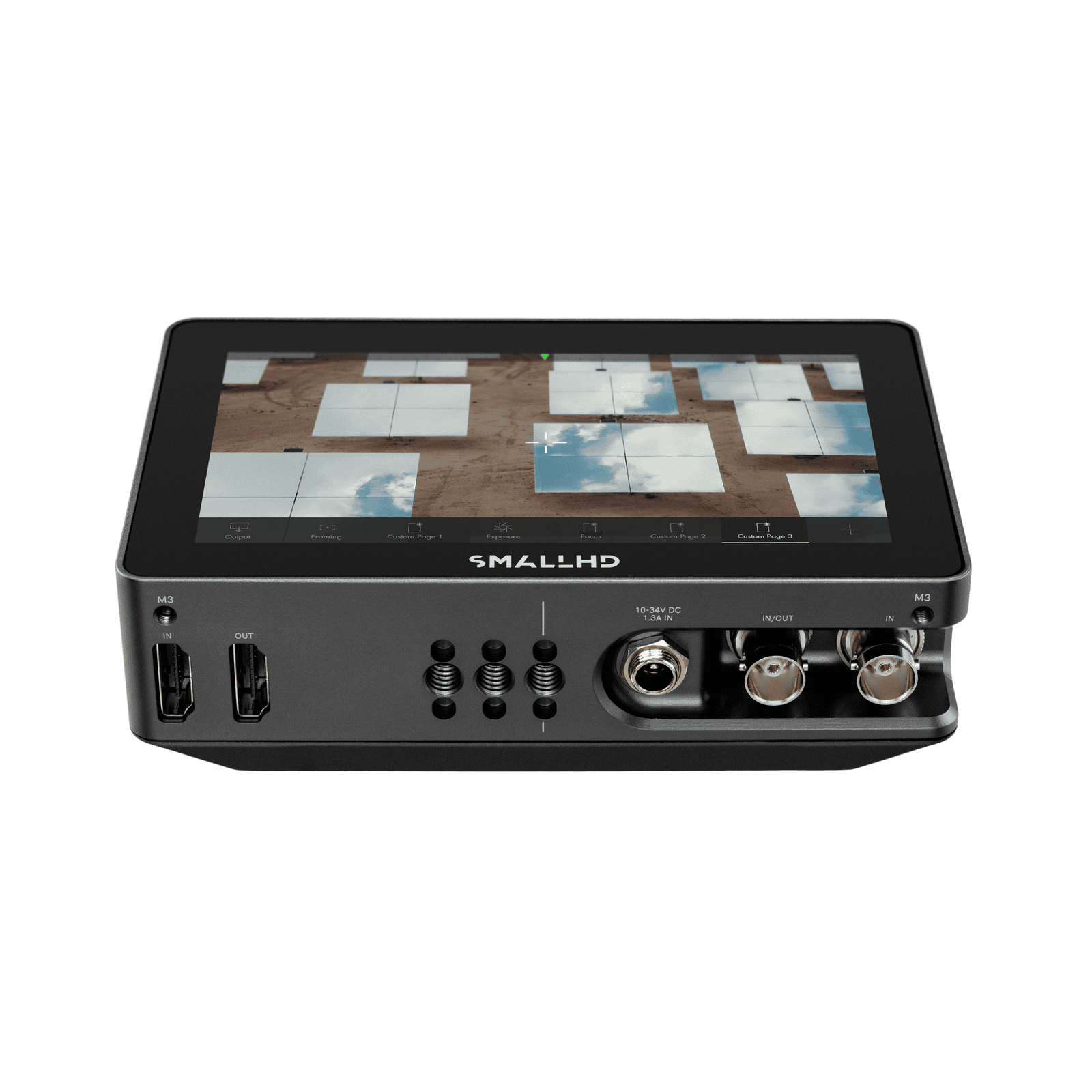

Introducing the Indie 5 RED® RCP2™ Kit, the latest addition to our Smart 5 Series of monitors. As our smallest and lightest monitor, the Indie 5 packs a punch with its powerful features and sleek design.

1.714,74€ (ex. VAT)

SKU: 16-0525-R2 Categories: , , Brand:

Introducing the Indie 5 RED® RCP2™ Kit, the latest addition to our Smart 5 Series of monitors. As our smallest and lightest monitor, the Indie 5 packs a punch with its powerful features and sleek design.

With its hyper-responsive touchscreen display, the Indie 5 delivers stunning visuals with a brightness of 1000 nits and 1080p resolution. It also comes equipped with our intuitive PageOS 5 operating system, which provides quick access to all your favorite tools for effortless navigation.

Take control of your camera with the Indie 5’s RED® RCP2™ camera-control functionality. This kit includes our RED® RCP2™ software license and control cables, which enable real-time configuration of RED® RCP2™ cameras such as KOMODO-X, KOMODO®, DSMC3™, and V-RAPTOR™. Quickly access essential camera settings with our user-friendly controls, and transform your touchscreen into the central command hub of your camera.

Whether you’re a professional on an indie budget or just starting out, the Indie 5 is the perfect entry-level monitor for you. Its integrated tools provide more accurate exposure and color control, Look-Around Camera Control, EL Zone, Advanced Teradek RT overlays, and so much more.

Upgrade your filmmaking game with the Indie 5 – the premium touchscreen 5-inch monitor that delivers big on features and performance.

*Additional Individual Camera Control software licenses are sold separately.

Disclaimer: Once any camera control is registered in your SmallHD monitor, it can not be removed or transferred to a different monitor.

Model Indie 5 RED® RCP2™ Kit (KOMODO®, DSMC3™)
Environmental
Item Weight (oz) 14.4
Height (in) 3.39
Width (in) 5.28
Length/Depth (in) 1.52
Mount Points 6x 1/4-20 Mounting Points
Display
Panel Type Touch-Screen
Resolution 1920 x 1080
Aspect Ratio 16:9
Max Brightness 1000nits
Backlight Type Edgelit
Input Signal
3G-SDI Input Types YCC 4:2:2 @ 10-bits:

1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100
HD-SDI Input Types YCC 4:2:2 @ 10-bits:

1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98
SD-SDI Input Types YCC 4:2:2 @ 10-bits:

480i59.94, 576i50
HDMI Input Types YCC 4:2:2 @ 12 bits, 8 bit color in RGB & YCC 4:4:4:

2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98, 1080p120, 1080p119.88, 1080p100, 1080i120, 1080i119.88, 1080i100, 1080i60, 1080i59.94, 1080i50, 720p240, 720p239.76, 720p200

YCC 4:2:2 @ 12 bits, 8/10/12/16 bit color in RGB & YCC 4:4:4
1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p240, 480p239.76, 480p120, 480p119.88, 480p60, 480p59.94, 576p200, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 576i200, 576i100, 576i50
Audio Input Types HDMI & SDI – Monitor through Speakers in Front Bezel or Through Headphone Jack – Metering up to 8 channels
Output Signal
3G-SDI Output Types YCC 4:2:2 @ 10-bits:

1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100
HD-SDI Output Types YCC 4:2:2 @ 10-bits:

1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98
SD-SDI Output Types YCC 4:2:2 @ 10-bits: 480i59.94, 576i50
HDMI Output Types YCC 4:2:2 @ 12 bits, 8 bit color in RGB & YCC 4:4:4:

2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98, 1080p120, 1080p119.88, 1080p100, 1080i120, 1080i119.88, 1080i100, 1080i60, 1080i59.94, 1080i50, 720p240, 720p239.76, 720p200

YCC 4:2:2 @ 12 bits, 8/10/12/16 bit color in RGB & YCC 4:4:4:

1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25,
1080p24, 1080p23.98, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p240, 480p239.76, 480p120, 480p119.88, 480p60, 480p59.94, 576p200, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 576i200, 576i100, 576i50
Audio Output Types HDMI & SDI – Incoming Audio Stream is sent downstream via HDMI or SDI connection

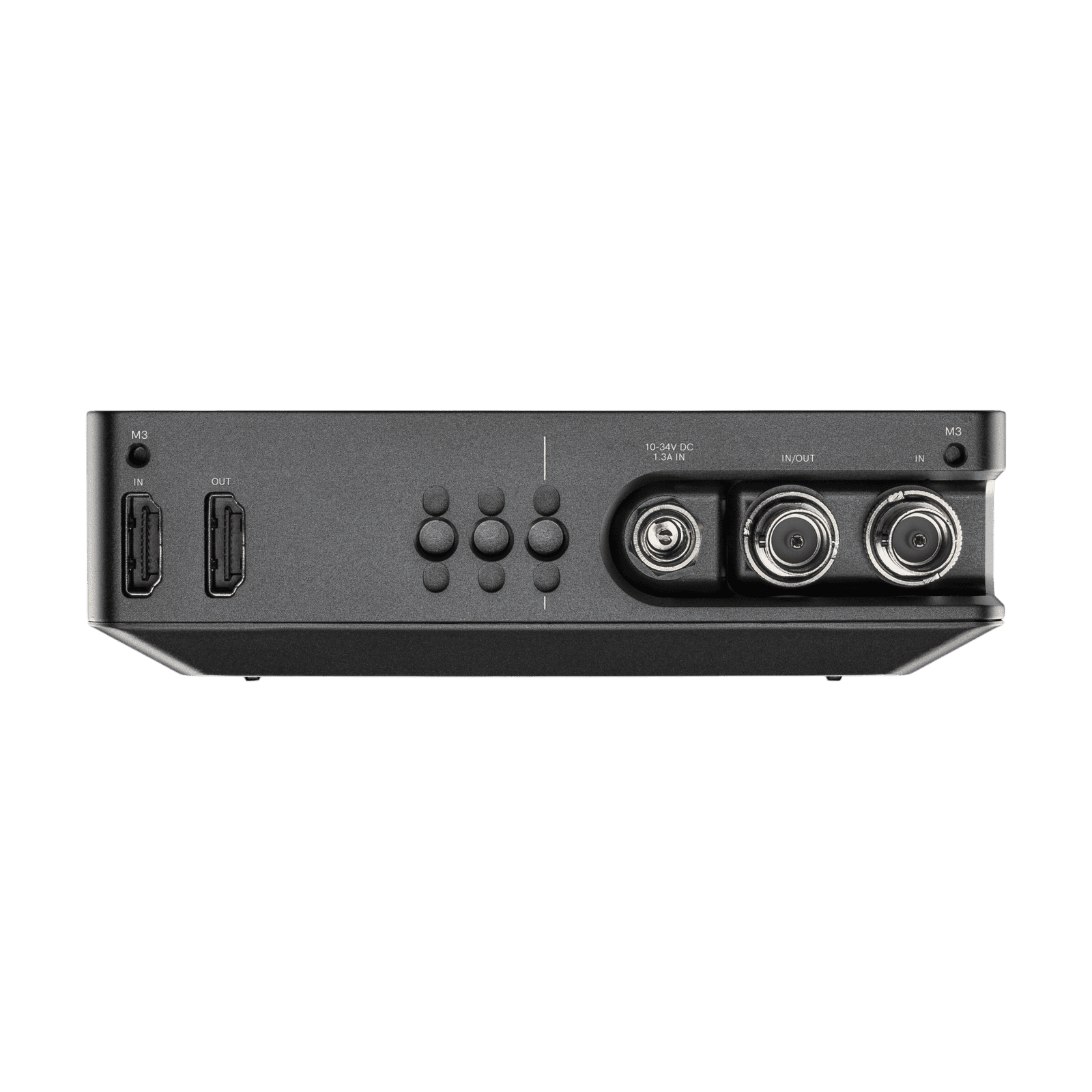

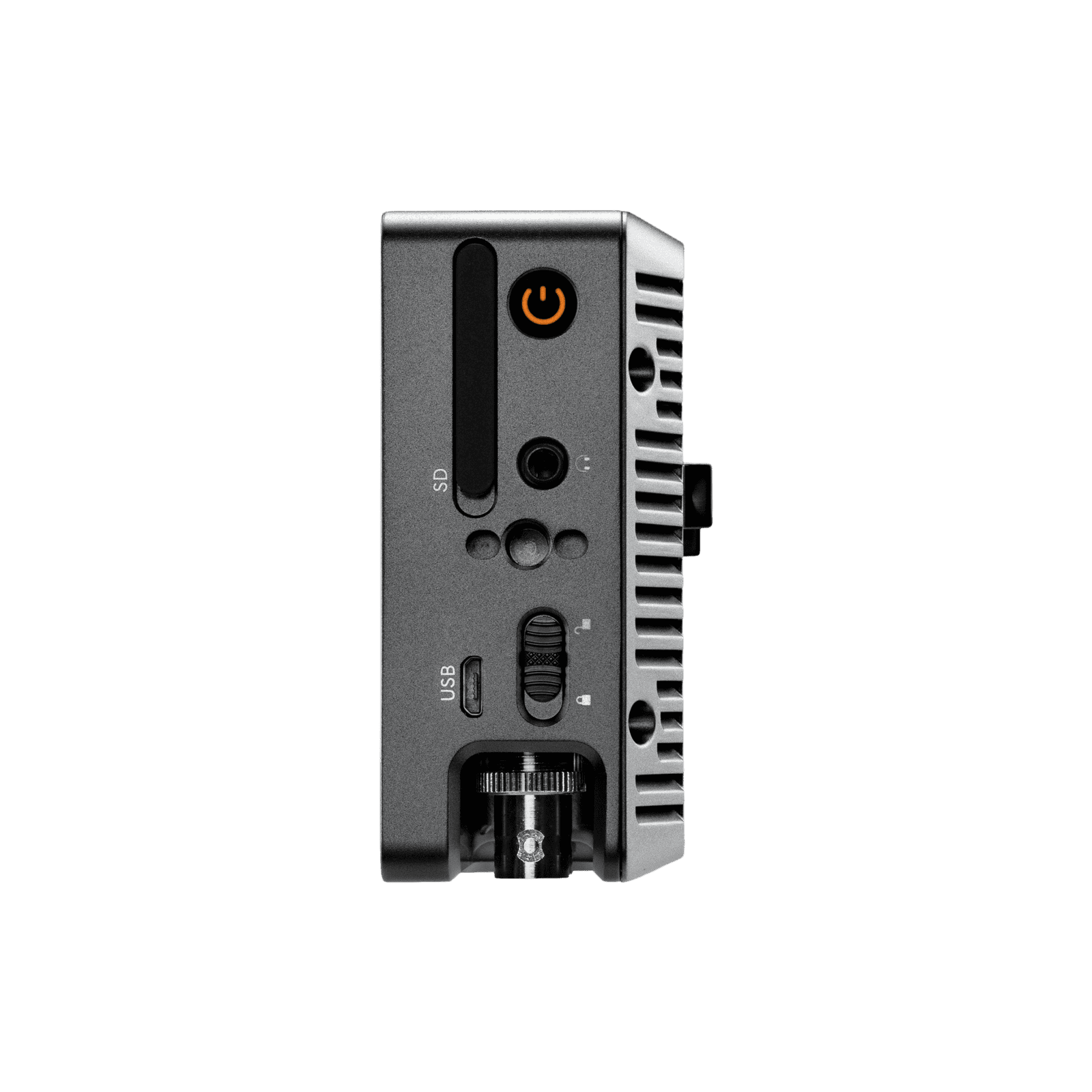

Connector Type
SDI 1x 3G-SDI (In), 1x 3G-SDI (In/Out)
HDMI 1x HDMI 2.0 (4Kp30) [In], 1x HDMI 2.0 (4Kp30) [Out]
Audio 1x 3.5mm Stereo Headphone Jack
Data I/O
Storage Media 1x SD Card Slot
USB 1x Micro USB
Power
Input Barrel Power Input
Software
Pixel Zoom Yes
Focus Assist Yes
Peaking Yes
False Color Customizable False Color Overlays
Waveform Customizable 4K Waveform w/Region of Interest Highlighting (Coming Soon)
Custom LUTS 17pt 3D-LUT on Output/Input
33pt 3D-LUT on Output/Input
Camera Control
Camera Control Compatibility Camera Control for RED® DSMC2™
Camera Control for RED® RCP2™ Cameras (KOMODO®, DSMC3™)

Additional information

Brand

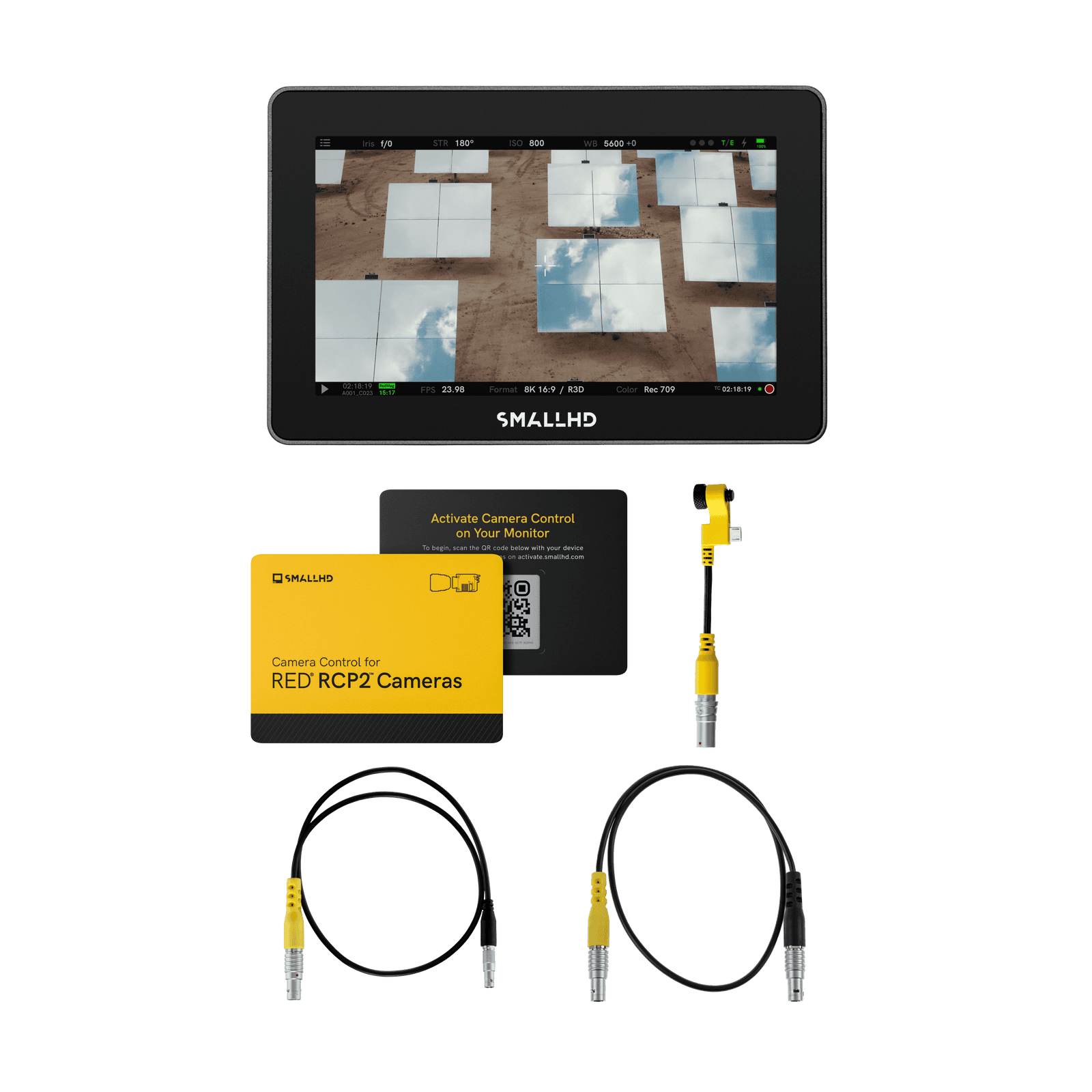

  • 1 x Indie 5

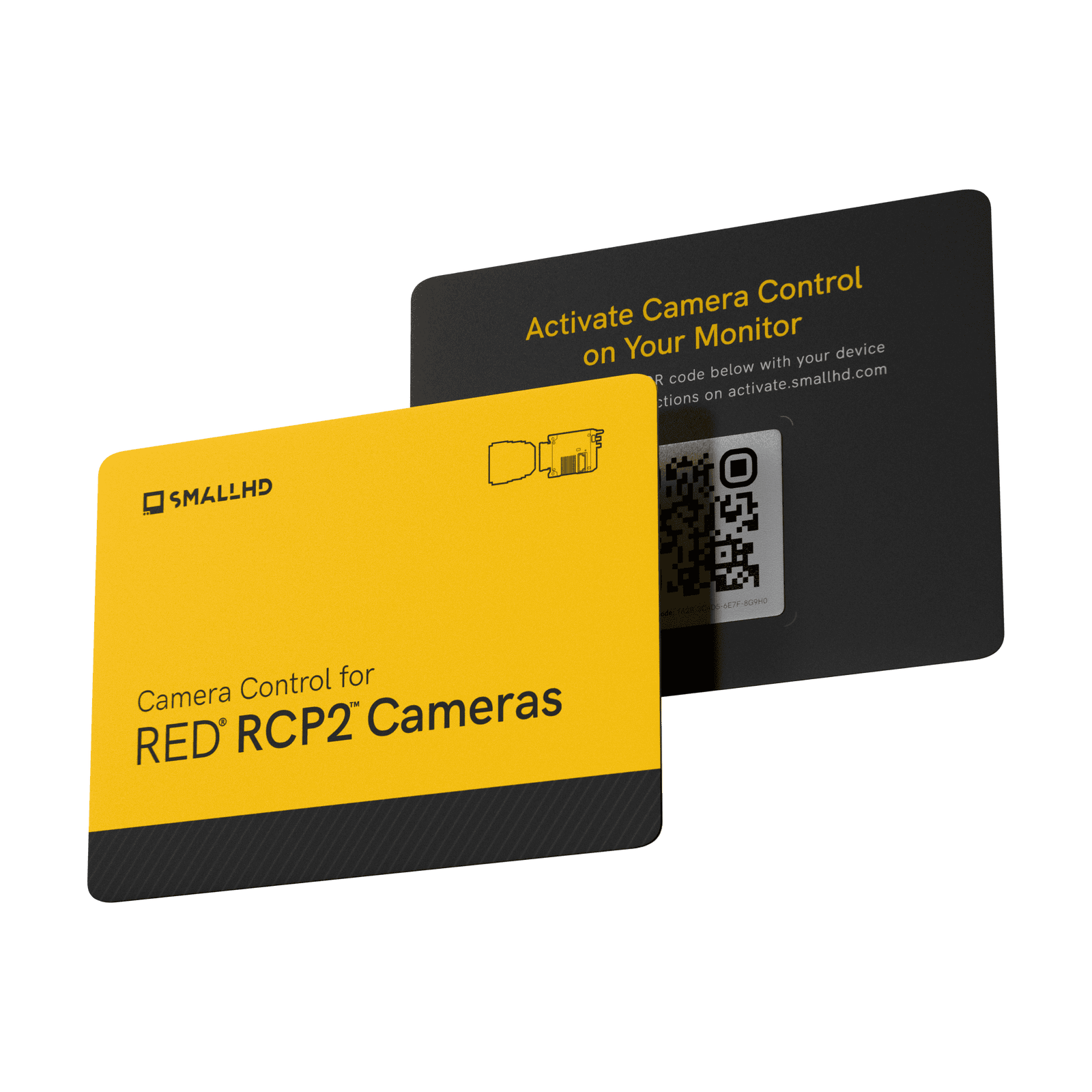

  • 1x Camera Control for RED® RCP2 Cameras

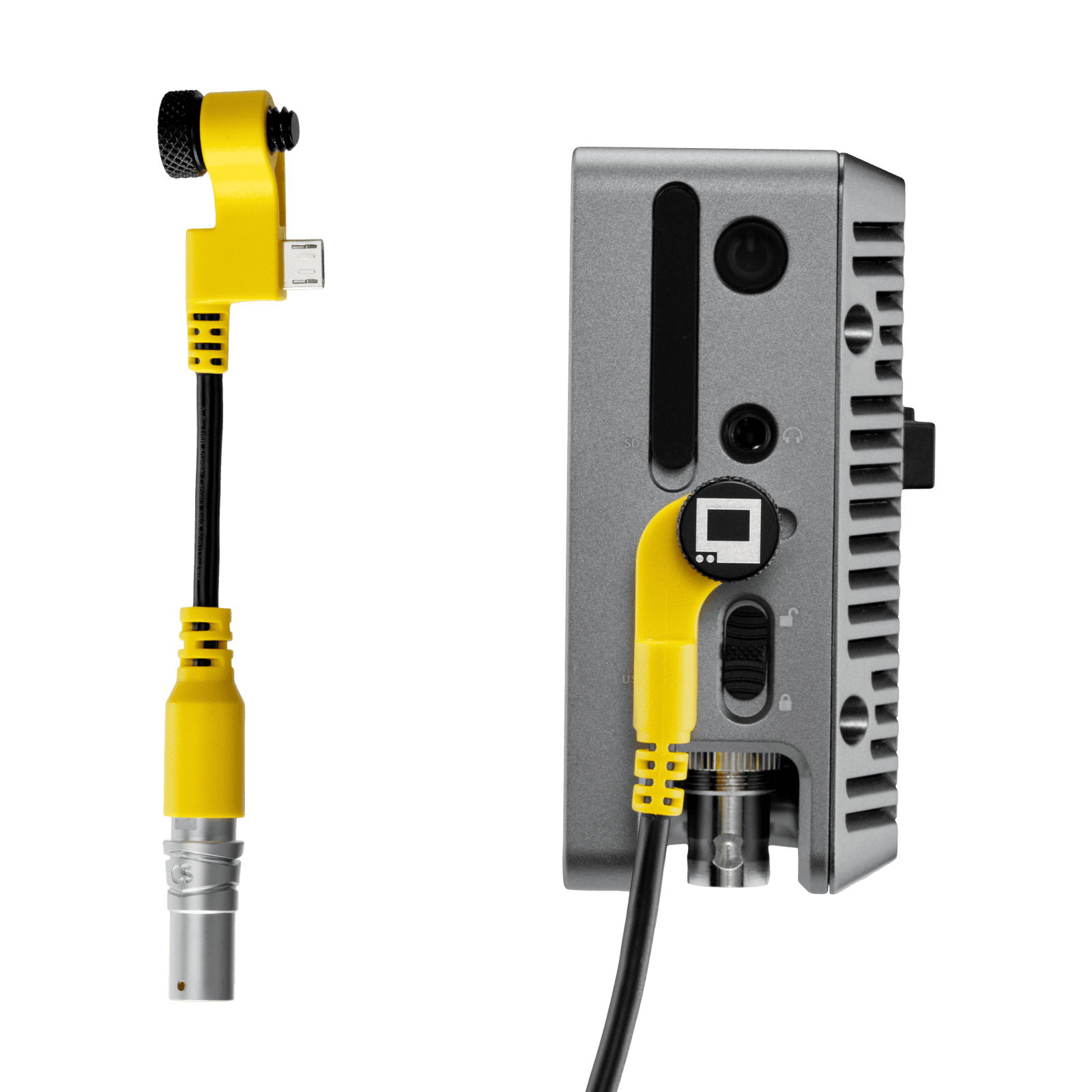

  • 1x locking-micro-usb-to-locking-5-pin-adapter
  • 1x Camera Control Cable for RED® KOMODO® Focus Pro

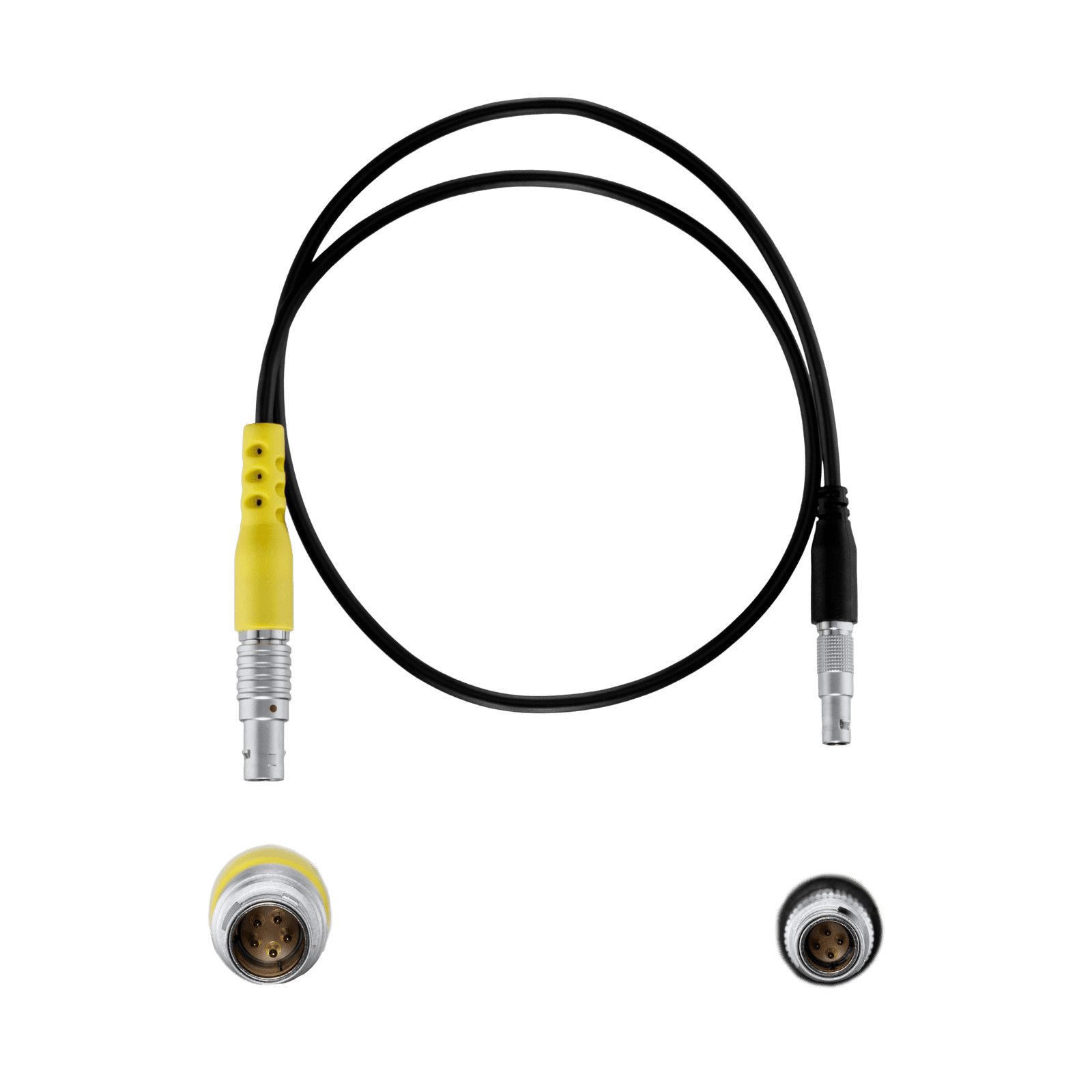

  • 1x 4-Pin RED® CTRL to 5-Pin USB Cable
