SmallHD

Cine 7 ARRI Kit

Our Cine 7 ARRI Kit bundles everything you need to control your ARRI camera from SmallHD’s Cine 7 monitor. Each component of the kit has been designed to pair our Cine 7 with your camera, helping simplify shoots by giving you camera control from the touchscreen monitor.

2.524,92€ (ex. VAT)

SKU: MON-CINE7-ARRI Categories: , , Brand:

Our Cine 7 ARRI Kit bundles everything you need to control your ARRI camera from SmallHD’s Cine 7 monitor. Each component of the kit has been designed to pair our Cine 7 with your camera, helping simplify shoots by giving you camera control from the touchscreen monitor.

The Cine 7 ARRI Kit includes our Cine 7 monitor, camera control software for ARRI camera, and essential cables.

Explore the Cine 7 ARRI Kit

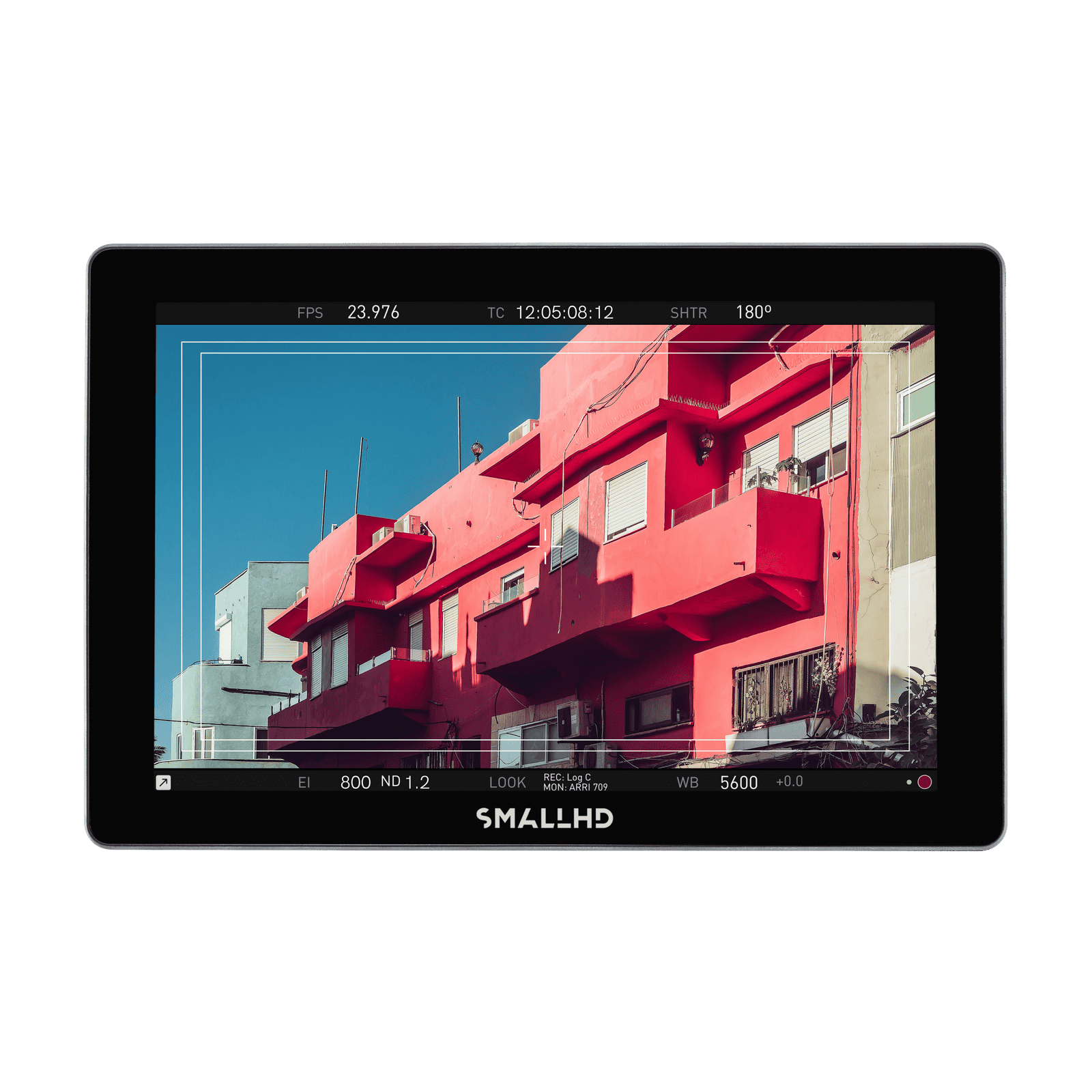

Cine 7 Monitor

Cine 7 is the ultimate 7” on-camera HD monitor for cinematographers, offering a color accurate wide-gamut display, cinema camera control, and 4K and HDR compatibility. View your production in full sunlight thanks to 1800nits of brightness and save your favorite tools, functions, and setting pages in one tap with PageOS.

The Full HD 7-inch IPS LCD display with 1920×1200 resolution ensures a clear look at your production, while 10-bit color processing in 100% DCI-P3 offers color accuracy. This guarantees the image on screen reflects what’s being captured by the camera. No matter the time of day, environment, or sunlight, you’ll get a clear, glare-free view of your monitor thanks to 1800 nits of brightness.

The Cine 7 features two 3G-SDI inputs, with the second input doubling as a loop out, an HDMI input with an HDMI loop through, a Sony L-Series dual battery bracket, and the option to add on a Gold Mount or V-Mount battery plate attachment.

With the power of SmallHD PageOS software, build customized Page Profiles, and utilize all of the dependable SmallHD features such as personalized frame guides, Focus & Exposure Assist, high-resolution 3D LUT overlays, histogram, vectorscope, waveform, and more.

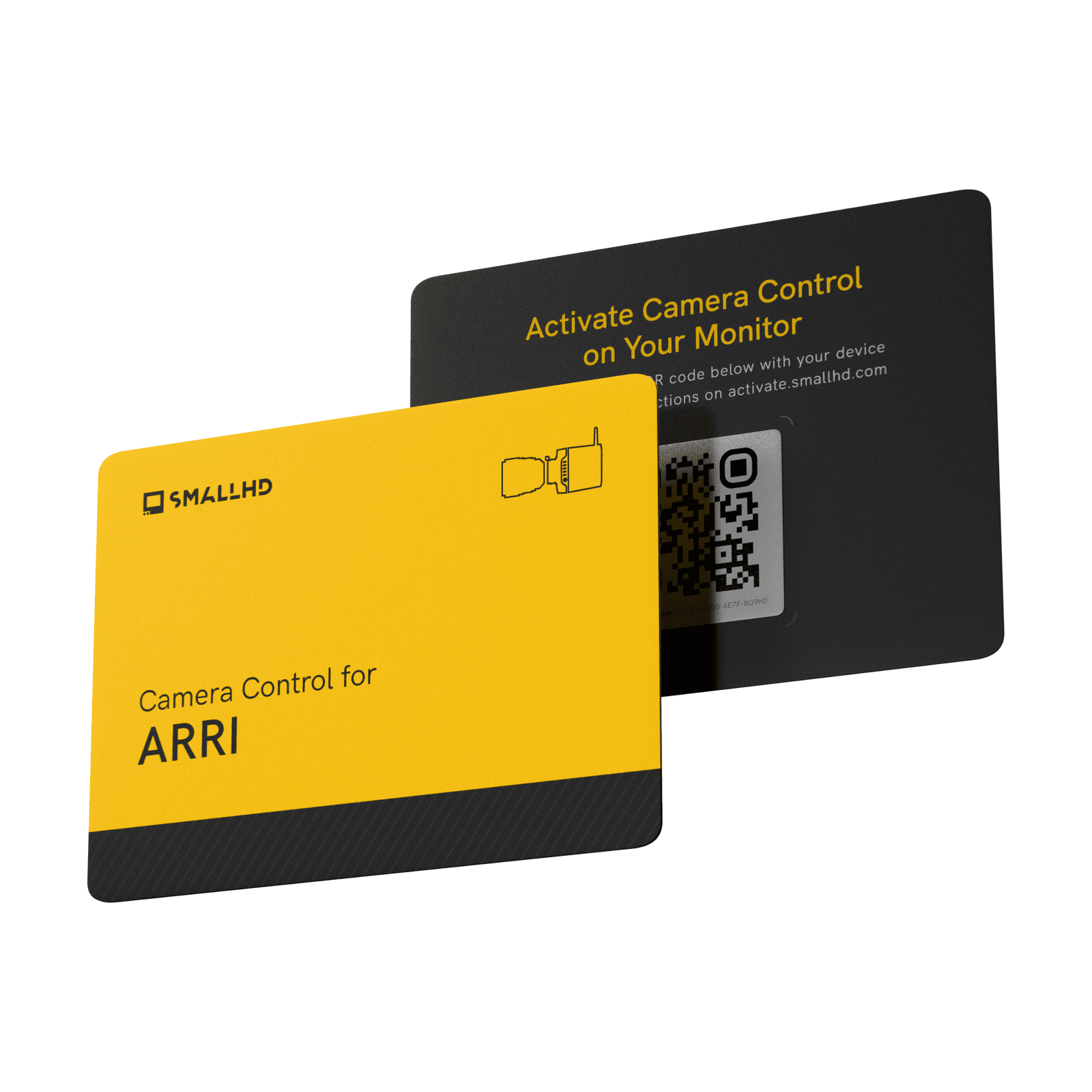

Camera Control for ARRI (Software Only)

This Software License is a digital download that allows you to unlock access to camera control for ARRI cameras via a software activation code. Quickly access essential ARRI camera settings with intuitive, user friendly controls on the Cine 7.

Included Cables

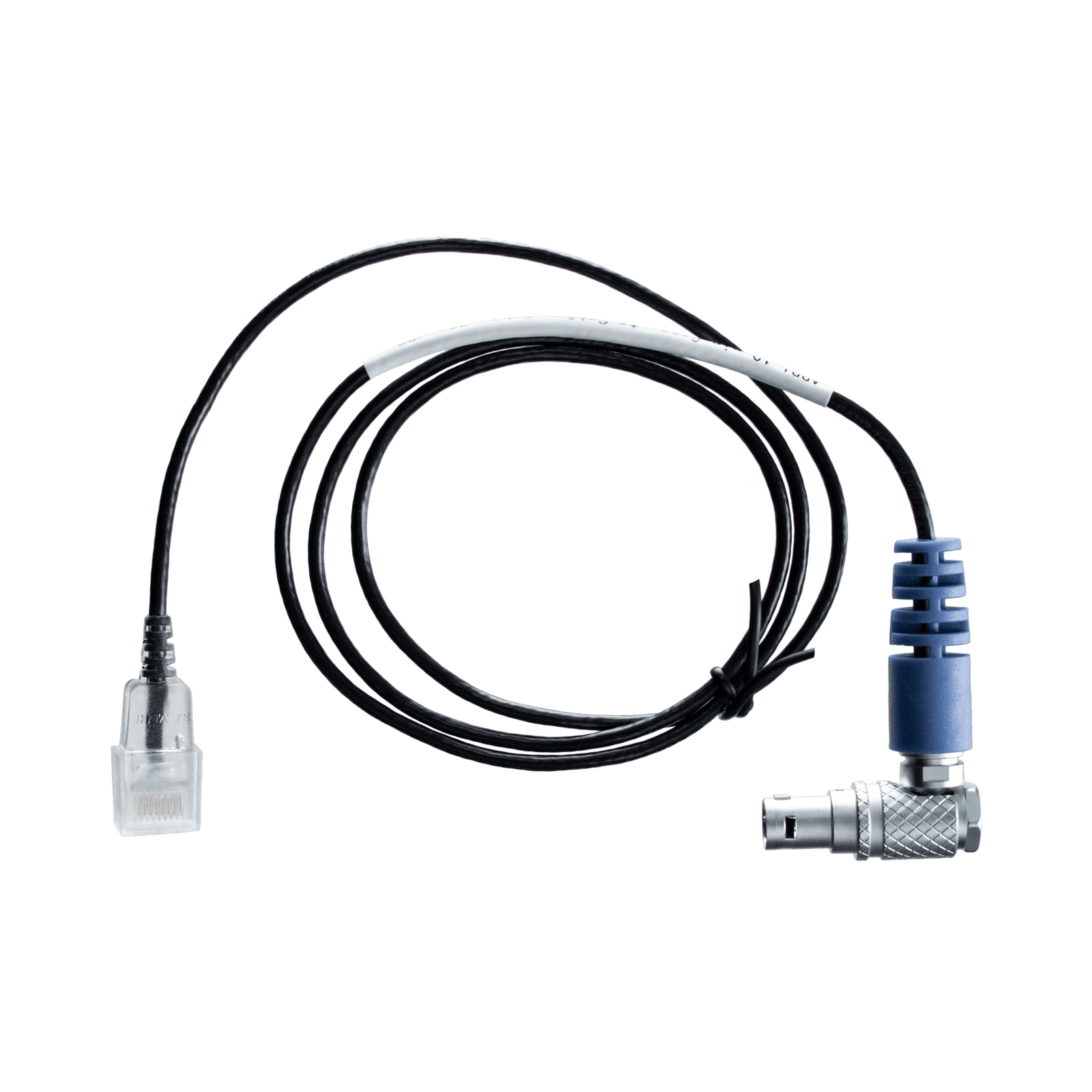

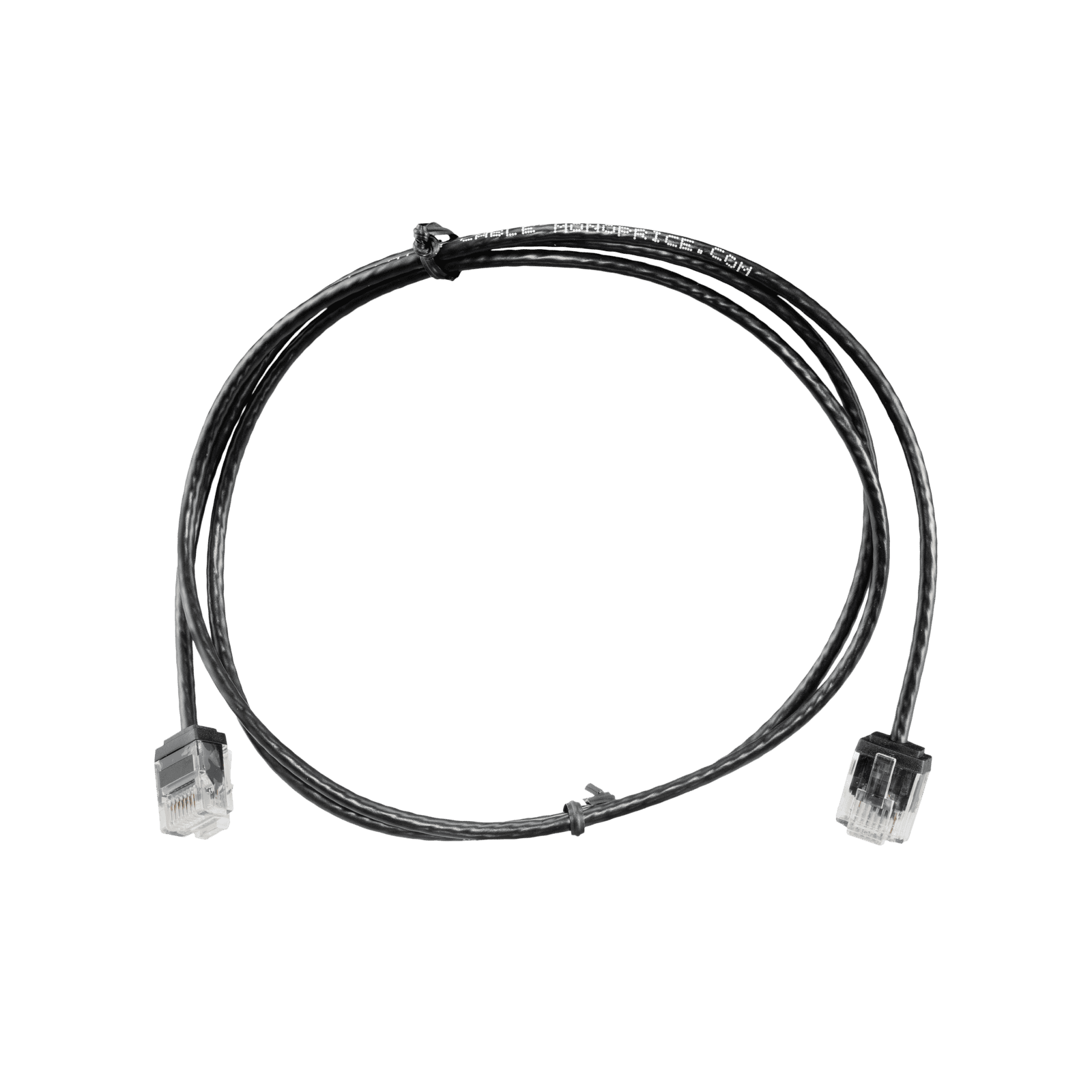

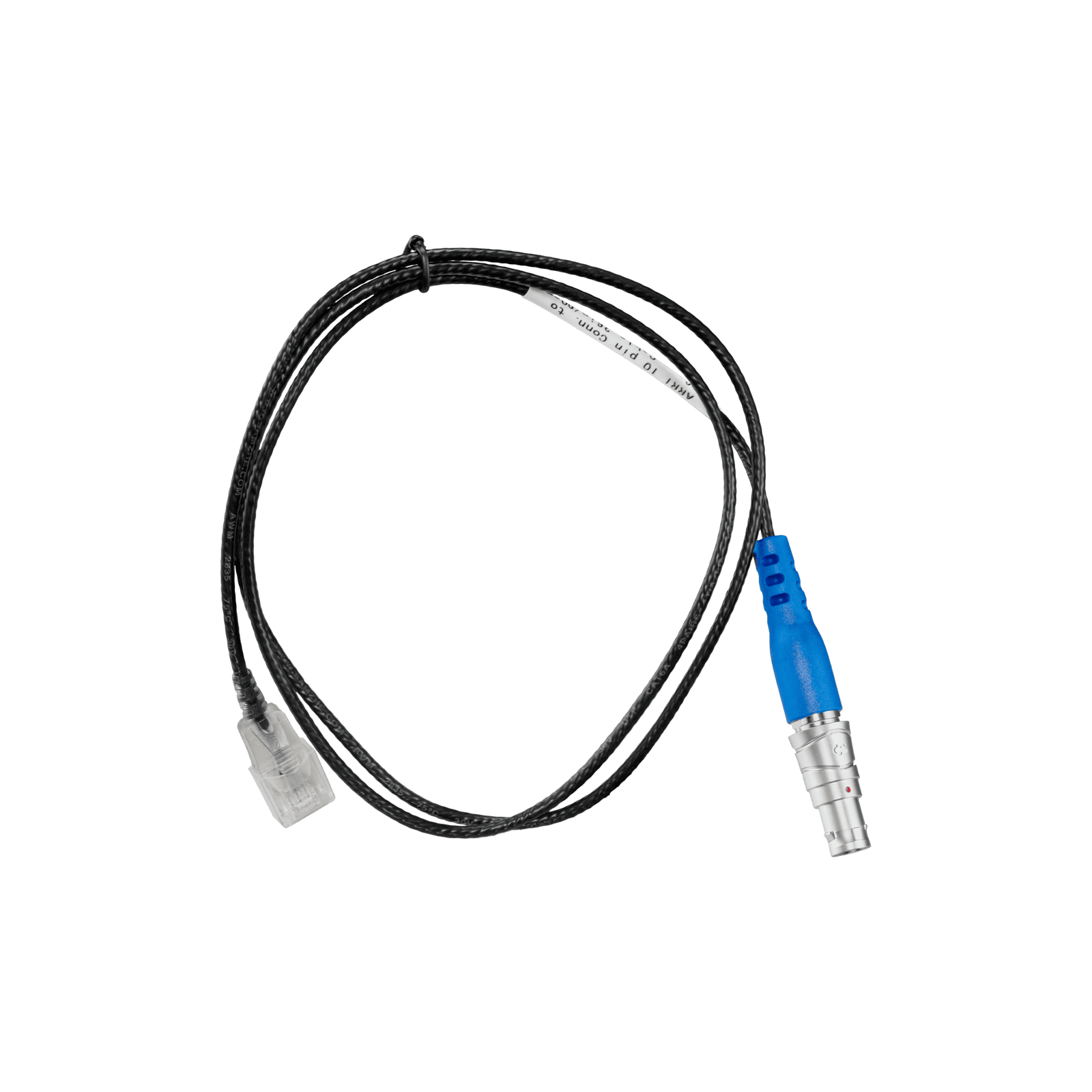

The Cine 7 ARRI Kit includes an Ethernet Cable, which features two RJ45 connectors at each end. Also included are the ARRI Alexa Camera Control Cables, which connect to the ALEXA camera with its 10-pin connector in both straight and right angle configurations.

Model Cine 7 ARRI Kit
Environmental
Item Weight (oz) 20
Package Weight (oz) 32
Height (in) 4.67
Width (in) 7.09
Length/Depth (in) 1.4
Compliance FCC, IC, CE, RoHS
Operating Temperature 32 F – 105 F
Storage Temperature 0F to 120F
Mount Points Four ¼-20 Mount Points (Left, Right, Bottom, and Back)
Construction Anodized Aluminum unibody
Display
Panel Type IPS LCD with touch
Diagonal Size 7.02
Resolution 1920×1200
Pixel Density 322 ppi
Aspect Ratio 16:9
Active Area 5.95 x 3.72
Max Brightness 1800 NITs
Contrast 1000:1
Gamut 100% DCI-P3 Coverage
Color Depth 10-bit Processing (8-bit panel)
Viewing Angle 160
Backlight Type LED
Adjustable Backlight Yes
Refresh Rate Synchronizes with input from 48Hz to 60Hz
Brightness 1800 NITs
DCI-P3 Color 100% DCI-P3 Coverage
Input Signal
3G-SDI Input Types YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100
HD-SDI Input Types YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98
SD-SDI Input Types YCC 4:2:2 @ 10-bits: 480i59.94, 576i50
HDMI Input Types YCC 4:2:2 @ 12 bits, 8/10/12/16 bit color in RGB & YCC 4:4:4: 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p240, 480p239.76, 480p120, 480p119.88, 480p60, 480p59.94, 576p200, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 576i200, 576i100, 576i50
Audio Input Types HDMI & SDI – Monitor through Speakers in Front Bezel or Through Headphone Jack – Metering up to 8 channels
Output Signal
3G-SDI Output Types YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100
HD-SDI Output Types YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98
SD-SDI Output Types YCC 4:2:2 @ 10-bits: 480i59.94, 576i50
HDMI Output Types YCC 4:2:2 @ 12 bits, 8 bit color in RGB & YCC 4:4:4: 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98, 1080p120, 1080p119.88, 1080p100, 1080i120, 1080i119.88, 1080i100, 1080i60, 1080i59.94, 1080i50, 720p240, 720p239.76, 720p200
Audio Output Types HDMI & SDI – Incoming Audio Stream is sent downstream via HDMI or SDI connection and 1x 3.5mm 3-pin Stereo Headphone
Connector Type
SDI 1x BNC 3G input and 1x BNC 3G selectable input/output
HDMI 1 input and 1 output: HDMI Type-A Receptacles (full size)
Audio HDMI & SDI – Monitor through Headphone Jack – Metering up to 8 channels
Power In 2-pin Locking
USB 1x USB 2.0 Micro-B receptacle
Controls
Primary Touch Screen
Record Capture Image Capture Tool
USB 1x USB 2.0 Micro-B receptacle
Data I/O
SDI 1x BNC 3G input and 1x BNC 3G input/output
HDMI 1 input and 1 output: HDMI Type-A Receptacles (full size)
Audio 1x 3.5mm 3-pin Stereo Headphone Jack
Ethernet RJ45
Storage Media 1x SD Card Slot
USB 1x USB 2.0 Micro-B receptacle
Power
Connector 2-pin Locking
Voltage DC in – 10V minimum to 34V maximum, Battery terminals – 6.0V minimum to 16.8V max
Power Supply Recommend DC 12~15V at ~2.5 amp or greater
Battery Types L-Series (included), V Mount, Gold Mount
Overload Protection DC input: Reverse polarity
Battery Chemistry Li-ion
Battery Charging Time Monitor does not support the charging of batteries
Power Plug-in 2-pin Locking
Software
Pixel Zoom 1.1-2.0x & 2.0-8.0x via swipe up/down. Infinitely adjustable via pinch & zoom
Frame Guides Preset Aspect Ratios & Customizable
DSLR Scale Canon 5DMkii & Canon 7D
Custom Scale Yes (Underscan Only)
Anamorphic De-Squeeze 0.75x, 1.33x, 1.5x, 1.66x, 2.0x, 2.5x
Image Rotate Automatic or Manual Control
Image Flip Automatic or Manual Control
Cross Conversion Yes: HDMI → SDI & SDI → HDMI
Focus Assist User Adjustable Color Style and Intensity
Peaking User Adjustable Intensity
False Color Rainbow, Arri Style, Custom with up to 10 nodes
Zebra Dual – User Configurable
Waveform Luma & RGB Style, Fully User Customizable w/ Region of Interest Highlighting
Vectorscope Yes
RGB Parade Fully User Customizable
Histogram Luma & RGB Style
Image Capture Yes
Custom LUTS Loadable as Looks on Pages or as Systemwide Color Calibration via the settings menu
LUT Downstream Available on SDI or HDMI Out. Applied on Output Preview Page.
LUT Import via SD Card or USB Storage Device
Overlay With Opacity Slider and Blink Setting
Audio Meters HDMI & SDI up to 8 channel

Additional information

Brand

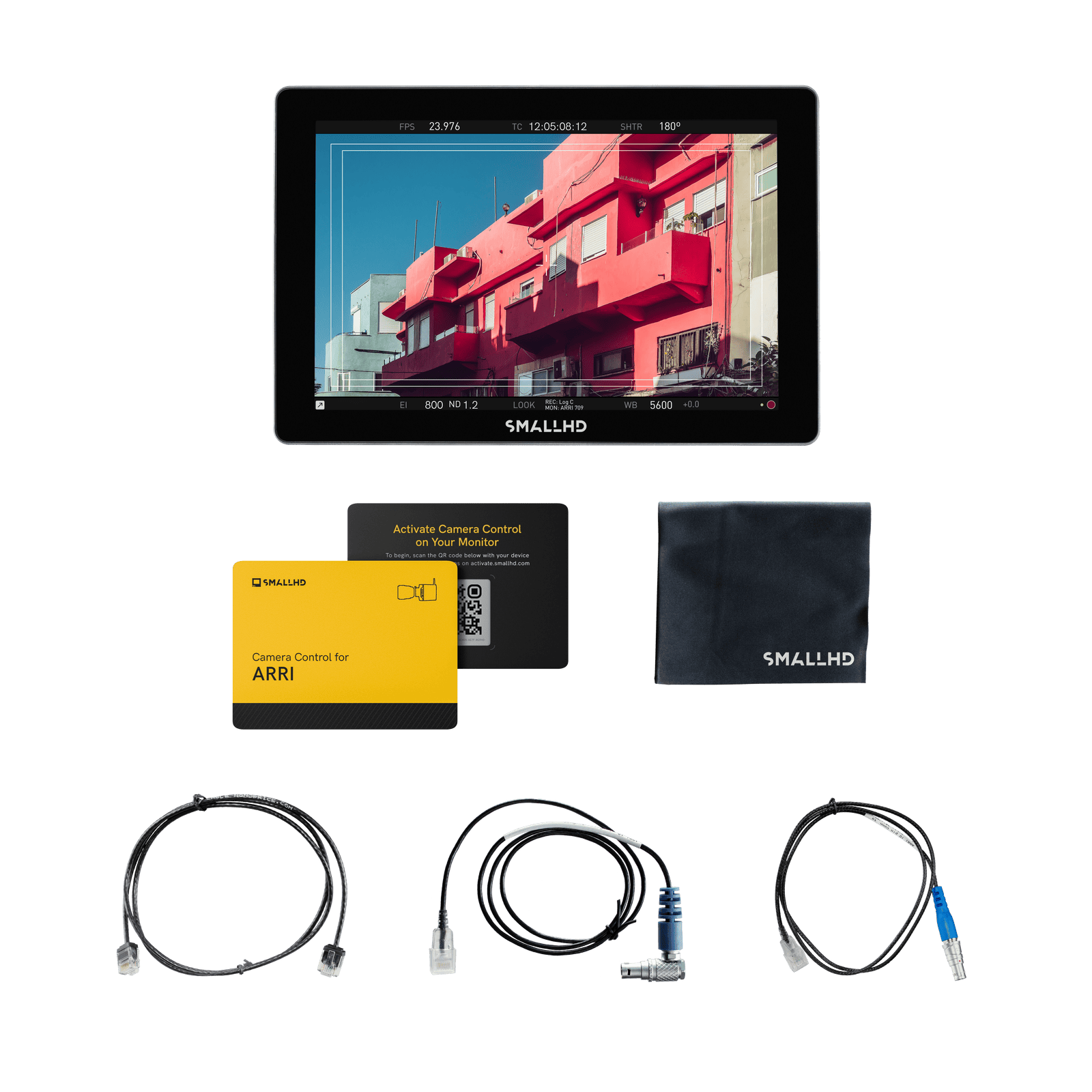

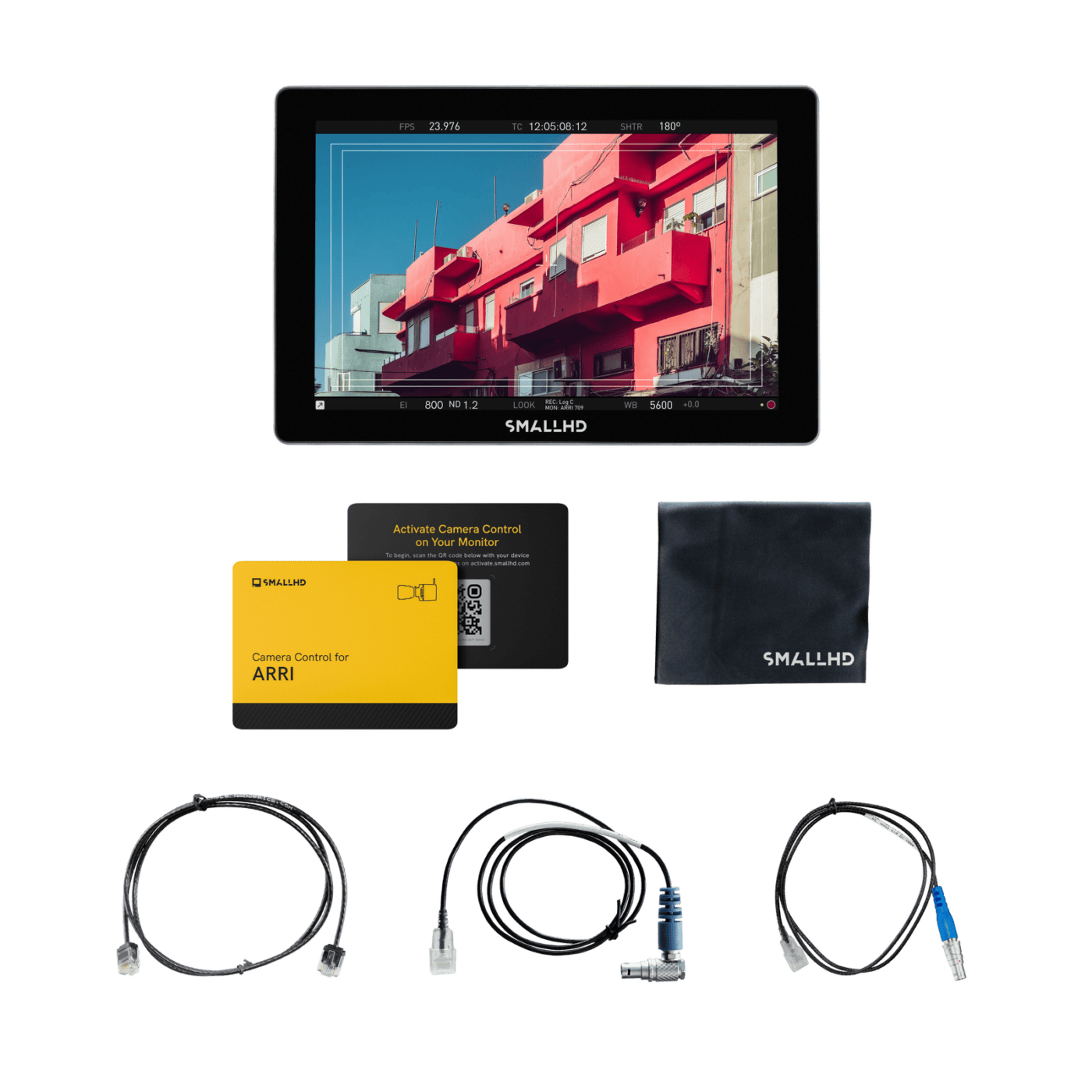

  • 1 x Cine 7
  • 1x Cleaning Cloth
  • 1x Smart 7 Sunhood
  • 1x Smart 7 Ultraclear Screen Protector
  • 1x Camera Control for ARRI
  • 1x 8GB SD Card
  • 1x 36-inch Slim Ethernet Cable
  • 1x P-Tap to 2-Pin Power Cable 36-inch
  • 1x Right Angle Camera Control Cable for ARRI Alexa
