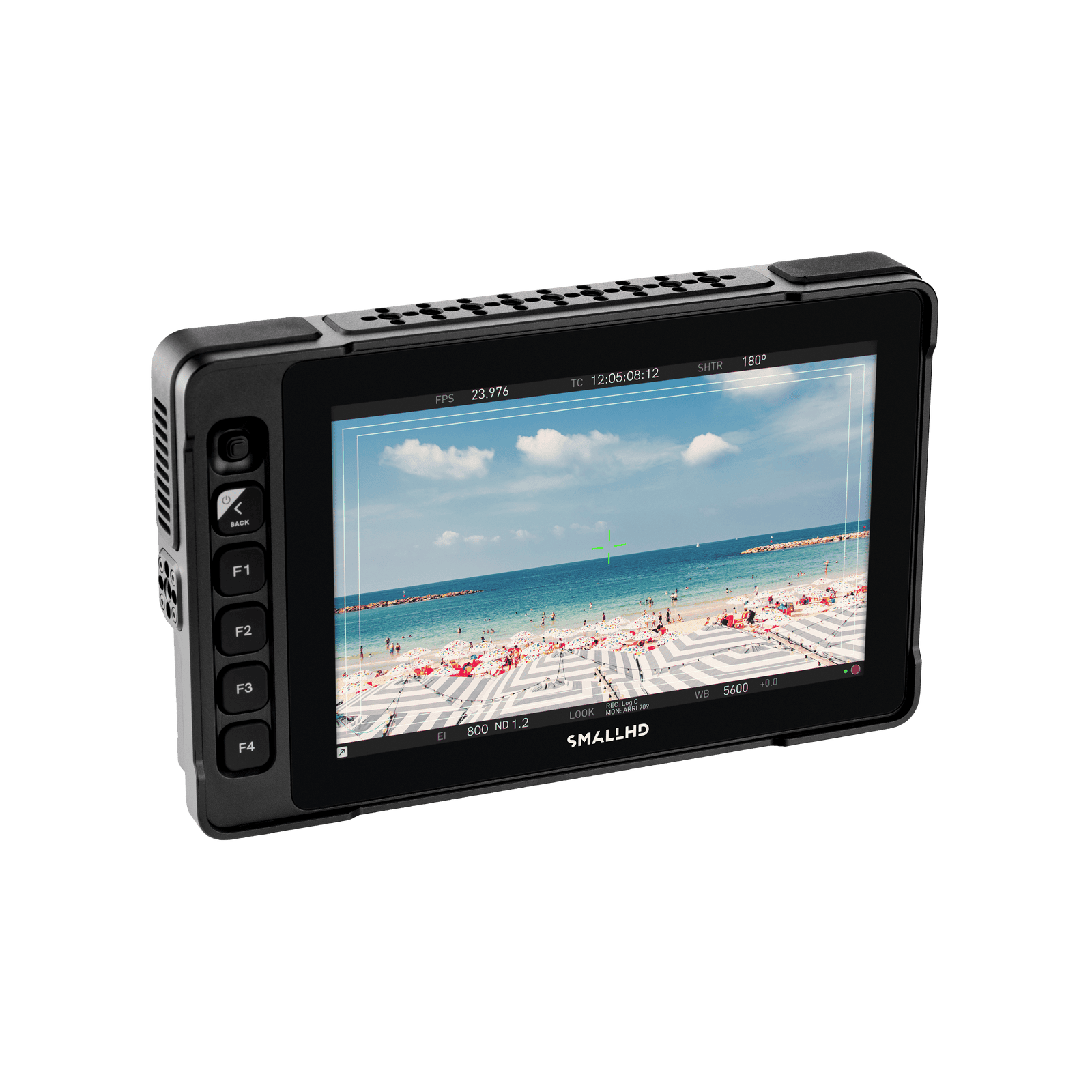

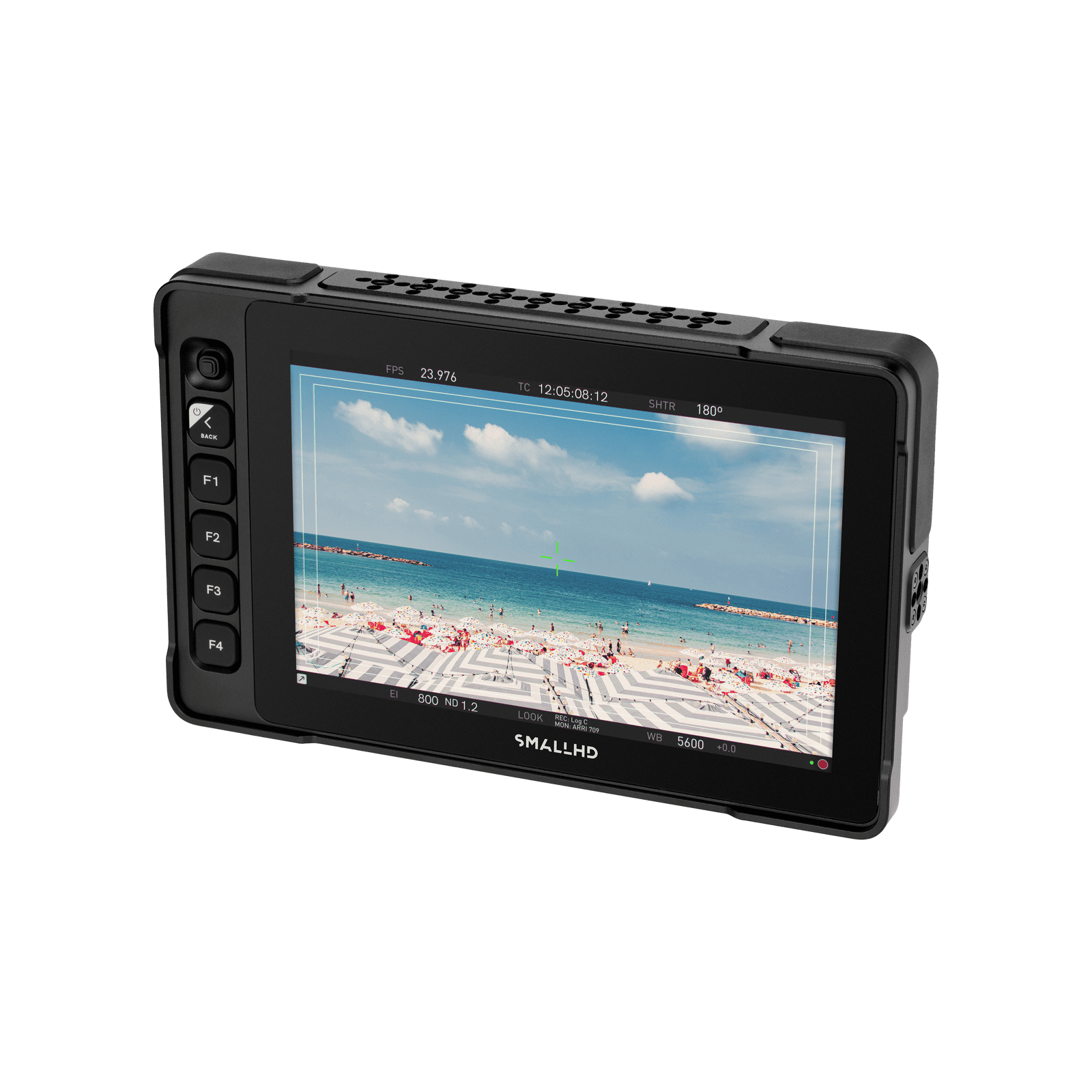

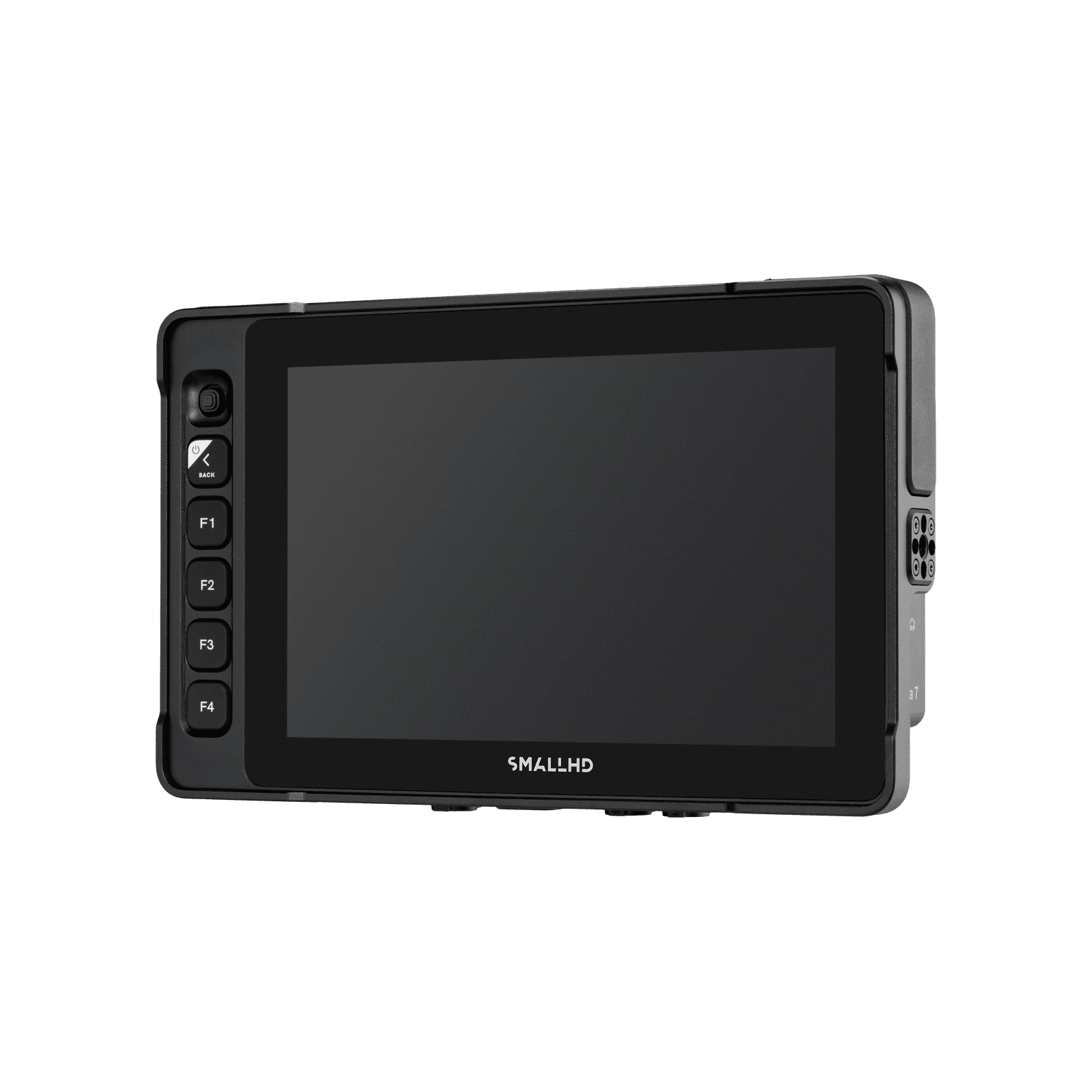

| Environmental |
| IP Rating |
IP 54 |
| Item Weight (oz) |
32 |
| Package Weight (oz) |
4lbs |
| Height (in) |
5.12 |
| Width (in) |
8.23 |
| Length/Depth (in) |
1.36 |
| Compliance |
FCC, IC, CE, UKCA, RCM, BIS, ROHS |
| Operating Temperature |
32 F – 105 F |
| Storage Temperature |
0F to 120F |
| Screen Protection |
Clear or Matte |

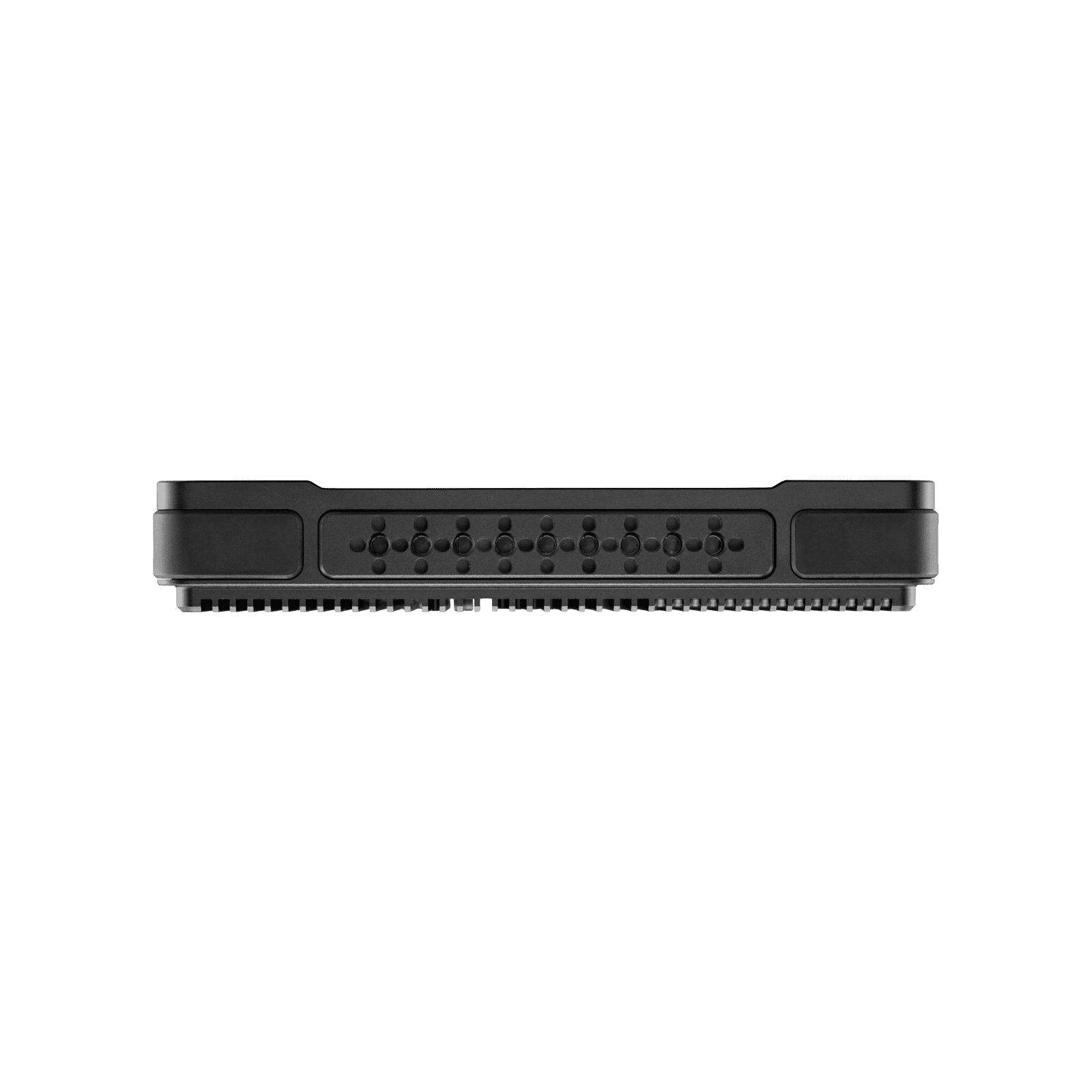

| Mount Points |
12x 1/4-20 Mounting Points (9 Top, Left, Right, Bottom) |
| Construction |
Anodized Aluminum unibody with plastic accents |

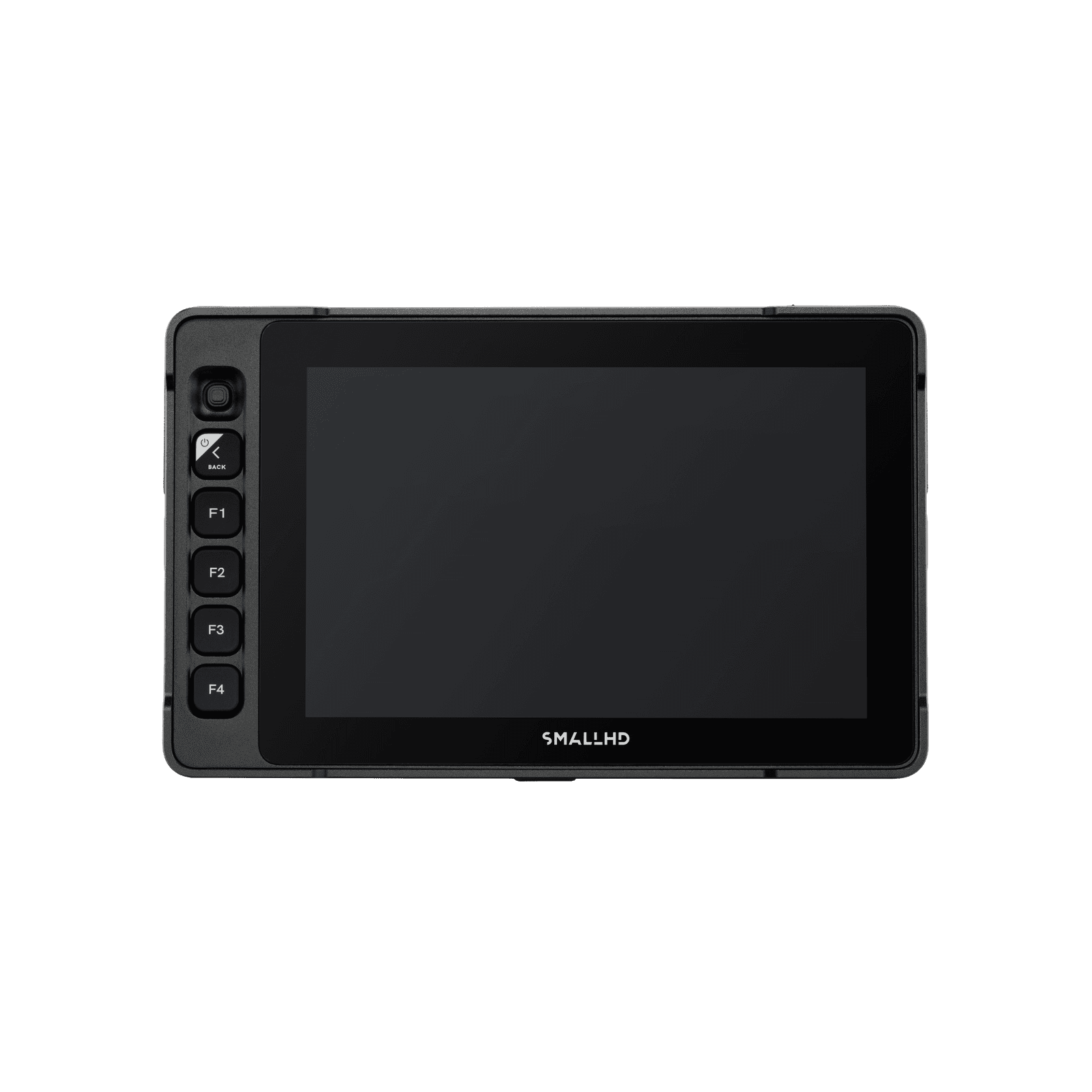

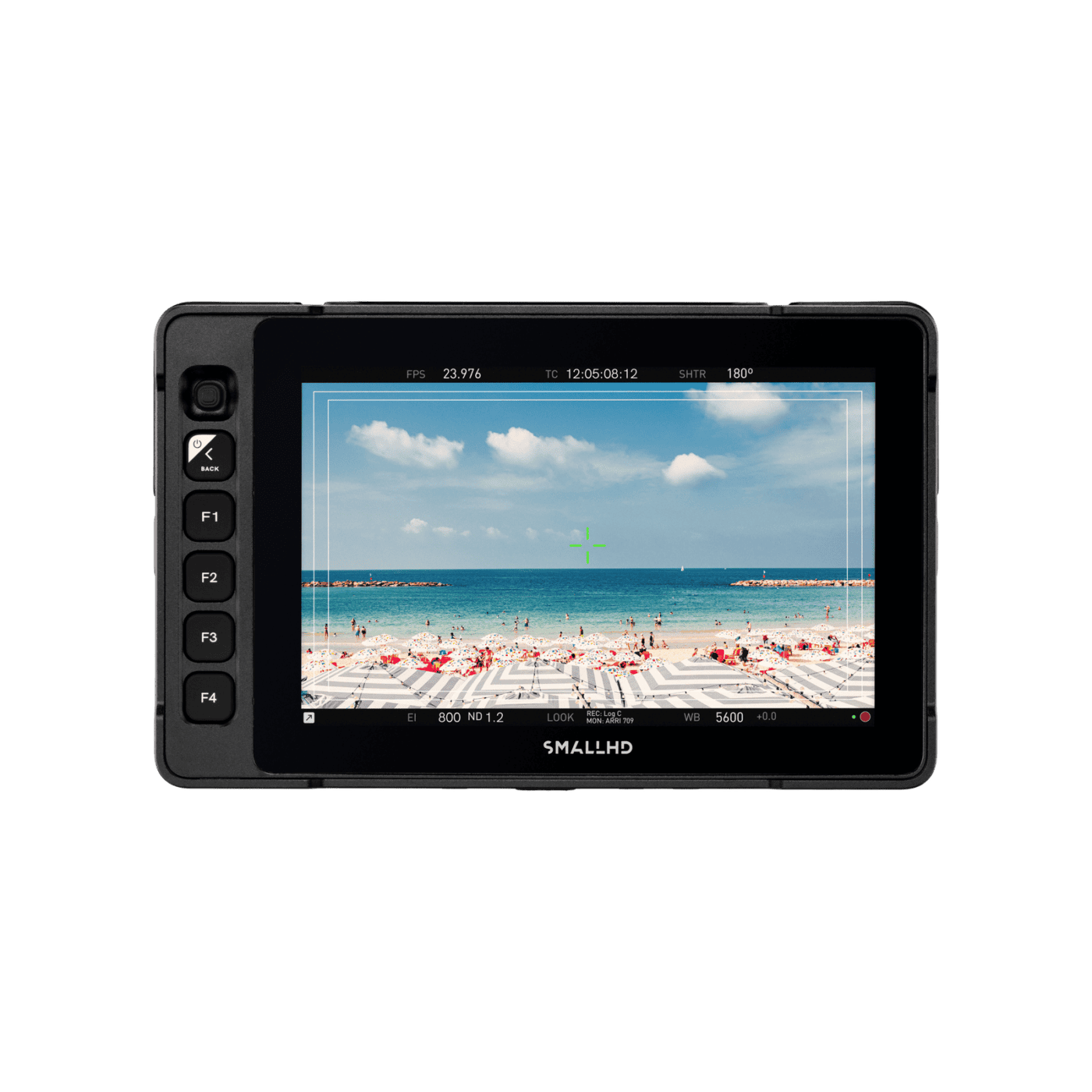

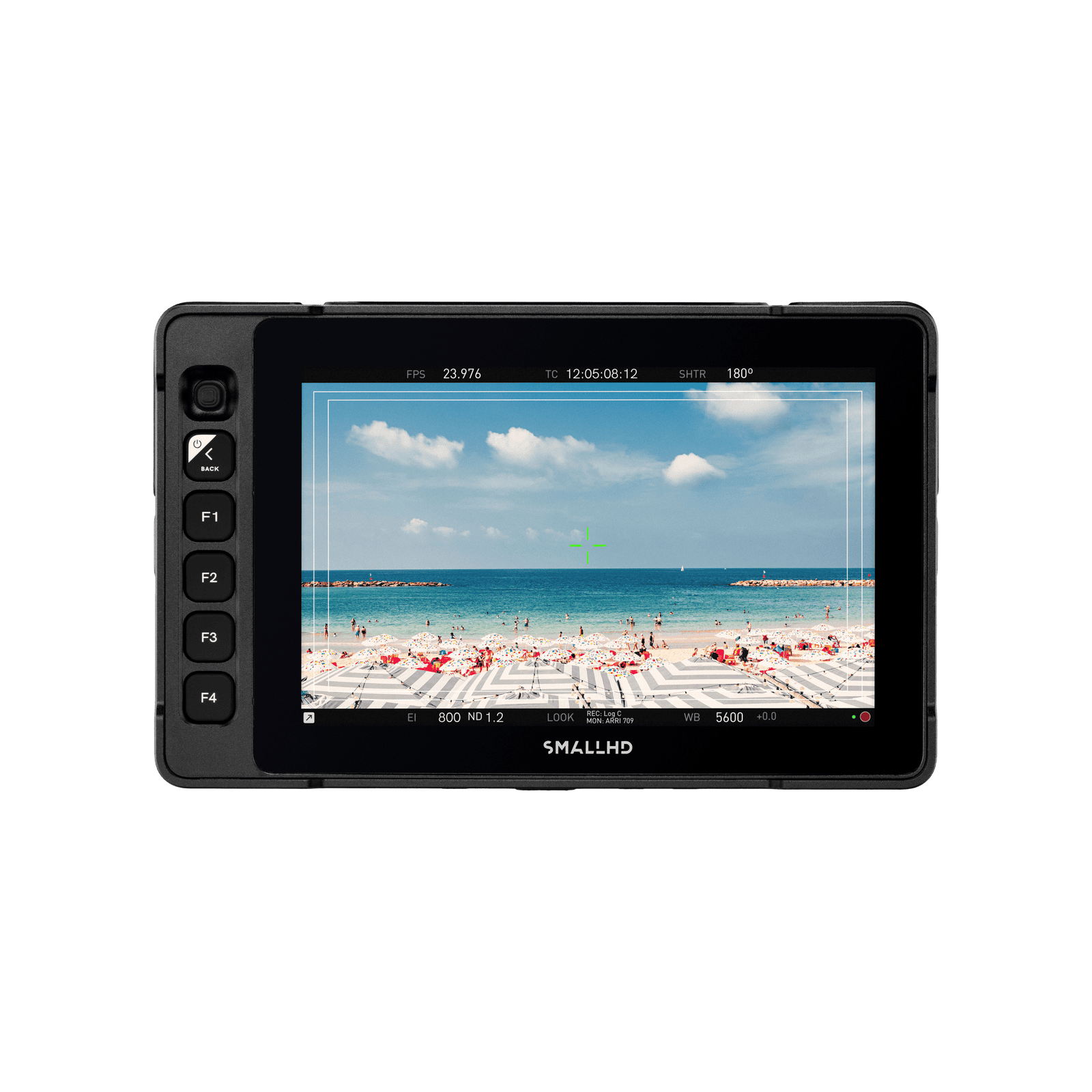

| Display |
| Panel Type |
IPS LCD with touch |
| Diagonal Size |
7.02″ |
| Resolution |
1920×1200 |
| Pixel Density |
323 PPI |
| Aspect Ratio |
16:10 |
| Active Area |
94.5 X 151.2 mm |
| Max Brightness |
2300nits |
| Contrast |
1000:1 |
| Gamut |
95% DCI-P3 Coverage / 98% REC 709 |
| Color Depth |
10-bit Processing (8-bit panel) |
| Backlight Type |
LED Edgelit |
| Refresh Rate |
Synchronizes with input from 48Hz to 60Hz |
| Input Signal |
| 3G-SDI Input Types |
YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i102 |
| 6G-SDI Input Types |
YCC 4:2:2 @ 10 bits: DCI-4Kp30, DCI-4Kp29.97, DCI-4Kp25, DCI-4Kp24, DCI-4Kp23.98, 2160p30, 2160p29.97, 2160p24, 2160p23.98 YCC 4:4:4, YCC+A 4:4:4:4, RGB, RGB+A @ 10 bits: DCI-2Kp60, DCI-2Kp59.94, DCI-2Kp50, DCI-2Kp48, DCI-2Kp47.95, 1080p60, 1080p59.94, 1080p50, 1080p48, 1080p47.95 YCC 4:4:4, YCC+A 4:2:2:4, RGB @ 12 bits: DCI-2Kp60, DCI-2Kp59.94, DCI-2Kp50, DCI-2Kp48, DCI-2Kp47.95, 1080p60, 1080p59.94, 1080p50, 1080p48, 1080p47.95 |
| HD-SDI Input Types |
YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.100 |
| SD-SDI Input Types |
YCC 4:2:2 @ 10-bits: 480i59.94, 576i52 |
| HDMI Input Types |
YCC 4:2:2 @ 12 bits, 8/10/12/16 bit color in RGB & YCC 4:4:4: 3840×2160 30p, 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p240, 480p239.76, 480p120, 480p119.88, 480p60, 480p59.94, 576p200, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 576i200, 576i100, 576i52 |
| Audio Input Types |
HDMI & SDI – Monitor through Speakers in Front Bezel or Through Headphone Jack – Metering up to 8 channels |
| Output Signal |
| 3G-SDI Output Types |
YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i102 |
| HD-SDI Output Types |
YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.100 |
| SD-SDI Output Types |
YCC 4:2:2 @ 10-bits: 480i59.94, 576i52 |
| HDMI Output Types |
YCC 4:2:2 @ 12 bits, 8 bit color in RGB & YCC 4:4:4: 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98, 1080p120, 1080p119.88, 1080p100, 1080i120, 1080i119.88, 1080i100, 1080i60, 1080i59.94, 1080i50, 720p240, 720p239.76, 720p200 YCC 4:2:2 @ 12 bits, 8/10/12/16 bit color in RGB & YCC 4:4:4: 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p240, 480p239.76, 480p120, 480p119.88, 480p60, 480p59.94, 576p200, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 576i200, 576i100, 576i51 |
| Audio Output Types |
HDMI & SDI – Incoming Audio Stream is sent downstream via HDMI or SDI connection and 1x 3.5mm 3-pin Stereo Headphone |

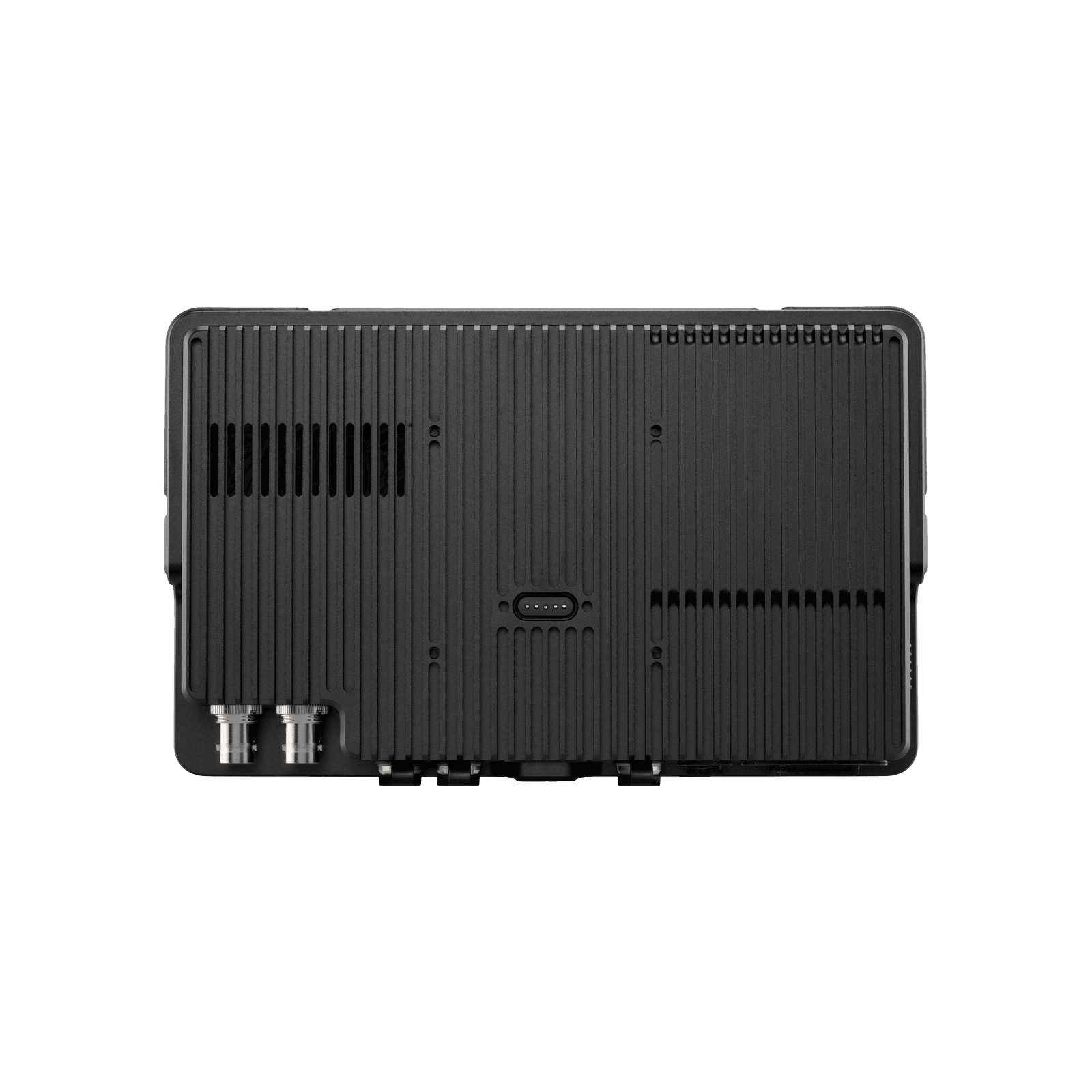

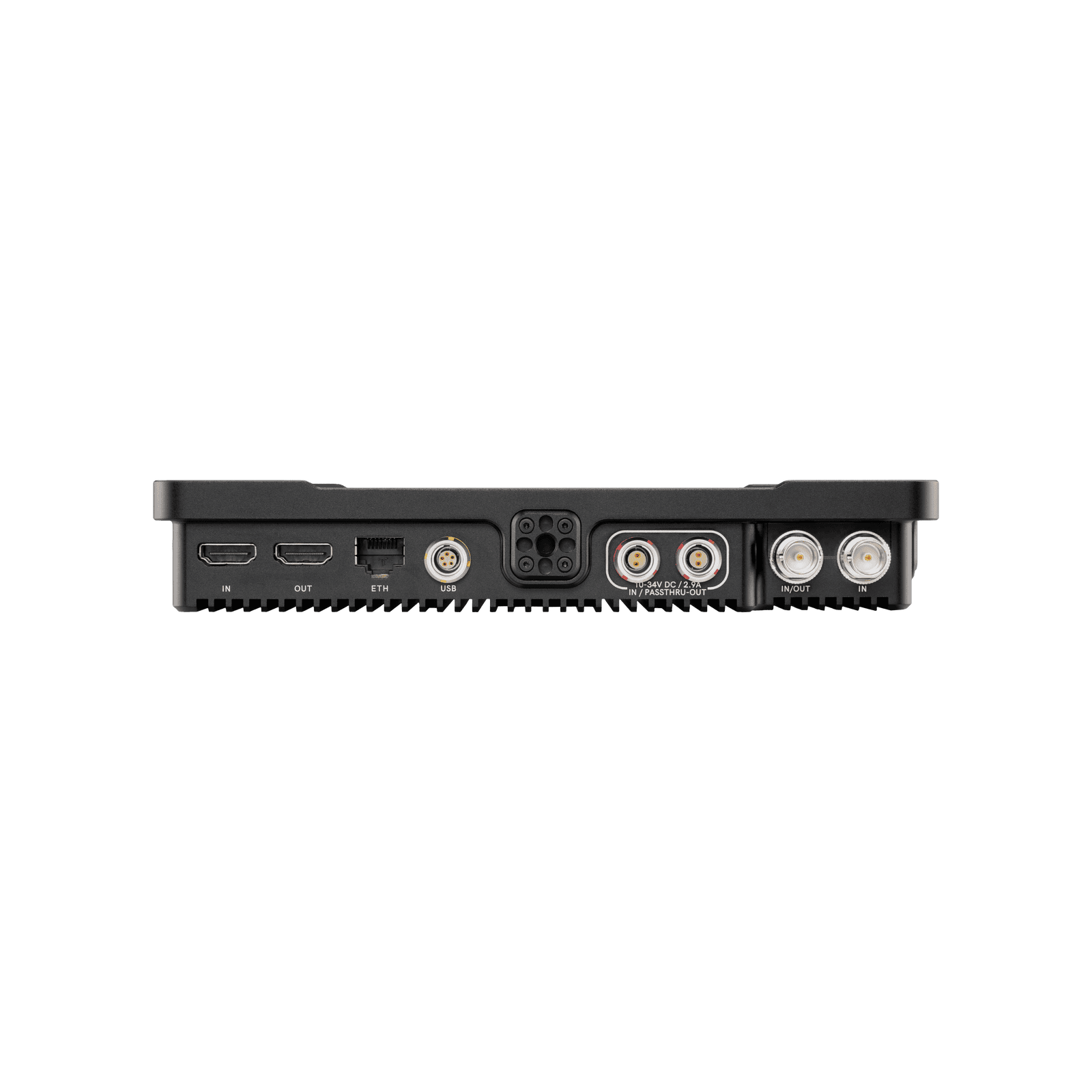

| Connector Type |
| SDI |
1x BNC 6G input and 1x BNC 6G selectable input/output |
| HDMI |
1 input and 1 output: HDMI Type-A Receptacles (full size) |
| Audio |
HDMI & SDI – Monitor through Headphone Jack – Metering up to 8 channels |
| Power In |
Rear Battery Plate Interface
Optional V-Mount, Gold-Mount, or B-Mount Wooden Camera Mico Battery Plate (10V – 34V)
2-Pin Locking (10V – 34V) |
| Power Out |
2-Pin Locking Power Passthrough Output |
| USB |
5-pin locking USB 2.0 |
| Controls |
| Record Capture |
Image Capture Tool |
| USB |
5-pin locking USB 2.0 |
| Data I/O |
| SDI |
1x BNC 6G input and 1x BNC 6G input/output |
| HDMI |
1 input and 1 output: HDMI Type-A Receptacles (full size) |
| Audio |
1x 3.5mm 3-pin Stereo Headphone Jack |
| Ethernet |
RJ45 |
| Storage Media |
1x SD Card Slot |
| USB |
5-pin locking USB 2.0 |
| Power |
| Connector |
2-Pin Locking Connector |
| Voltage |
DC in – 10V minimum to 34V maximum, Battery terminals – 10V minimum to 34V max |
| Power Supply |
Recommend DC 12~15V at ~2.5 amp or greater |
| Battery Types |
V Mount, Gold Mount Micro Battery Plates |
| Overload Protection |
DC input: Reverse polarity |
| Software |
| Pixel Zoom |
1.1-2.0x & 2.0-8.0x via swipe up/down. Infinitely adjustable via pinch & zoom |
| Frame Guides |
Preset Aspect Ratios & Customizable |
| DSLR Scale |
Canon 5DMkii & Canon 7D |
| Custom Scale |
Yes (Underscan Only) |
| Anamorphic De-Squeeze |
0.75x, 1.33x, 1.5x, 1.66x, 2.0x, 2.5x |
| Image Rotate |
Automatic or Manual Control |
| Image Flip |
Automatic or Manual Control |
| Cross Conversion |
Yes: HDMI → SDI & SDI → HDMI (Coming Soon) |
| Focus Assist |
User Adjustable Color Style and Intensity |
| Peaking |
User Adjustable Intensity |
| False Color |
Rainbow, Arri Style, Custom with up to 10 nodes |
| Zebra |
Dual – User Configurable |
| Waveform |
Luma & RGB Style, Fully User Customizable w/ Region of Interest Highlighting |
| Vectorscope |
Yes |
| RGB Parade |
Fully User Customizable |
| Histogram |
Luma & RGB Style |
| Image Capture |
Yes |
| LUTS |
– 33pt User LUT instead of 17pt
– 33pt Cal LUT instead of 17pt
– LUT tool continues to work after removable media containing the LUT has been removed |
| Custom LUTS |
– Loadable as Looks on Pages or as Systemwide Color Calibration via the settings menu – LUT Downstream: Available on SDI or HDMI Out (Coming Soon). Applied on Output Preview Page – LUT Import: via SD Card or USB Storage Device |
| Color Pipe |
– Unique Calibrations may be saved to each Color Pipe
– Accurate color processing |
| Overlay |
With Opacity Slider and Blink Setting |
| Audio Meters |
HDMI & SDI up to 8 channel |
| Multi-View |
2 camera feeds simultaneously |
| Camera Control |
| Camera Control Compatibility |
Arri, Venice 1/2, RCP & RCP2 |
