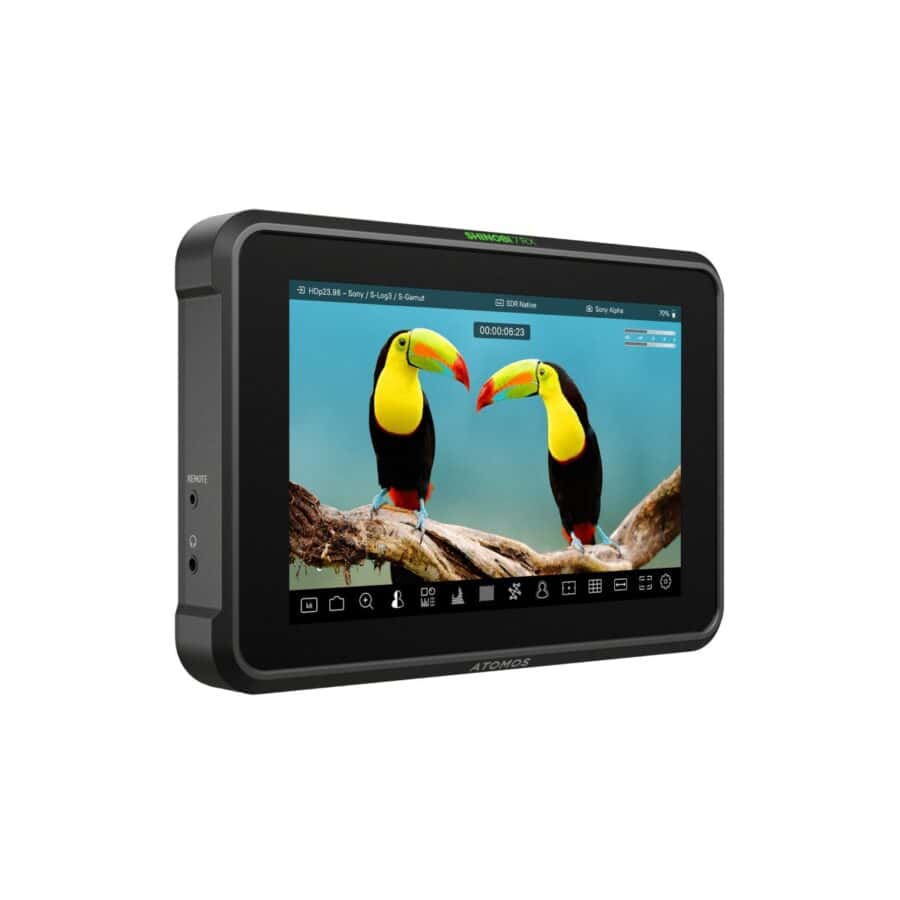

| Physical |
| Dimensions (W x H x D mm) |
198mm x 133mm x 39mm |
| Weight |
580g (excluding batteries and antennas) |
| Mounting Points |
1 x anti-rotation 1/4-inch top and bottom |
| Environmental |
| Ambient Operating Temperature |
Up to 40 degrees Celsius |
| Construction |
| Body |
ABS polycarbonate |
| Cooling |
Heat sink + actively controlled fan |

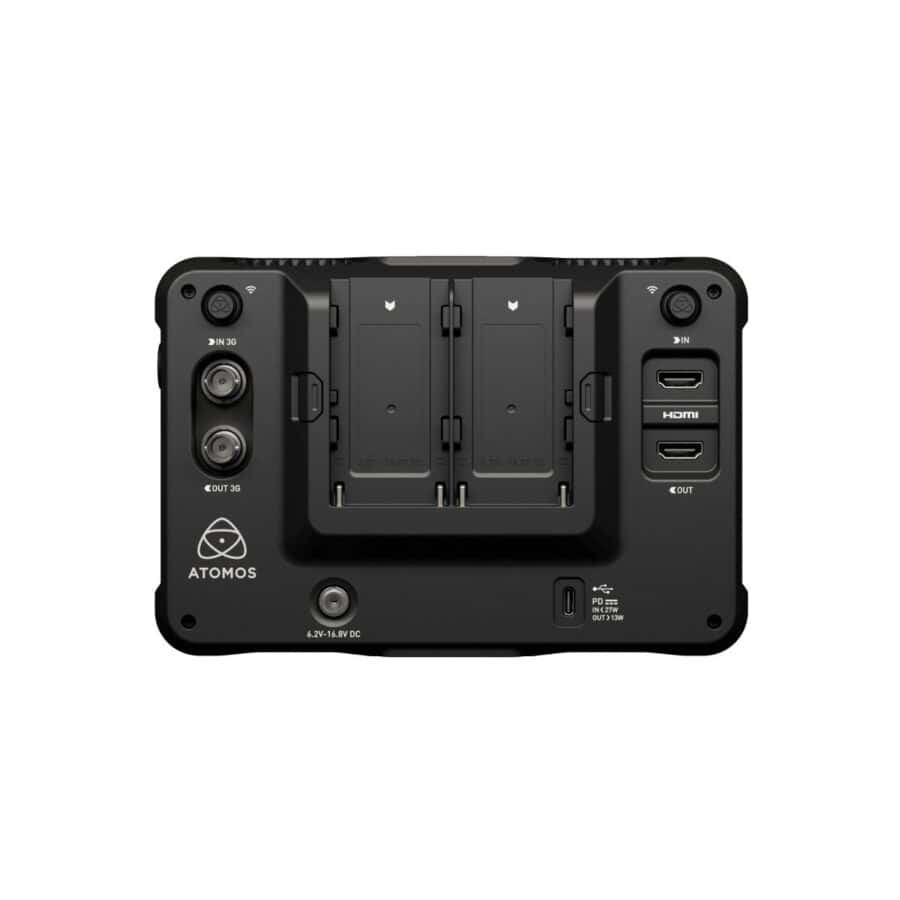

| Power |
| Input voltage |
6.2V – 16.8V |
| Operating power |
26W |
| Multi-function button |
Power / lock screen |
| Continuous power |
Via NP-F battery or USB-C PD Power |
| DC in connector |
Via Battery Eliminator (optional) |
| USB PD IN |
45W capable, power supply required |
| USB PD OUT |
Up to 13W |

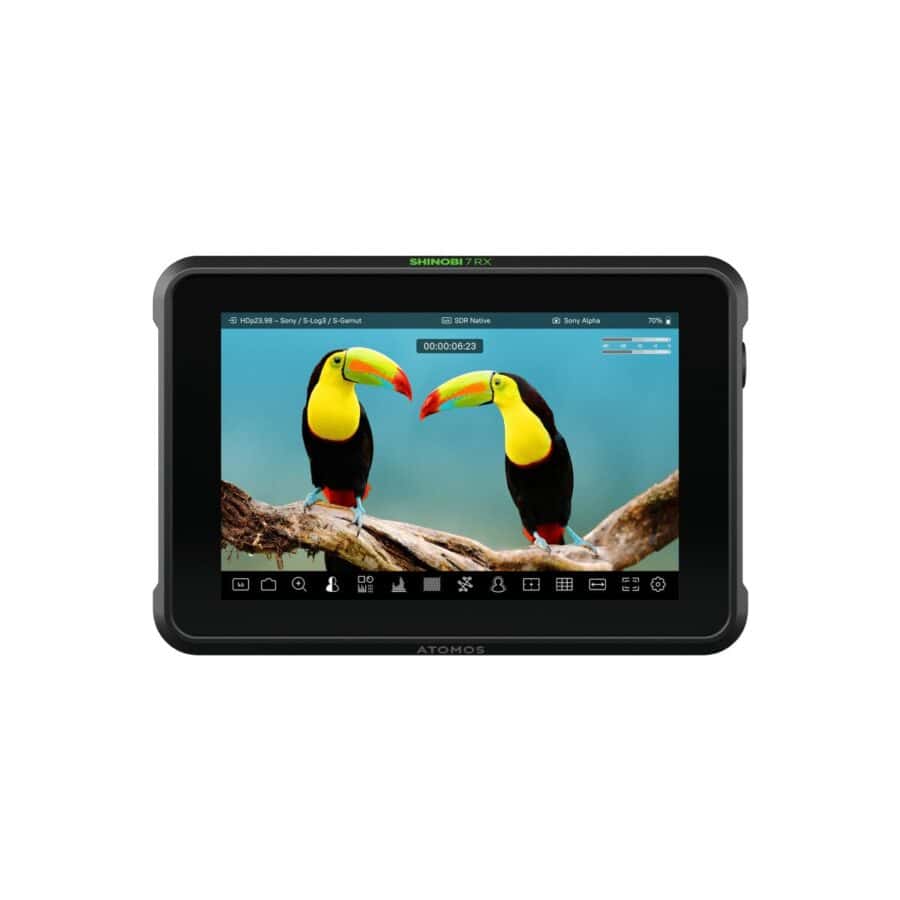

| Display |
| Size |
7-inch HDR screen with a calibrated peak brightness of 2200nits |
| Resolution |
1920 x 1200 |
| Backlight Type |
Edge-lit |
| Brightness (cdm2 / Nits) |
2200 |
| Panel ratio |
16:10 |
| Color Gamut |
Rec.709 |
| Calibration support |
On-device calibration or computer-driven calibration (see calibration page for more details) |
| Color Pipeline |
| Gamma |
Sony SLog / SLog2 / SLog3 / HLG, Canon C-Log / C-Log2 / C-Log3, ARRI Log CEI160 / LogCEI200 / LogCEI250 / LogCEI320, / LogCEI400 / LogCEI500 / LogCEI640 / LogCEI800 / LogCEI1000 / LogCEI1280 / LogCEI1600, Panasonic V-Log / HLG, JVC J-Log, Red RedLogFilm / Log3G10 / Log3G12, FujiFilm F-Log, PQ (HDR10), HLG, Nikon N-Log |
| Gamut |
BT.2020, DCI P3, DCI-P3 D65, Rec709. Sony: S-Gamut / S-Gamut3 / S-Gamut3.cine / BT.2020 / Rec.709. Canon Cinema: DCI P3 / DCI P3plus / Rec.709. Panasonic: V Gamut. ARRI: Alexa Wide Gamut. JVC: LS300. RED: DragonColor / DragonColor2 / RedColor2 / RedColor3 / RedColor4 / RedWideGamut |
| 3D LUT Display |
.Cube format (17 & 33 points supported) |
| 3D LUT Down Stream |
Loop out |
| 3DLUT 50/50 |
Yes |
| Monitoring Modes |
SDR Native / HDR HLG / HDR PQ / 709 LUT / User LUT |

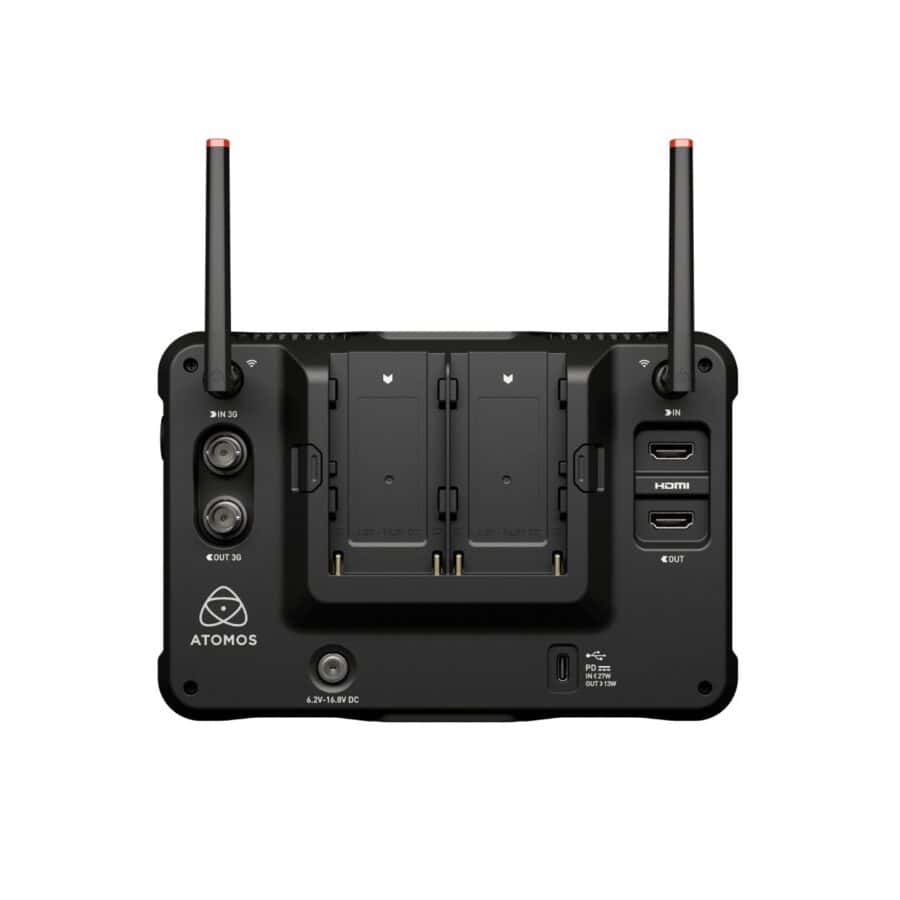

| Video Input |
| HDMI |
1 x HDMI (2.0) |
| Locking port |
N/A |
| SDI |
up to 1080p60 |
| Wi-Fi |
Wi-Fi 6 |
| USB |
1 x USB-C 2.0/3.0 |
| Bit Depth |
8/10-bit video |
| Video Chroma Subsampling |
4:2:2 |
| Video Output |
| HDMI |
1 x HDMI (2.0) |
| Locking port |
N/A |
| SDI |
1 x 3G-SDI |
| Wi-Fi |
Wi-Fi 6 |
| USB |
2 x USB-C 2.0/3.0 |
| Bit Depth |
8/10-bit video |
| Video Chroma Subsampling |
4:2:2 |
| Metadata |
| HDMI |
N/A |
| Network |
| Wi-Fi |
Wi-Fi 6 |
| Connectivity |
| LANC |
Yes |
| Audio In/Out |
| HDMI |
2-channel, 24-bit |
| SDI |
8-channel, 24-bit |
| Headphone Out |
3.5mm headphone jack, 2-channel |
| Timecode |
| Embedded |
HDMI (display only) |
| Time of day |
Yes |
| Reference / Genlock input |
No |
| LTC |
No |
| Resolution & Frame Rates |
| 4K DCI |
23.98 / 24 / 25 / 29.9 / 30 / 50 / 59.94 / 60p |
| 4K UHD |
23.98 / 24 / 25 / 29.9 / 30 / 50 / 59.94 / 60p |
| 2K DCI 2048 x 1080 |
Yes |
| 1080p |
23.98 / 24 / 25 / 29.9 / 30 / 50 / 59.94 / 60 / 100 / 120p |
| 1080 PsF |
Converted to P and looped out PsF |
| 1080i |
50 / 59.94 / 60i |
| 720p |
50 / 59.94 / 60p |
| Supported Media |
| SD |
To update firmware and upload LUTs |
| File System |
FAT32, NTFS |
| On-screen Monitoring Tools |
| MultiScope Analysis View |
Image, WFM, vector, histogram |
| Waveform |
3 sizes – adjustable opacity & brightness |
| Histogram |
1 sizes – adjustable opacity & brightness |
| RGB parade |
3 sizes – adjustable opacity & brightness |
| Vectorscope |
2 sizes – adjustable opacity & brightness |
| 1 x Zoom |
Yes. 1:1 pixel mapping for 4K |
| 2 x Zoom |
Yes |
| 4 x Zoom |
Yes |
| Focus peaking |
4 modes (color, black & white, outline, edge sharpening) with adjustable outline color & peaking intensity |
| Atomos False Color |
Yes, with scale |
| Zebra |
Adjustable threshold (50% to 105%) |
| Isolate color channel |
Blue Only |
| Cine Frame Guides |
Presets for 2.41, 2.35, 1.91, 1.9, 1.85, 16:9 |
| Social Frame guides |
Presets for 9:16, 4:5, 2:3, 1:1, 5:4, 4:3, 3:2 |
| Safe areas |
SMPTE safe title area – 93% & 90% |
| Grid markers |
9 grid |
| Anamorphic desqueeze |
2x, 1.8x, 1.79x, 1.65x, 1.6x, 1.5x, 1.33x, 1.25x |
| Display Flip |
Horizontal & vertical |
| External Device Control |
| USB-C |

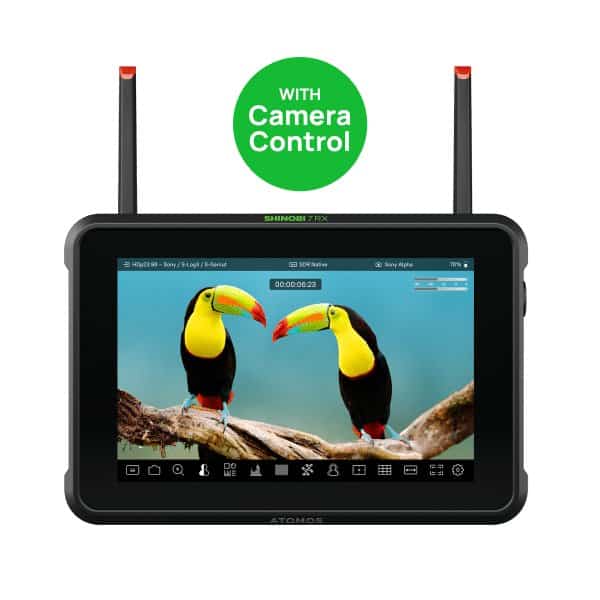

Camera control for supported cameras via USB-C. Controllable functions: Record Trigger, White Balance, Shutter Speed, Shutter Angle (if supported by camera), Aperture, ISO, Camera Overlays, Record Indicator, Touch to Focus – see Atomos website for camera model compatibility. USB-C port can also be used with external calibrators (no PC required). |
| Serial 2.5mm Jack |
Calibration via optional USB to serial cable |
| What’s in the Box |
| Accessories included |

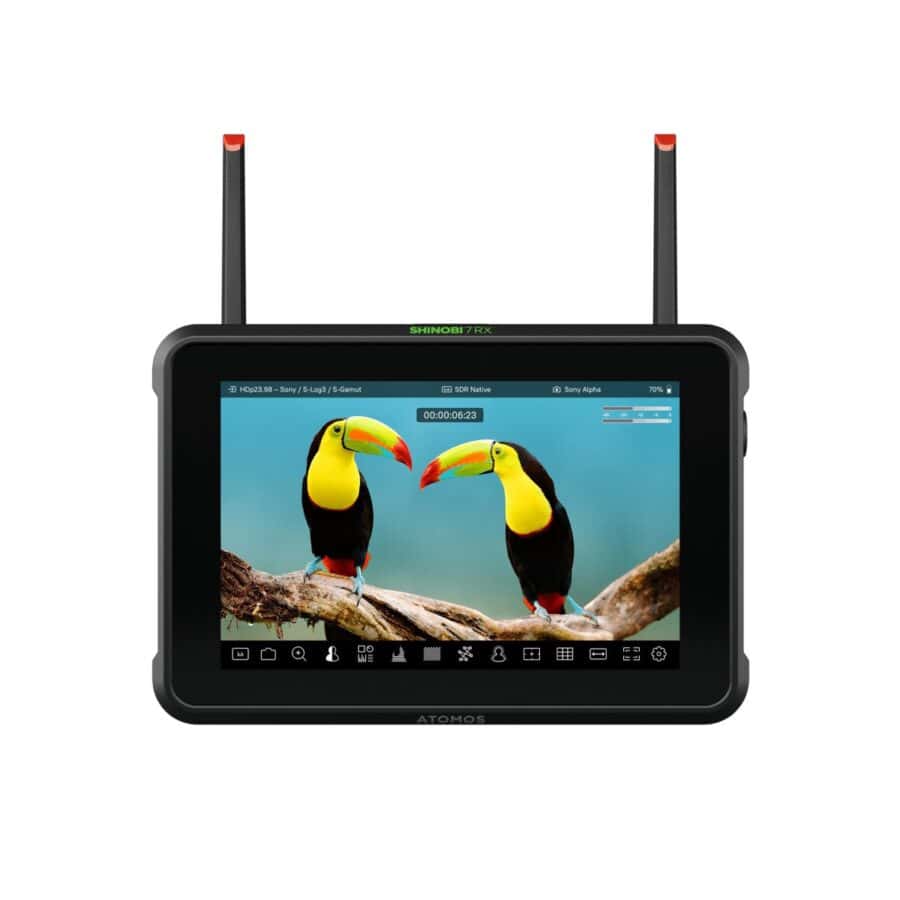

Shinobi 7 RX monitor, Wi-Fi antenna, 5x antenna tips (black, white, yellow, green, red), 2 x antenna caps, USB-C 2.0 cable (1m), Quick Start Guide. |
| Warranty |
| Standard |
1 year. Extended to 2 years on product registration. |
