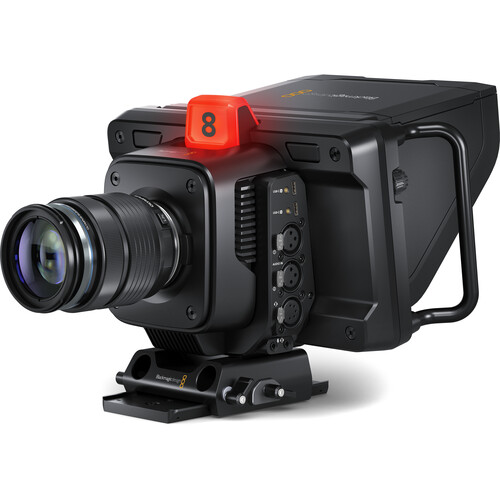

Studio Camera 4K Pro G2
Made to work seamlessly with powerful SDI video switchers, the Blackmagic Design Studio Camera 4K Pro G2 now offers live streaming plus pro connections like 12G-SDI and 10GbE Ethernet. The Ethernet connection enables you to set up a SMPTE-style workflow using a more affordable single-cable setup with PoE (power over ethernet) and the 12G-SDI output and program return provides camera control, talkback, and tally functions. This latest 4K Pro model retains features like a 7″ touchscreen monitor, HDMI output, Blackmagic Raw recording, HDR support, XLR audio, and Micro Four Thirds lens mount from its predecessor.
1.511,00€ (ex. VAT)
Imaging
| Sensor Resolution | Not Specified by Manufacturer |
| ISO Sensitivity | 100 to 25,600 |
| Gain | 0 to 18 dB |
| Sensitivity | f/11 at 2000 lux 89.9% Reflectance (UHD 4K60) f/12 at 2000 lux 89.9% Reflectance (UHD 4K60) |
| Signal-to-Noise Ratio | 63 dB |
Camera
| Lens Mount | Micro Four Thirds |
| Shutter Speed | 1/5000 to 1/24 Second |
| Built-In ND Filter | None |
| Built-In Microphone Type | Stereo |
| Broadcast System Compatibility | NTSC, PAL |
Interfaces
| CCU I/O | None |
| Video I/O | 1 x BNC (12G-SDI) Input 1 x BNC (12G-SDI) Output 1 x HDMI Output |
| Audio I/O | 2 x XLR 3-Pin Mic/Line (+48 V Phantom Power) Input on Camera Body 1 x 1/8″ / 3.5 mm TRS Stereo Microphone Input 1 x 1/8″ / 3.5 mm TRRS Headphone/Mic Input/Output 1 x XLR 5-Pin Intercom Input/Output |
| Other I/O | 1 x RJ45 (10 Gigabit Ethernet) Control/Data/Monitor/Video Input/Output 2 x USB-C (USB 3.2 / 3.1 Gen 1) Data/Video Input/Output |
Recording
| Raw Recording | Blackmagic RAW 10-Bit 3840 x 2160 at 23.98/24.00/25/29.97/50/59.94/60 fps [26 to 190 Mb/s] |
| Audio Recording | ProRes: 2-Channel 24-Bit 48 kHz LPCM Audio |
Display
| Display Type | Fixed Touchscreen LCD |
| Size | 7″ |
| Resolution | 1920 x 1200 |
Power
| Power I/O | 1 x XLR 4-Pin (12VDC) Input 1 x Barrel (12VDC) Input |
| Power Consumption | 46 W |
Environmental
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | -4 to 113°F / -20 to 45°C |
| Operating Humidity | 0 to 90% |
General
| Accessory Mount | 2 x 1/4″-20 Female |
| Tripod Mount | 3/8″-16 Female |
| Dimensions (W x H x D) | 10.77 x 6.68 x 6.59″ / 27.36 x 16.97 x 16.74 cm (Without Protrusions) |
| Weight | 3.71 lb / 1.68 kg |
Additional information
| Brand |
|---|
Blackmagic Design Studio Camera 4K G2
Sun Hood
Turret Dust Cap
Universal Power Supply with International Socket Adapters
15mm LWS Tripod Mount
Tally Decal Set
Limited 1-Year Manufacturer Warranty
