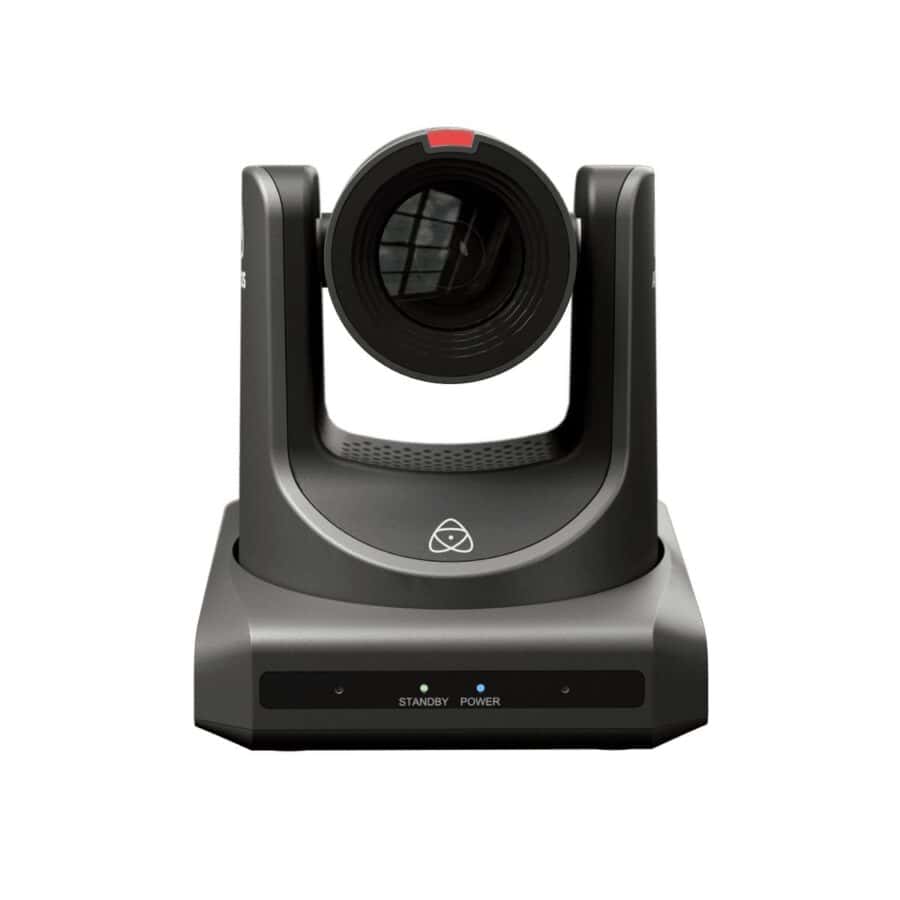

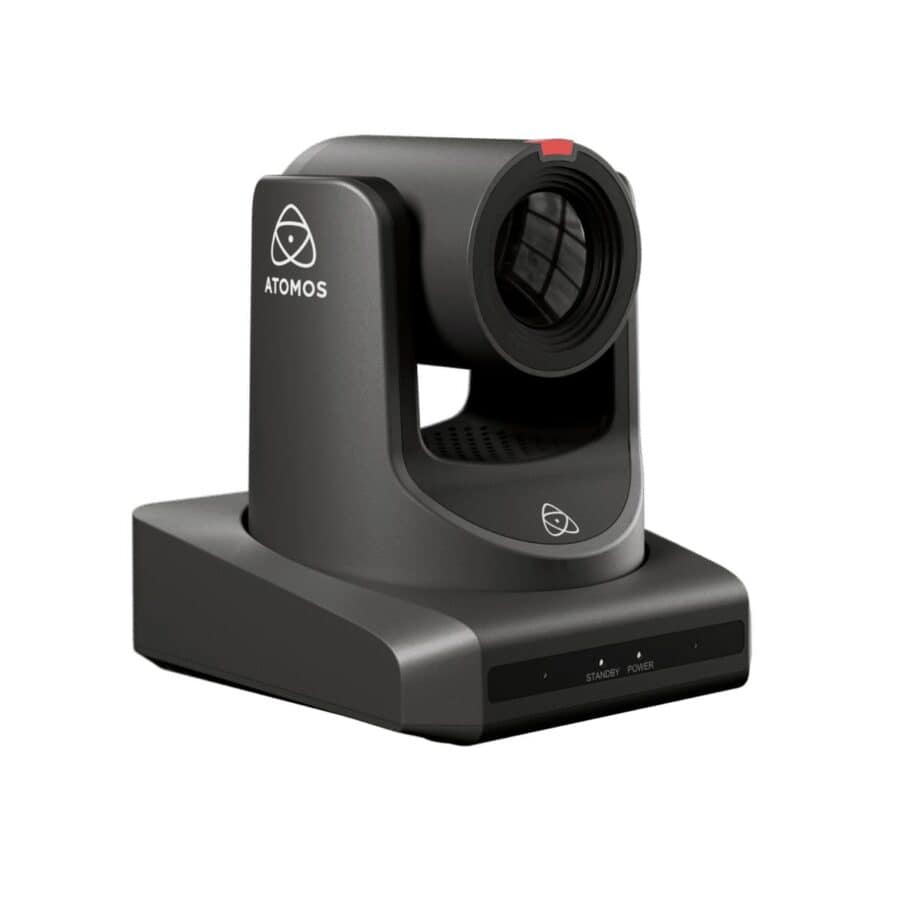

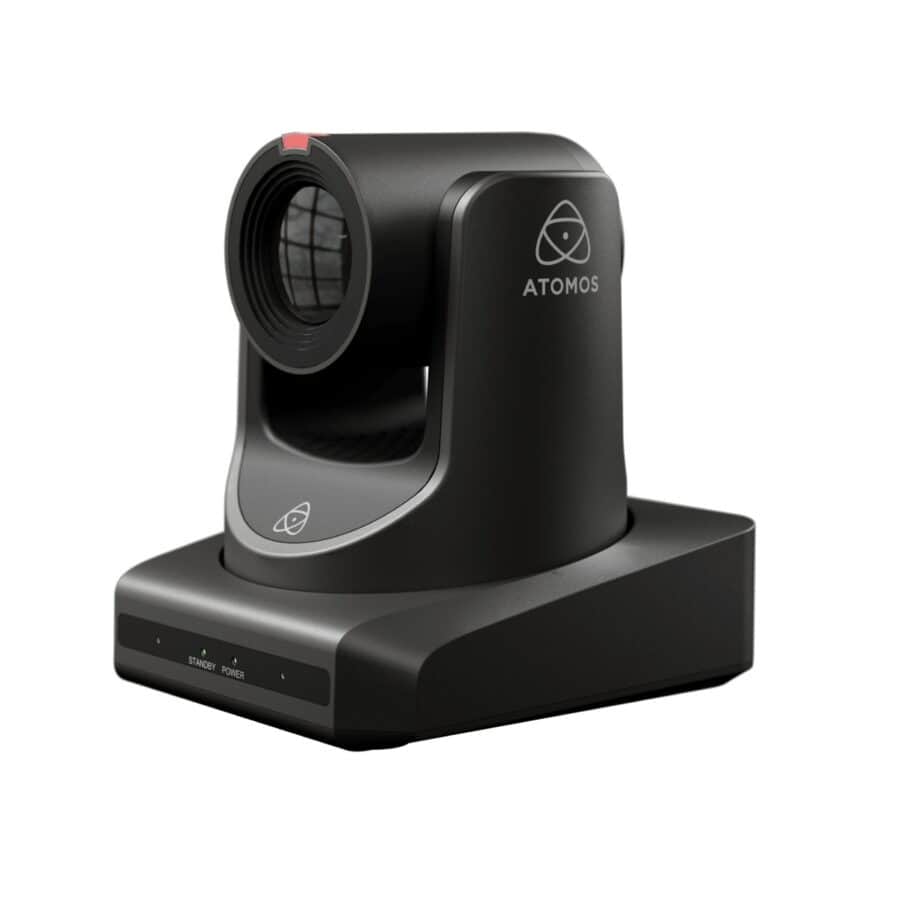

A-Eye 4K-20X – PTZ Camera

AI-powered, auto-tracking UHD PTZ camera

2.184,00€ (ex. VAT)

SKU: ATOMAE4K20 Category: Brand:

20x optical zoom. 1/2.8-inch UHD CMOS sensor. AI-powered tracking.±170° pan and -30° to +90° tilt range. A-Eye is a powerful new range of AI-enhanced PTZ cameras that combine intelligent tracking, high-quality video, and seamless connectivity. Designed for educators, content creators, business professionals, worship leaders, and live event teams

Key features

  • Atomos A-EYE 4K 20x PTZ Camera
  • Precision optics. Seamless IP streaming. Built for the cloud. — The Atomos A-EYE 4K 20x PTZ Camera redefines live production with broadcast-quality imaging, smooth movement, and built-in IP workflows.
  • Powerful 4K Optics with 20x Zoom — Equipped with a 1/1.8 CMOS sensor, the A-EYE captures detailed 4K Ultra HD video at up to 60 frames per second.
  • NDI® | HX3 and IP-Based Production — With built-in support for NDI®|HX3, the A-EYE delivers high-efficiency, low-latency video over standard Ethernet networks.
  • Effortless Control and Deployment — The A-EYE can be operated via VISCA or IP-based control systems and integrates with third-party hardware and software controllers.
  • Key Features — • 1/1.8 CMOS sensor with 4K Ultra HD (3840 x 2160) resolution• 20x optical zoom lens with precise pan/tilt motion• NDI®|HX3, RTMP, RTSP, SRT, and…
  • What’s in the box? — • A-EYE 4K-20X PTZ camera• RS-232 serial cable (2m)• USB 3.0 A-A cable (1.5m)• Lens cover• Remote controller• Accessory tray• Wall mount rack• Screw…
  • Enhance your Atomos PTZ experience with the A-EYE PTZ Control! — A-Eye Control is a dedicated remote-control hub that enables advanced multi-camera operation, preset switching, and remote production over IP with…
Physical
Dimensions (W x H x D mm) 146mm x 169mm x 168mm
Weight About 1.6Kg
Environmental
Ambient operating temperature Up to 40 degrees Celsius
Construction
Body ABS
Power
Input voltage DC 12V/PoE+ (802.3at)
Operating power Max 18W
Power on indicator Yes
Video
Sensor 1/1.8 inch, CMOS
Effective pixels 8.42M
Lens 20x, f=6.25mm~125mm, F1.58~F3.95
Scanning mode Progressive
Resolutions supported HDMI: 4KP60, 4KP50, 4KP30, 4KP25, 4KP59.94, 4KP29.97, 1080P60, 1080P50, 1080P59.94, 1080P30, 1080P29.97, 1080I60, 1080I50, 1080I59.94, 720P60, 720P59.94 3G-SDI: 1080P60, 1080P50, 1080P30, 1080P29.97, 1080P59.94, 1080P25, 1080I60, 1080I50, 1080I59.94, 720P60, 720P59.94
Color system / compression YUY2/H.264/MJPEG/H.265
Video format YUY2: max to 1080P@5fps H.264; AVC: max to 2160P@30fps; H.265 HEVC: max to 2160P@30fps; MJPEG: max to 2160P@30fps
Digital zoom 16x
Minimum Illumination 0.5 Lux @ (F1.8, AGC ON)
Shutter 1/30s ~ 1/10000s
Image flip Supported
Image freeze Supported
White balance Auto, VAR, Manual, One Push, Indoor, Outdoor
Backlight compensation Support
Digital noise reduction 2D & 3D Digital Noise Reduction
SNR ≥55dB
Mechanical
Horizontal FOV 60°~3.5°
Vertical FOV 35.7°~2.0°
Pan angle ±170°
Tilt angle -30° ~ +90°
Pan speed 1.7° ~ 100°/s
Tilt speed 1.7° ~ 69.9°/s
Preset position 255
Preset accuracy 0.1°
USB
Operating system Windows 7/8/10, Mac OS X, Linux, Android, iOS, iPadOS
USB audio Supported
USB video protocol UVC 1.1/UVC 1.5
USB PTZ control Supported
Network
Video compression H.264/H.265/MJPEG
Video stream First Stream, Second Stream
First stream resolution 3840×2160, 1920×1080, 1280×720, 1024×576, 720×480, 720×408, 640×480, 640×360
Second stream resolution 720×480, 720×408, 640×480, 640×360, 480×320, 320×240
Video bit rate First Stream: 32kbps~51200kbps; Second Stream: 32kbps~20480kbps
Bit rate control CBR, VBR
Frame rate 50Hz: 1fps ~ 50fps; 60Hz: 1fps ~ 60fps
Audio compression AAC
Audio bit rate 96Kbps, 128Kbps, 256Kbps
Protocols NDI HX3, TCP/IP, HTTP, RTSP, RTMP/RTMPS, ONVIF, DHCP, SRT, Multicast
Audio
Microphone No built-in mic
Audio input Line In
Audio output Line Out, HDMI, USB

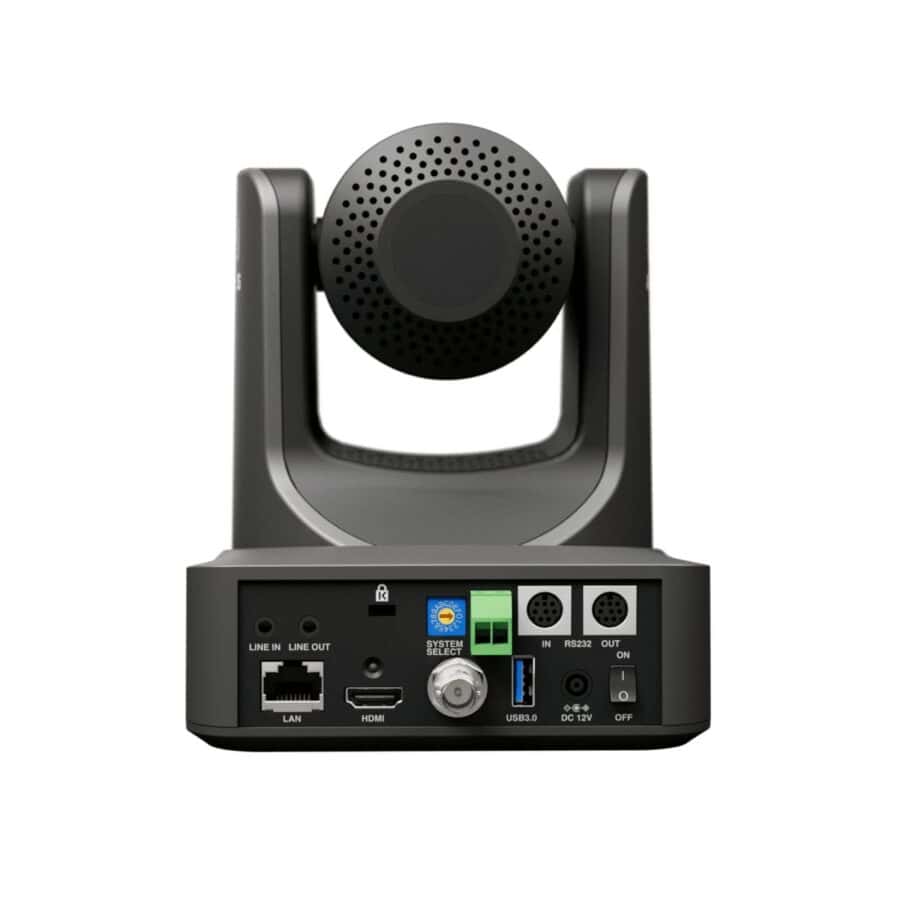

Input/Output Interfaces
Line In 3.5mm audio interface
Line Out 3.5mm audio interface
RS-485 2-pin phoenix port; max distance: 1200m; protocol: VISCA/Pelco-D/Pelco-P
RS-232 IN 8-pin Mini DIN; max distance: 30m; protocol: VISCA/Pelco-D/Pelco-P
RS-232 OUT 8-pin Mini DIN; max distance: 30m; protocol: VISCA network use only
Network 10M/100M Adaptive Ethernet Port
USB USB 2.0: Type A
SDI 3G-SDI: BNC type, 800mVp-p, 75Ω. To SMPTE 424M standard
HDMI HDMI version 1.3
Power jack JEITA type (DC IN 12V)
Tally indicator Yes
Warranty
Standard 1 year. Extended to 2 years on product registration.

Additional information

Brand

A-Eye 4K-20X PTZ camera, RS-232 serial cable (2m), USB 3.0 A-A cable (1.5m), lens cover, remote controller, accessory tray, wall mount rack, screw pack, power adaptor with 4 plugs, Quick Start Guide
