Atomos

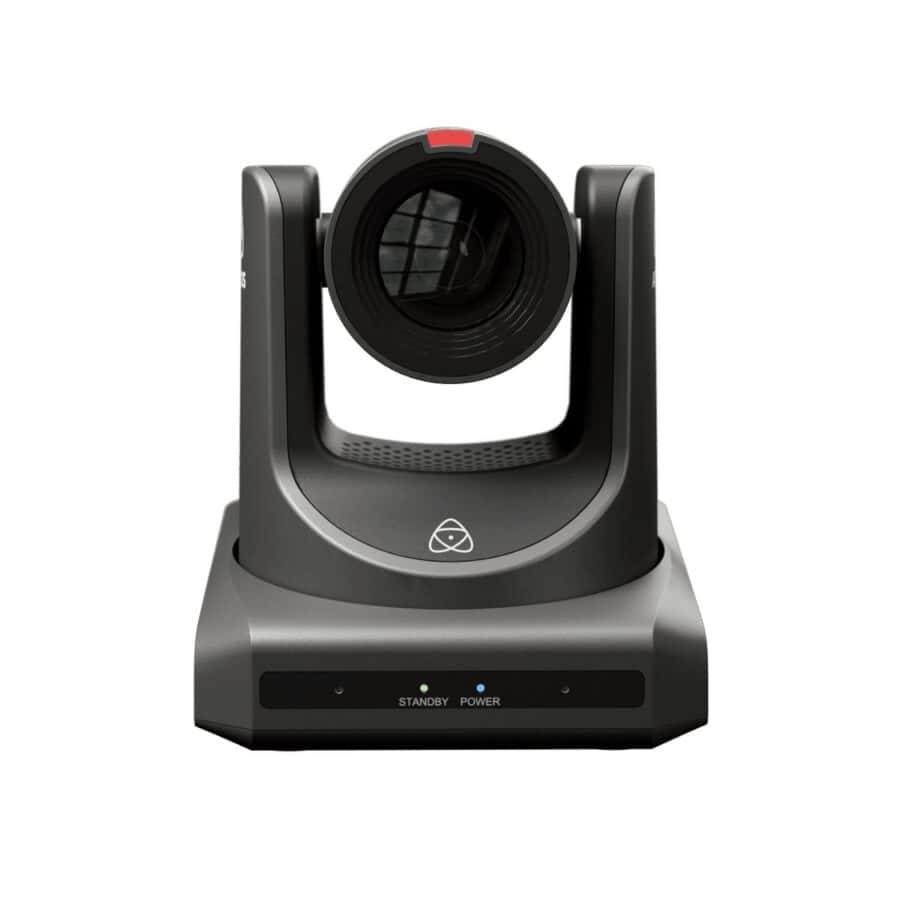

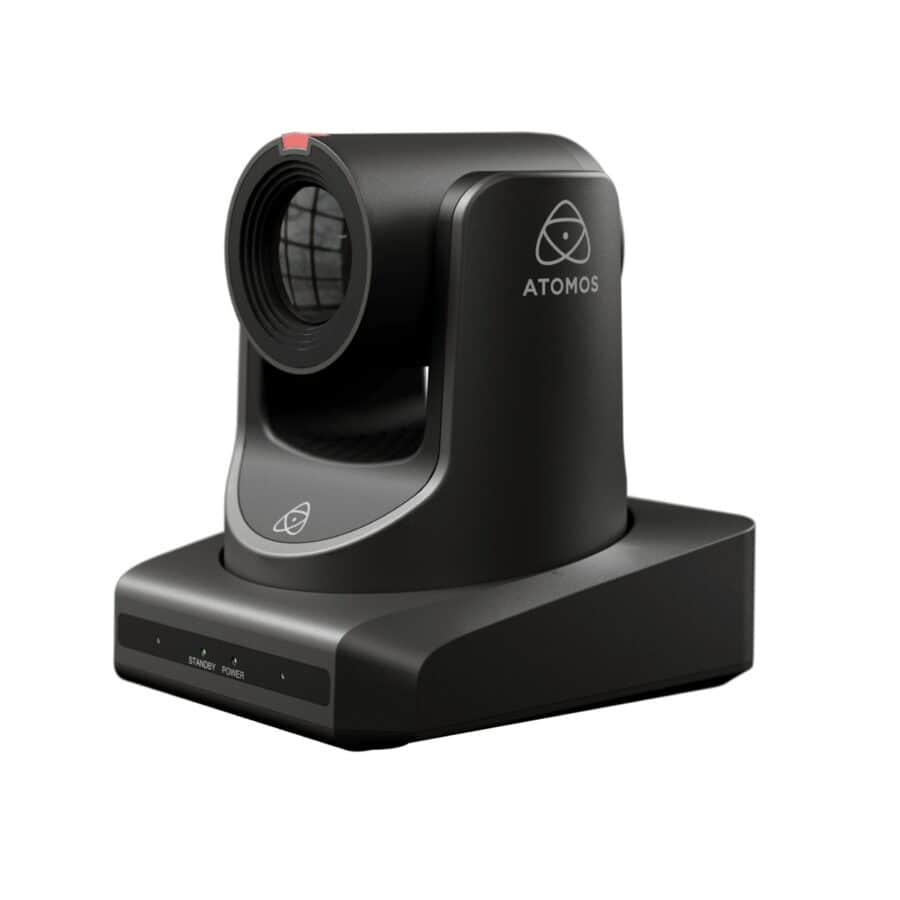

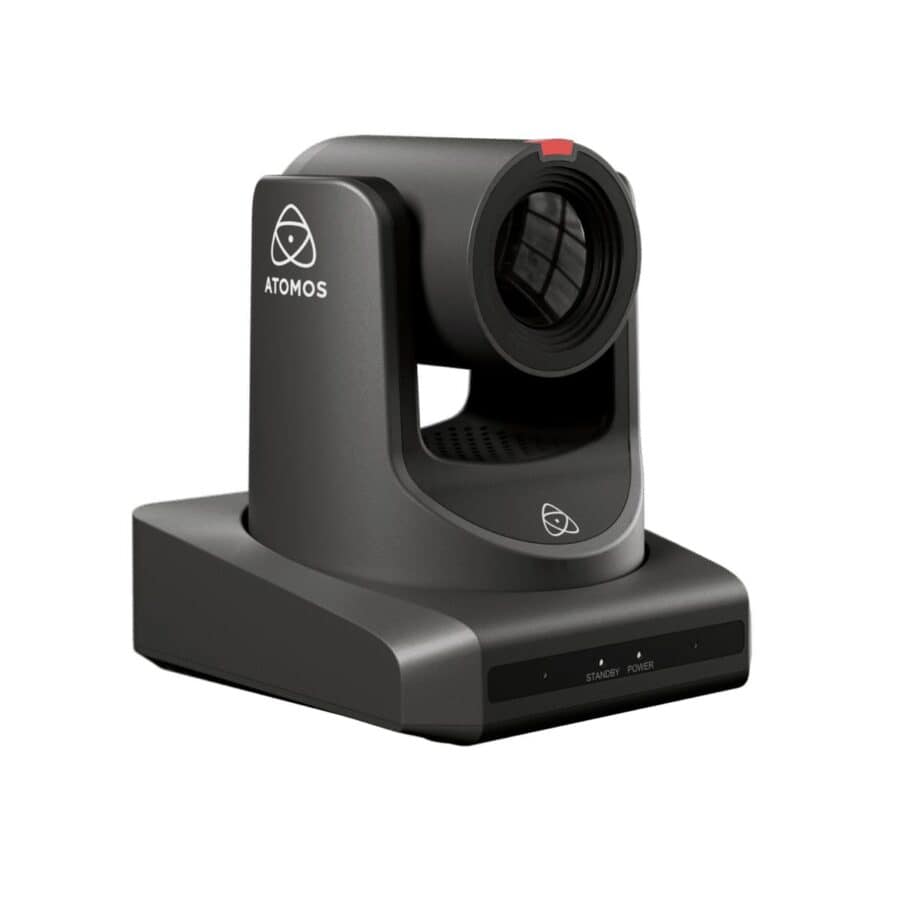

A-Eye HD-20X – PTZ Camera

AI-powered, auto-tracking HD PTZ camera

1.329,00€ (ex. VAT)

SKU: ATOMAEHD20 Category: Brand:

20x optical zoom. 2.07M effective pixels. AI-powered tracking.±170° pan and -30° to +90° tilt range. A-Eye is a powerful new range of AI-enhanced PTZ cameras that combine intelligent tracking, high-quality video, and seamless connectivity. Designed for educators, content creators, business professionals, worship leaders, and live event teams

Key features

  • Atomos A-Eye HD 20X PTZ Camera
  • Powerful HD production. Precision in motion. — The Atomos A-Eye HD 20X PTZ Camera brings professional pan-tilt-zoom performance to live productions, corporate broadcasts, education, and streaming…
  • Full HD Video with 20x Optical Zoom — Capture crystal-clear 1080p60 video using a precision 1/2.8 CMOS sensor and advanced image processing.
  • Smooth, Quiet PTZ Movement — The camera’s responsive pan, tilt, and zoom motors ensure fluid, near-silent movement that’s perfect for live broadcast environments.
  • Flexible IP and Streaming Connectivity — Stream directly via RTMP, RTSP, or NDI|HX* over Ethernet, or connect via HDMI and 3G-SDI for traditional AV workflows.
  • Camera Control and Presets — Control A-Eye HD 20X using the optional A-Eye Control Remote, supported joystick controllers, or software via RS-232, RS-422, or IP protocols.
  • Built for Production Versatility — From houses of worship to corporate studios, event spaces to classrooms, the A-Eye HD 20X is ready to deliver professional-grade results in any…
  • Key Features — • Full HD 1080p60 video via 1/2.8 CMOS sensor• 20x optical zoom for close-up and wide framing• HDMI, 3G-SDI, and IP streaming via RTMP, RTSP,…
  • What’s in the box? — • A-Eye HD 20X PTZ Camera• RS-232 serial cable (2m)• USB 3.0 A-A cable (1.5m)• Lens cover• Remote controller• Accessory tray• Wall mount bracket•…
Physical
Dimensions (W x H x D mm) 139.2mm x 176.5mm x 165.8mm
Weight About 1.5Kg
Environmental
Ambient operating temperature Up to 40 degrees Celsius
Construction
Body ABS
Power
Input voltage DC 12V/PoE+ (802.3at)
Operating power Max 15W
Power on indicator Yes
Video
Sensor 1/2.8 inch, CMOS
Effective pixels 2.07M
Lens 20x, f = 4.42mm ~ 88.5mm, F1.8 ~ F2.8
Scanning mode Progressive
Resolutions supported 1080P60, 1080P59.94, 1080P50, 1080I60, 1080I59.94, 1080I50, 1080P30, 1080P29.97, 1080P25, 720P60, 720P59.94, 720P50
Color system / compression YUY2/MJPEG/H.264
Video format YUY2: max to 1080P@5fps, H.264 AVC: max to 1080P@30fps
Digital zoom 16x
Minimum Illumination 0.5 Lux @ (F1.8, AGC ON)
Shutter 1/30s ~ 1/10000s
Image flip Supported
Image freeze Supported
White balance Auto, VAR, Manual, One Push, Indoor, Outdoor
Backlight compensation Support
Digital noise reduction 2D & 3D Digital Noise Reduction
SNR ≥55dB
Mechanical
Horizontal FOV 60.7° ~ 3.36°
Vertical FOV 34.1° ~ 1.89°
Pan angle ±170°
Tilt angle -30° ~ +90°
Pan speed 1.7° ~ 100°/s
Tilt speed 1.7° ~ 69.9°/s
Preset position 255
Preset accuracy 0.1°
USB
Operating system Windows 7/8/10, Mac OS X, Linux, Android, iOS, iPadOS
USB audio Supported
USB video protocol UVC 1.1/UVC 1.5
USB PTZ control Supported
Network
Video compression H.264/H.265
Video stream First Stream, Second Stream
First stream resolution 1920×1080, 1280×720, 1024×576, 960×540, 640×480, 640×360
Second stream resolution 1280×720, 1024×576, 720×480, 640×360, 480×272, 320×240, 320×180
Video bit rate 32Kbps ~ 20480Kbps
Bit rate control CBR, VBR
Frame rate 1fps ~ 60fps
Audio compression AAC
Audio bit rate 96Kbps, 128Kbps, 256Kbps
Protocols NDI HX3, TCP/IP, HTTP, RTSP, RTMP/RTMPS, ONVIF, DHCP, SRT, Multicast
Audio
Microphone Built-in dual microphone, 100Hz to 16KHz frequency response
Audio input Line In
Audio output Line Out, HDMI, USB

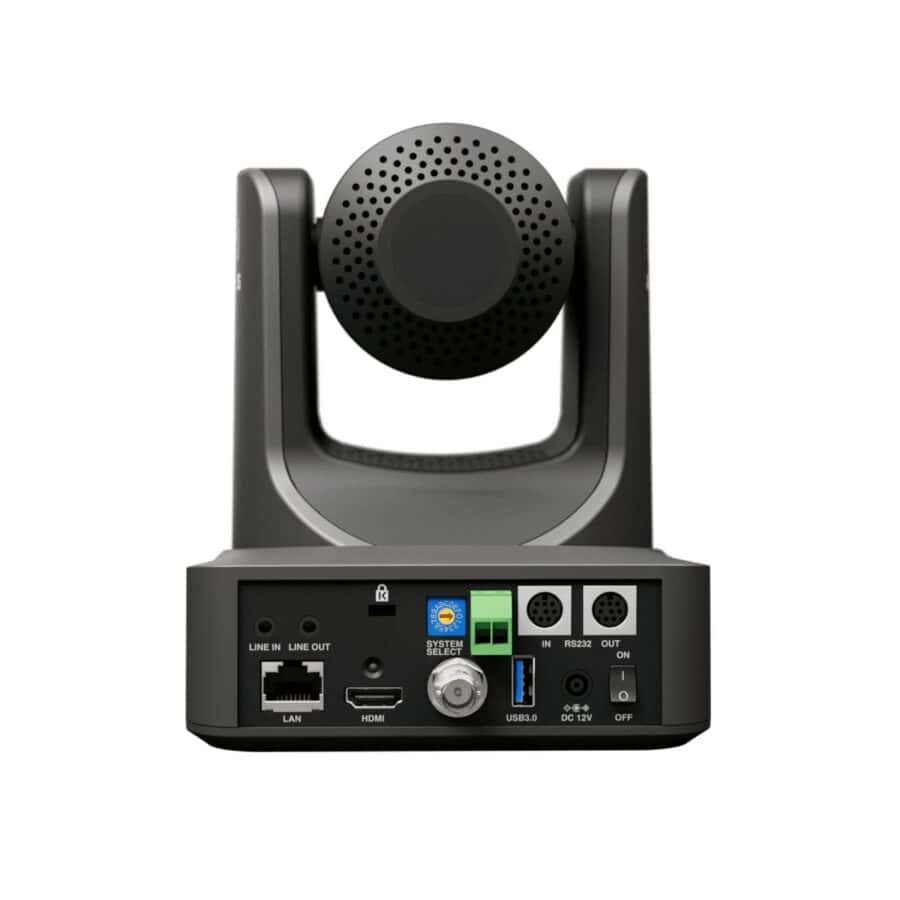

Input/Output Interfaces
Line In 3.5mm audio interface
Line Out 3.5mm audio interface
RS-485 2-pin phoenix port; max distance: 1200m; protocol: VISCA/Pelco-D/Pelco-P
RS-232 IN 8-pin Mini DIN; max distance: 30m; protocol: VISCA/Pelco-D/Pelco-P
RS-232 OUT 8-pin Mini DIN; max distance: 30m; protocol: VISCA network use only
Network 10M/100M Adaptive Ethernet Port
USB USB 2.0: Type A
SDI 3G-SDI: BNC type, 800mVp-p, 75Ω. To SMPTE 424M standard
HDMI HDMI version 1.3
Power jack JEITA type (DC IN 12V)
Tally indicator Yes
Warranty
Standard 1 year. Extended to 2 years on product registration.

Additional information

Brand

A-Eye HD-20X PTZ camera, RS-232 serial cable (2m), USB 3.0 A-A cable (1.5m), lens cover, remote controller, accessory tray, wall mount rack, screw pack, power adaptor with 4 plugs, Quick Start Guide
