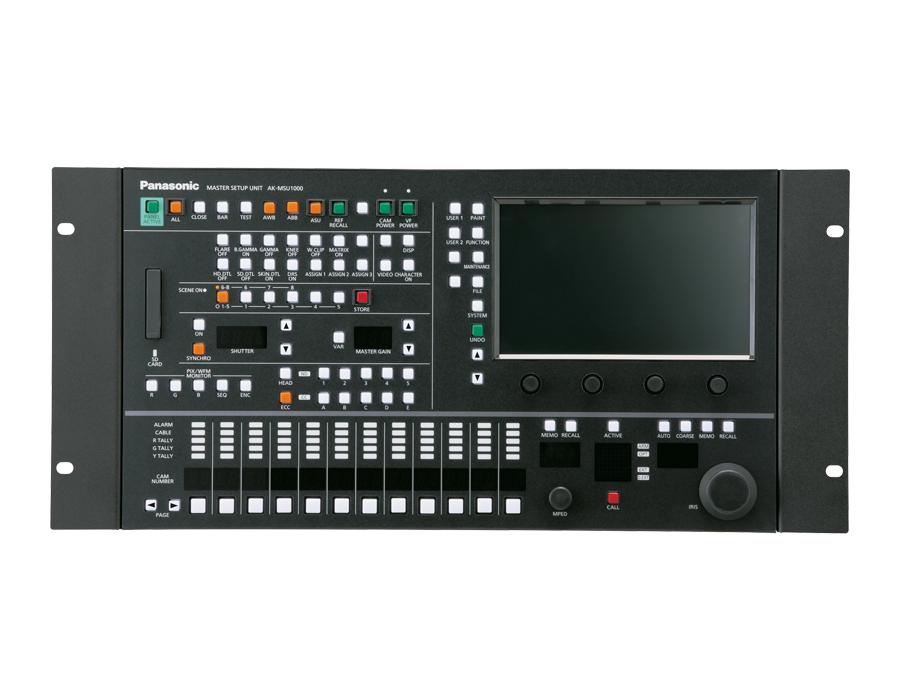

AK-MSU1000 master setup unit with controls and display screen.

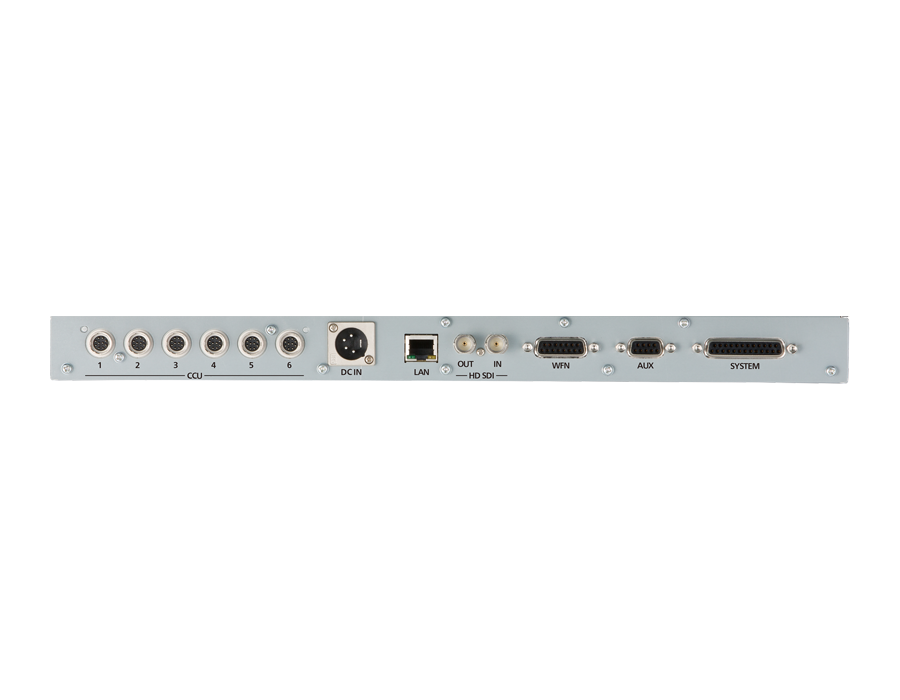

Master setup unit with multiple input and output ports for AV systems.
Panasonic

AK-MSU1000 Master Setup Unit

• Large scale 7-type color LCD Touch Panel
• Master control of precise camera settings for the entire camera system
• Serial & IP control (6x serial and up to 99 cameras by IP)
• Camera/CCU Information Output (1080i)
• HD SDI Input (Monitoring, 1080i)

15.500,00€ (ex. VAT)

SKU: AK-MSU1000GJ Categories: , , , Brand:

The CCU supports not only UHD and HD simultaneous output, but also enables high-speed output*1 up to 240p in HD mode to be performed simultaneously with standard (1x) output, while still having a compact size.

  • IP and serial connections supported.
    IP connection: Up to 99 units
    Serial connection: Up to six units
  • 7 inch Touch Panel LCD
    Video monitoring function
  • HD SDI Input (Monitoring) (1080i)
  • Power DC12 V(DC10 V – DC17 V) or PoE+* (via PoE+ Hub)
  • * Abbreviation of Power over Ethernet.
Power Supply 12 V DC (DC input range: 10 V – 16 V DC)
42 V – 57 V DC (PoE+ power supply)
Power Consumption 1.6 A (Power supply: 12 V DC)
0.6 A (PoE+ power supply)
Operating Temperature 0°C to 40°C (32°F to 140°F)
Humidity 90% or less
Storage Temperature -20°C to 60°C (-4°F to 140°F)
Weight Approx. 4.0 kg (8.82 lb)
Dimensions (W x H x D) 482 mm x 222 mm x 81.5 mm (18-31/32 inches x 8-3/4 inches x 3-7/32 inches)
(Including mounting brackets and dial heights)
Adjustment Functions Scene file, ND filter, CC filter, Color temperature (COLOR TEMP), Master gain (MASTER GAIN),
Shutter (SHUTTER), Master pedestal (MPED), Iris (IRIS), Camera selection
CCU Control RS422 or IP
Maximum Cable Length When CCU is connected: 50 m (164 ft)
