Teradek

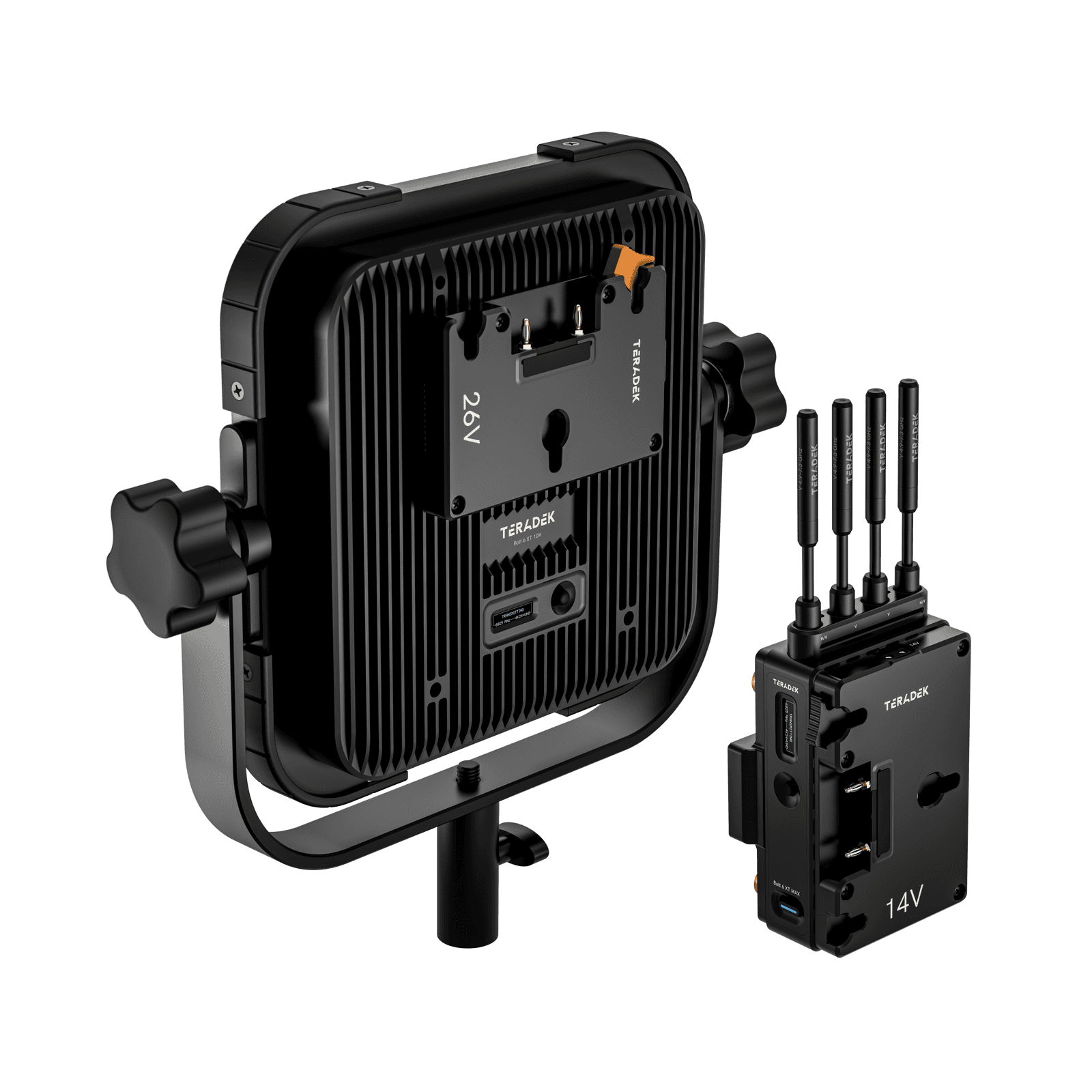

Bolt 6 XT MAX Set with 10K RX Gold Mount (14/26V)

Bolt 6 XT is a wireless video transmission system that supports up to 4Kp60 10-bit 422 HDR video over 12G-SDI. Bolt 6 uses Teradek’s patented Zero-Delay silicon chip to send wireless video over 5GHz and 6GHz radio frequencies. This kit includes a Bolt 6 XT TX and a Bolt 6 XT 10K RX.

16.194,17€ (ex. VAT)

SKU: 10-2325-G Categories: , , Brand:

Bolt 6 XT is a wireless video transmission system that supports up to 4Kp60 10-bit 422 HDR video over 12G-SDI. Bolt 6 uses Teradek’s patented Zero-Delay silicon chip to send wireless video over 5GHz and 6GHz radio frequencies. This kit includes a Bolt 6 XT TX and a Bolt 6 XT 10K RX.

Bolt 6 XT 10K RX is a zero-delay video receiver, offering a remarkable wireless range of up to 10,000 feet (3 kilometers). Its enhanced directional antenna is specifically designed for superior RF performance, minimizing interference by focusing signal reception and benefiting from robust internal shielding. Its all-in-one enclosure design not only boosts range and reliability in challenging RF environments, but it also eliminates the hassle of external antenna cables. This results in a much cleaner setup, expediting deployment from its case onto a c-stand. To maximize range, enable Broadcast Mode on the Bolt 6 XT TX.

Control your setup with ease using the Bolt App, which simplifies device pairing, allows fine-tuned frequency adjustments, and includes a built-in spectrum analyzer for advanced RF diagnostics.

This kit is compatible with additional Bolt 6 and Bolt 4K receivers.

The Gold Mount version of the Bolt 6 XT 10K RX is compatible with 14V and 26V batteries.

Model Bolt 6 XT MAX Set with 10K RX Gold Mount (14/26V)
Bolt 6 XT MAX TX Gold Mount
Video
Video Inputs 12G-SDI SMPTE 2082-1 standard / 75 Ω (BNC x 1)
1 x HDMI 2.0 Type-A receptacle
Video Outputs 12G-SDI SMPTE 2082-1 standard / 75 Ω (BNC x 1)
Sdi Ancillary Data Support Supports transmitting metadata, timecode, and start/stop flags from most camera manufacturers.
Color Sampling SDI: YCbCr 4:2:2, 10-bit/ HDMI: RGB 4:4:4, 8-bit
Delay Tx To Rx <0.001sec
Input Cross Conversion Yes, HDMI to SDI
Supported Resolutions
Supported Resolutions 4Kp23.98/24/25/29.97/30/50/59.94/60
1080p23.98/24/25/29.97/30/50/59.94/60
1080psf23.98/24/25/29.97/30
1080i50/59.94/60
720p50/59.94/60
Video Processing
Video Compression Visually Lossless
Color Correction None
Audio Processing
Audio Compression 48kHz 24-bit PCM
Inputs
Audio Input Embedded SDI/HDMI Audio Input (2 Channel)
Physical
Dimensions 132 x 91 x 27 mm
Weight 344g (12.1 Oz)
Construction Milled Aluminum(Chassis) and regulation-compliant PCB
Mountability Multiple mounting options with 1/4″x20 and M3 holes
Interfaces
Configuration Interfaces OSD with Menu, Joystick Navigation
Switches On/Off Switch
Usb Interface Functionality Upgrade via USB-C
5pin Locking Connector CCU
Bluetooth Compatibility 2.4 GHz
Network
Antennas 4 External 2dBi antennas (included)
Wireless Non-DFS Frequencies:
5.190 ~ 5.230 GHz, 5.755 ~ 5.795 GHz, 5.945 ~ 6.425GHz
DFS Frequencies:
5.270 ~ 5.670 GHz
Rf Channel Selection Auto, Manual
Encryption AES-256, RSA-1024 key exchange
Rf Power 23 dbm EIRP
Range Up to 5000 ft, line of sight
Unicast Multicast Can connect one Transmitter to up to 6 Receivers
Noise Rejection Can coexist with WiFi and 5GHz cordless phones
Can operate up to 6 sets in same location
Power
Power Input 2-Pin Circular locking Connector 6-28 VDC
Battery None, optional Sony/Canon dual battery plate
Battery Runtime 20 Watts
Environmental
Operating Temperature 0-40℃
Bolt 6 XT 10K RX Gold Mount (14/26V)
Video
Video Outputs 1x 12G-SDI SMPTE 2082-1 standard/75 Ω (BNC x 1)
1x HDMI 2.0 Type-A receptacle
Sdi Ancillary Data Support Supports timecode and start/stop flags from most camera manufacturers. Additional SDI metadata support for Arri and Sony cameras.
Color Sampling SDI: YCbCr 4:2:2, 10-bit
HDMI: RGB/YCbCr; 4:4:4/4:2:2/4:2:0; 8/10-bit
Delay Tx To Rx <0.001sec (without format conversions)
Output Video Processing Yes (deinterlacer, frame rate converter, scaler, 1D/3D LUTs)
Other Tools Spectrum Analyzer, Test Pattern Generator
Supported Resolutions
Supported Resolutions 4Kp23.98/24/25/29.97/30/50/59.94/60
1080p23.98/24/25/29.97/30/50/59.94/60
1080psf23.98/24/25/29.97/30
1080i50/59.94/60
720p50/59.94/60
Video Processing
Video Compression Visually lossless
Test Pattern Generator Support Yes
Spectrum Analyzer Yes
Video Format Conversion Support Yes
Color Correction 17x17x17 3D LUT (Supports 10-bit color), 1D LUT330.47 x 55.4 x 322.36 mm / 13.011 x 2.18 x 12.69 inch
Audio Processing
Audio Format 48kHz 24-bit PCM
Outputs
Audio Output Embedded SDI/HDMI Audio Output
(2 Channel)
Physical
Dimensions 13 x 2.2 x 12.7 inch (330 x 55 x 322 mm)
Weight 4.44lbs. (2.01 kg)
Construction Milled aluminum (chassis), polyurethane antenna cover with rubber shock protection regulation-compliant PCB
Interfaces
Configuration Interfaces OSD with Menu Joystick Navigation
Switches On/Off Switch
Mobile App Bolt App (iOS and Android)
Desktop App Bolt Manager app (OSX and Windows)
Usb Interface Functionality Upgrade via USB-C, 5-pin locking connector CCU
Bluetooth Compatibility Yes
Network
Antennas Integrated directional array panel antenna, 4.9-7.3GHz
Wireless DFS Frequencies:
5.270 ~ 5.670 GHz

Non-DFS Frequencies:
5.190 ~ 5.230 GHz, 5.755 ~ 5.795 GHz, and 5.945 ~ 6.425GHz
Bluetooth 2.4GHz
Rf Channel Selection Auto, Manual
Encryption AES-256, RSA-1024 key exchange
Rf Power 21 dBm EIRP (max power)
Range Up to 10000ft [1524m] using broadcast mode with a Bolt 6 MAX TX, Approx. 5000ft. with broadcast disabled
Unicast Multicast 750/1500/MAX: Can connect one transmitter to up to 6 receivers
MAX (with Broadcast Mode enabled): Can connect one transmitter to unlimited receivers
Noise Rejection Coexists with Wi-Fi and 5GHz cordless phones, and operate up to 6 sets in the same location
Power
Power Input 2-Pin locking connector 10-28 VDC
Battery None, optional Gold or V-mount battery plate
Nominal Power Consumption 18 Watts
Environmental
Operating Temperature 0~40 deg-C
Bolt 6 XT 10K RX Gold Mount (14/26V)
Bolt 6 XT MAX TX Gold Mount
Video
Video Outputs 1x 12G-SDI SMPTE 2082-1 standard/75 Ω (BNC x 1)
1x HDMI 2.0 Type-A receptacle
Sdi Ancillary Data Support Supports timecode and start/stop flags from most camera manufacturers. Additional SDI metadata support for Arri and Sony cameras.
Color Sampling SDI: YCbCr 4:2:2, 10-bit
HDMI: RGB/YCbCr; 4:4:4/4:2:2/4:2:0; 8/10-bit
Delay Tx To Rx <0.001sec (without format conversions)
Output Video Processing Yes (deinterlacer, frame rate converter, scaler, 1D/3D LUTs)
Other Tools Spectrum Analyzer, Test Pattern Generator
Video
Video Inputs 12G-SDI SMPTE 2082-1 standard / 75 Ω (BNC x 1)
1 x HDMI 2.0 Type-A receptacle
Video Outputs 12G-SDI SMPTE 2082-1 standard / 75 Ω (BNC x 1)
Sdi Ancillary Data Support Supports transmitting metadata, timecode, and start/stop flags from most camera manufacturers.
Color Sampling SDI: YCbCr 4:2:2, 10-bit/ HDMI: RGB 4:4:4, 8-bit
Delay Tx To Rx <0.001sec
Input Cross Conversion Yes, HDMI to SDI
Supported Resolutions
Supported Resolutions 4Kp23.98/24/25/29.97/30/50/59.94/60
1080p23.98/24/25/29.97/30/50/59.94/60
1080psf23.98/24/25/29.97/30
1080i50/59.94/60
720p50/59.94/60
Supported Resolutions
Supported Resolutions 4Kp23.98/24/25/29.97/30/50/59.94/60
1080p23.98/24/25/29.97/30/50/59.94/60
1080psf23.98/24/25/29.97/30
1080i50/59.94/60
720p50/59.94/60
Video Processing
Video Compression Visually lossless
Test Pattern Generator Support Yes
Spectrum Analyzer Yes
Video Format Conversion Support Yes
Color Correction 17x17x17 3D LUT (Supports 10-bit color), 1D LUT330.47 x 55.4 x 322.36 mm / 13.011 x 2.18 x 12.69 inch
Video Processing
Video Compression Visually Lossless
Color Correction None
Audio Processing
Audio Format 48kHz 24-bit PCM
Audio Processing
Audio Compression 48kHz 24-bit PCM
Physical
Dimensions 13 x 2.2 x 12.7 inch (330 x 55 x 322 mm)
Weight 4.44lbs. (2.01 kg)
Construction Milled aluminum (chassis), polyurethane antenna cover with rubber shock protection regulation-compliant PCB
Physical
Dimensions 132 x 91 x 27 mm
Weight 344g (12.1 Oz)
Construction Milled Aluminum(Chassis) and regulation-compliant PCB
Mountability Multiple mounting options with 1/4″x20 and M3 holes
Interfaces
Configuration Interfaces OSD with Menu Joystick Navigation
Switches On/Off Switch
Mobile App Bolt App (iOS and Android)
Desktop App Bolt Manager app (OSX and Windows)
Usb Interface Functionality Upgrade via USB-C, 5-pin locking connector CCU
Bluetooth Compatibility Yes
Interfaces
Configuration Interfaces OSD with Menu, Joystick Navigation
Switches On/Off Switch
Usb Interface Functionality Upgrade via USB-C
5pin Locking Connector CCU
Bluetooth Compatibility 2.4 GHz
Network
Antennas Integrated directional array panel antenna, 4.9-7.3GHz
Wireless DFS Frequencies:
5.270 ~ 5.670 GHz

Non-DFS Frequencies:
5.190 ~ 5.230 GHz, 5.755 ~ 5.795 GHz, and 5.945 ~ 6.425GHz
Bluetooth 2.4GHz
Rf Channel Selection Auto, Manual
Encryption AES-256, RSA-1024 key exchange
Rf Power 21 dBm EIRP (max power)
Range Up to 10000ft [1524m] using broadcast mode with a Bolt 6 MAX TX, Approx. 5000ft. with broadcast disabled
Unicast Multicast 750/1500/MAX: Can connect one transmitter to up to 6 receivers
MAX (with Broadcast Mode enabled): Can connect one transmitter to unlimited receivers
Noise Rejection Coexists with Wi-Fi and 5GHz cordless phones, and operate up to 6 sets in the same location
Network
Antennas 4 External 2dBi antennas (included)
Wireless Non-DFS Frequencies:
5.190 ~ 5.230 GHz, 5.755 ~ 5.795 GHz, 5.945 ~ 6.425GHz
DFS Frequencies:
5.270 ~ 5.670 GHz
Rf Channel Selection Auto, Manual
Encryption AES-256, RSA-1024 key exchange
Rf Power 23 dbm EIRP
Range Up to 5000 ft, line of sight
Unicast Multicast Can connect one Transmitter to up to 6 Receivers
Noise Rejection Can coexist with WiFi and 5GHz cordless phones
Can operate up to 6 sets in same location
Power
Power Input 2-Pin locking connector 10-28 VDC
Battery None, optional Gold or V-mount battery plate
Nominal Power Consumption 18 Watts
Power
Power Input 2-Pin Circular locking Connector 6-28 VDC
Battery None, optional Sony/Canon dual battery plate
Battery Runtime 20 Watts
Environmental
Operating Temperature 0~40 deg-C
Environmental
Operating Temperature 0-40℃
Outputs
Audio Output Embedded SDI/HDMI Audio Output
(2 Channel)
Inputs
Audio Input Embedded SDI/HDMI Audio Input (2 Channel)

Additional information

Brand

  • 1 x Bolt 6 XT MAX TX, Gold Mount Plates
  • 1 x Bolt 6 XT 10K RX, Gold Mount Plate
  • 1 x 10K Yoke Mount (sold as 11-0825)
  • 1 x Teradek Case XL – Bolt 6 XT TX/4RX and Antenna Array
  • 1 x 12G-SDI Cable, 18in/46cm
  • 1 x 12G-SDI Cable, 120in/305cm
  • 1 x 2pin to P-Tap Cable, 18in/46cm
  • 1 x 2pin to 2pin Cable, 18in/46cm
  • 1 x 2pin to AC Power Cable, 6ft/2m
  • 1 x USB Type A to USB-C Cable, 3ft/1m
  • 1 x Wooden Camera – Universal Ultra Arm Monitor Mount (Combo 1/4-20 & 3/8-16, 5″)
  • 1 x Hot Shoe Adaptor
  • 2 x Flex H-Antennas, 4.9-7.3Ghz RP-SMA
  • 4 x Flex V-Antennas, 4.9-7.3Ghz RP-SMA
  • 1 x Bolt 6 XT TX Color Band (Red Rubber)
  • 1 x Bolt 6 XT TX Color Band (Yellow Rubber)
  • 1 x Bolt 6 XT TX Color Band (Green Rubber)
  • 1 x Bolt 6 XT TX Color Band (Blue Rubber)
