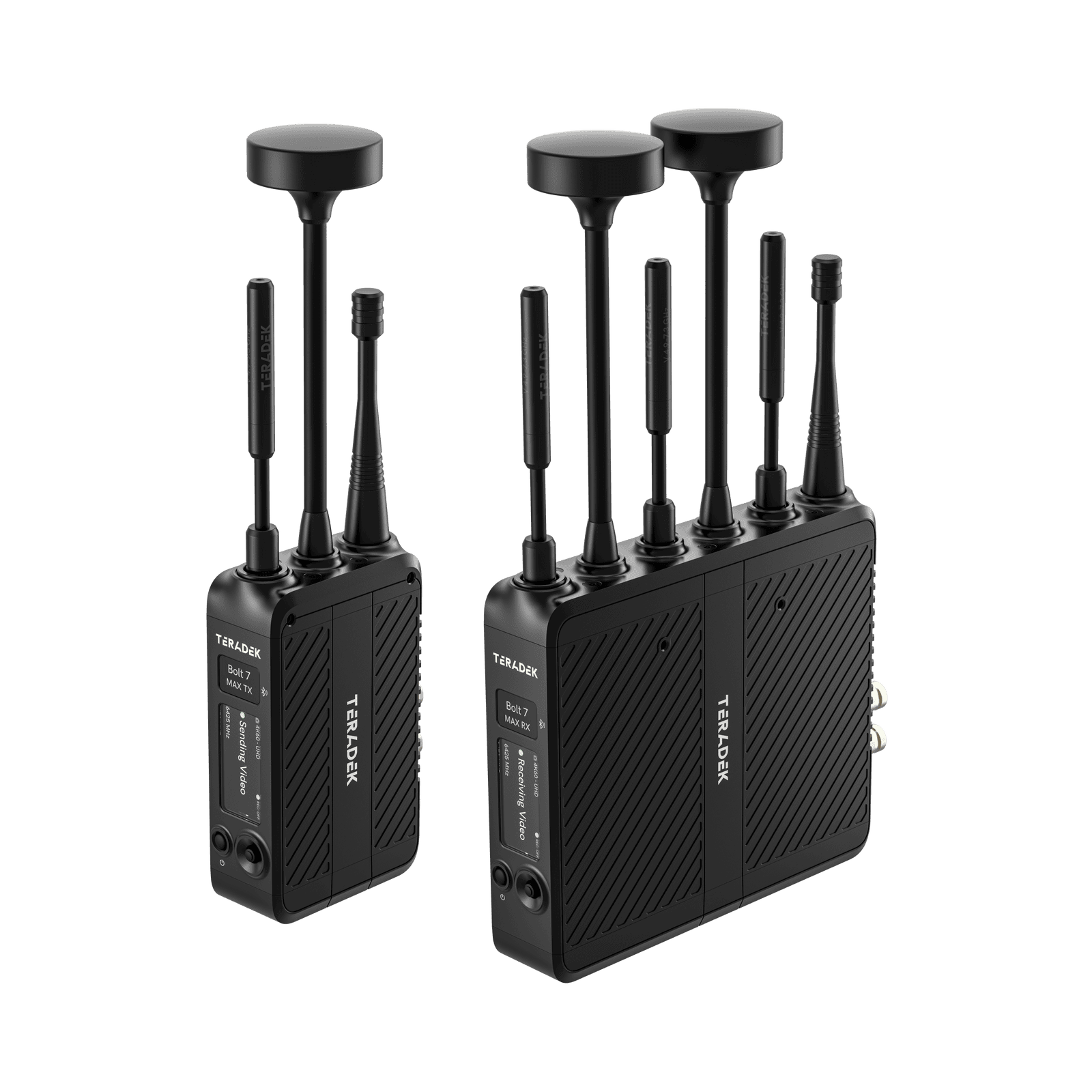

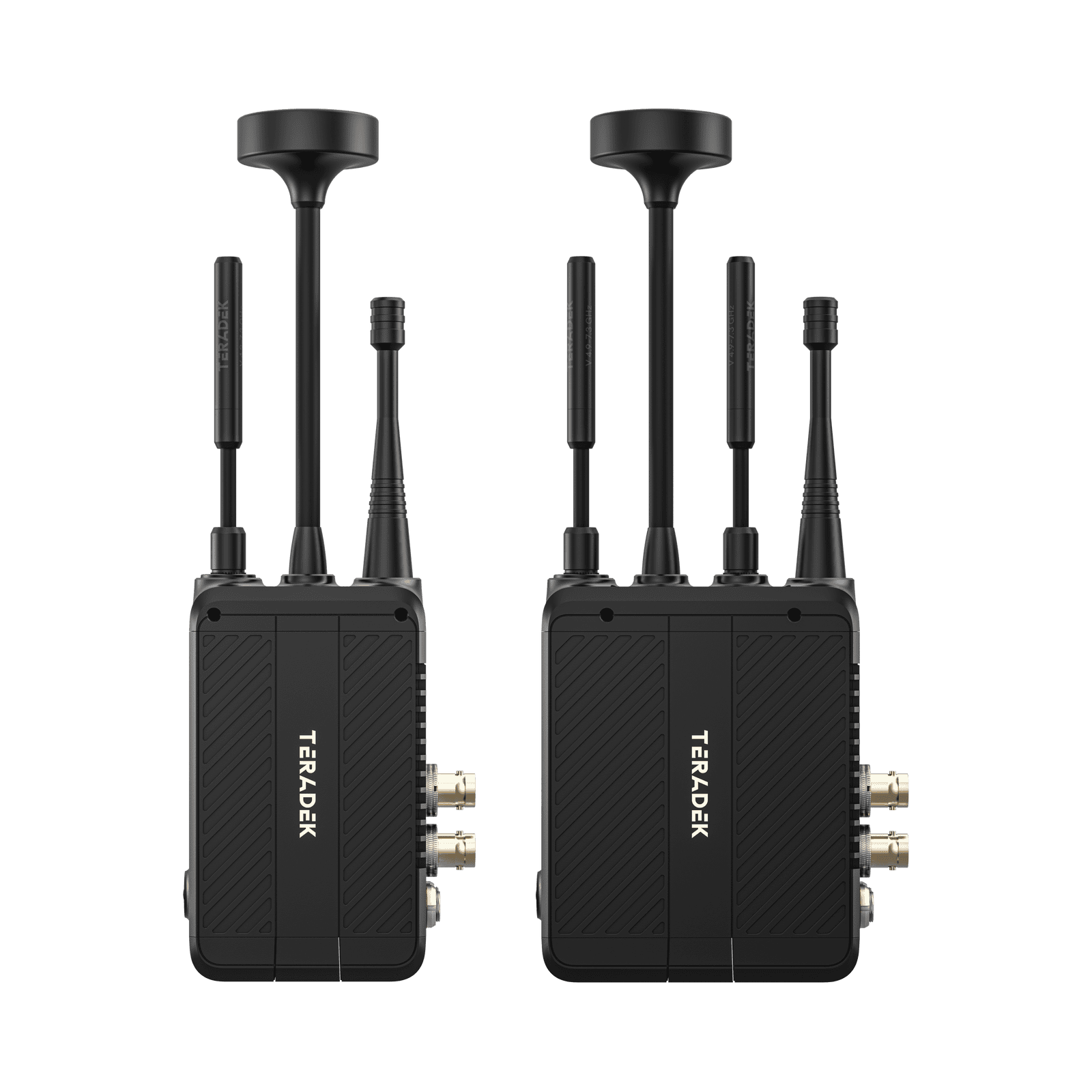

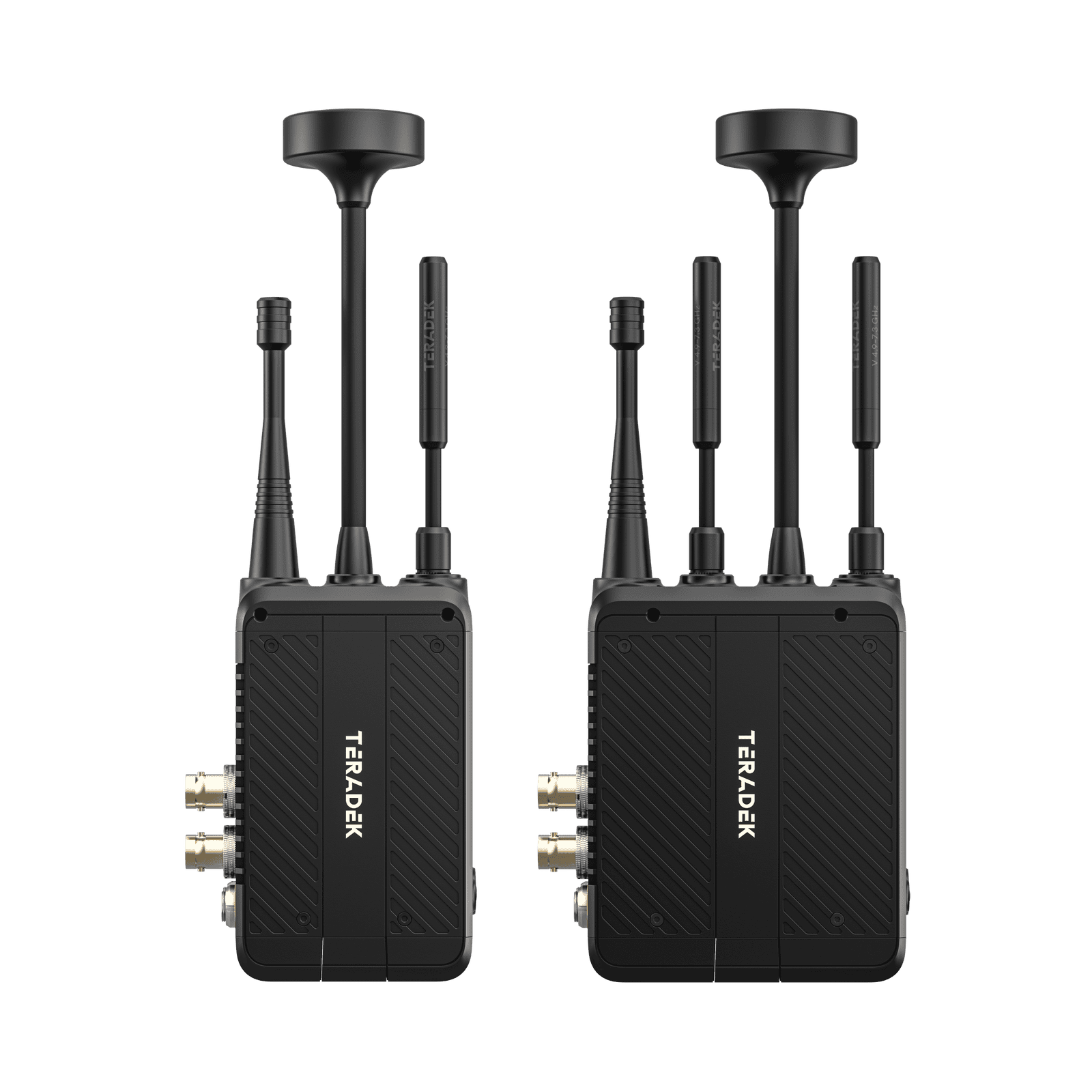

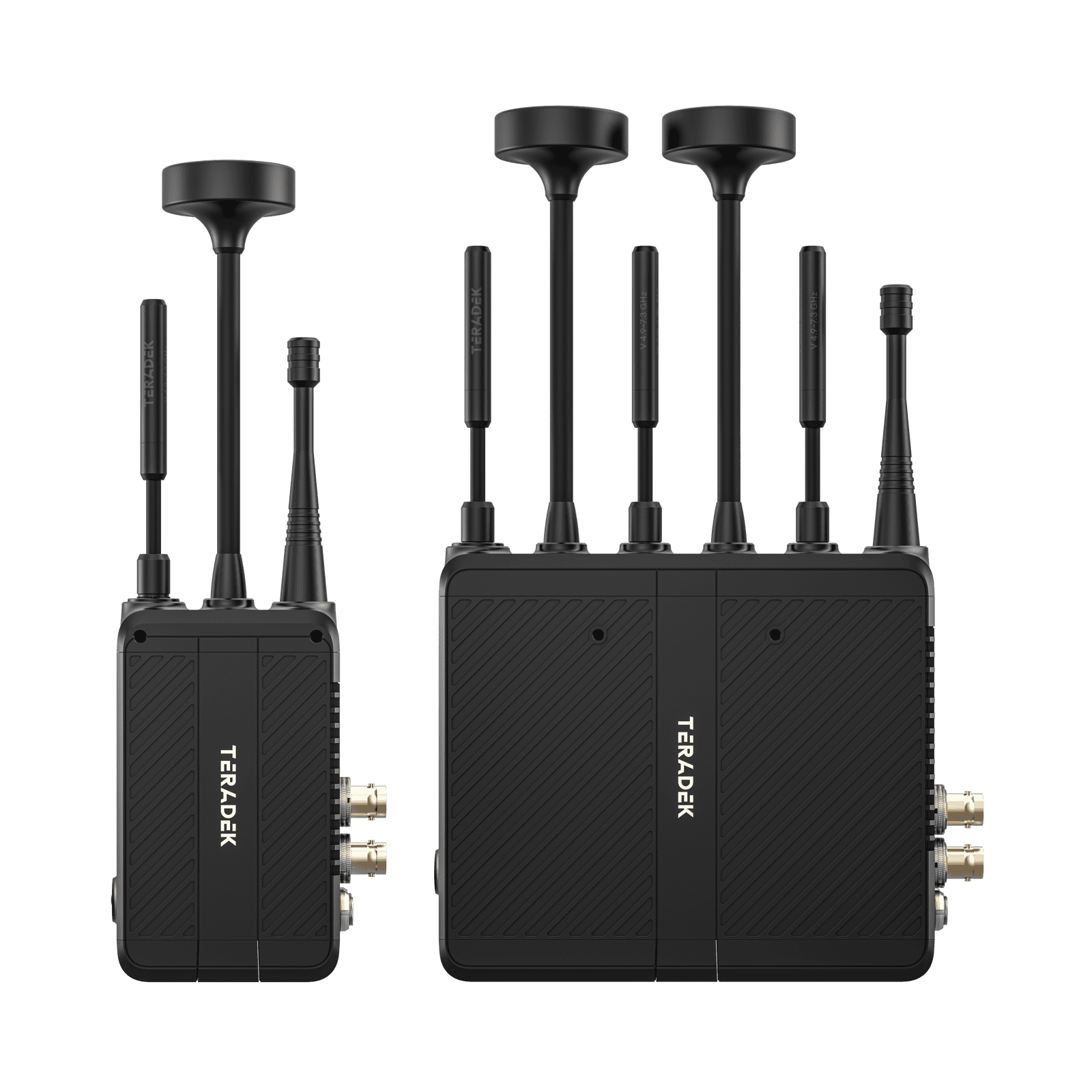

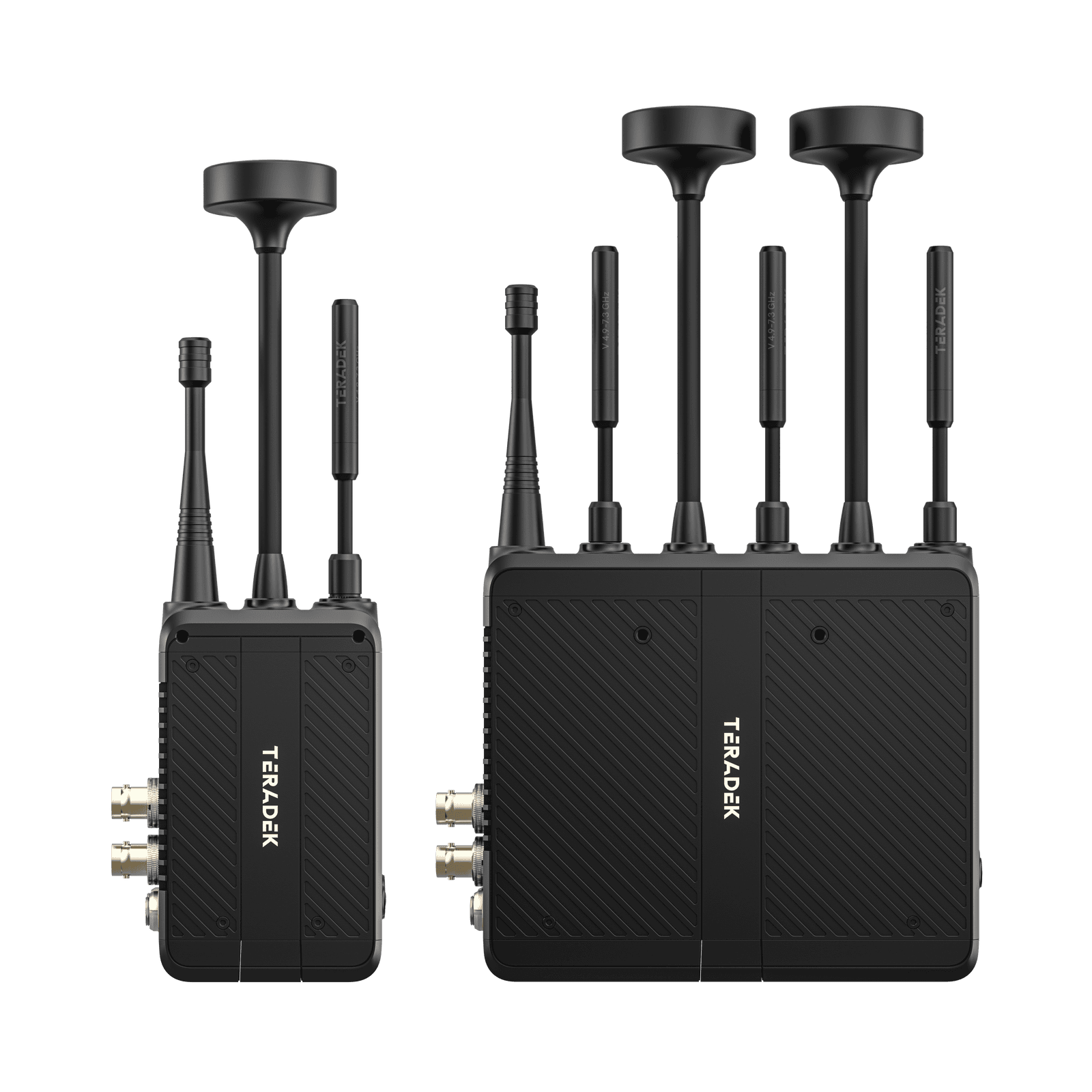

| Bolt 7 MAX 12G-SDI/HDMI Wireless TX |
| Video |
| Video Inputs |
12G-SDI SMPTE 2082-1 standard / 75 Ω (BNC x 1)
1 x HDMI 2.0 Type-A receptacle
1 x USB-C Display Port ALT mode video input |
| Video Outputs |
12G-SDI SMPTE 2082-1 standard / 75 Ω (BNC x 1) |
| Sdi Ancillary Data Support |
Supports transmitting timecode and start/stop flags from most camera manufacturers. More metadata for Arri and Sony cameras. |
| Color Sampling |
SDI: YCbCr 4:2:2, 10-bit.
HDMI: RGB/YCbCr; 4:4:4/4:2:2/4:2:0; 8/10-bit |
| Delay Tx To Rx |
<0.001sec |
| Input Cross Conversion |
Yes (HDMI input to SDI loopout) |
| Other Tools |
SDI Eye Pattern Display |
| Supported Resolutions |
| Supported Resolutions |
4Kp23.98/24/25/29.97/30/50/59.94/60
1080p23.98/24/25/29.97/30/50/59.94/60
1080psf23.98/24/25/29.97/30
1080i50/59.94/60
720p50/59.94/60
480p59.94 576p50
480i(NTSC)/576i(PAL) |
| Video Processing |
| Video Compression |
Visually Lossless |
| Color Correction |
None |
| Audio Processing |
| Audio Format |
48kHz 24-bit PCM |
| Inputs |
| Audio Input |
Embedded SDI/HDMI Audio Input (2 Channel) |
| Physical |
| Dimensions |
112 x 66 x 32 mm |
| Weight |
400g (14.1 Oz) |
| Construction |
Milled Aluminum(Chassis) and regulation-compliant PCB |
| Mountability |
Multiple mounting options with 1/4″x20 and M3 holes |
| Interfaces |
| Configuration Interfaces |
Color OLED with Menu, Joystick Navigation |
| Switches |
On/Off Switch |
| Usbc Port |
Firmware upgrade
Display Port ALT mode video in
Device setup via Bolt Manager desktop app |
| Locking5Pin Usb Port |
USB host port for camera control via smart cables (optional) |
| Bluetooth Compatibility |
BLE for device setup and monitoring via smart phone app |
| Network |
| Ethernet |
Via smart cable connected to Locking 5 pin USB port |
| Antennas |
3 External, 2 Internal |
| Wireless |
Non-DFS Frequencies:
5.190 ~ 5.230 GHz, 5.755 ~ 5.795 GHz, 5.945 ~ 6.425GHz
DFS Frequencies:
5.270 ~ 5.670 GHz |
| Bluetooth |
2.4 GHz |
| Rf Channel Selection |
Auto, Manual |
| Encryption |
AES-256, RSA-1024 key exchange |
| Rf Power |
23 dbm EIRP |
| Range |
Up to 5000 ft, line of sight |
| Unicast Multicast |
Can connect one Transmitter to up to 6 Receivers |
| Noise Rejection |
Can coexist with WiFi and 5GHz cordless phones
Can operate up to 6 receiver sets in same location |
| Interoperability Compatibility |
Compatible with all Bolt 4K, Bolt 6 and Bolt 7 products |
| Broadcast |
Yes, transmitter can transmit to 250 receivers |
| Camera Control Radio |
900 MHz |
| Power |
| Power Input |
2-Pin Circular locking Connector 6-28 VDC |
| Battery |

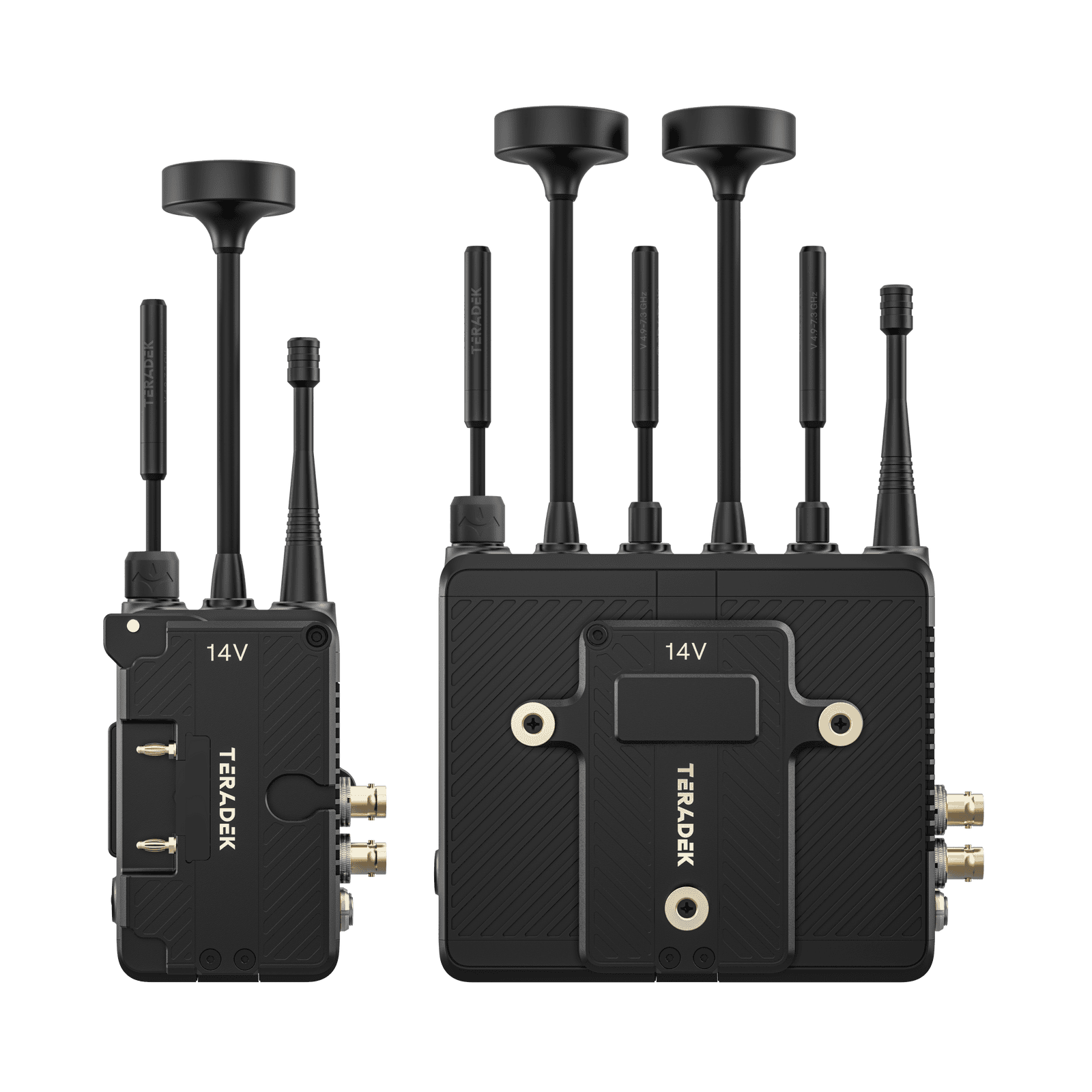

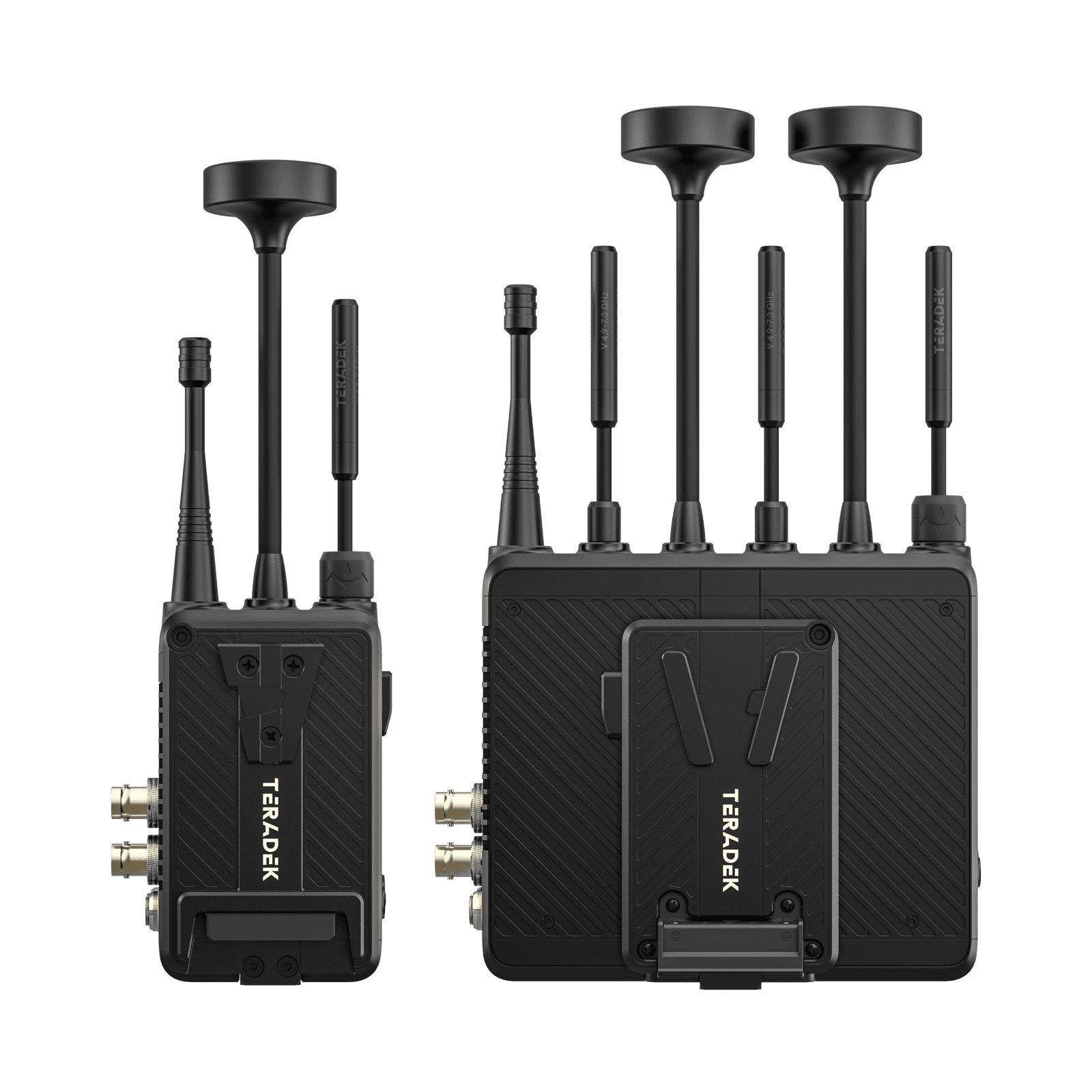

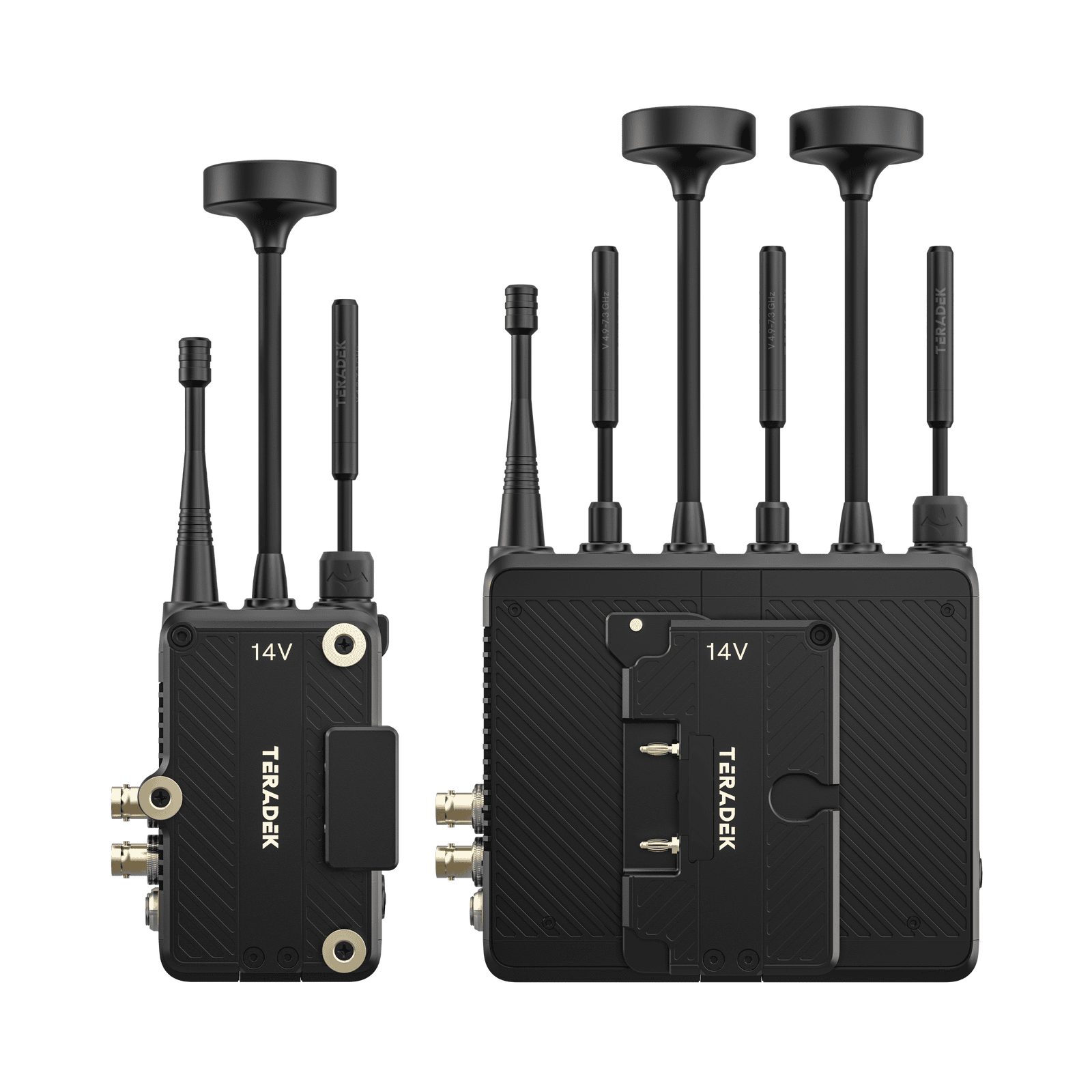

None, optional field installable Gold- or V-Mount dual battery plate |
| Nominal Power Consumption |
20 Watts |
| Environmental |
| Operating Temperature |
0-40℃ |
| Bolt 7 MAX 12G-SDI/HDMI Wireless RX |
| Video |
| Video Outputs |
12G-SDI SMPTE 2082-1 standard / 75 Ω (BNC x 2)
1 x HDMI 2.0 Type-A receptacle
1 x USB-C Display Port ALT mode video output |
| Sdi Ancillary Data Support |
Supports transmitting timecode and start/stop flags from most camera manufacturers. More metadata for Arri and Sony cameras. |
| Color Sampling |
SDI: YCbCr 4:2:2, 10-bit
HDMI: RGB/YCbCr; 4:4:4/4:2:2/4:2:0; 8/10-bit |
| Delay Tx To Rx |
<0.001sec |
| Output Video Processing |
Deinterlacer, frame rate converter, scaler, 3D LUTs |
| Other Tools |
Spectrum Analyzer, Test Pattern Generator |
| Supported Resolutions |
| Supported Resolutions |
4Kp23.98/24/25/29.97/30/50/59.94/60
1080p23.98/24/25/29.97/30/50/59.94/60
1080psf23.98/24/25/29.97/30
1080i50/59.94/60
720p50/59.94/60
480p59.94 576p50
480i(NTSC)/576i(PAL) |
| Video Processing |
| Video Compression |
Visually Lossless |
| Color Correction |
33x33x33 3D LUT (supports 10-bit color) |
| Audio Processing |
| Audio Format |
48kHz 24-bit PCM |
| Outputs |
| Audio Output |
Embedded SDI/HDMI Audio Output (2 Channel) |
| Physical |
| Dimensions |
128 x 146 x 32 mm |
| Weight |
750g (26.4 Oz) |
| Construction |
Milled Aluminum(Chassis) and regulation-compliant PCB |
| Mountability |
Multiple mounting options with 1/4″x20 and 3/8″x16 holes |
| Interfaces |
| Configuration Interfaces |
Color OLED with Menu, Joystick Navigation |
| Switches |
On/Off Switch |
| Usbc Port |
Firmware upgrade
Display Port ALT mode video ou
Device setup via Bolt Manager desktop app |
| Locking5Pin Usb Port |
USB host port for camera control via smart cables (optional) |
| Bluetooth Compatibility |
BLE for device setup and monitoring via smart phone app |
| Network |
| Ethernet |
10/100/1000 GbE RJ45 connector |
| Antennas |
6 External, can connect to long range panel antenna |
| Wireless |
Non-DFS Frequencies:
5.190 ~ 5.230 GHz, 5.755 ~ 5.795 GHz, 5.945 ~ 6.425GHz
DFS Frequencies:
5.270 ~ 5.670 GHz |
| Bluetooth |
2.4 GHz |
| Rf Channel Selection |
Auto, Manual |
| Encryption |
AES-256, RSA-1024 key exchange |
| Rf Power |
21 dbm EIRP |
| Range |
Up to 5000 ft, line of sight |
| Unicast Multicast |
Can connect one Transmitter to up to 6 Receivers |
| Noise Rejection |
Can coexist with WiFi and 5GHz cordless phones
Can operate up to 6 receiver sets in same location |
| Interoperability Compatibility |
Compatible with all Bolt 4K, Bolt 6 and Bolt 7 products |
| Broadcast |
Yes, transmitter can transmit to 250 receivers |
| Camera Control Radio |
900 MHz |
| Power |
| Power Input |
2-Pin Circular locking Connector 6-28 VDC |
| Battery |
None, optional field installable Gold- or V-Mount dual battery plate |
| Nominal Power Consumption |
18 Watts |
| Environmental |
| Operating Temperature |
0-40℃ |
| Bolt 7 MAX 12G-SDI/HDMI Wireless RX |
| Bolt 7 MAX 12G-SDI/HDMI Wireless TX |
| Video |
| Video Outputs |
12G-SDI SMPTE 2082-1 standard / 75 Ω (BNC x 2)
1 x HDMI 2.0 Type-A receptacle
1 x USB-C Display Port ALT mode video output |
| Sdi Ancillary Data Support |
Supports transmitting timecode and start/stop flags from most camera manufacturers. More metadata for Arri and Sony cameras. |
| Color Sampling |
SDI: YCbCr 4:2:2, 10-bit
HDMI: RGB/YCbCr; 4:4:4/4:2:2/4:2:0; 8/10-bit |
| Delay Tx To Rx |
<0.001sec |
| Output Video Processing |
Deinterlacer, frame rate converter, scaler, 3D LUTs |
| Other Tools |
Spectrum Analyzer, Test Pattern Generator |
| Video |
| Video Inputs |
12G-SDI SMPTE 2082-1 standard / 75 Ω (BNC x 1)
1 x HDMI 2.0 Type-A receptacle
1 x USB-C Display Port ALT mode video input |
| Video Outputs |
12G-SDI SMPTE 2082-1 standard / 75 Ω (BNC x 1) |
| Sdi Ancillary Data Support |
Supports transmitting timecode and start/stop flags from most camera manufacturers. More metadata for Arri and Sony cameras. |
| Color Sampling |
SDI: YCbCr 4:2:2, 10-bit.
HDMI: RGB/YCbCr; 4:4:4/4:2:2/4:2:0; 8/10-bit |
| Delay Tx To Rx |
<0.001sec |
| Input Cross Conversion |
Yes (HDMI input to SDI loopout) |
| Other Tools |
SDI Eye Pattern Display |
| Supported Resolutions |
| Supported Resolutions |
4Kp23.98/24/25/29.97/30/50/59.94/60
1080p23.98/24/25/29.97/30/50/59.94/60
1080psf23.98/24/25/29.97/30
1080i50/59.94/60
720p50/59.94/60
480p59.94 576p50
480i(NTSC)/576i(PAL) |
| Supported Resolutions |
| Supported Resolutions |
4Kp23.98/24/25/29.97/30/50/59.94/60
1080p23.98/24/25/29.97/30/50/59.94/60
1080psf23.98/24/25/29.97/30
1080i50/59.94/60
720p50/59.94/60
480p59.94 576p50
480i(NTSC)/576i(PAL) |
| Video Processing |
| Video Compression |
Visually Lossless |
| Color Correction |
33x33x33 3D LUT (supports 10-bit color) |
| Video Processing |
| Video Compression |
Visually Lossless |
| Color Correction |
None |
| Audio Processing |
| Audio Format |
48kHz 24-bit PCM |
| Audio Processing |
| Audio Format |
48kHz 24-bit PCM |
| Physical |
| Dimensions |
128 x 146 x 32 mm |
| Weight |
750g (26.4 Oz) |
| Construction |
Milled Aluminum(Chassis) and regulation-compliant PCB |
| Mountability |
Multiple mounting options with 1/4″x20 and 3/8″x16 holes |
| Physical |
| Dimensions |
112 x 66 x 32 mm |
| Weight |
400g (14.1 Oz) |
| Construction |
Milled Aluminum(Chassis) and regulation-compliant PCB |
| Mountability |
Multiple mounting options with 1/4″x20 and M3 holes |
| Interfaces |
| Configuration Interfaces |
Color OLED with Menu, Joystick Navigation |
| Switches |
On/Off Switch |
| Usbc Port |
Firmware upgrade
Display Port ALT mode video ou
Device setup via Bolt Manager desktop app |
| Locking5Pin Usb Port |
USB host port for camera control via smart cables (optional) |
| Bluetooth Compatibility |
BLE for device setup and monitoring via smart phone app |
| Interfaces |
| Configuration Interfaces |
Color OLED with Menu, Joystick Navigation |
| Switches |
On/Off Switch |
| Usbc Port |
Firmware upgrade
Display Port ALT mode video in
Device setup via Bolt Manager desktop app |
| Locking5Pin Usb Port |
USB host port for camera control via smart cables (optional) |
| Bluetooth Compatibility |
BLE for device setup and monitoring via smart phone app |
| Network |
| Ethernet |
10/100/1000 GbE RJ45 connector |
| Antennas |
6 External, can connect to long range panel antenna |
| Wireless |
Non-DFS Frequencies:
5.190 ~ 5.230 GHz, 5.755 ~ 5.795 GHz, 5.945 ~ 6.425GHz
DFS Frequencies:
5.270 ~ 5.670 GHz |
| Bluetooth |
2.4 GHz |
| Rf Channel Selection |
Auto, Manual |
| Encryption |
AES-256, RSA-1024 key exchange |
| Rf Power |
21 dbm EIRP |
| Range |
Up to 5000 ft, line of sight |
| Unicast Multicast |
Can connect one Transmitter to up to 6 Receivers |
| Noise Rejection |
Can coexist with WiFi and 5GHz cordless phones
Can operate up to 6 receiver sets in same location |
| Interoperability Compatibility |
Compatible with all Bolt 4K, Bolt 6 and Bolt 7 products |
| Broadcast |
Yes, transmitter can transmit to 250 receivers |
| Camera Control Radio |
900 MHz |
| Network |
| Ethernet |
Via smart cable connected to Locking 5 pin USB port |
| Antennas |
3 External, 2 Internal |
| Wireless |
Non-DFS Frequencies:
5.190 ~ 5.230 GHz, 5.755 ~ 5.795 GHz, 5.945 ~ 6.425GHz
DFS Frequencies:
5.270 ~ 5.670 GHz |
| Bluetooth |
2.4 GHz |
| Rf Channel Selection |
Auto, Manual |
| Encryption |
AES-256, RSA-1024 key exchange |
| Rf Power |
23 dbm EIRP |
| Range |
Up to 5000 ft, line of sight |
| Unicast Multicast |
Can connect one Transmitter to up to 6 Receivers |
| Noise Rejection |
Can coexist with WiFi and 5GHz cordless phones
Can operate up to 6 receiver sets in same location |
| Interoperability Compatibility |
Compatible with all Bolt 4K, Bolt 6 and Bolt 7 products |
| Broadcast |
Yes, transmitter can transmit to 250 receivers |
| Camera Control Radio |
900 MHz |
| Power |
| Power Input |
2-Pin Circular locking Connector 6-28 VDC |
| Battery |
None, optional field installable Gold- or V-Mount dual battery plate |
| Nominal Power Consumption |
18 Watts |
| Power |
| Power Input |
2-Pin Circular locking Connector 6-28 VDC |
| Battery |
None, optional field installable Gold- or V-Mount dual battery plate |
| Nominal Power Consumption |
20 Watts |
| Environmental |
| Operating Temperature |
0-40℃ |
| Environmental |
| Operating Temperature |
0-40℃ |
| Outputs |
| Audio Output |
Embedded SDI/HDMI Audio Output (2 Channel) |
| Inputs |
| Audio Input |
Embedded SDI/HDMI Audio Input (2 Channel) |
