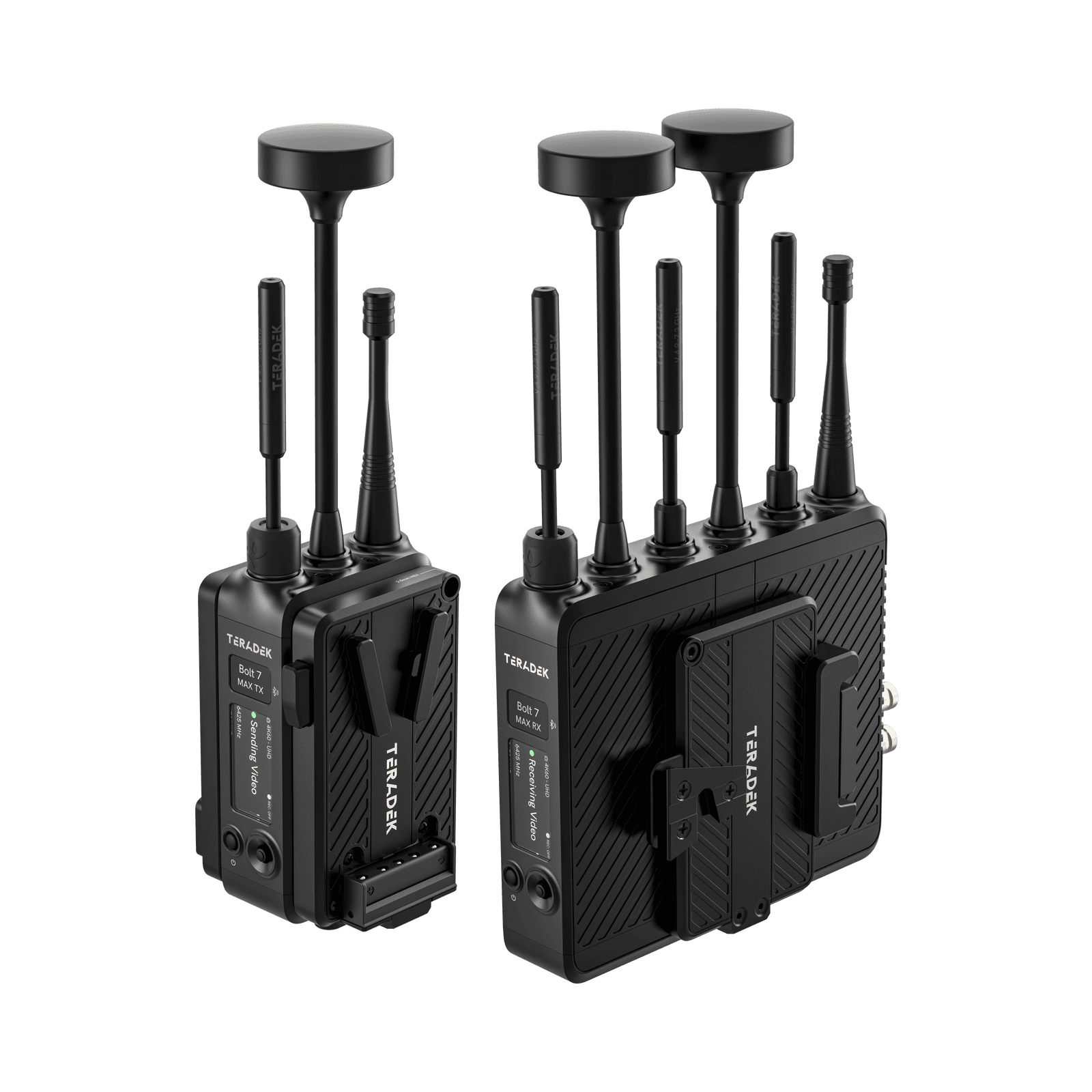

Bolt 7 MAX 12G-SDI/HDMI Wireless TX/RX Deluxe Set – 2x V-Mount Battery Cradles

Name: Teradek Bolt 7 MAX 12G-SDI/HDMI Wireless TX/RX Deluxe Set - 2x V-Mount Battery Cradles - Axis-One Belgique
SKU: 10-2720-V
Price: 14764.46 EUR
Availability: InStock

Bolt 7 is the next evolution in our zero-delay wireless ecosystem. Designed for cinema and live production professionals, Bolt 7 delivers 4K HDR wireless video while introducing an entirely new way to move production-critical data across set.

14.764,46€ (ex. VAT)

SKU: 10-2720-V Categories: Cameras, Wireless Video Systems, Transmitter & Receiver Set Brand: Teradek

Available in 750ft (228m), 1,500ft (450m), and MAX (up to 5000ft/1.5km) models, Bolt 7 combines zero-delay 12G-SDI and HDMI wireless video with a dedicated 900 MHz data channel that enables wireless camera control, monitor control, color workflows, Ethernet transport, and more—all through a single integrated system. By replacing multiple cables and standalone devices, Bolt 7 simplifies production workflows while reducing setup time and on-set complexity.

A redesigned compact chassis makes Bolt 7 easier to mount on modern camera builds, while a new full-color OLED display, streamlined pairing options, and improved control through the Bolt App make deployment faster than ever. Bolt 7 maintains backward compatibility with Bolt 4K, Bolt 6, and RF-X systems, allowing productions to seamlessly integrate it into their current Teradek ecosystem and scale set capabilities.

Support for DisplayPort Alt Mode over USB-C also enables emerging workflows with compatible cameras using a single cable for video and communications.

MAX Deluxe options include two Gold Mount, Gold Mount Plus or V-Mount Battery Cradles.

Whether you’re shooting feature films, broadcast sports, live events, or commercial productions, Bolt 7 provides the reliability, image quality, and workflow flexibility professionals have come to expect from Teradek.

Model	Bolt 7 MAX 12G-SDI/HDMI Wireless TX/RX Deluxe Set – 2x V-Mount Battery Cradles
Bolt 7 MAX 12G-SDI/HDMI Wireless TX
Video
Video Inputs	12G-SDI SMPTE 2082-1 standard / 75 Ω (BNC x 1) 1 x HDMI 2.0 Type-A receptacle 1 x USB-C Display Port ALT mode video input
Video Outputs	12G-SDI SMPTE 2082-1 standard / 75 Ω (BNC x 1)
Sdi Ancillary Data Support	Supports transmitting timecode and start/stop flags from most camera manufacturers. More metadata for Arri and Sony cameras.
Color Sampling	SDI: YCbCr 4:2:2, 10-bit. HDMI: RGB/YCbCr; 4:4:4/4:2:2/4:2:0; 8/10-bit
Delay Tx To Rx	<0.001sec
Input Cross Conversion	Yes (HDMI input to SDI loopout)
Other Tools	SDI Eye Pattern Display
Supported Resolutions
Supported Resolutions	4Kp23.98/24/25/29.97/30/50/59.94/60 1080p23.98/24/25/29.97/30/50/59.94/60 1080psf23.98/24/25/29.97/30 1080i50/59.94/60 720p50/59.94/60 480p59.94 576p50 480i(NTSC)/576i(PAL)
Video Processing
Video Compression	Visually Lossless
Color Correction	None
Audio Processing
Audio Format	48kHz 24-bit PCM
Inputs
Audio Input	Embedded SDI/HDMI Audio Input (2 Channel)
Physical
Dimensions	112 x 66 x 32 mm
Weight	400g (14.1 Oz)
Construction	Milled Aluminum(Chassis) and regulation-compliant PCB
Mountability	Multiple mounting options with 1/4″x20 and M3 holes
Interfaces
Configuration Interfaces	Color OLED with Menu, Joystick Navigation
Switches	On/Off Switch
Usbc Port	Firmware upgrade Display Port ALT mode video in Device setup via Bolt Manager desktop app
Locking5Pin Usb Port	USB host port for camera control via smart cables (optional)
Bluetooth Compatibility	BLE for device setup and monitoring via smart phone app
Network
Ethernet	Via smart cable connected to Locking 5 pin USB port
Antennas	3 External, 2 Internal
Wireless	Non-DFS Frequencies: 5.190 ~ 5.230 GHz, 5.755 ~ 5.795 GHz, 5.945 ~ 6.425GHz DFS Frequencies: 5.270 ~ 5.670 GHz
Bluetooth	2.4 GHz
Rf Channel Selection	Auto, Manual
Encryption	AES-256, RSA-1024 key exchange
Rf Power	23 dbm EIRP
Range	Up to 5000 ft, line of sight
Unicast Multicast	Can connect one Transmitter to up to 6 Receivers
Noise Rejection	Can coexist with WiFi and 5GHz cordless phones Can operate up to 6 receiver sets in same location
Interoperability Compatibility	Compatible with all Bolt 4K, Bolt 6 and Bolt 7 products
Broadcast	Yes, transmitter can transmit to 250 receivers
Camera Control Radio	900 MHz
Power
Power Input	2-Pin Circular locking Connector 6-28 VDC
Battery	None, optional field installable Gold- or V-Mount dual battery plate
Nominal Power Consumption	20 Watts
Environmental
Operating Temperature	0-40℃
Bolt 7 MAX 12G-SDI/HDMI Wireless RX
Video
Video Outputs	12G-SDI SMPTE 2082-1 standard / 75 Ω (BNC x 2) 1 x HDMI 2.0 Type-A receptacle 1 x USB-C Display Port ALT mode video output
Sdi Ancillary Data Support	Supports transmitting timecode and start/stop flags from most camera manufacturers. More metadata for Arri and Sony cameras.
Color Sampling	SDI: YCbCr 4:2:2, 10-bit HDMI: RGB/YCbCr; 4:4:4/4:2:2/4:2:0; 8/10-bit
Delay Tx To Rx	<0.001sec
Output Video Processing	Deinterlacer, frame rate converter, scaler, 3D LUTs
Other Tools	Spectrum Analyzer, Test Pattern Generator
Supported Resolutions
Supported Resolutions	4Kp23.98/24/25/29.97/30/50/59.94/60 1080p23.98/24/25/29.97/30/50/59.94/60 1080psf23.98/24/25/29.97/30 1080i50/59.94/60 720p50/59.94/60 480p59.94 576p50 480i(NTSC)/576i(PAL)
Video Processing
Video Compression	Visually Lossless
Color Correction	33x33x33 3D LUT (supports 10-bit color)
Audio Processing
Audio Format	48kHz 24-bit PCM
Outputs
Audio Output	Embedded SDI/HDMI Audio Output (2 Channel)
Physical
Dimensions	128 x 146 x 32 mm
Weight	750g (26.4 Oz)
Construction	Milled Aluminum(Chassis) and regulation-compliant PCB
Mountability	Multiple mounting options with 1/4″x20 and 3/8″x16 holes
Interfaces
Configuration Interfaces	Color OLED with Menu, Joystick Navigation
Switches	On/Off Switch
Usbc Port	Firmware upgrade Display Port ALT mode video ou Device setup via Bolt Manager desktop app
Locking5Pin Usb Port	USB host port for camera control via smart cables (optional)
Bluetooth Compatibility	BLE for device setup and monitoring via smart phone app
Network
Ethernet	10/100/1000 GbE RJ45 connector
Antennas	6 External, can connect to long range panel antenna
Wireless	Non-DFS Frequencies: 5.190 ~ 5.230 GHz, 5.755 ~ 5.795 GHz, 5.945 ~ 6.425GHz DFS Frequencies: 5.270 ~ 5.670 GHz
Bluetooth	2.4 GHz
Rf Channel Selection	Auto, Manual
Encryption	AES-256, RSA-1024 key exchange
Rf Power	21 dbm EIRP
Range	Up to 5000 ft, line of sight
Unicast Multicast	Can connect one Transmitter to up to 6 Receivers
Noise Rejection	Can coexist with WiFi and 5GHz cordless phones Can operate up to 6 receiver sets in same location
Interoperability Compatibility	Compatible with all Bolt 4K, Bolt 6 and Bolt 7 products
Broadcast	Yes, transmitter can transmit to 250 receivers
Camera Control Radio	900 MHz
Power
Power Input	2-Pin Circular locking Connector 6-28 VDC
Battery	None, optional field installable Gold- or V-Mount dual battery plate
Nominal Power Consumption	18 Watts
Environmental
Operating Temperature	0-40℃
Bolt 7 MAX 12G-SDI/HDMI Wireless RX
Bolt 7 MAX 12G-SDI/HDMI Wireless TX
Video
Video Outputs	12G-SDI SMPTE 2082-1 standard / 75 Ω (BNC x 2) 1 x HDMI 2.0 Type-A receptacle 1 x USB-C Display Port ALT mode video output
Sdi Ancillary Data Support	Supports transmitting timecode and start/stop flags from most camera manufacturers. More metadata for Arri and Sony cameras.
Color Sampling	SDI: YCbCr 4:2:2, 10-bit HDMI: RGB/YCbCr; 4:4:4/4:2:2/4:2:0; 8/10-bit
Delay Tx To Rx	<0.001sec
Output Video Processing	Deinterlacer, frame rate converter, scaler, 3D LUTs
Other Tools	Spectrum Analyzer, Test Pattern Generator
Video
Video Inputs	12G-SDI SMPTE 2082-1 standard / 75 Ω (BNC x 1) 1 x HDMI 2.0 Type-A receptacle 1 x USB-C Display Port ALT mode video input
Video Outputs	12G-SDI SMPTE 2082-1 standard / 75 Ω (BNC x 1)
Sdi Ancillary Data Support	Supports transmitting timecode and start/stop flags from most camera manufacturers. More metadata for Arri and Sony cameras.
Color Sampling	SDI: YCbCr 4:2:2, 10-bit. HDMI: RGB/YCbCr; 4:4:4/4:2:2/4:2:0; 8/10-bit
Delay Tx To Rx	<0.001sec
Input Cross Conversion	Yes (HDMI input to SDI loopout)
Other Tools	SDI Eye Pattern Display
Supported Resolutions
Supported Resolutions	4Kp23.98/24/25/29.97/30/50/59.94/60 1080p23.98/24/25/29.97/30/50/59.94/60 1080psf23.98/24/25/29.97/30 1080i50/59.94/60 720p50/59.94/60 480p59.94 576p50 480i(NTSC)/576i(PAL)
Supported Resolutions
Supported Resolutions	4Kp23.98/24/25/29.97/30/50/59.94/60 1080p23.98/24/25/29.97/30/50/59.94/60 1080psf23.98/24/25/29.97/30 1080i50/59.94/60 720p50/59.94/60 480p59.94 576p50 480i(NTSC)/576i(PAL)
Video Processing
Video Compression	Visually Lossless
Color Correction	33x33x33 3D LUT (supports 10-bit color)
Video Processing
Video Compression	Visually Lossless
Color Correction	None
Audio Processing
Audio Format	48kHz 24-bit PCM
Audio Processing
Audio Format	48kHz 24-bit PCM
Physical
Dimensions	128 x 146 x 32 mm
Weight	750g (26.4 Oz)
Construction	Milled Aluminum(Chassis) and regulation-compliant PCB
Mountability	Multiple mounting options with 1/4″x20 and 3/8″x16 holes
Physical
Dimensions	112 x 66 x 32 mm
Weight	400g (14.1 Oz)
Construction	Milled Aluminum(Chassis) and regulation-compliant PCB
Mountability	Multiple mounting options with 1/4″x20 and M3 holes
Interfaces
Configuration Interfaces	Color OLED with Menu, Joystick Navigation
Switches	On/Off Switch
Usbc Port	Firmware upgrade Display Port ALT mode video ou Device setup via Bolt Manager desktop app
Locking5Pin Usb Port	USB host port for camera control via smart cables (optional)
Bluetooth Compatibility	BLE for device setup and monitoring via smart phone app
Interfaces
Configuration Interfaces	Color OLED with Menu, Joystick Navigation
Switches	On/Off Switch
Usbc Port	Firmware upgrade Display Port ALT mode video in Device setup via Bolt Manager desktop app
Locking5Pin Usb Port	USB host port for camera control via smart cables (optional)
Bluetooth Compatibility	BLE for device setup and monitoring via smart phone app
Network
Ethernet	10/100/1000 GbE RJ45 connector
Antennas	6 External, can connect to long range panel antenna
Wireless	Non-DFS Frequencies: 5.190 ~ 5.230 GHz, 5.755 ~ 5.795 GHz, 5.945 ~ 6.425GHz DFS Frequencies: 5.270 ~ 5.670 GHz
Bluetooth	2.4 GHz
Rf Channel Selection	Auto, Manual
Encryption	AES-256, RSA-1024 key exchange
Rf Power	21 dbm EIRP
Range	Up to 5000 ft, line of sight
Unicast Multicast	Can connect one Transmitter to up to 6 Receivers
Noise Rejection	Can coexist with WiFi and 5GHz cordless phones Can operate up to 6 receiver sets in same location
Interoperability Compatibility	Compatible with all Bolt 4K, Bolt 6 and Bolt 7 products
Broadcast	Yes, transmitter can transmit to 250 receivers
Camera Control Radio	900 MHz
Network
Ethernet	Via smart cable connected to Locking 5 pin USB port
Antennas	3 External, 2 Internal
Wireless	Non-DFS Frequencies: 5.190 ~ 5.230 GHz, 5.755 ~ 5.795 GHz, 5.945 ~ 6.425GHz DFS Frequencies: 5.270 ~ 5.670 GHz
Bluetooth	2.4 GHz
Rf Channel Selection	Auto, Manual
Encryption	AES-256, RSA-1024 key exchange
Rf Power	23 dbm EIRP
Range	Up to 5000 ft, line of sight
Unicast Multicast	Can connect one Transmitter to up to 6 Receivers
Noise Rejection	Can coexist with WiFi and 5GHz cordless phones Can operate up to 6 receiver sets in same location
Interoperability Compatibility	Compatible with all Bolt 4K, Bolt 6 and Bolt 7 products
Broadcast	Yes, transmitter can transmit to 250 receivers
Camera Control Radio	900 MHz
Power
Power Input	2-Pin Circular locking Connector 6-28 VDC
Battery	None, optional field installable Gold- or V-Mount dual battery plate
Nominal Power Consumption	18 Watts
Power
Power Input	2-Pin Circular locking Connector 6-28 VDC
Battery	None, optional field installable Gold- or V-Mount dual battery plate
Nominal Power Consumption	20 Watts
Environmental
Operating Temperature	0-40℃
Environmental
Operating Temperature	0-40℃
Outputs
Audio Output	Embedded SDI/HDMI Audio Output (2 Channel)
Inputs
Audio Input	Embedded SDI/HDMI Audio Input (2 Channel)

Additional information

Brand	Teradek

3 x Antenna 2dBi Flex V 4.9-7.3Ghz RP-SMA
2 x Antenna 2dBi Flexible H Mushroom V4.9-7.3Ghz RP-SMA
2 x Antenna 865 – 926 MHz SMA
2 x SDI 12G BNC to BNC Cable Length: 18in / 46cm
1 x DP ALT Mode USB-C Straight to USB-C Straight Cable, 36in
2 x 2pin Conn. to PowerTap – 18in Cable
1 x PSU 2pin Conn. to 36W AC Adapter (Int) – 6ft Cable
1 x 5 pin Lemo to USB-C – 36in Cable
1 x Wooden Camera – Universal Ultra Arm Mini (Combo 1/4-20 & 3/8-16)
