Ace Micro TX is our smallest wireless video transmitter yet. Share up to 4Kp30 uncompressed wireless video with up to six RXs at ranges up to 500’ (150m). It is cross-compatible with all Bolt 4K, Bolt 6, Bolt 7, and Ace 750 systems thanks to a shared BB3 chipset, which enables operation over 6GHz and 5GHz frequencies and delivers video with less than 1 millisecond of latency—over 70 times less latency than Wi-Fi-based solutions.
Ace Micro TX is designed to support a wide range of wireless video workflows with a single USB-C connection.
- Connect directly to cameras that support DisplayPort Alt Mode (DP Alt Mode) over USB-C, including Blackmagic URSA Cine and PYXIS, for the most simplified cable management solution available.
- For the first time, Ace Micro TX transforms your iPhone into a professional wireless camera. Simply mount the TX, connect via USB-C, and transmit wireless video using your preferred camera app. Seamlessly integrate your iPhone into an existing Teradek wireless video ecosystem. External USB power required.

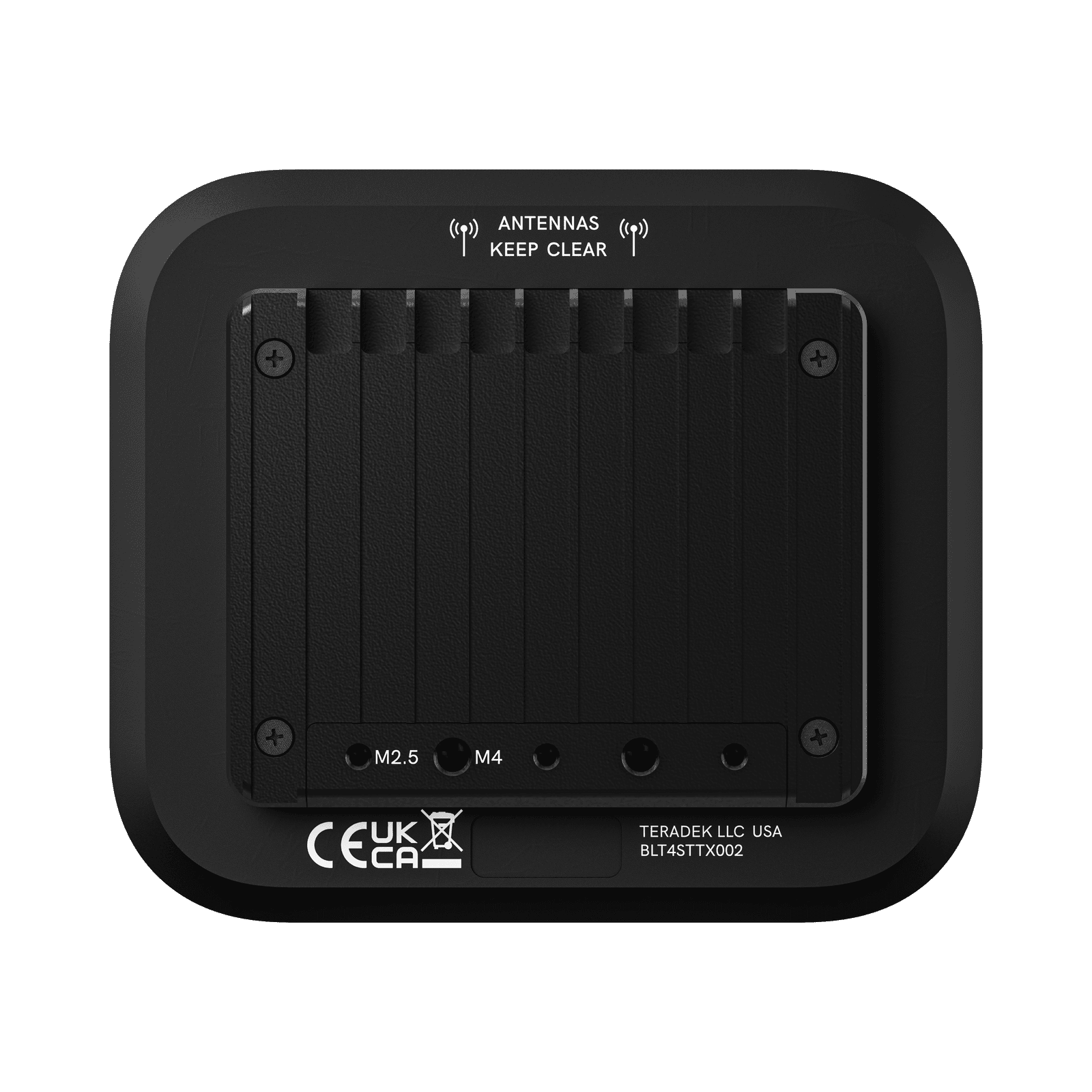

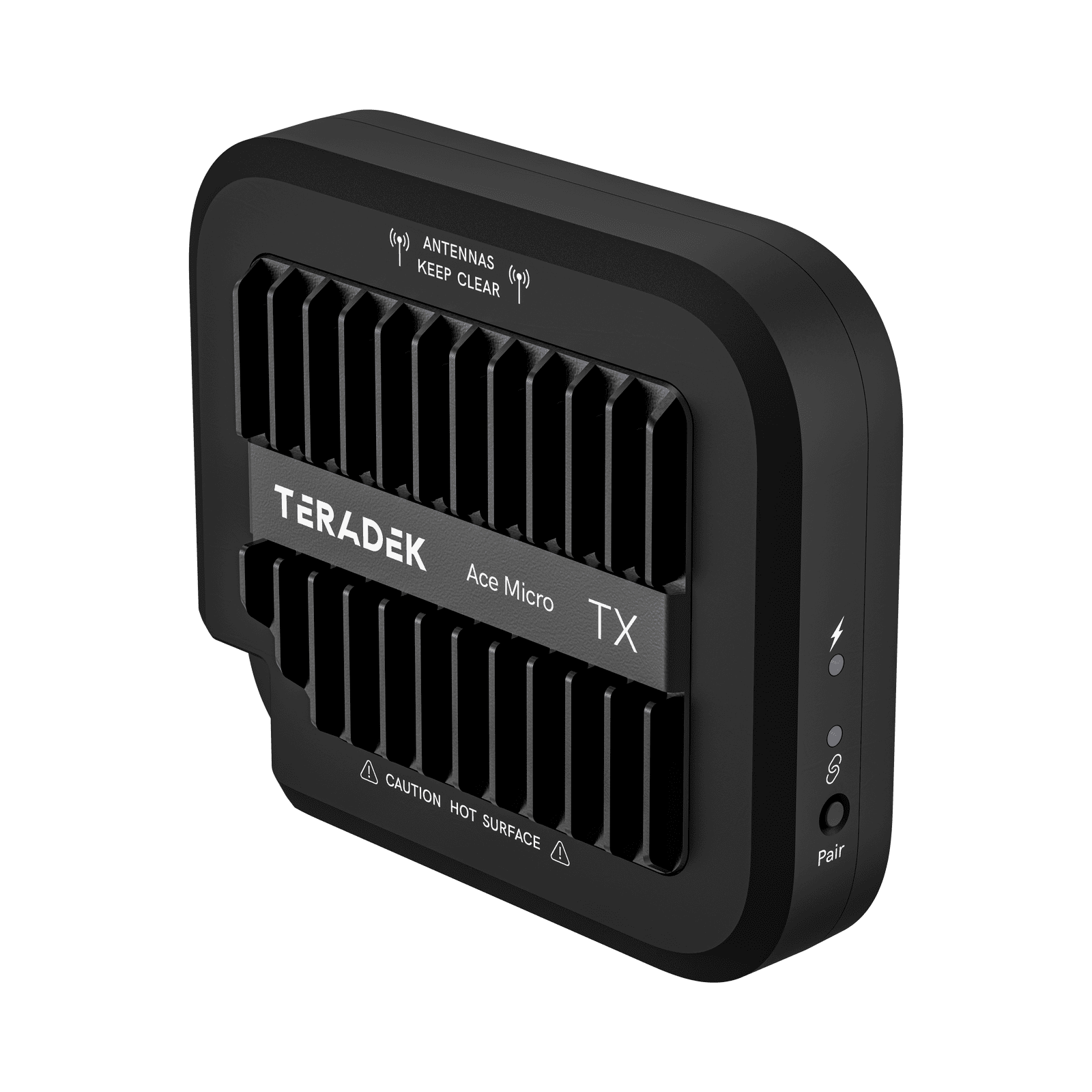

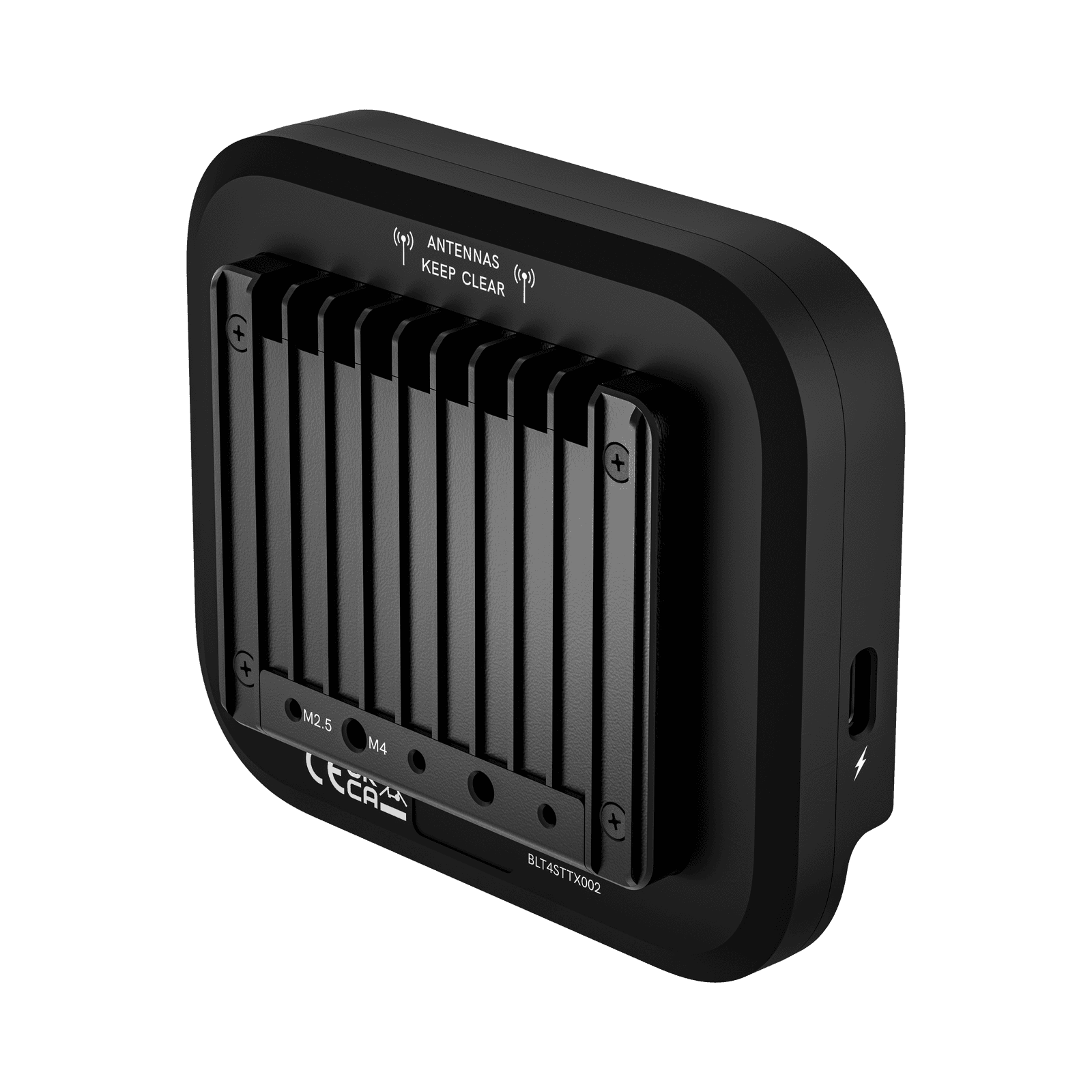

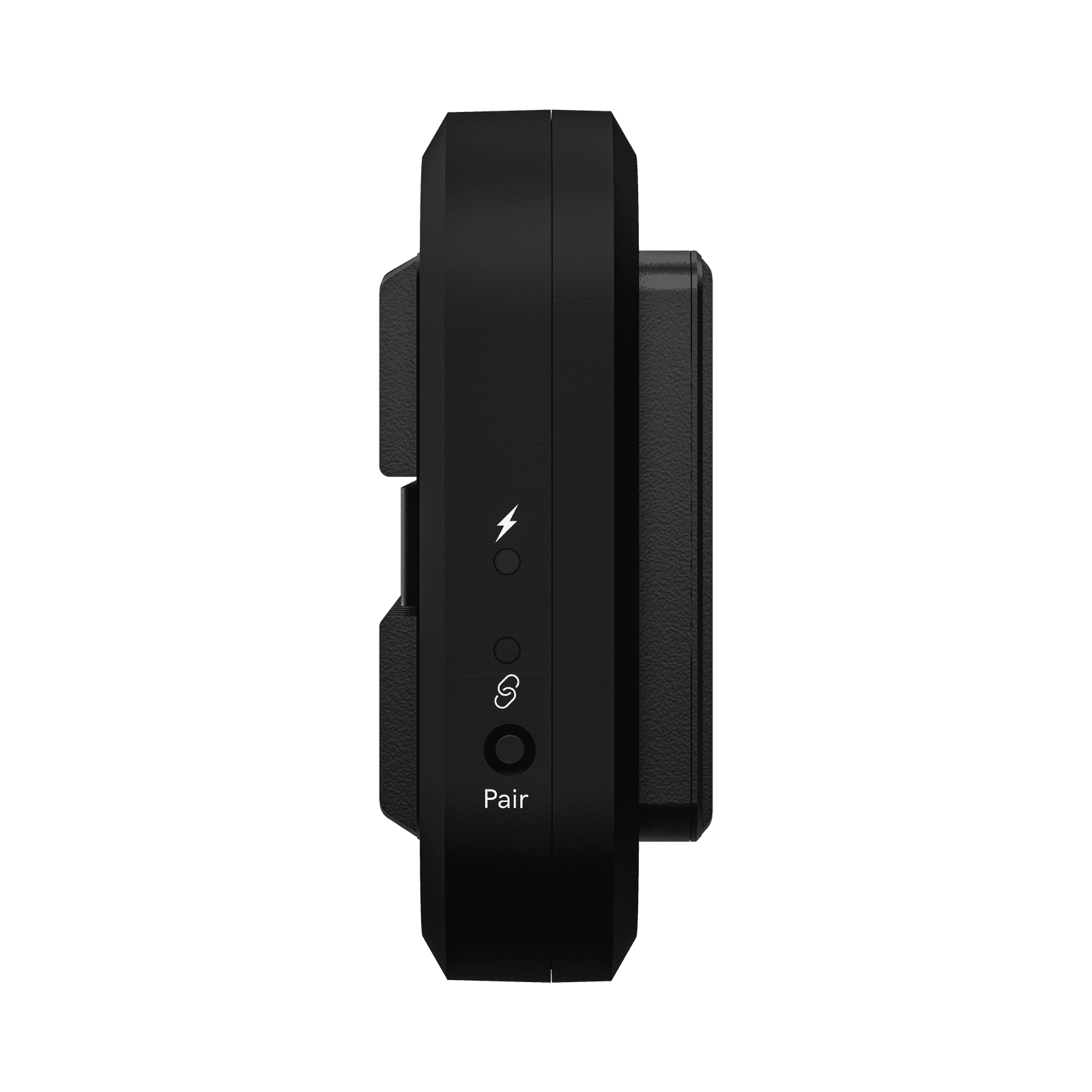

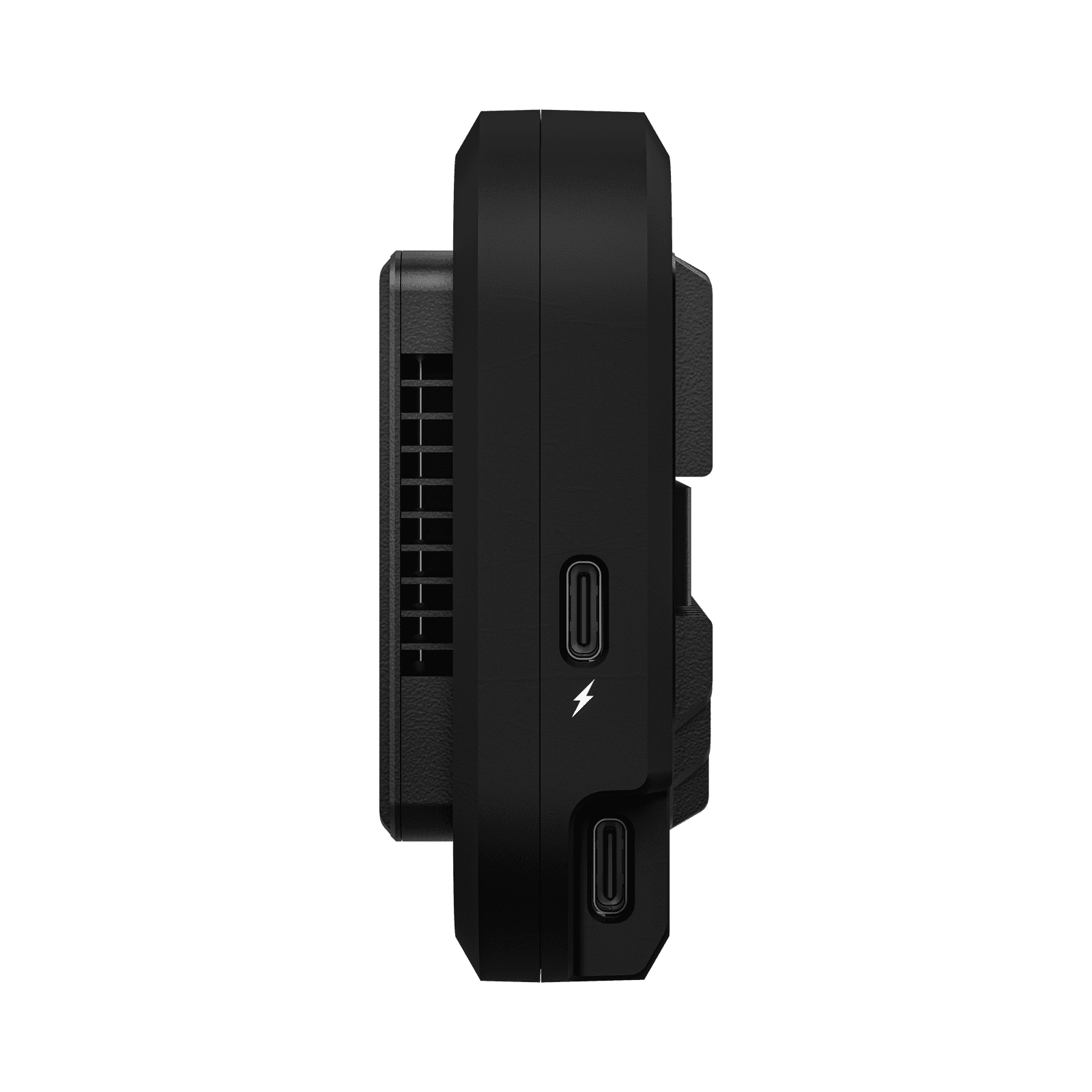

Compact hardware includes internal antennas, a quick-pairing button, and LED indicators for power and link status, M3 and M2.5 mounting points for horizontal or vertical workflows, and a USB-C port that consolidates power, video, and communication into a single cable for a streamlined setup. A secondary USB-C offers an additional, pass through power option. Ace Micro automatically detects and selects the 5GHz or 6GHz RF channel with the least interference and employs Auto-Frequency Switching to maintain optimal signal quality. Ace Micro meets all radio frequency regulations and comes with the industry’s best encryption and security features.
