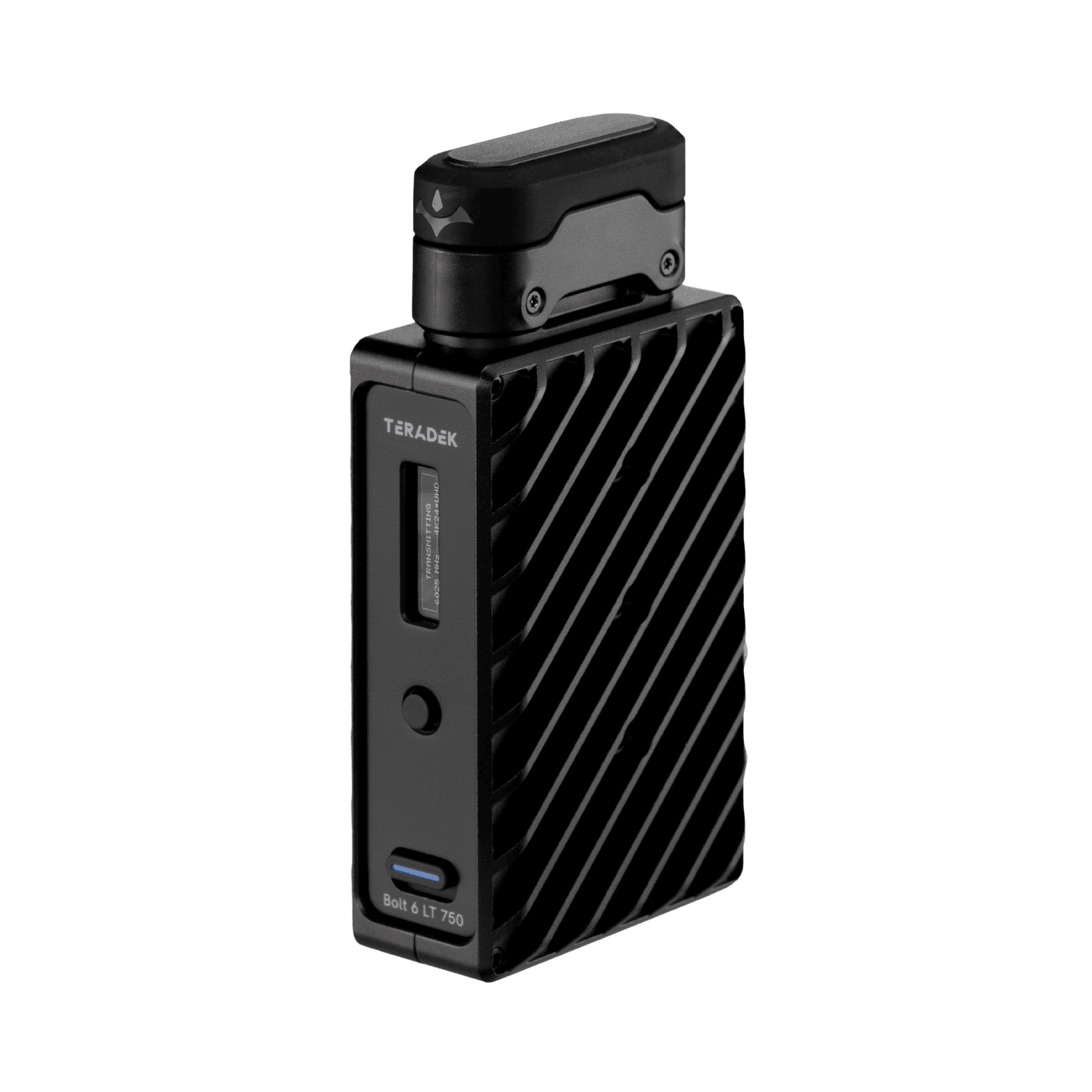

Bolt 6 LT TX is a wireless video transmitter that supports up to 1080p60 10-bit 422 HDR video over 3G-SDI, or 4K30 over HDMI. Bolt 6 uses Teradek’s patented Zero-Delay silicon chip to send wireless video over 5GHz and 6GHz radio frequencies.
Bolt 6 LT TX offers three line-of-sight options: 750 ft., 1500 ft., and the MAX model, which can be configured for up to 5,000 ft when using the optional Array Antenna and Broadcast Mode.
The Transmitter is cross-compatible with the entire Bolt 4K Series – including Bolt 4K, Bolt 4K LT, and the Bolt 4K Monitor Modules – giving you the option to expand your workflow requirements. Link up to 6 receivers to one transmitter, or unlimited receivers when used in Broadcast Mode (available on MAX models).
The 750 model includes V (vertical) Antennas. 1500 and MAX models include both V Antennas and H (horizontal) antennas. H Antennas are designed to maximize signal robustness in the most challenging RF environments.
Optionally, the 750 model of Bolt 6 LT TX can include permanent internal antennas to allow for reliable zero-delay transmission in a more compact and durable form factor.
Looking for even more robust signal connection when in the most challenging RF environments? Try using RF-X Auto-Switcher, built specifically for Teradek Bolt RXs to secure the best possible signal every time.
Read the Bolt 6 Internal Antenna FAQ to learn more about the optional built-in internal antennas.
