Teradek

Bolt 6 Monitor Module 1500 TX

Bolt 6 Monitor Module TX is a wireless video transmitter that supports up to 4K30 10-bit 422 HDR video. Bolt 6 uses Teradek’s patented Zero-Delay silicon chip to send wireless video over 5GHz and 6GHz radio frequencies.

2.754,63€ (ex. VAT)

SKU: 10-2298-7 Categories: , , Brand:

Bolt 6 Monitor Module TX is a wireless video transmitter that supports up to 4K30 10-bit 422 HDR video. Bolt 6 uses Teradek’s patented Zero-Delay silicon chip to send wireless video over 5GHz and 6GHz radio frequencies.

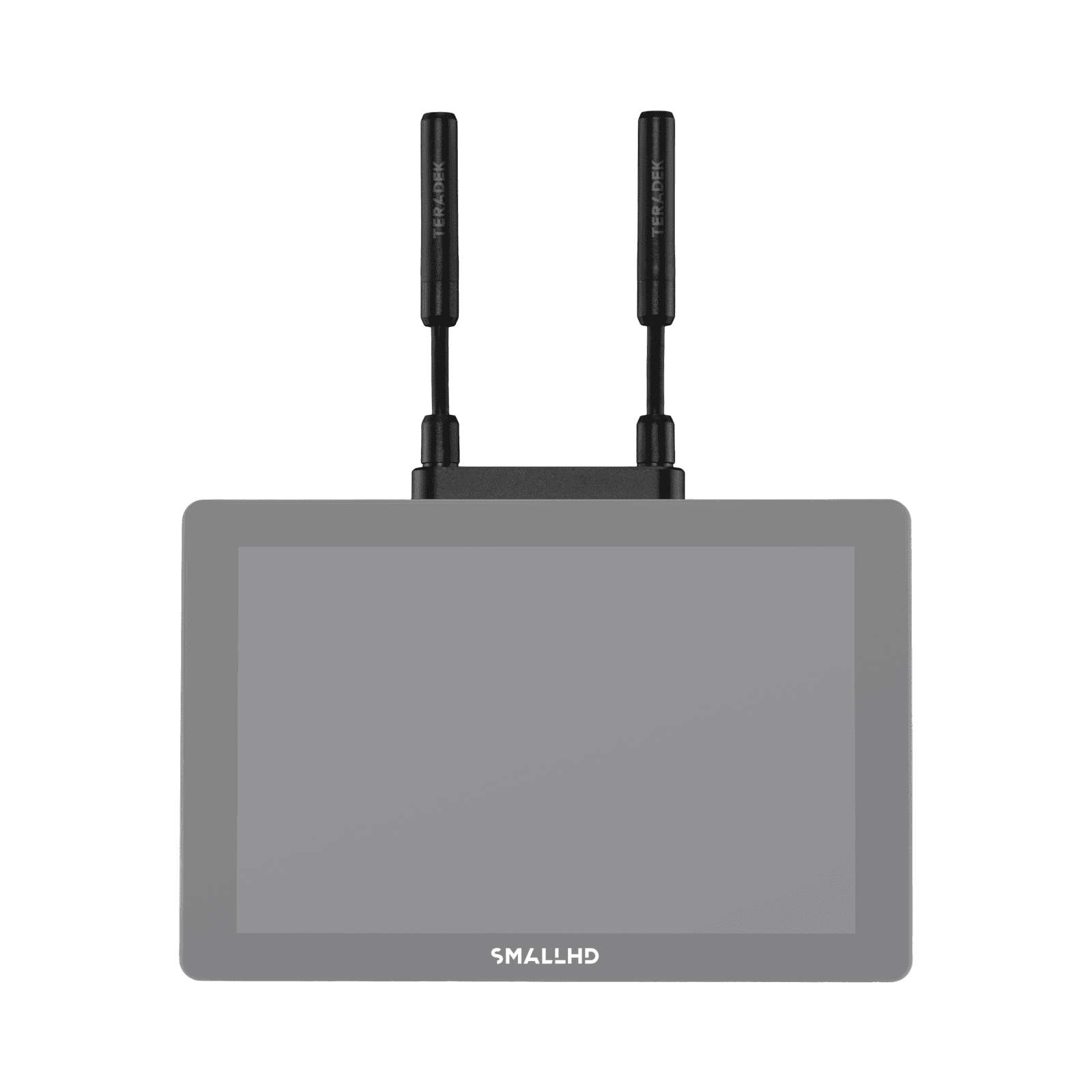

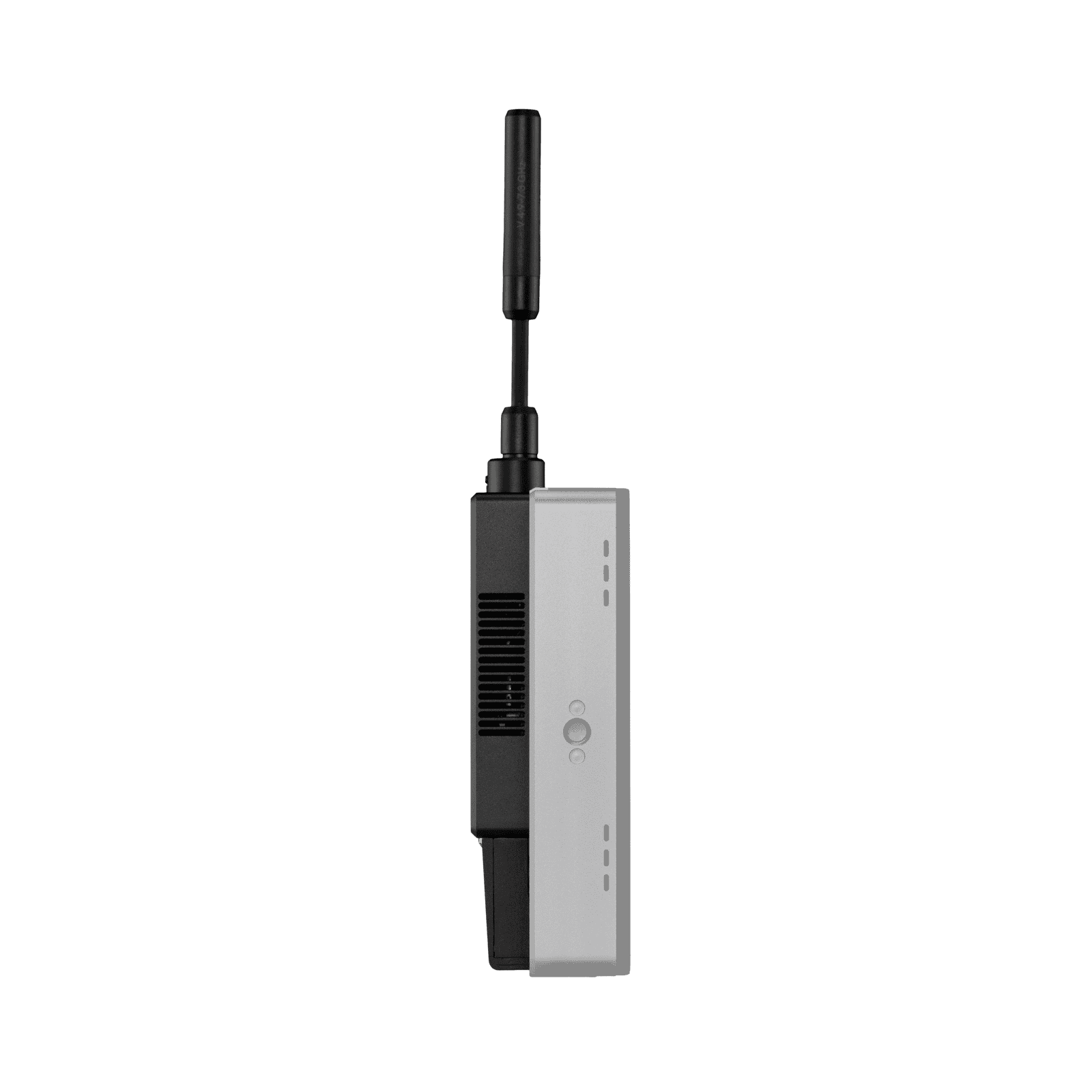

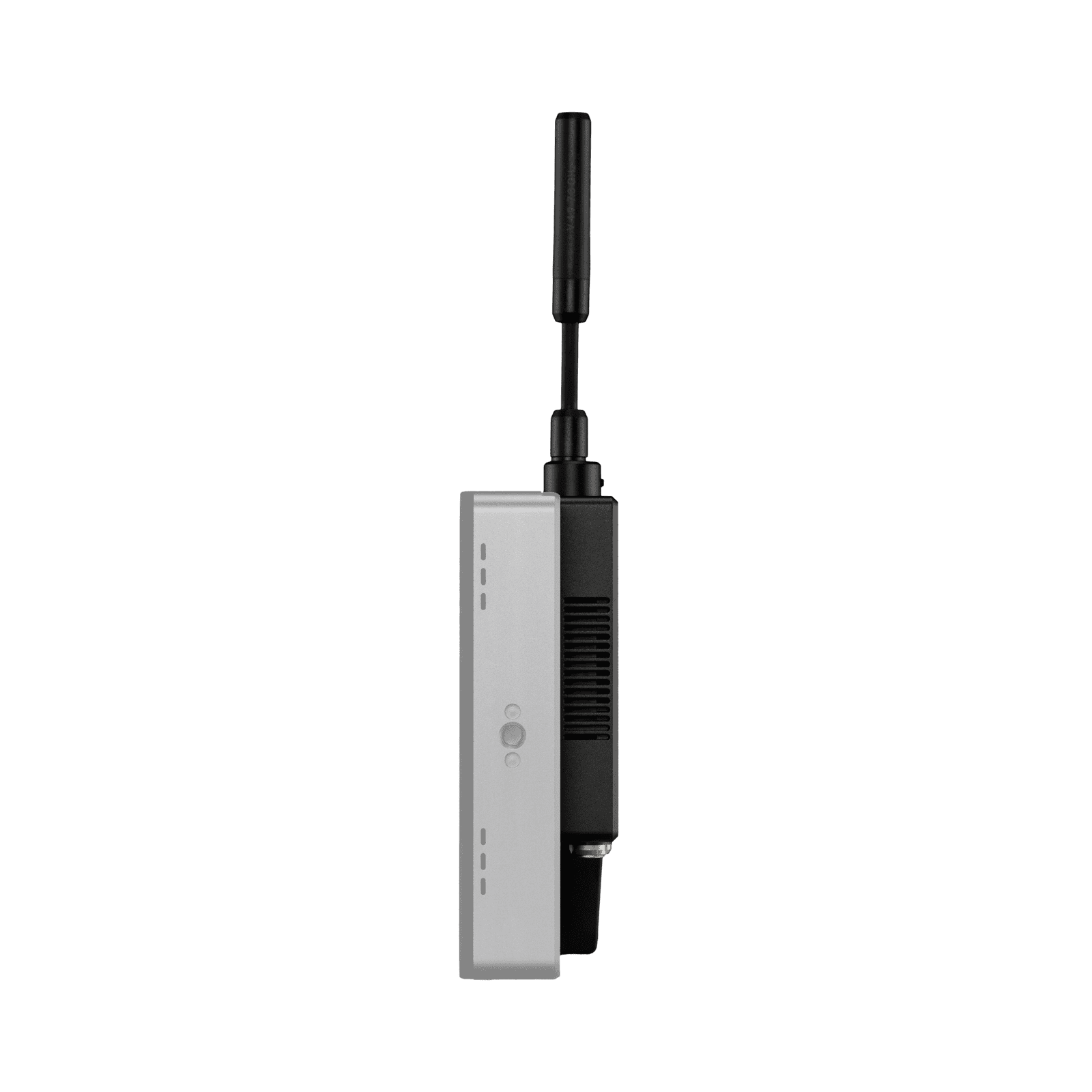

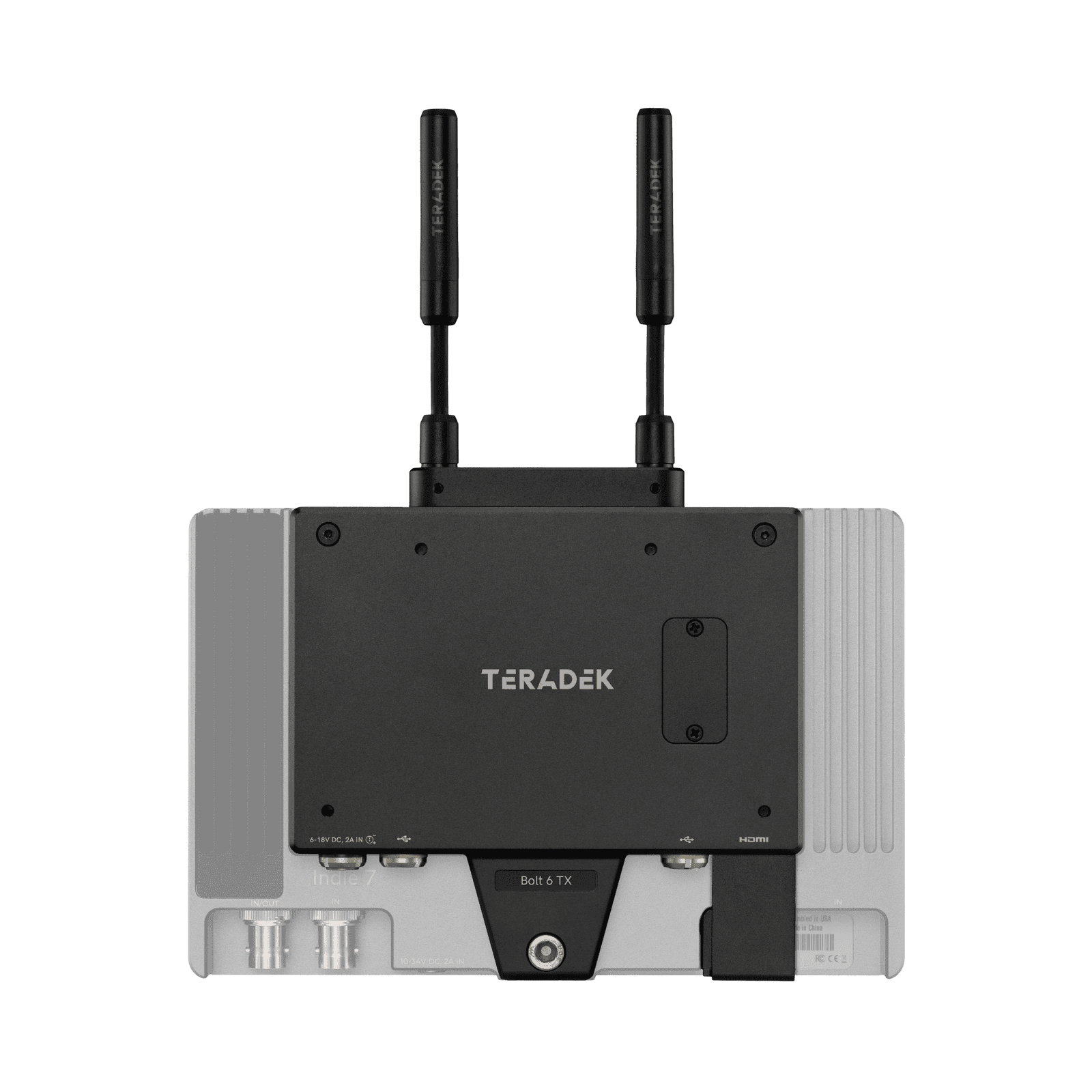

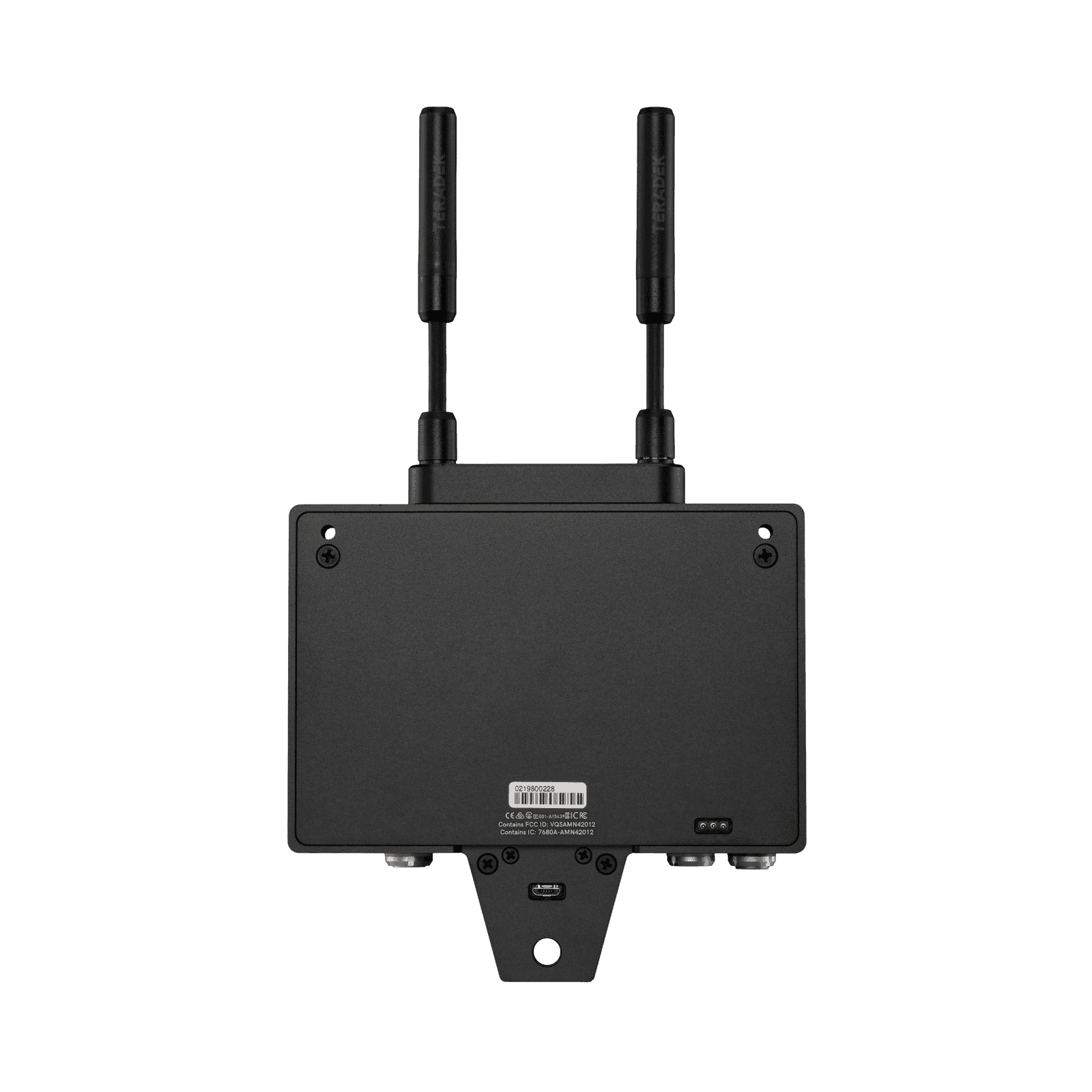

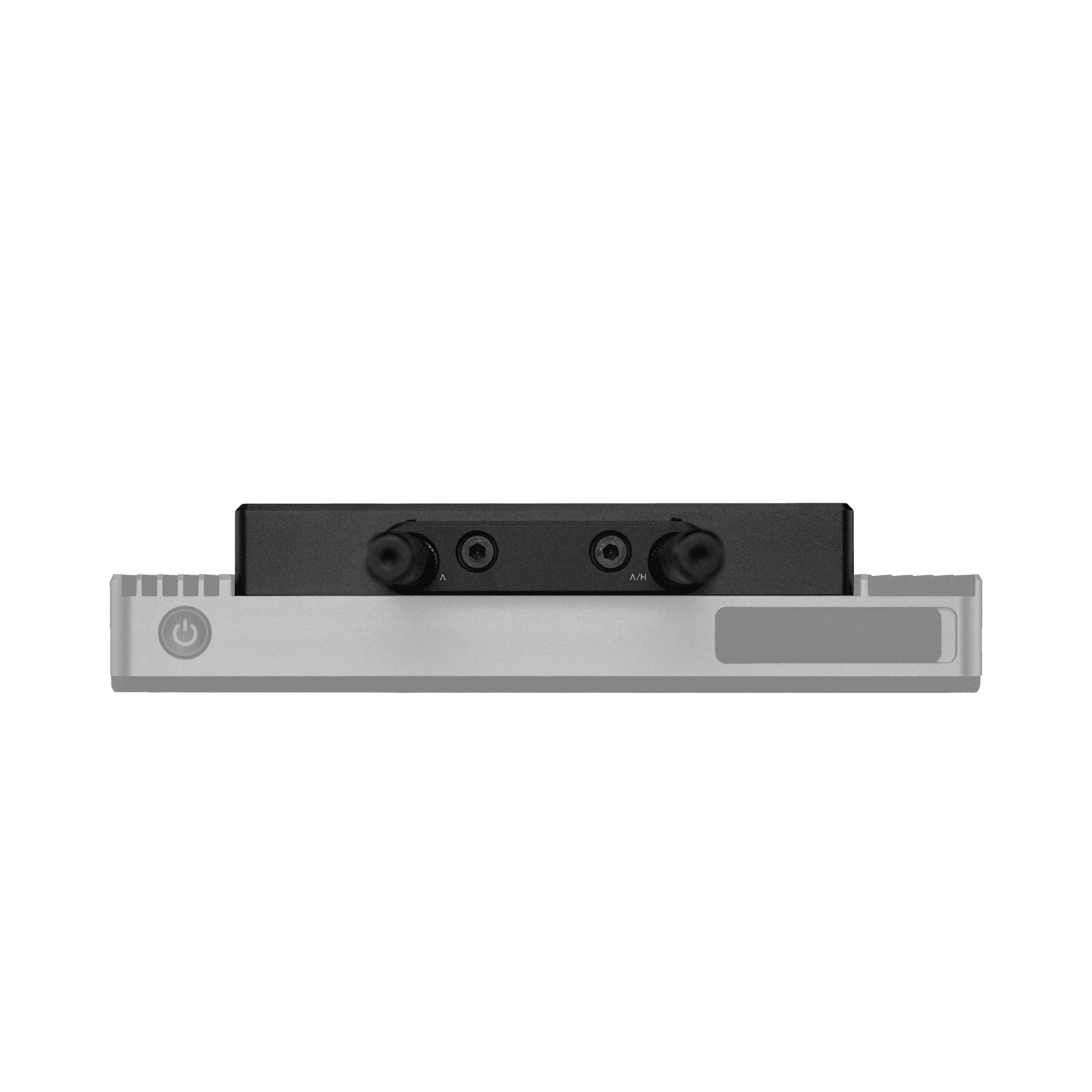

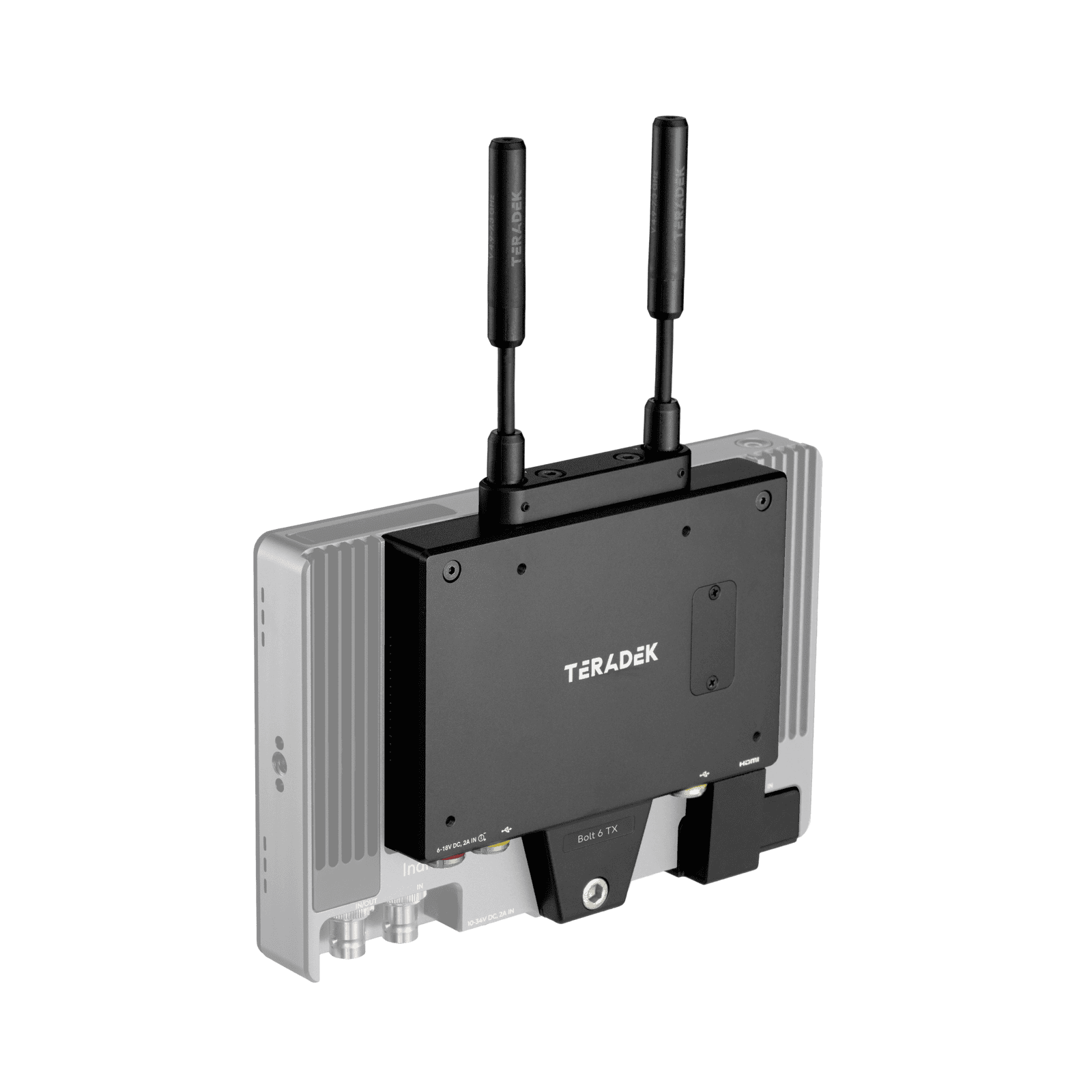

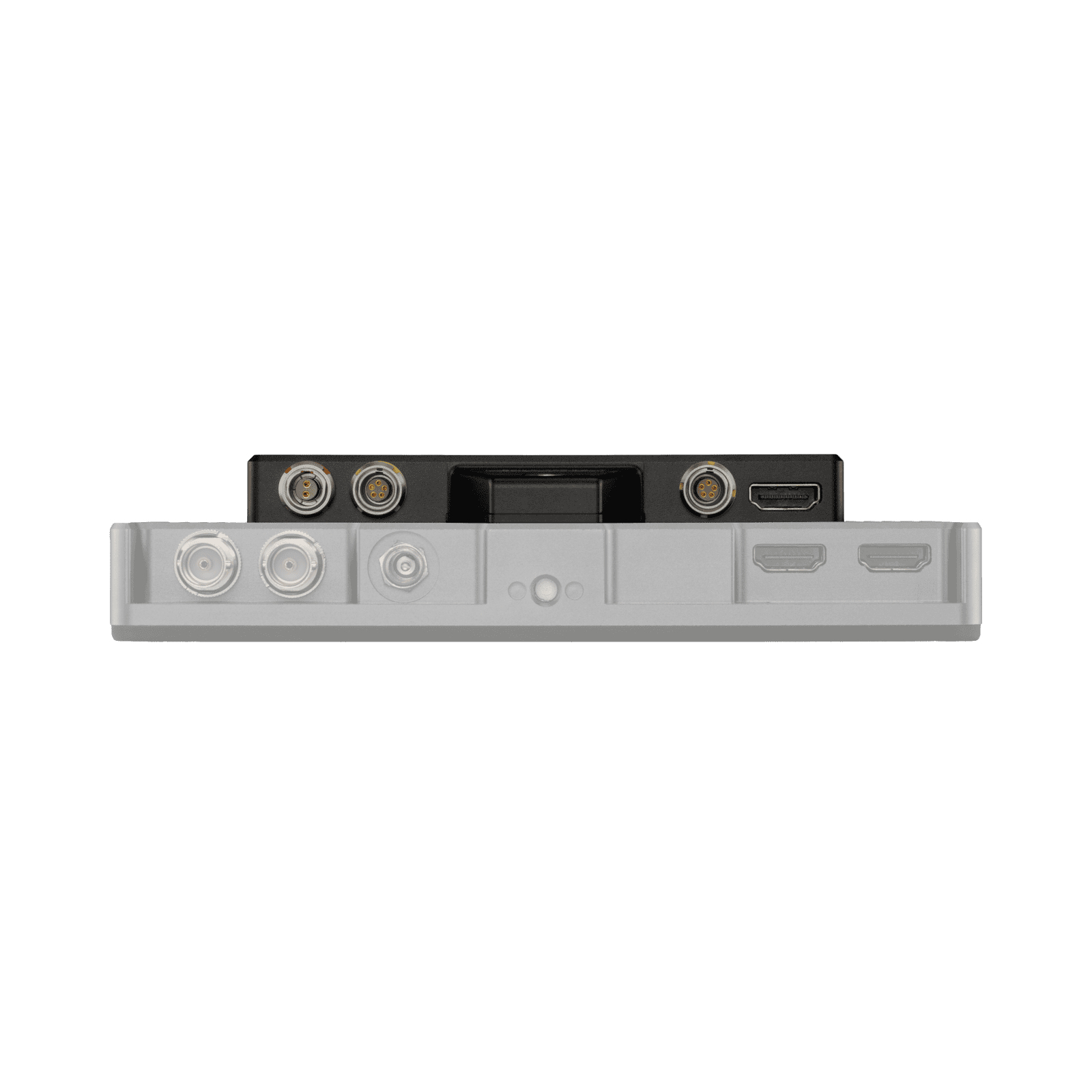

The Bolt 6 Transmitter Monitor Module easily attaches to the back of SmallHD’s Cine 7, 702 Touch, and Indie 7 Smart Monitors. With this direct integration, the Bolt 6 and Smart monitor can share power and video, allowing you to reduce the amount of cables on set. With the Bolt 6 Monitor Module, Wireless Camera-Control is also possible because it integrates directly into SmallHD Smart Monitors.

Bolt 6 Monitor Module RX offers two line-of-sight options: 750 ft. and 1500 ft. The 750 model includes V (vertical) Antennas. 1500 models include both V Antennas and H (horizontal) antennas. H Antennas are designed to maximize signal robustness in the most challenging RF environments.

Model Bolt 6 Monitor Module 1500 TX
Video
Video Inputs 1 x HDMI 1.4b Type-A receptacle
Sdi Ancillary Data Support Supports reading metadata, timecode, and start/stop flags from most camera manufacturers.
Color Sampling SDI: YCbCr 4:2:2, 10-bit/ HDMI: RGB 4:4:4, 8-bit
Delay Tx To Rx <0.001sec
Supported Resolutions
Supported Resolutions 4Kp23.98/24/25/29.97/30
1080p23.98/24/25/29.97/30/50/59.94/60
1080psf23.98/24/25/29.97/30
1080i50/59.94/60
720p50/59.94/60
Video Processing
Video Compression Visually Lossless
Color Correction None
Audio Processing
Audio Compression 48kHz 24-bit PCM
Inputs
Audio Input Embedded HDMI Audio Input (2 Channel)
Physical
Dimensions 60mm x 103mm x 33mm
Weight 206g (7.3oz)
Construction Milled Aluminum(Chassis) and regulation-compliant PCB
Mountability SmallHD 7″ Monitor
Interfaces
Configuration Interfaces SmallHD Monitor UI
Mobile App Bolt App
Usb Interface Functionality SmallHD Monitor UI
2x 5pin Locking Connector CCU (Host)
Bluetooth Via SmallHD Monitor
Network
Antennas 2 External 2dBi antennas (included)
Wireless Non-DFS Frequencies:
5.190 ~ 5.230 GHz, 5.755 ~ 5.795 GHz, 5.945 ~ 6.425GHz
DFS Frequencies:
5.270 ~ 5.670 GHz
Rf Channel Selection Auto, Manual
Encryption AES-256, RSA-1024 key exchange
Rf Power 23 dbm EIRP
Range Up to 1500 ft, line of sight
Unicast Multicast Can connect one Transmitter to up to 6 Receivers
Noise Rejection Can coexist with WiFi and 5GHz cordless phones
Can operate up to 6 sets in same location
Interoperability Compatibility Can transmit wireless video to all ranges of Bolt 4K XT and Bolt 4K LT receivers (limited by shortest range device)
Power
Power Input 2-Pin Circular locking Connector 6-18 VDC
Battery None, optional Sony/Canon dual battery plate
Nominal Power Consumption 7 Watts
Environmental
Operating Temperature 0-40℃

Additional information

Brand

  • 1 x Bolt 6 Monitor Module 750 TX
  • 1 x Hex L key 3/16″” x 2 13/16″” length
  • 1 x Hex L key 2mm size 3-3/8″” length
  • 1 x Screw Socket Head Black 1/4-20 x 3/8″” length
  • 2 x Screw Socket Head Low Profile Black Oxide M3 x 20mm
  • 2 x Antenna 2dBi Rigid V 4.9-7.3Ghz RP-SMA
  • 1 x Lightstand Adapter 1/4-20in
  • 1 x HDMI Adapter Bolt 4K TX Monitor Module
