Shape

7000 v-lock quick release baseplate (BP0008), tripod plate and double quick handle rosette

Made of CNC Machined Aluminum
Baseplate designed to be shoulder or tripod mounted
Baseplate compatible with VCT-14 tripod plate
VCT tripod plate included (VCTSH)
Compatible with cameras with external viewfinders
Compatible with 15 or 19 mm LWS brackets
Adjust rod height bloc to match camera optical center
Protective rubber pads to protect your camera
Designed with 3 camera mount slots
1/4″-20 and 3/8″-16 accessory mount threads
Removable velcro shoulder pad
Two pairs of 15 mm (8”, 4”) rods
Standard Arri rosettes for handles mount
Left and right  handgrips with ARRI rosettes (HAND10)
Each arm features 3 points of articulation
Patented Push-button system for fast adjustment
Push, adjust, release, and then its lock

1.727,14 (ex. VAT)

SKU: BP7000 Categories: , ,

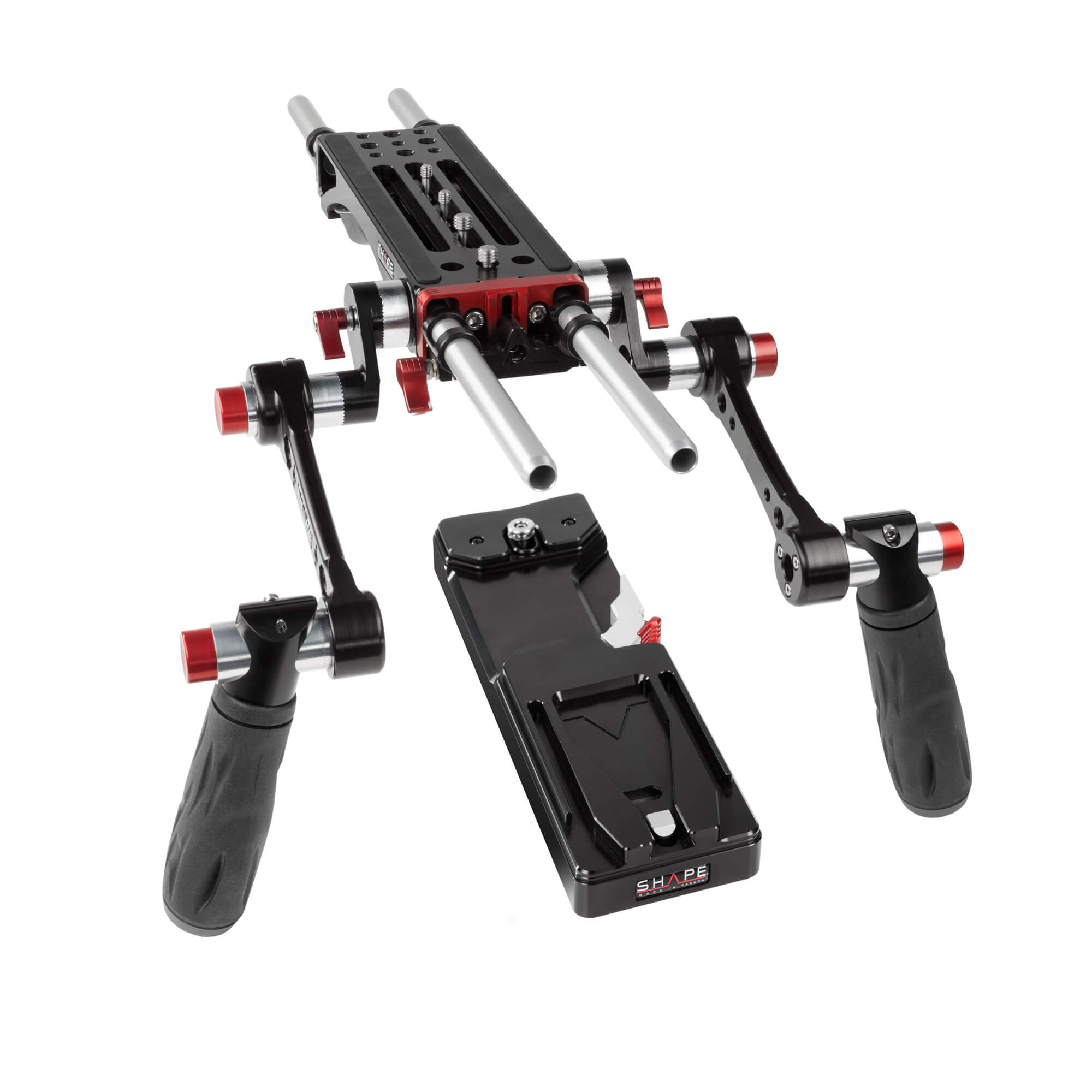

With its long flat camera platform and V-lock quick-release compatibility, SHAPE’s BP7000 V-Lock Quick Release Baseplate Kit is a versatile rig option for mid-sized cinema cameras with flat bases. The centerpiece of the kit is the V-lock baseplate. Several inches of adjustment are available for achieving balance with large or small lenses. Adjustable 15 mm rods in the front and rear allow for different cameras to comply with the 15 mm LWS standard for compatibility with follow focuses, lens supports, and more. If you’re not carrying the camera on your shoulder, the entire rig can be locked into the included VCT-14 tripod plate (VCTSH).

8000 v-lock quick release baseplate (BP0008)

The SHAPE BP0008 V-Lock Quick Release Baseplate is a long format baseplate for larger cameras like the Alexa, F5, C300, and broadcast cameras. It can be used shoulder mounted, tripod mounted, and attached to V-lock tripod adapters. It should be used with cameras with external viewfinders. The baseplate includes a removable shoulder pad and features rosette adapters for ARRI standard handles. It has 1/4″-20 and 3/8″-16 tripod mount threads and a V-lock delta adapter for attaching SHAPE VCT Tripod Plate (VCTSH) or any VCT-14 tripod plate.
The shoulder pad secures on by touch fasteners. The tripod mount threads are located underneath the shoulder pad. Two pairs of 8″ and 4″ 15 mm rods are included for the front and back. For attaching a matte-box and other accessories, the rod adapter can be adjusted vertically if you remove the screw holding it in position. This baseplate also supports optional SHAPE 15 mm Studio and 19 mm Studio adapters in place of the included one. The baseplate features three camera mount slots, all supporting 1/4″-20 and 3/8″-16 screws. The off-center slots allow you to mount your camera offset if you use a 15 mm Studio Adapter. Multiple 1/4″-20 and 3/8″-16 mounting threads are peppered behind the three slots for attaching articulating arms and other accessories. Two 1/4″-20 and two 3/8″-16 camera mount screws are included.

Spare pad for BP series (BP0050)

The V-Lock Replacement Pad from SHAPE is a replacement shoulder pad for the BP SERIES v-lock quick release baseplate (BP0008, BP8000, BP7000). The pad utilizes a hook-and-loop system which allows for easy attachment and removal. The additional padding provided by the strap increases user comfort and reduces strain on the shoulder.

15 mm 4″ rods (15TUBE4)

This pair of SHAPE 15 mm Aluminum Rods (4″) connect into your camera rig, extend it, and let you add various SHAPE and third-party accessories compatible with 15 mm rods. With these two rods and with a few fundamental accessories, you can most certainly even begin building your own rig from scratch.
The rods are each 15 mm in diameter, 4 inches long, hollow, non-threaded, and made of reliable aluminum coated with a clear finish.

15 mm 8″ rods (15TUBE8)

Pair of 15 mm rods 8″ long that fit studio and LWS 15 mm rod clamps, allowing you to use available rod mounted accessories. The rods are machined from hollow aluminum tubes and feature chamfered ends that make it easier to insert into 15 mm rod clamps, even if the rod isn’t perfectly aligned or is at a slight angle to the rod clamp.

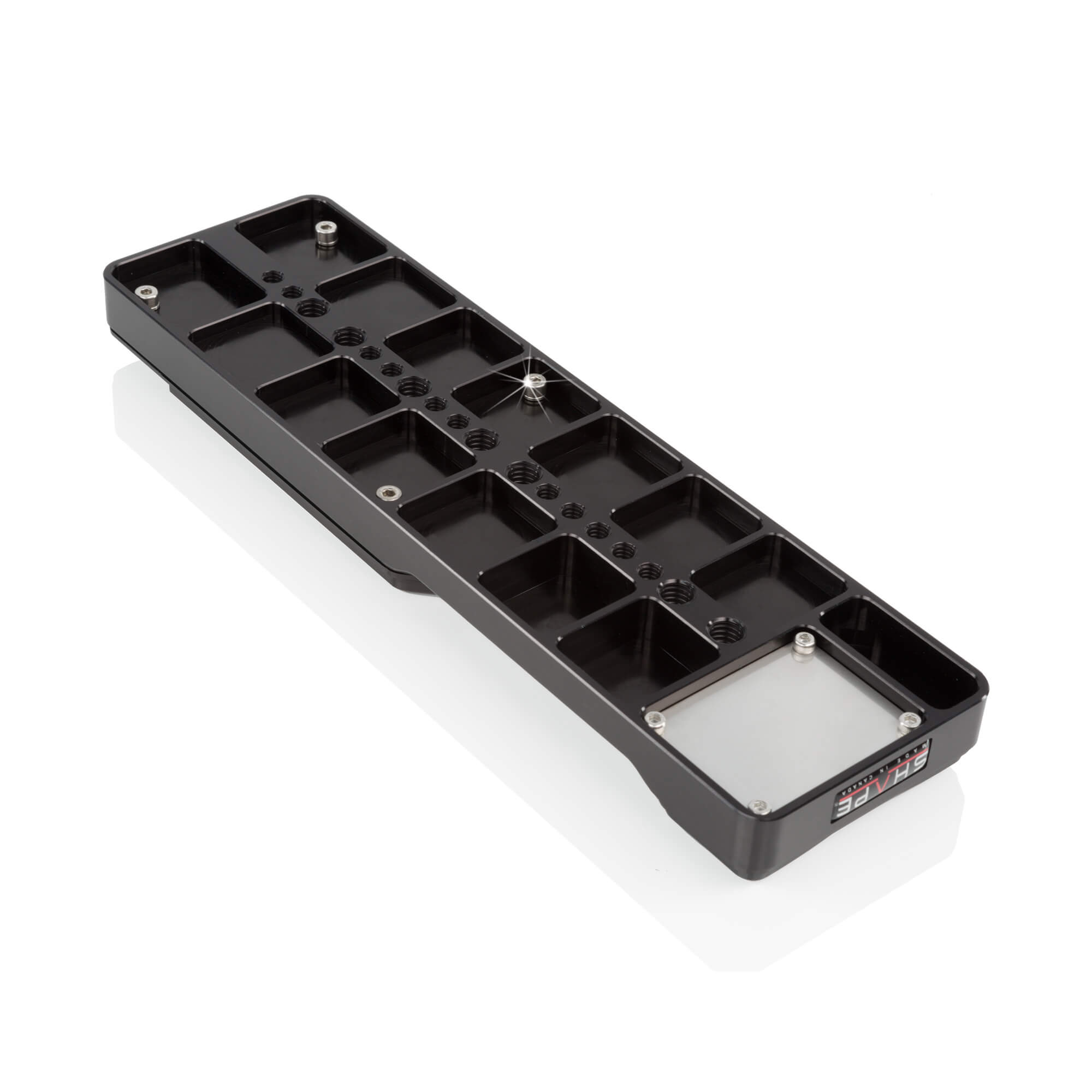

SHAPE VCT tripod plate (VCTSH) (VCTSH)

The SHAPE VCT Tripod Plate is a quick-release tripod plate based on a V-lock system with delta attachment at the front and a rear pin at the back. Compatible with a wide variety of baseplates, it facilitates quick-release mounting/unmounting of professional broadcast cameras. The delta plate system at the front of this plate and the rear catch hook will allow you to quickly mount and dismount your camcorder from a tripod adapter.

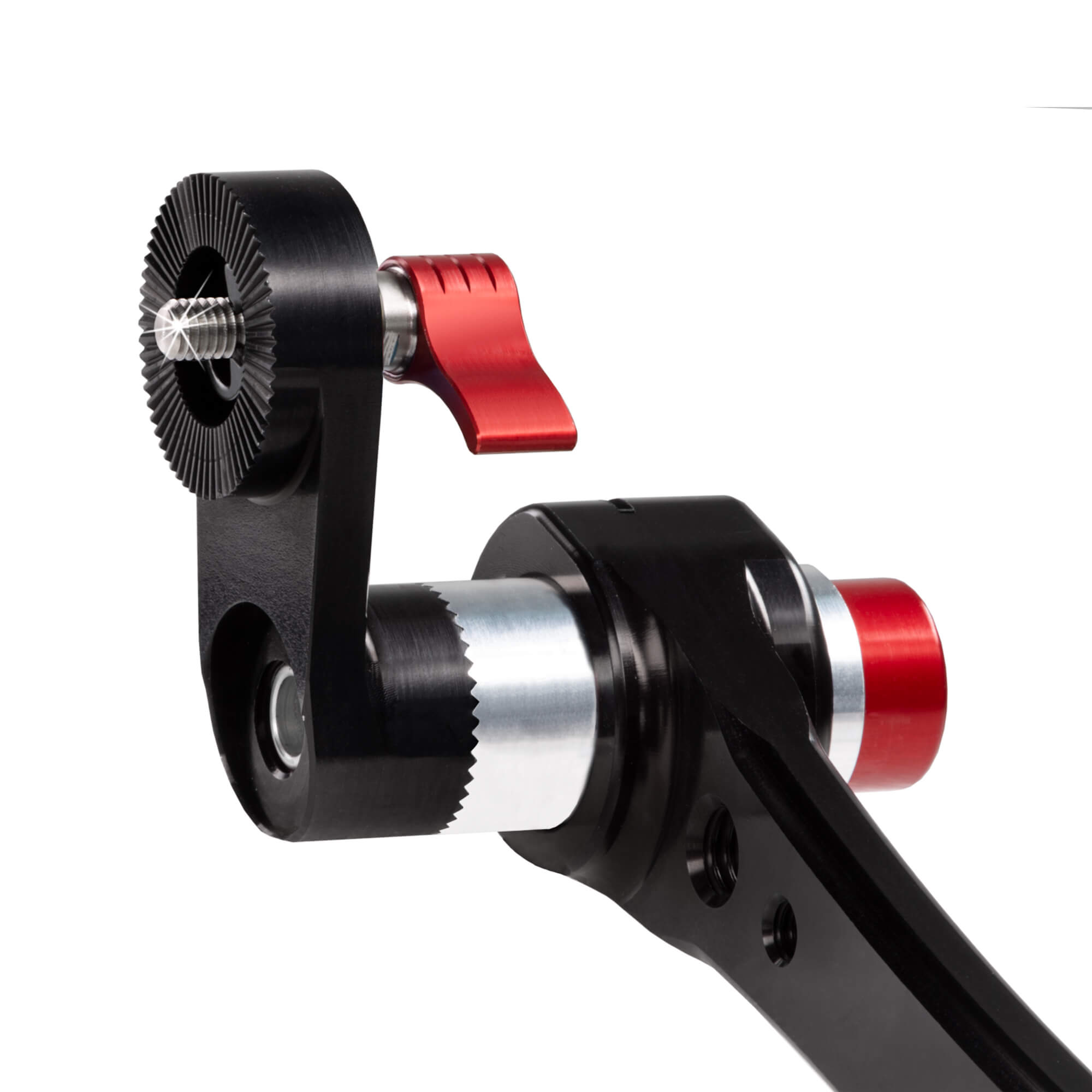

Double quick handle rosette (HAND10)

Left and right ARRI Rosettes handgrips that can be attached to cameras or camera support hardware that has standard ARRI rosettes. Each arm features three points of articulation (2 Push-button, 1 ratchet knob) allowing you to adjust the arms for your comfort. The arms attach to your camera or support via an ARRI compatible rosette with spring-loaded locking levers, which allow you to lock your arms in place. Each arm is also designed with (2) ¼-20 and (2) 3/8-16 threaded holes with locking attachment stoppers for additional mounting options and to strongly secure the camera accessories in position.
SHAPE is well known for its patented Push-button handle, now used by so many professionals in the industry. The technology was developped to give filmakers quick and easy adjustment. By simply pressing the button, you are allowed a 360-degree rotation to place the handle in the best position for your use. Push, adjust, release, and then its lock. The Push-button system on the Handle articulating joint provides additional articulation near the rosette, while a second push-button articulation joint allows you to rotate and precisely position the rubber handgrips.

Additional information

Weight 3,25 g
Dimensions 53,34 × 17,78 × 12,70 mm
Brand

(1) V-LOCK QUICK RELEASE BASEPLATE WITH SLIDING ROD BLOC SYSTEM, (1) SHOULDER PAD, (1 PAIR) 15MM RODS 4 INCHES , (1 PAIR) 15MM RODS 8 INCHES, (1) VCT TRIPOD PLATE, (1 PAIR) OF DOUBLE QUICK HANDLE WITH PUSH-BUTTON AND ARRI ROSETTE MOUNT (HAND10)
