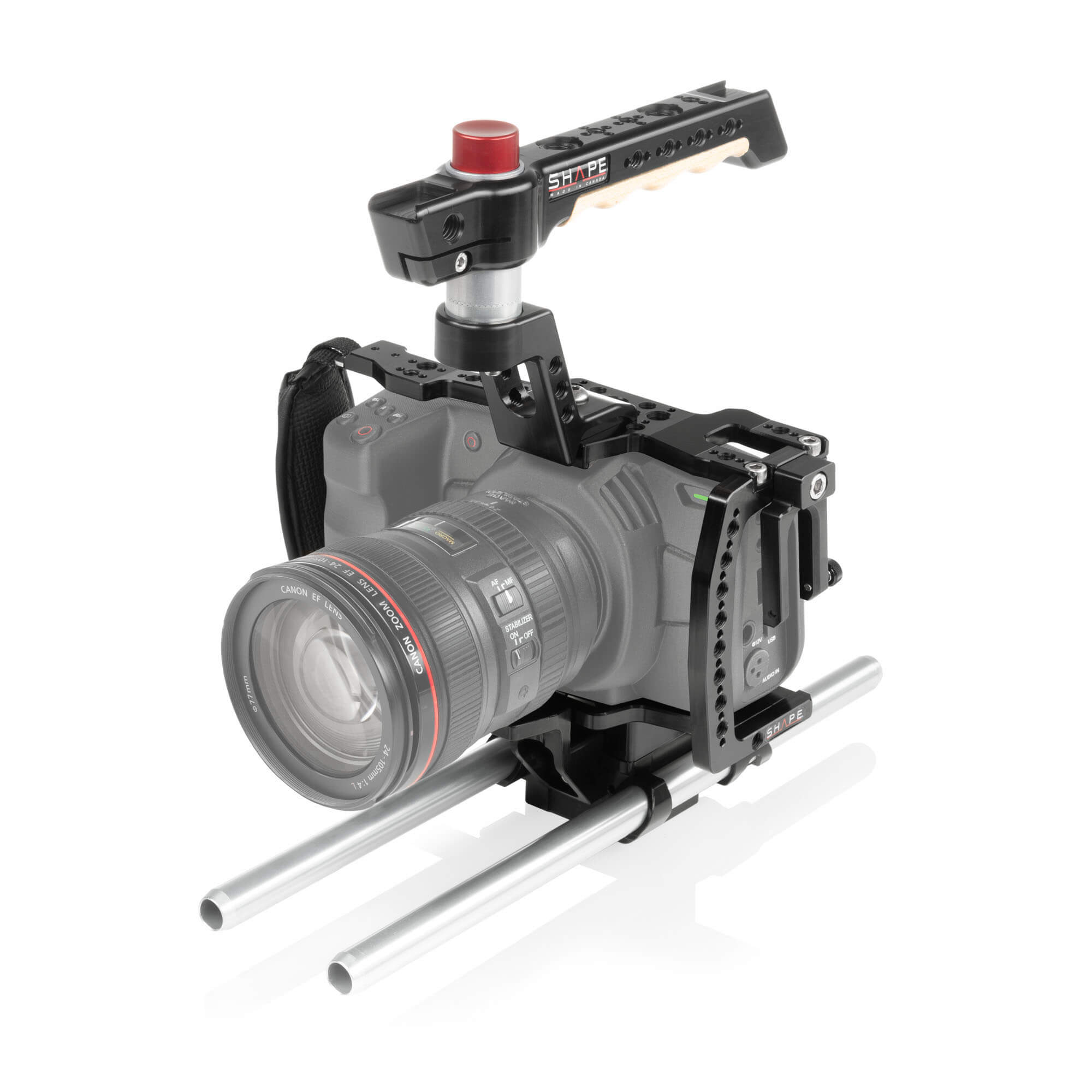

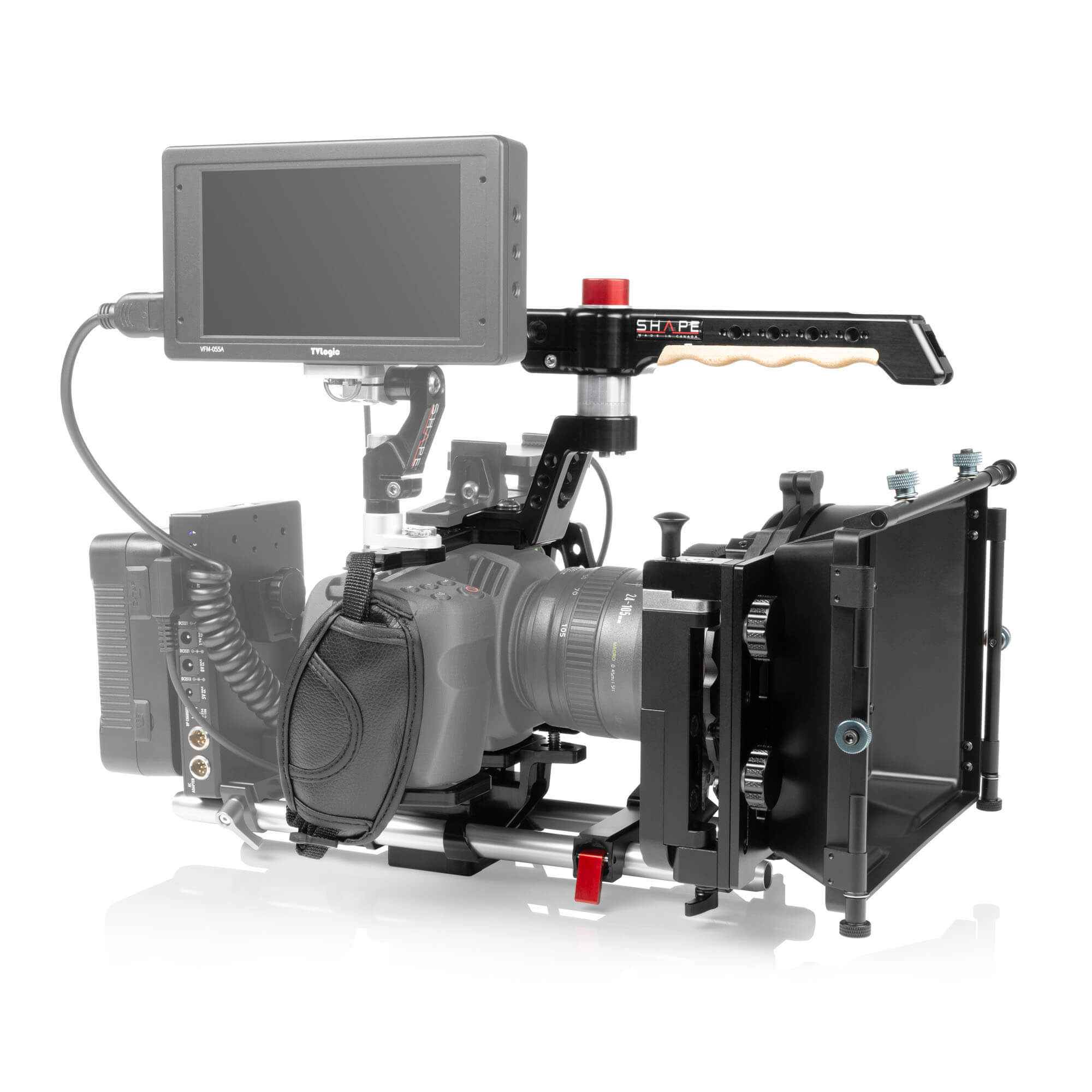

SHAPE Blackmagic Pocket cinema 4k , 6k cage with 15 mm rod system

Formfitting Cage with Top Handle
BMPCC6K not compatible with the Metabones bracket of the cage
Access to All Controls, Ports, and Slots
Camera Will Not Rotate When Secured
Multiple 1/4″-20 and 3/8″-16 Threads
Two Cold Shoe Mounts on Top Handle
1/4″-20 Tripod Thread on Base
HDMI Cable Protector Lock
Metabones Adapter Support Bracket
Quick Release Baseplate with 15 mm Rods

510,17 (ex. VAT)

SKU: C4KROD Categories: , ,

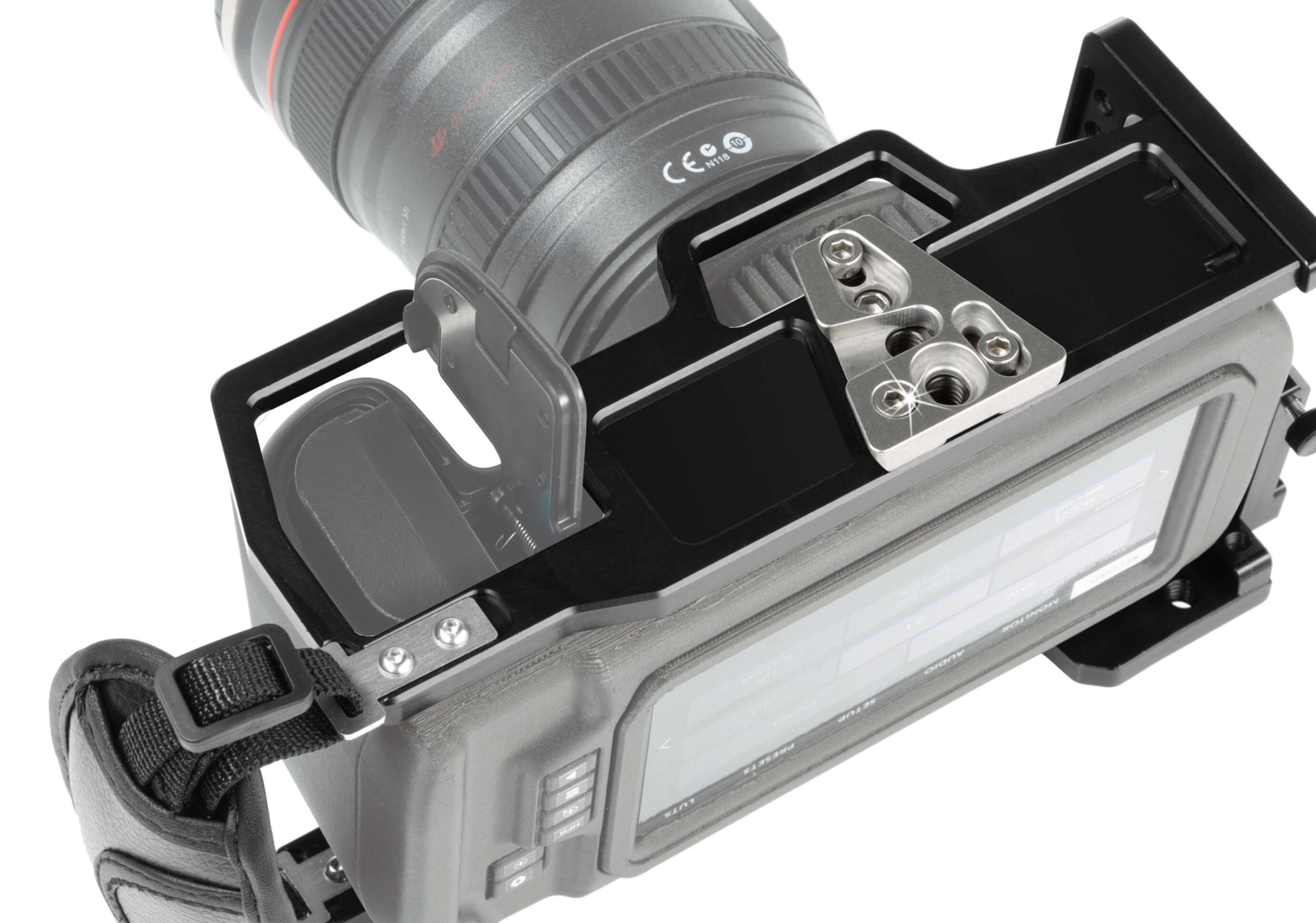

The Camera Cage for Blackmagic Cinema Camera 4K from SHAPE provides a formfitting base for attaching accessories, handles, or grips to your BMCC 4K. All controls, ports, and slots remain accessible when the cage is mounted to your Blackmagic Cinema Camera 4K. It gives you easy access to the memory card, the battery door, the lens release button and all other controls and outputs. The cage is designed with one cold shoe at the top to mount accessories like a microphone, magic arm (RPB2AHS), LED or Top Handle (DTH1). There is also multiple 1/4″-20, 3/8″-16 threaded holes with ARRI anti-twist threads to strongly secure the camera and accessories in place. Constructed from lightweight yet sturdy CNC-machined aluminum, the cage includes a left-side clamp to prevent your HDMI cable from accidentally disconnecting. A padded hand strap adds comfort when grasping the right side of the camera._x000D_
_x000D_
Formfitting, lightweight and robust CNC aluminum cage_x000D_
Easy to assemble and disassemble_x000D_
Maintains access to all camera controls, ports, and slots_x000D_
(1) cold shoe mount on top_x000D_
Multiple 1/4″-20, 3/8″-16 holes with ARRI anti-twist mounting threads_x000D_
1/4″-20 tripod threads on Base_x000D_

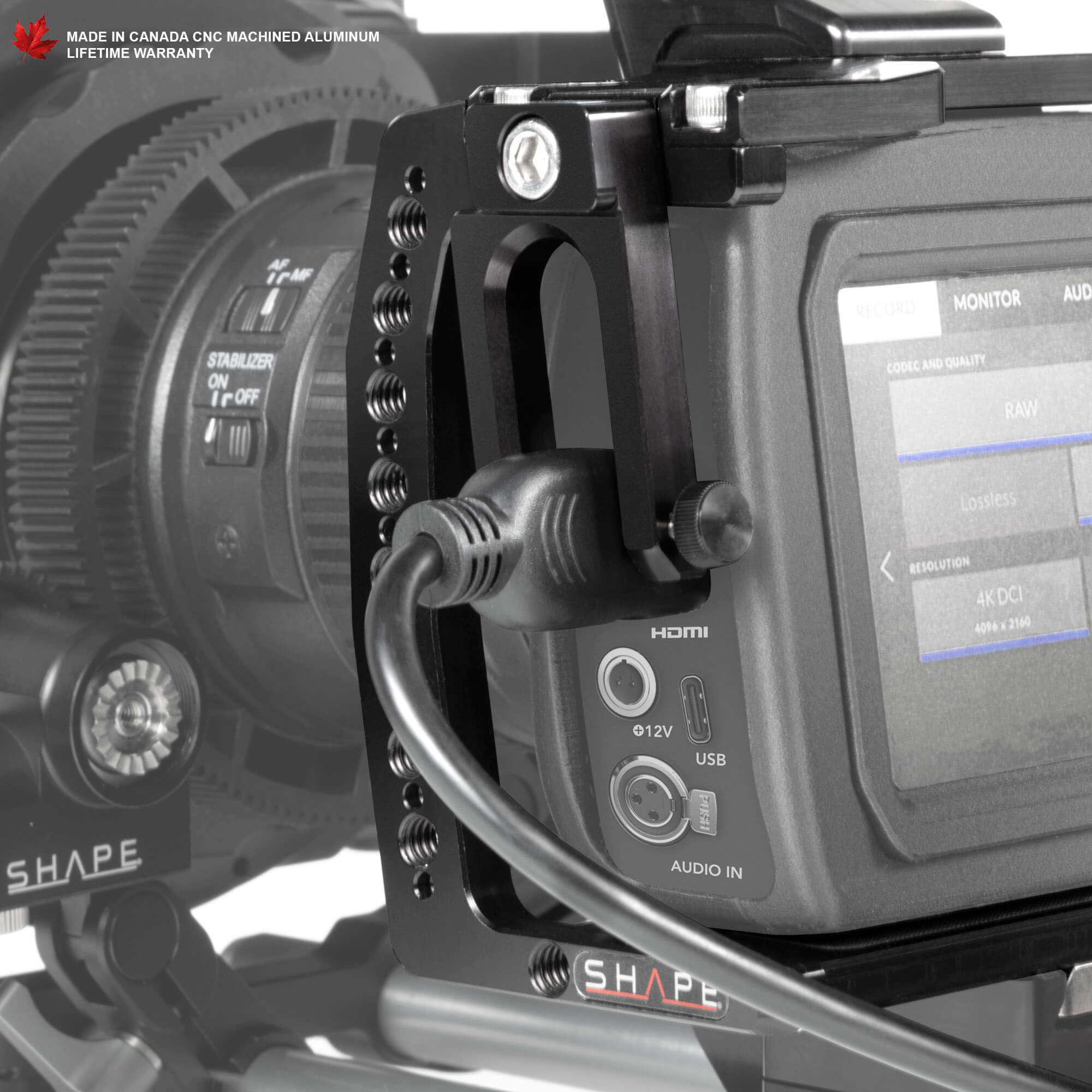

HDMI cable clamp prevents accidental cable disconnection_x000D_

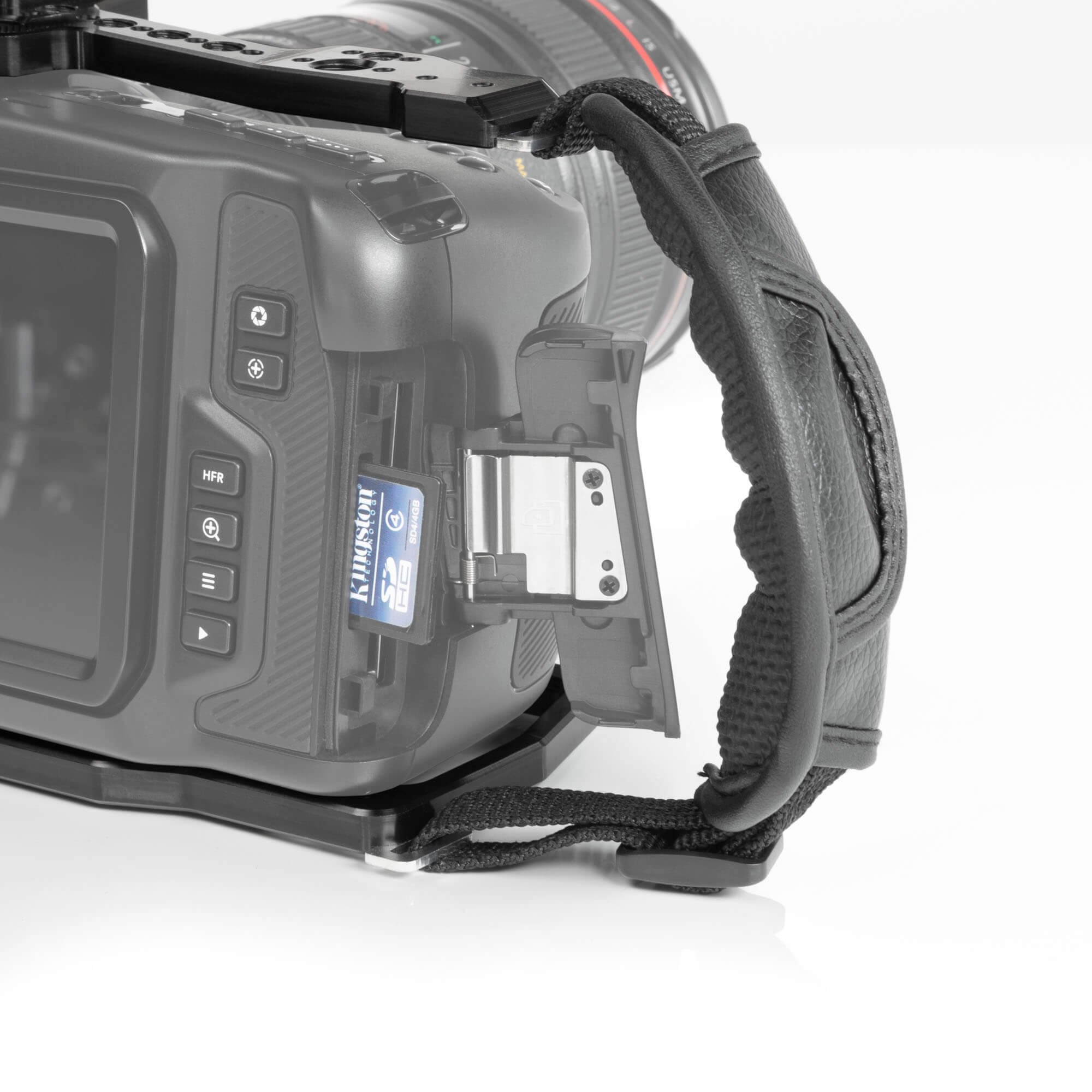

Padded hand strap to grasp and feel the camera on right side_x000D_
_x000D_
Removable top handle_x000D_
The SHAPE removable top handle is made of CNC Machined Aluminum and genuine Canadian maple wood to give you a solid and comfortable grip on your camera. It features our patented Push-Button technology for fast adjustment. It’s easy to strongly attach the top handle to the camera cage with the cold shoe attachment system. The top handle features the following mounting options to strongly attach more camera accessories:  (1) EVF mount, (15) ¼-20 threaded holes with stoppers and (2) cold shoe brackets at the front and back of the handle._x000D_
_x000D_

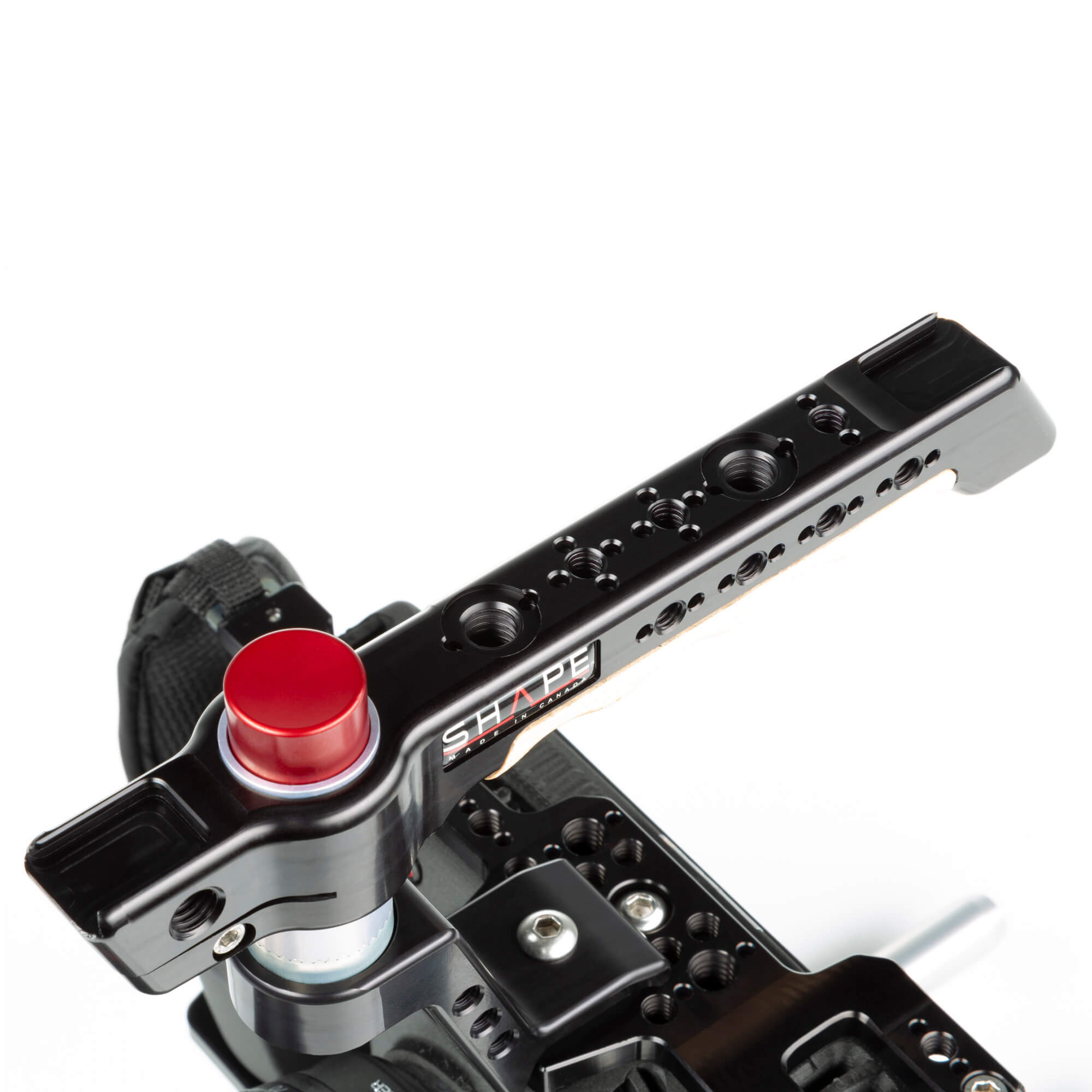

SHAPE is well known for its patented Push-button handle, now used by so many professionals in the industry. The technology was developped to give filmakers quick and easy adjustment. By simply pressing the button, you are allowed a 360-degree rotation to place the handle or top handle in the best position for your use. Push, adjust, release, and then its lock._x000D_
_x000D_

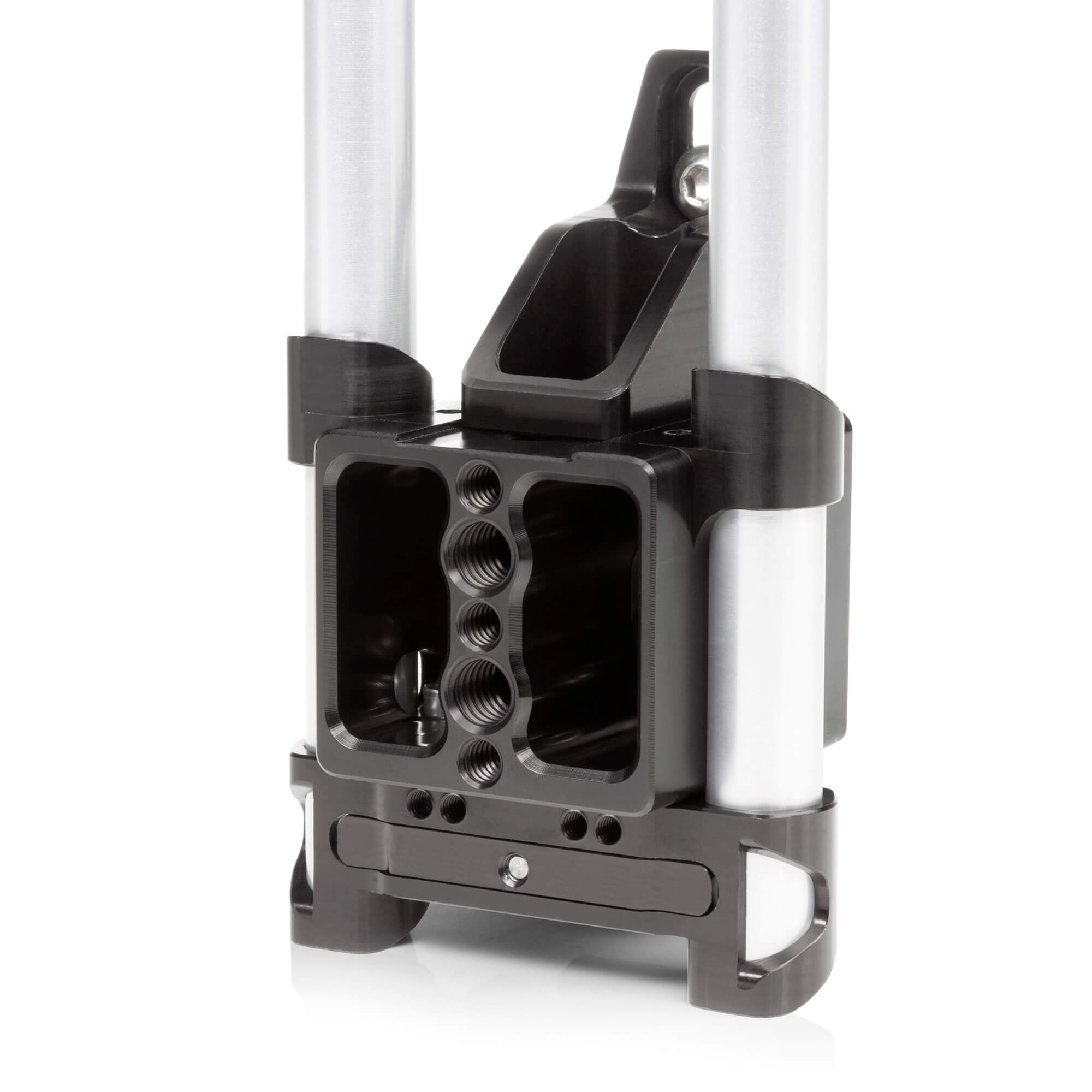

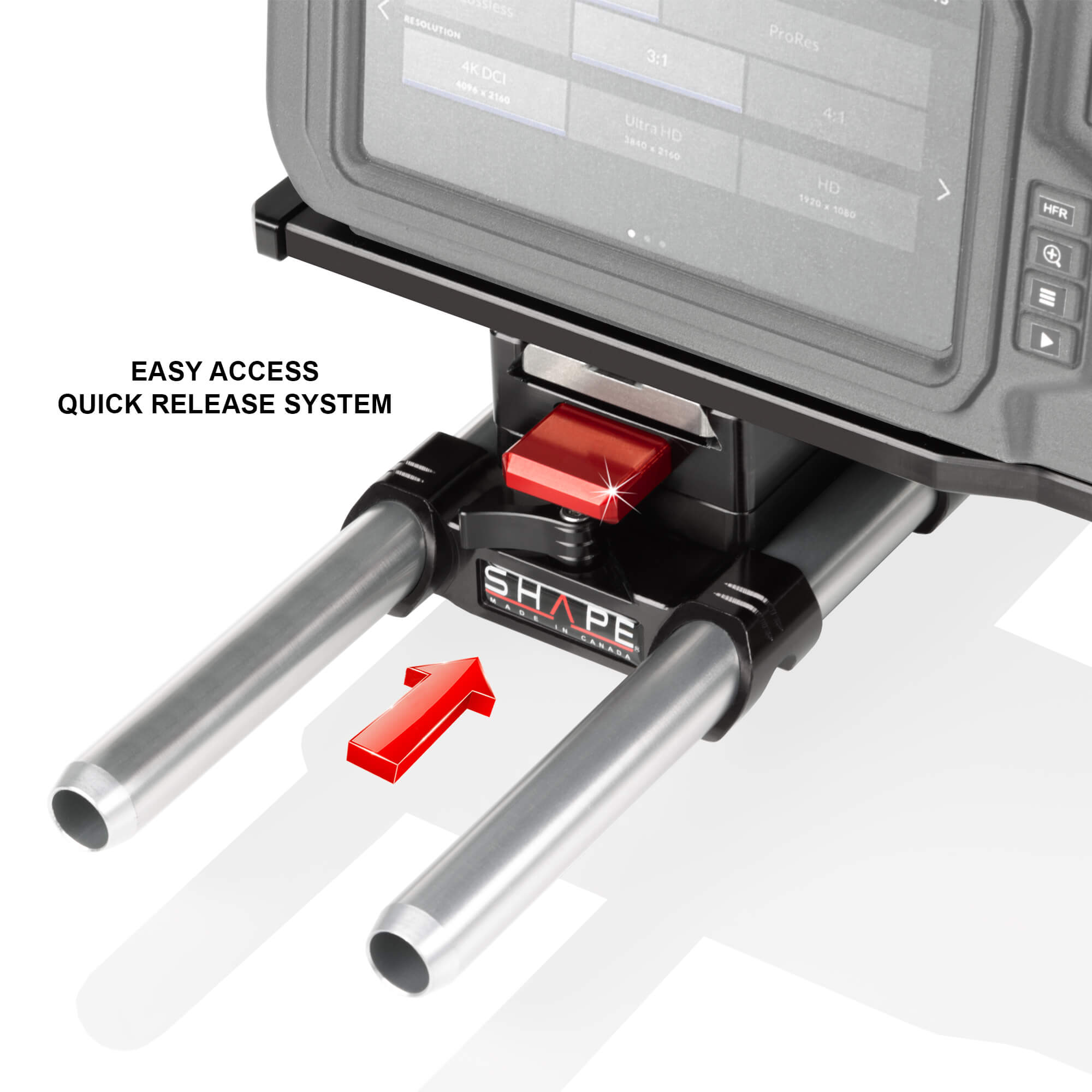

Quick release baseplate, adjustable rod bloc system_x000D_

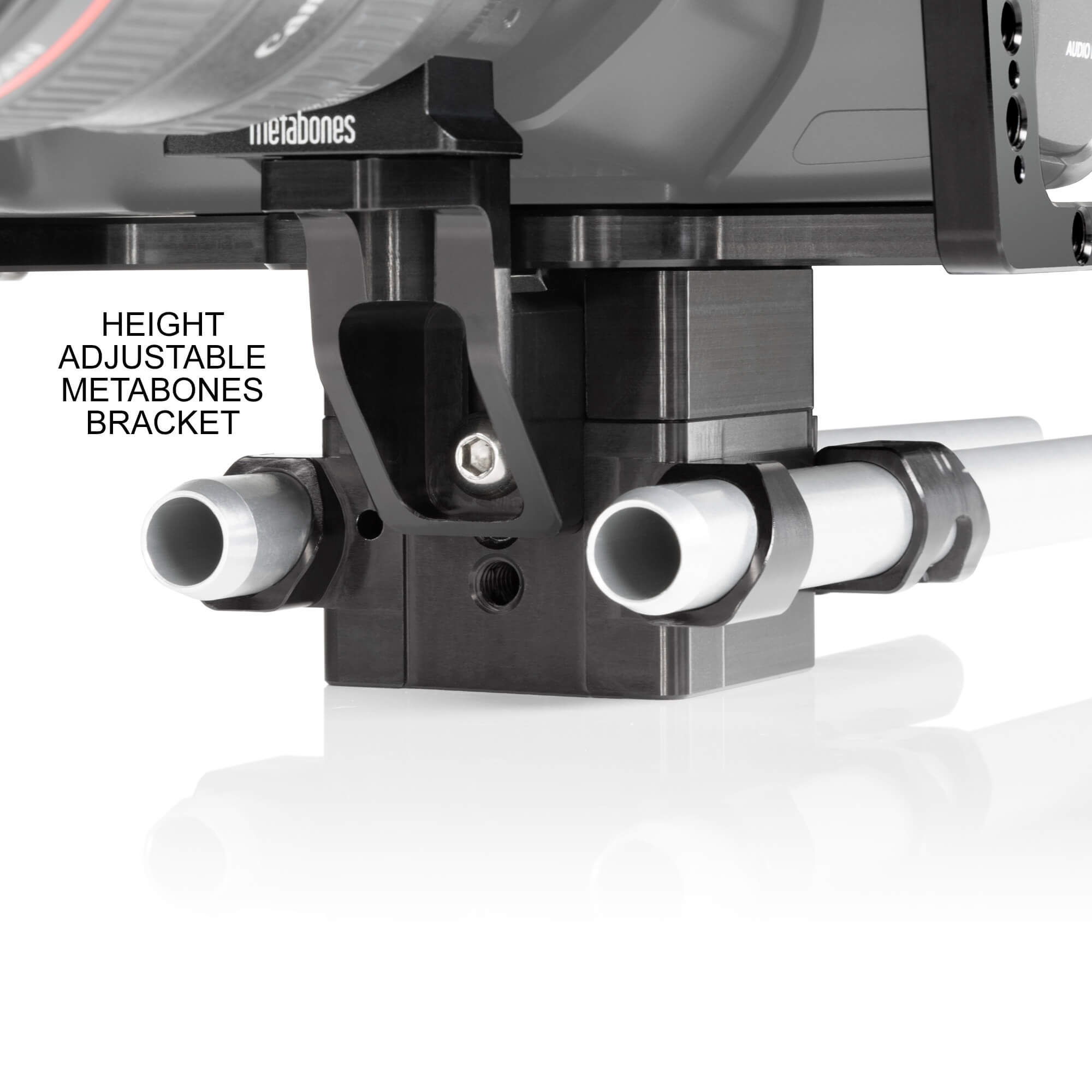

The quick release baseplate can be used as a table stand or can be attached to a tripod. The bottom of the base block designed with a removable Metabones® Support Bracket perfect to support heavier lens. The rod bloc travel height is adjustable with an Allan Key to allow an optimal adjustment of your matte box, Follow Focus and optical center. A rod clamps allowing you to use available rod mounted accessories._x000D_
_x000D_

15 mm 10″ rods (15TUBE10)

This pair of SHAPE 15 mm Aluminum Rods (10″) connect into your camera rig, extend it, and let you add various SHAPE and third-party accessories compatible with 15 mm rods. With these two rods and with a few fundamental accessories, you can most certainly even begin building your own rig from scratch. The rods are each 15 mm in diameter, 10 inches long, hollow, non-threaded, and made of reliable aluminum coated with a clear finish.

Additional information

Weight 1,28 g
Dimensions 27,81 × 16,00 × 26,31 mm
Brand

(1) CAGE FOR BLACKMAGIC POCKET CINEMA CAMERA 4K (CBM4K), (1) TOP HANDLE WITH PUSH-BUTTON, (1) 15 MM LW QUICK RELEASE ROD BASE SYSTEM, (2) 15 MM RODS 10 INCHES (15TUBE10)
