Vinten

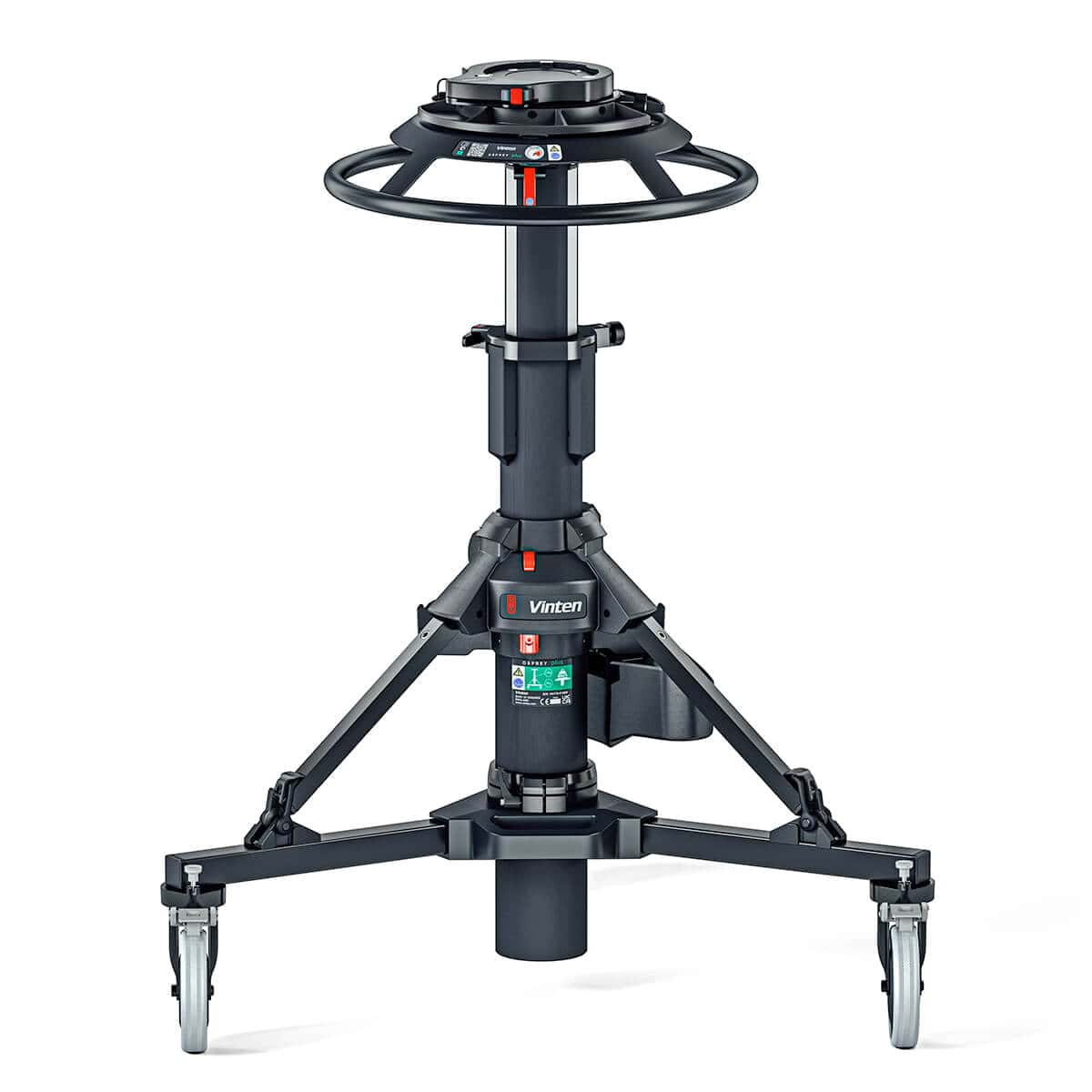

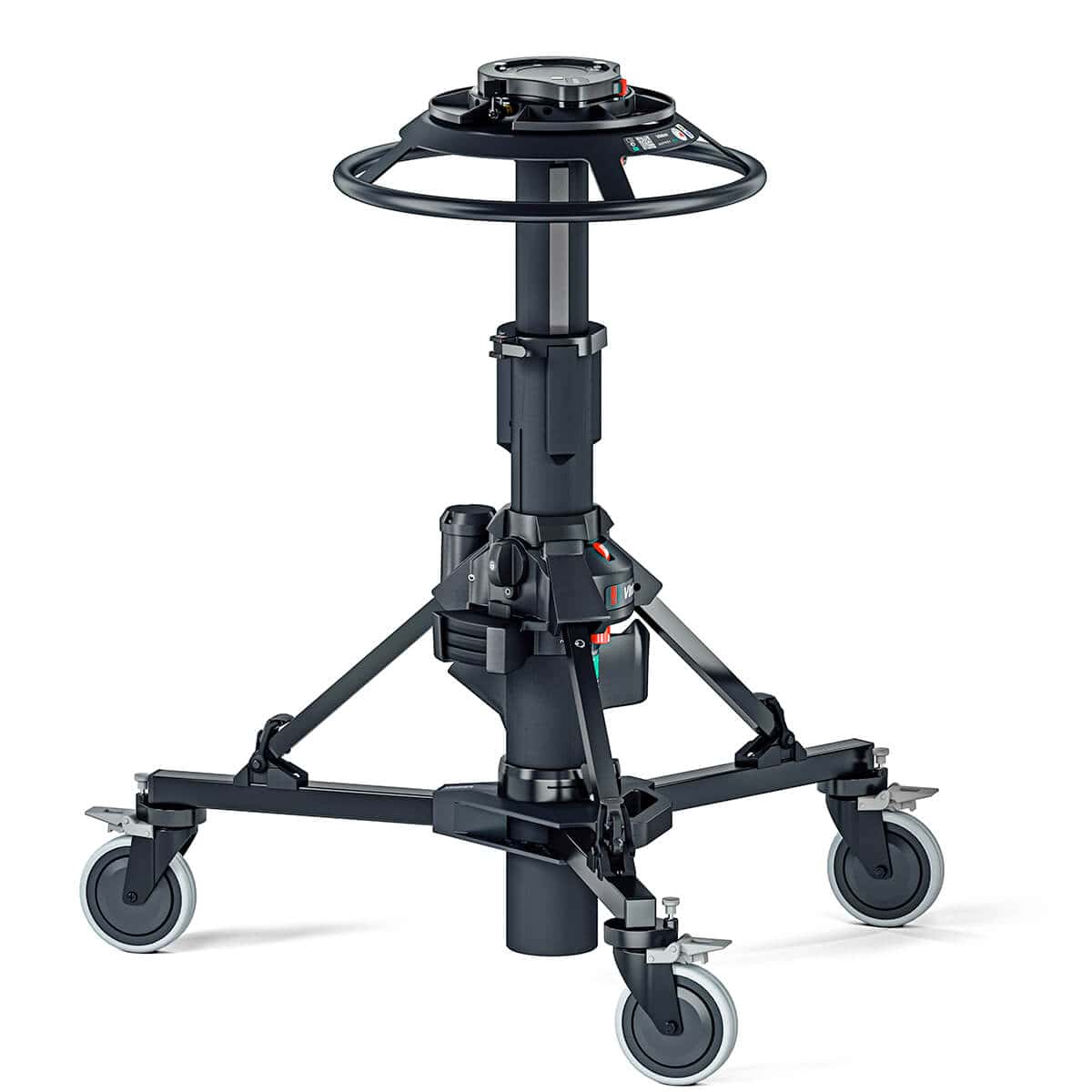

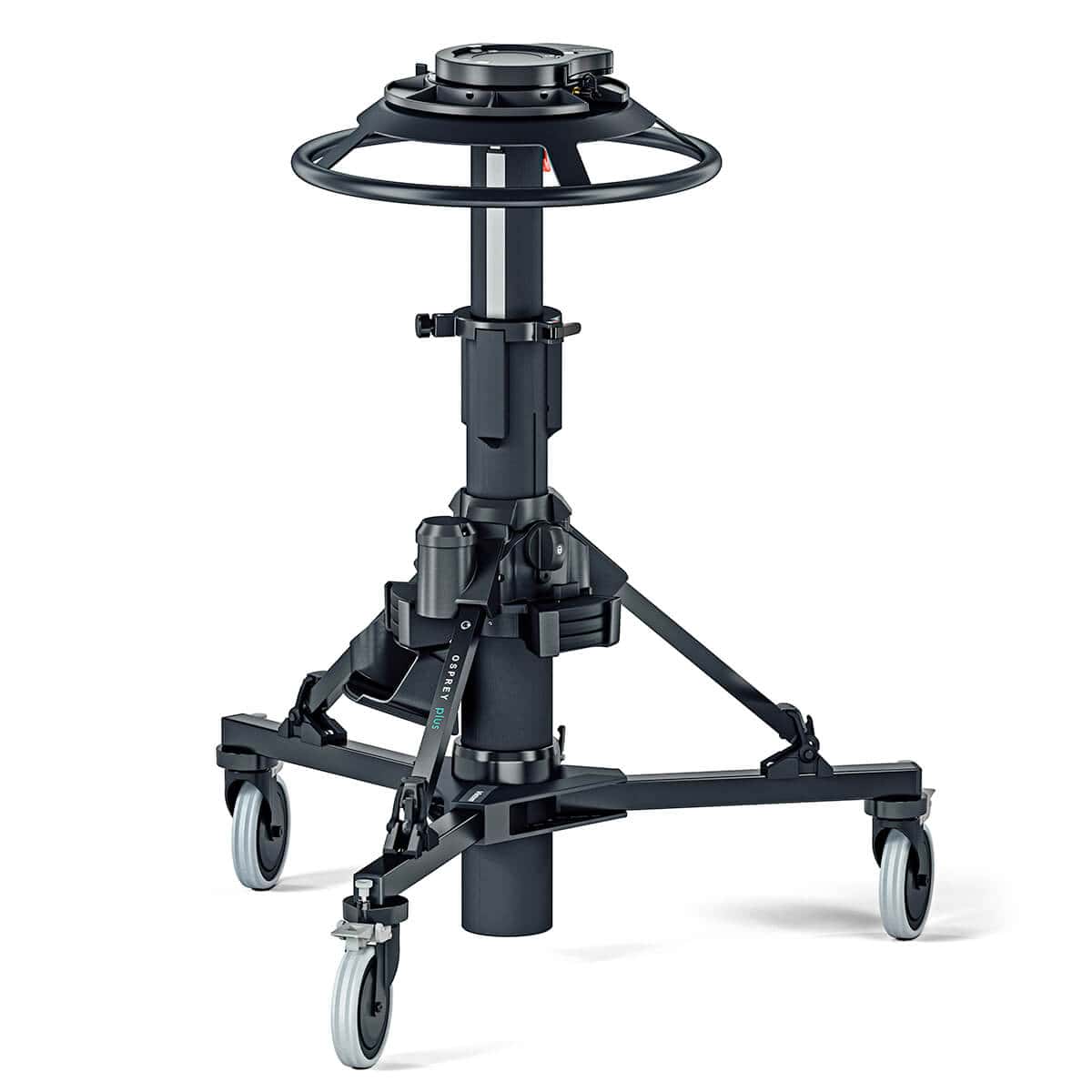

Osprey Plus Pedestal (OB)

Portable 2-Stage pedestal with perfectly balanced stage for ‘on shot’ movement in field applications. Payload up to 70kg / 155lb.

12.096,00€ (ex. VAT)

SKU: V4170-0002 Categories: , , Brand:

The Osprey Plus (OB) is capable of payload up to 70kg / 155lb. It has 2 stages for achieving very high and low shots, and the upper stage is perfectly balanced for on shot tracking of talent. It has an integral manual pump and an inlet valve for use with an external supply, making Perfect Balance easy to achieve. There is a storage area for the camera operator. In addition, the Osprey Plus OB pedestal includes a pressure gauge for clear and reliable set-up and the detachable skid allows the pedestal to be simply broken down into two sections for easy storage and transportation. It comes with 16 cm / 6.3 inch wheels for greater ground clearance for outside broadcast applications.

Key features

  • Upper stage perfect balance for on-shot performance
  • Balance assisted second stage for easy elevation and extended height range
  • Built in pressure gauge and manual pump for easy counter balance set-up
  • Detachable skid for easy transport and storage
  • Pedestal supplied with Quickfix quick release system & operator storage area
  • Column can be adapted to work on dolly track

Details

2-stage OB pedestal; on shot stroke 41cm; with accessory holder and Quickfix

payload 70kg

Payload 70 kg
Weight 29.3 kg
Application Commercial/Corporate, Live on Location, Live Studio, Multicam
Tracking Width 950 mm
Transit Width 860 mm
Trim Weights 3500
Color Black
Wheel Locks Individual
Pedestal Base Open
Stages 2
Perfect Balance Stages 1
On Shot Stroke 410 mm
Height 678 – 1497 mm
Wheel Diameter 150 mm
Steering Ring Diameter 535 mm
Part number V4170-0002
EAN 5060896402536

Additional information

Weight 29,3 kg
