Vinten

Osprey Plus S Pedestal

Fully steerable, 2-Stage pedestal with perfectly balanced stage for ‘on shot’ movement in studios. Payload up to 70kg / 155lb.

18.900,00€ (ex. VAT)

SKU: V4171-0001 Categories: , , Brand:

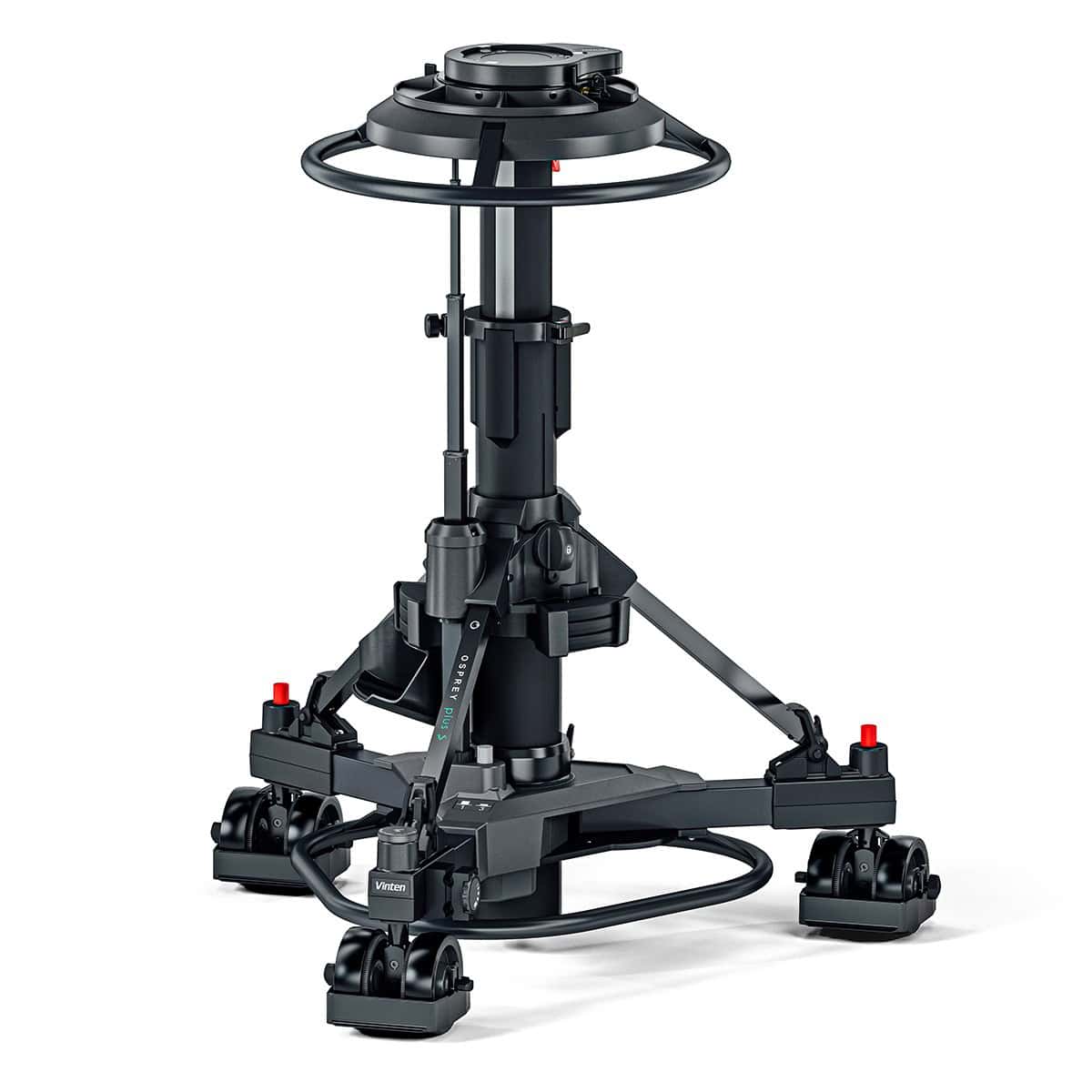

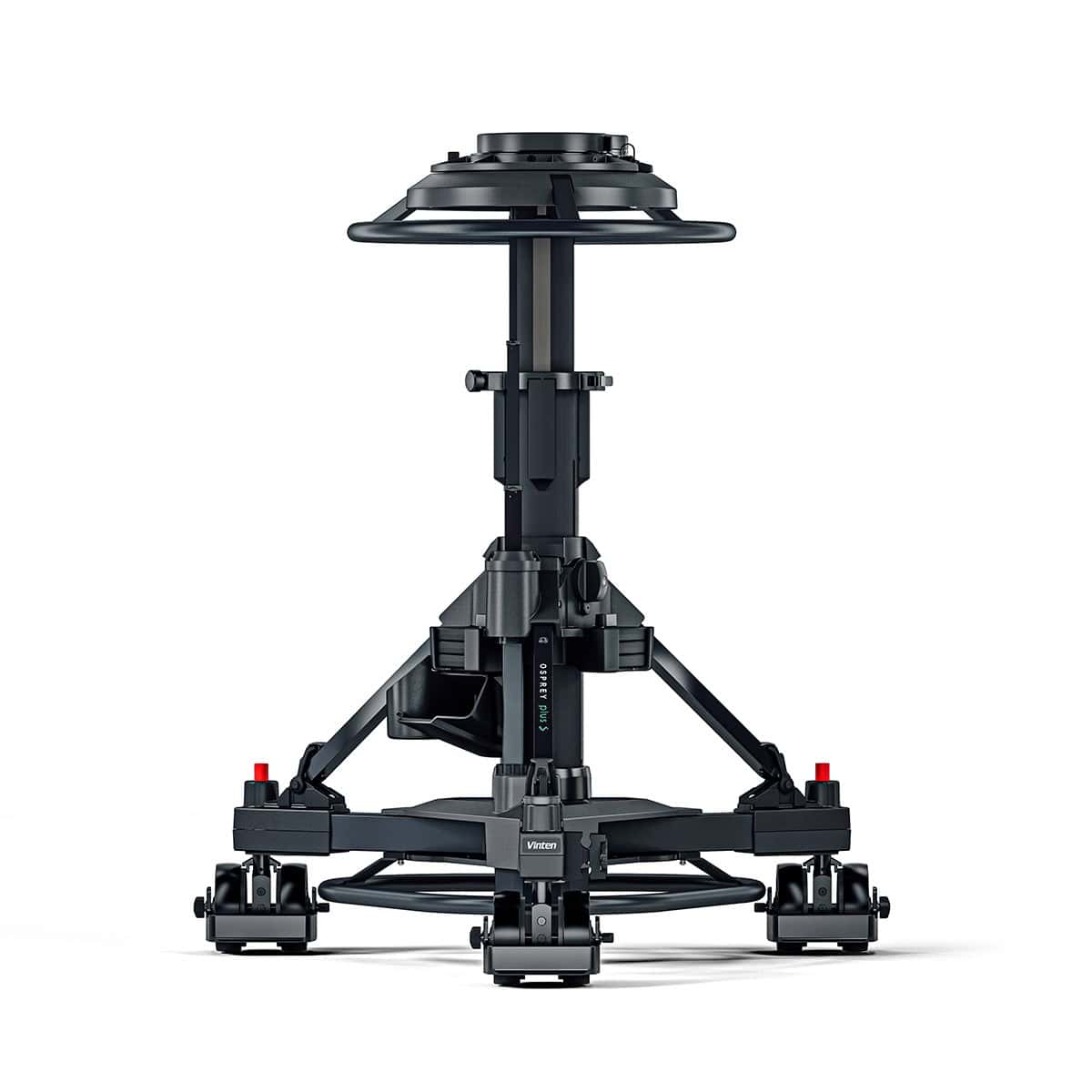

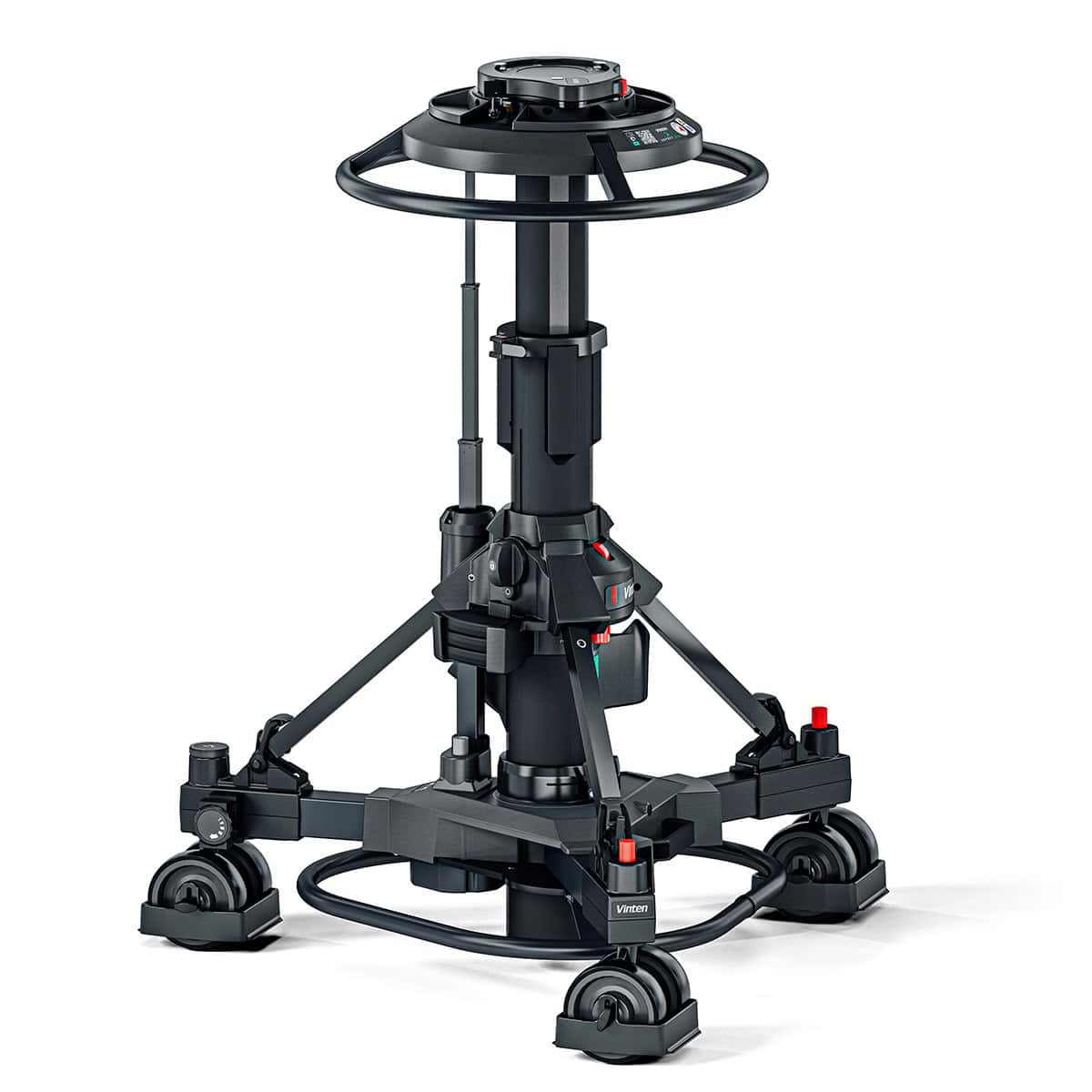

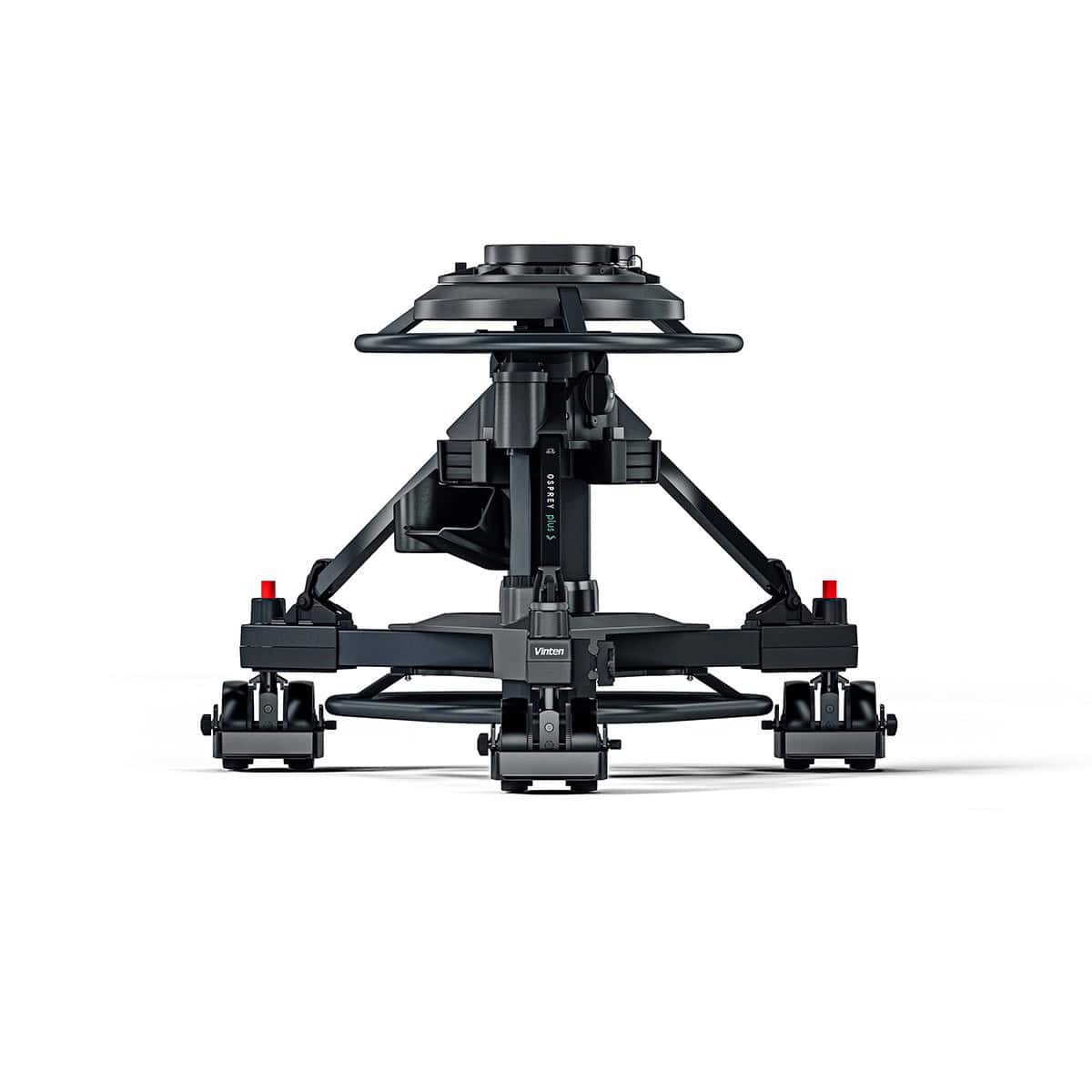

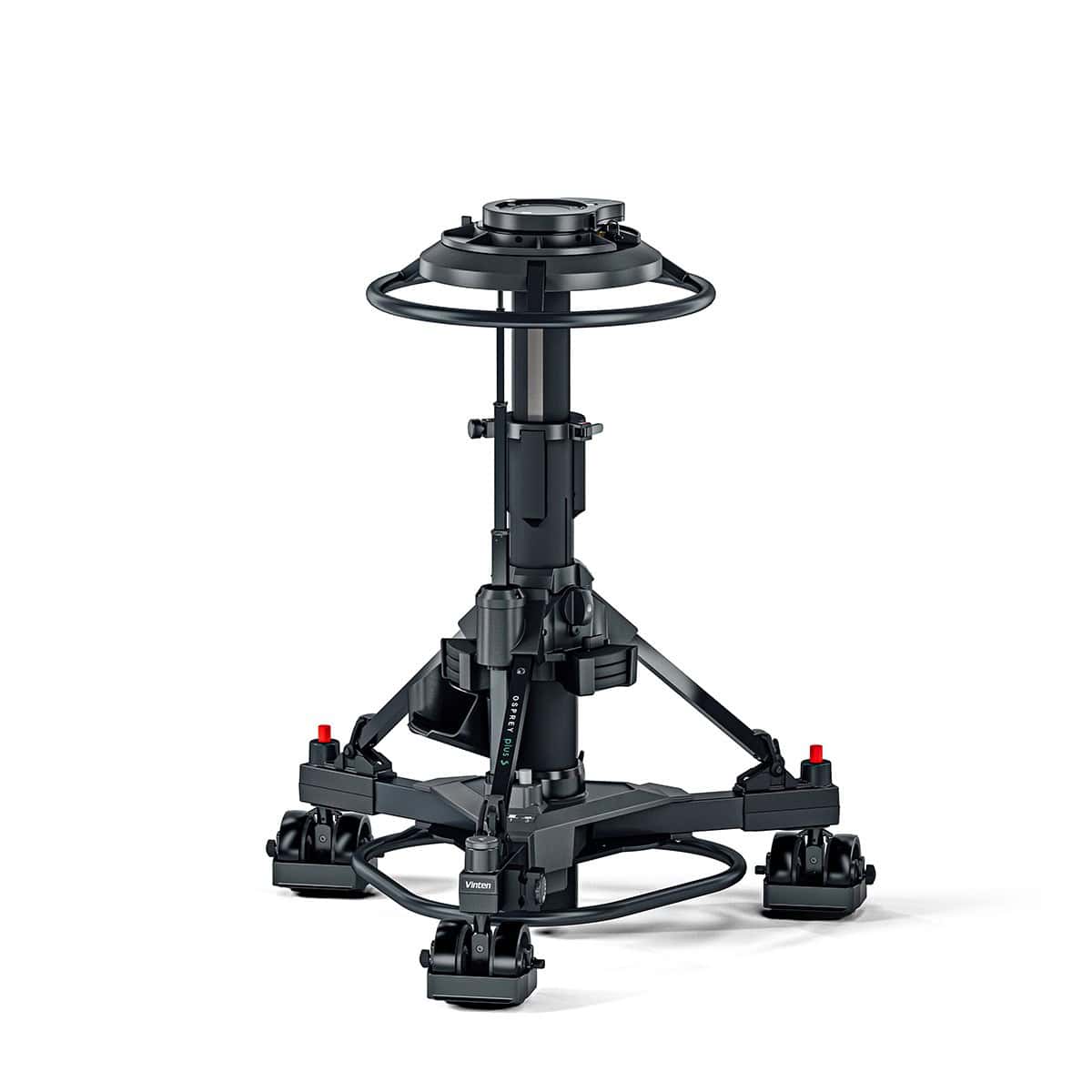

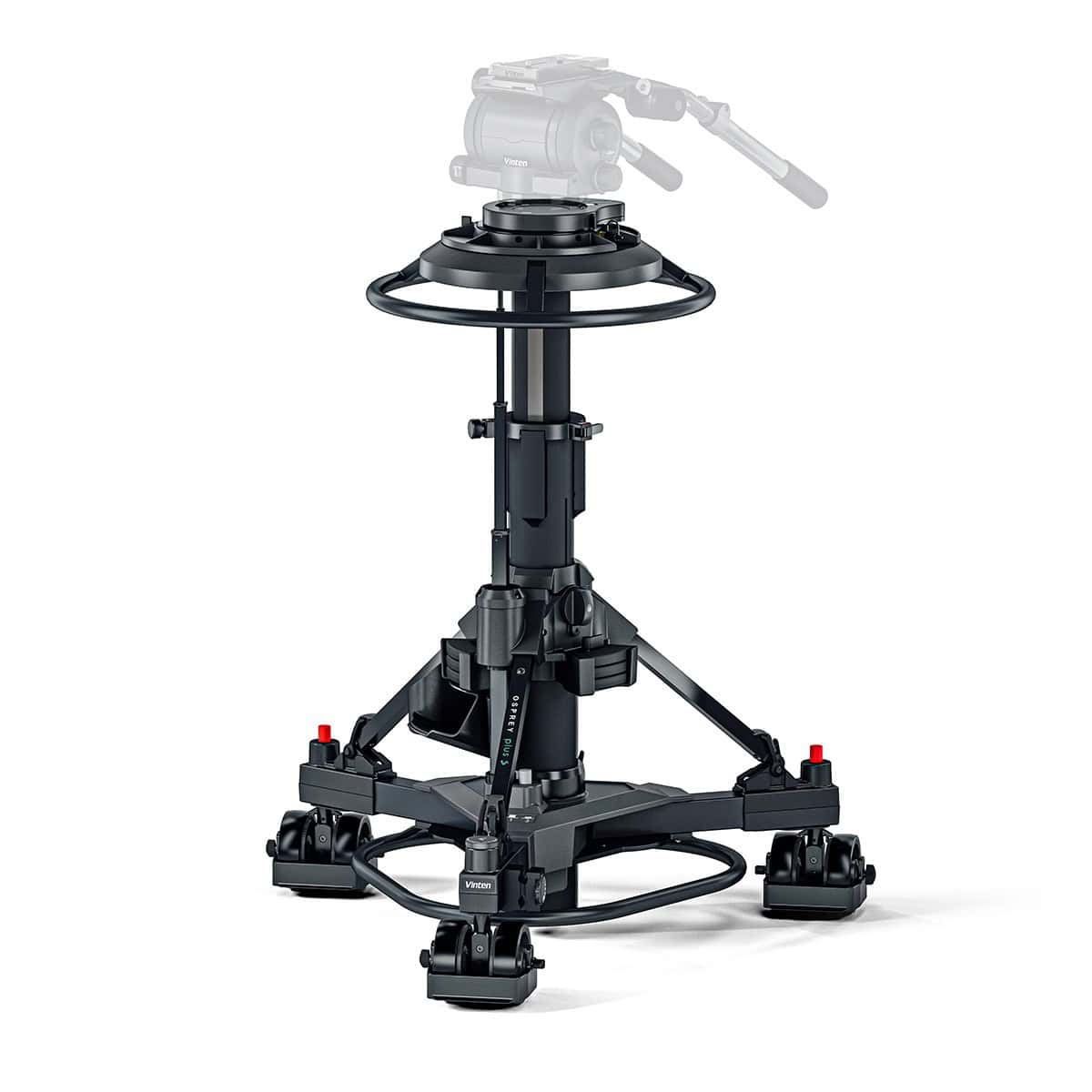

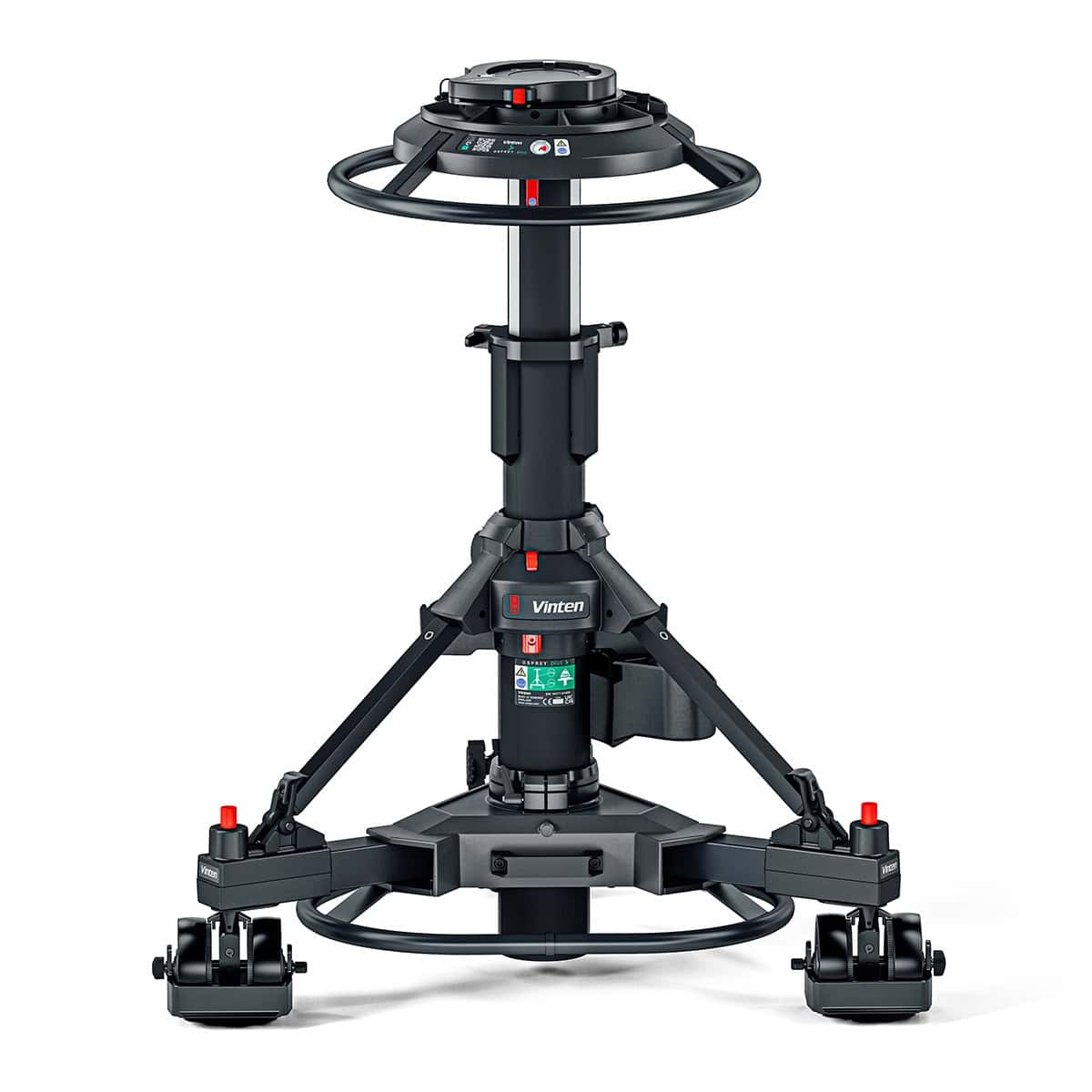

The Osprey Plus S is a fully steerable version of the Osprey Plus and is capable of payloads up to 70kg / 155lb. It has 2 stages for achieving very high and low shots, and the upper stage is perfectly balanced for on shot tracking of talent. It has an integral manual pump and an inlet valve for use with an external supply, making Perfect Balance easy to achieve. There is a storage area for the camera operator. In addition, the Osprey Plus pedestal includes a pressure gauge for clear and reliable set-up and the detachable skid allows the pedestal to be simply broken down into two sections for easy storage and transportation. It has a selector for both single wheel and all wheel crab steering for working in tight spaces and on shot direction changes. It comes with 12.5cm / 5 inch wheels and adjustable cable guards for studio use.

Key features

  • Upper stage perfect balance for on-shot performance
  • Balance assisted second stage for easy elevation and extended height range

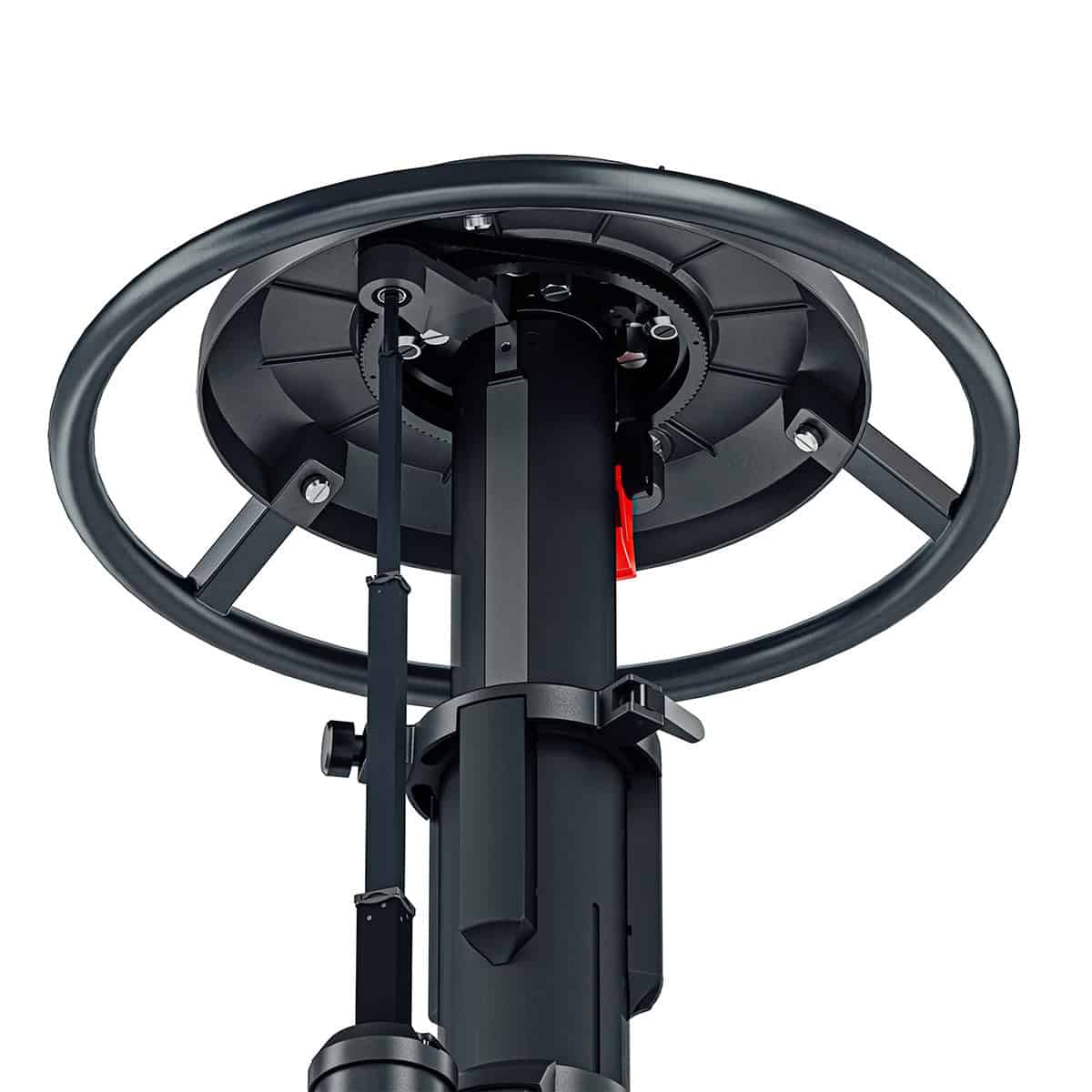

  • Full crab and steer facilities controlled from a central steering ring for enhanced manoeuvrability and on-shot steering

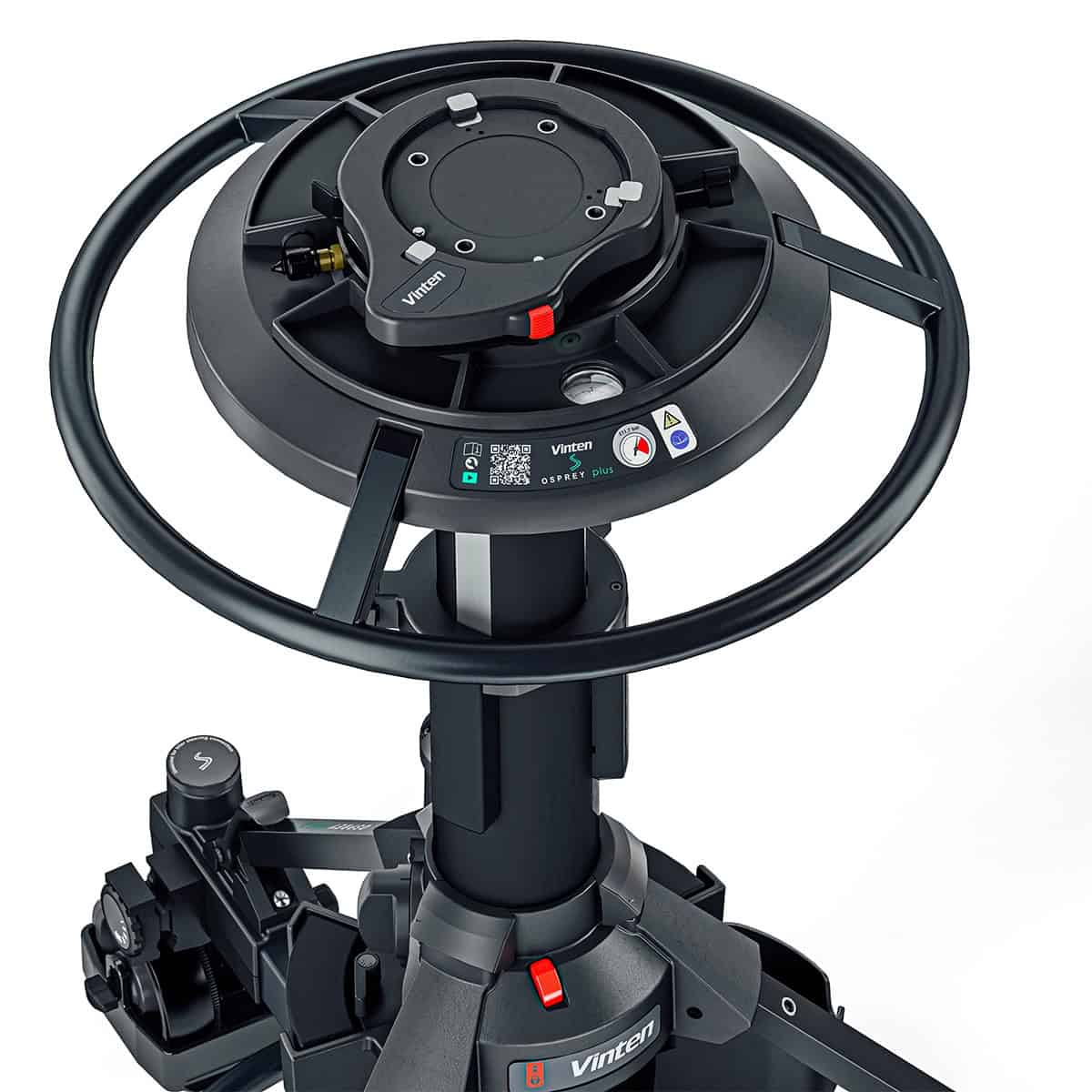

  • Built in pressure gauge and manual pump for easy counter balance set-up

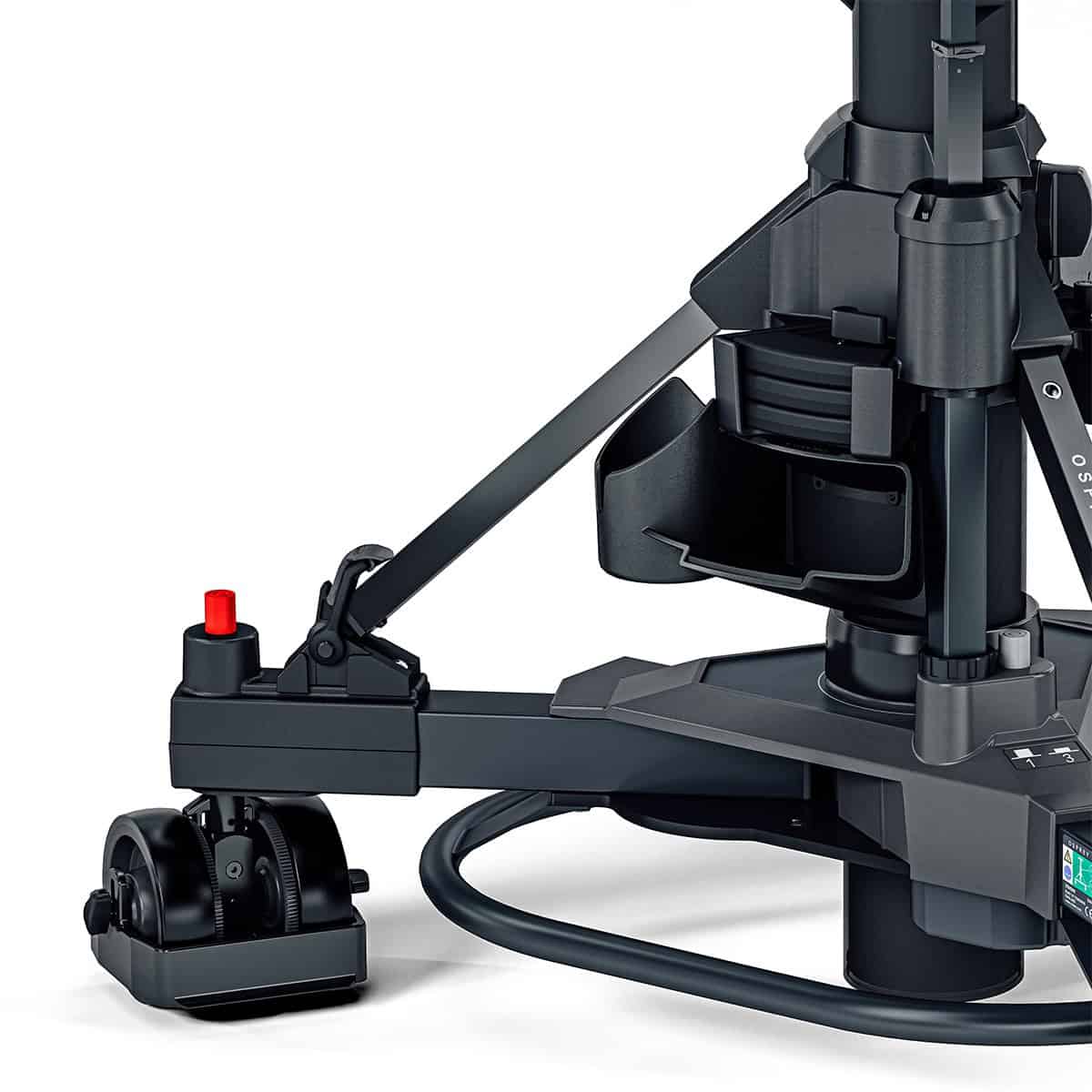

  • Detachable skid for easy transport and storage

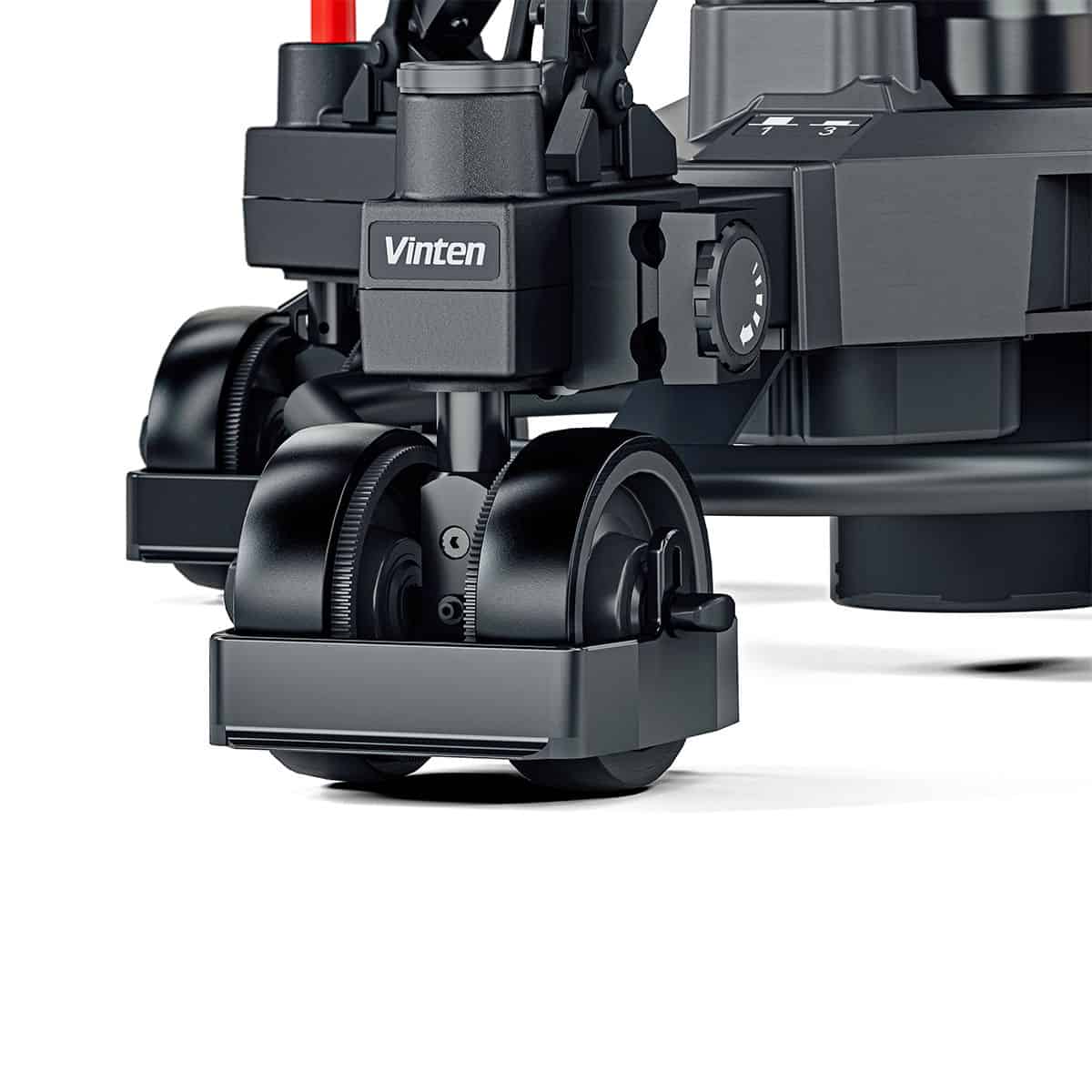

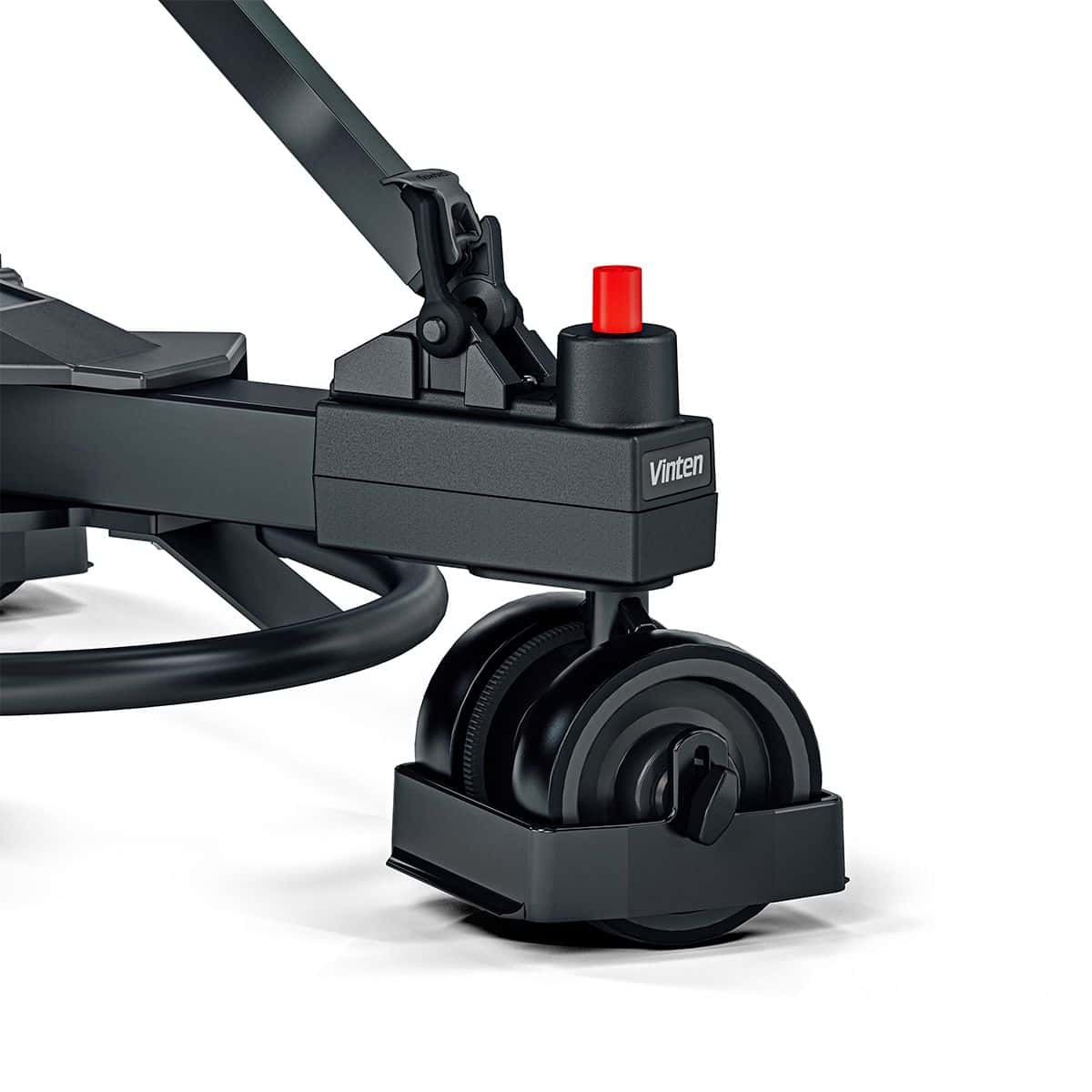

  • Wheel rim braking mechanism eliminates tyre flat spots for super smooth rolling shots

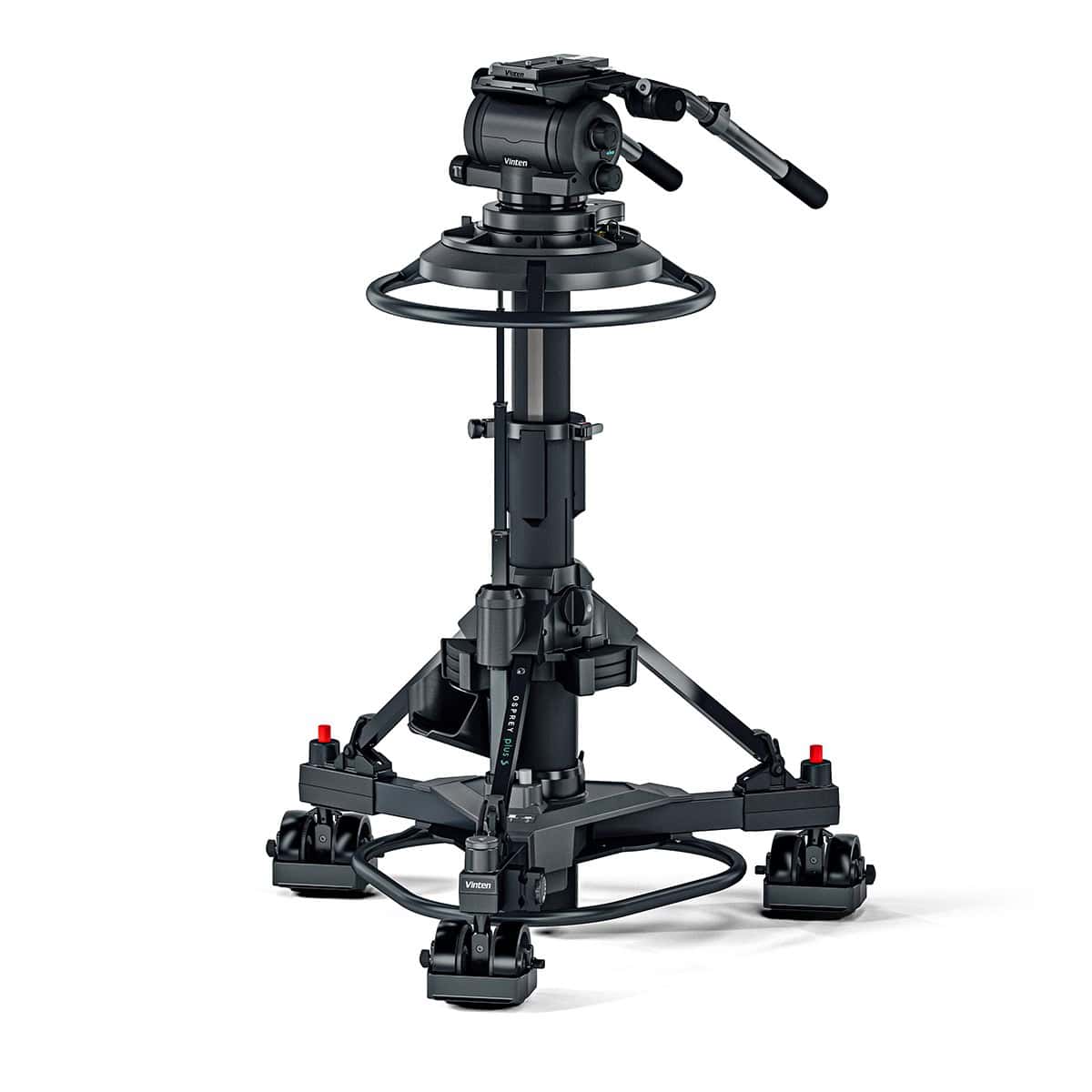

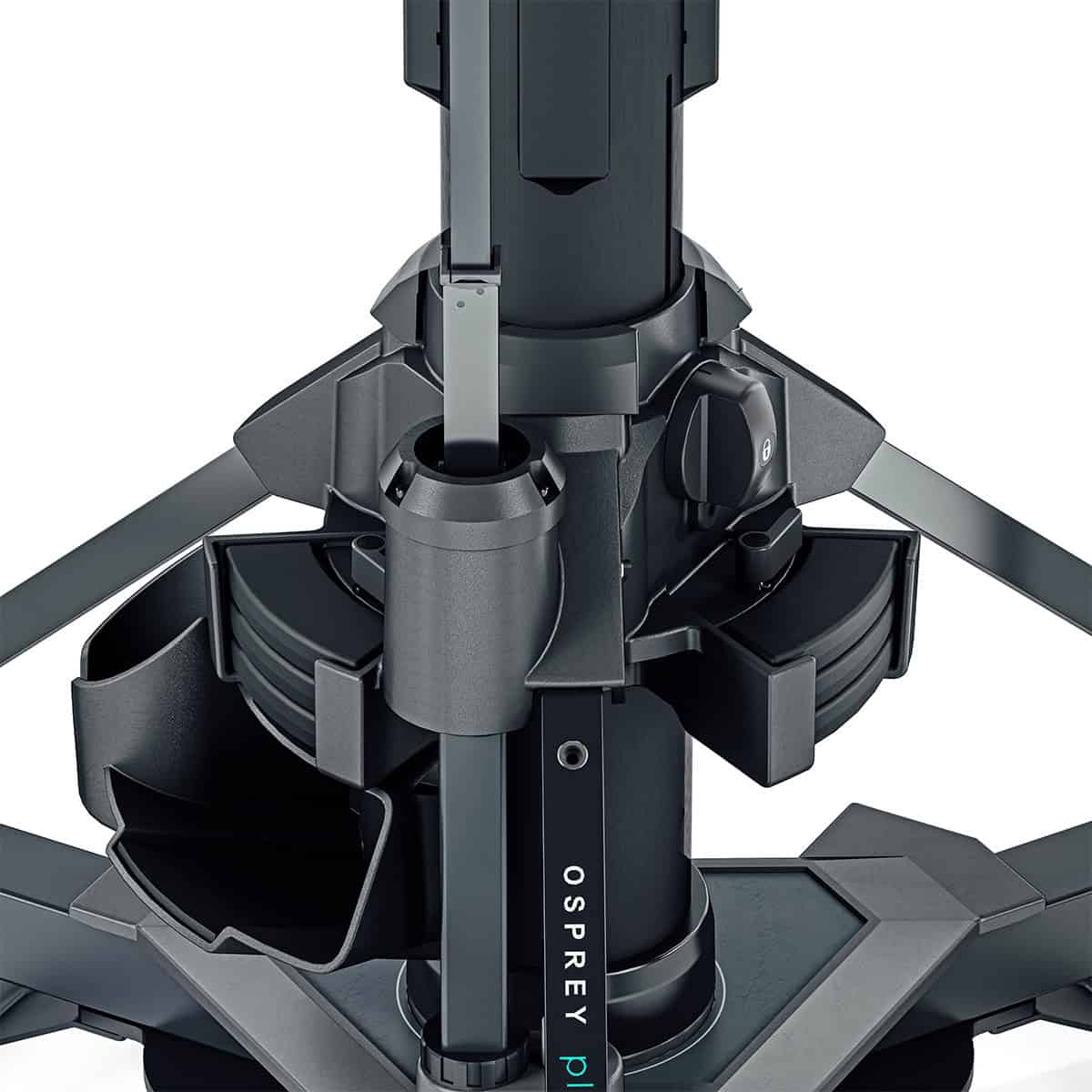

  • Pedestal supplied with Quickfix quick release system & operator storage area
  • Column can be adapted to work on dolly track

Details

2-stage Studio Pedestal; on shot stroke 41cm; with accessory holder and Quickfix

payload 70kg

Payload 70 kg
Weight 41.9 kg
Application Live Studio, Multicam, Permanent Studio
Tracking Width 970 mm
Transit Width 800 mm
Trim Weights 3500
Color Black
Wheel Locks Single-point
Pedestal Base Open
Stages 2
Perfect Balance Stages 1
On Shot Stroke 410 mm
Height 670 – 1480 mm
Narrow Transit Width 730 mm
Wheel Diameter 125 mm
Steering Ring Diameter 535 mm
Part number V4171-0001
EAN 5060896402543

Additional information

Weight 41,9 kg
