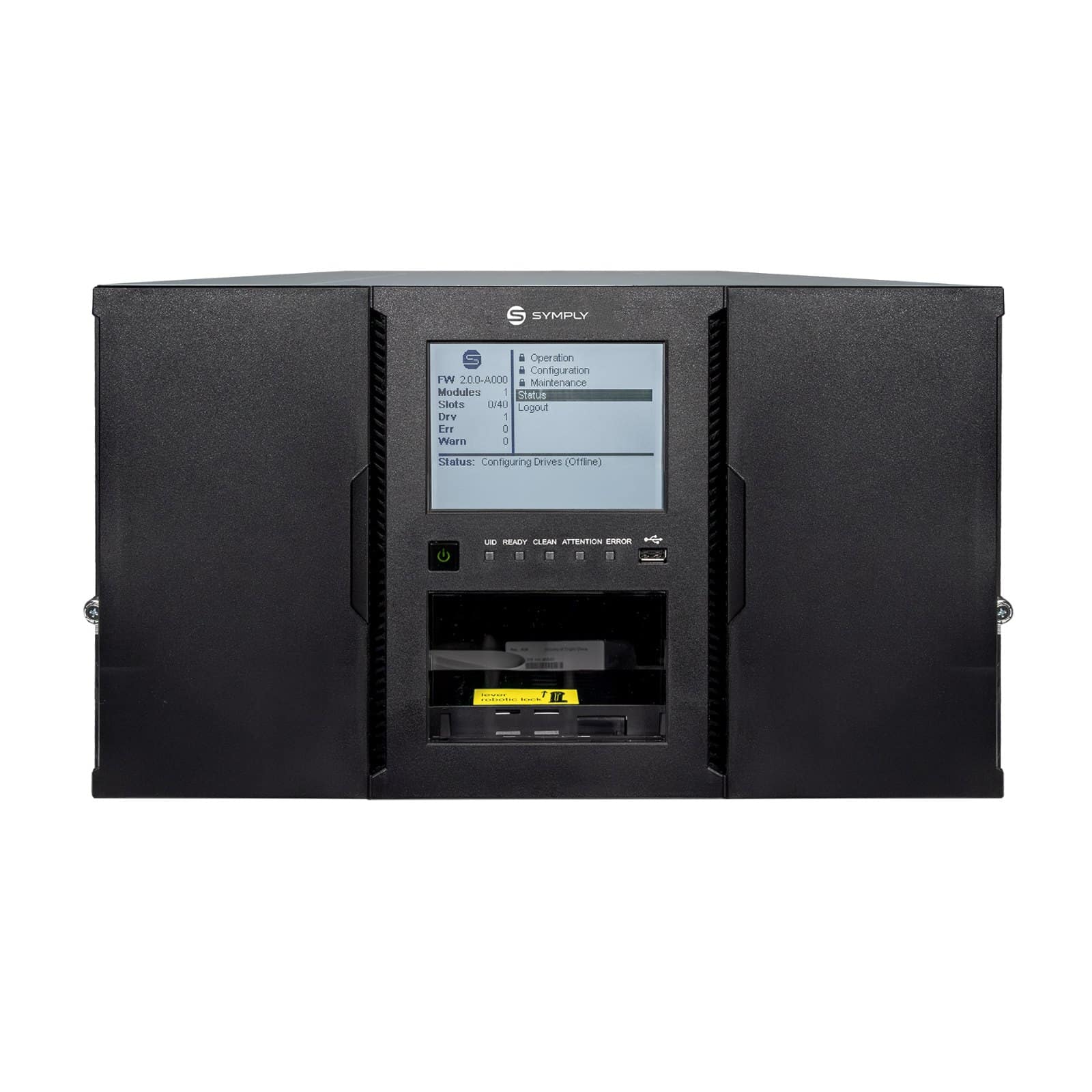

SymplyPRO XTL 80 Slot Expansion Module, No Tape Drive (scalable up to 3 FH or 6HH Tape-Drives in one module, up to 42 HH or 21 FH Tape-Drives in maximum expansion configuration), 80 LTO-Cartridge slots (scalable up to 560 slots in maximum expansion configuration), 10 mail slots in a removable magazine, Barcode Reader, Redundant Power Supplies, Extension Module controller, (2) Power Cables, Rackmount-Kit, Extension connection cable. 3 years warranty Return To Base (RTB) includes 3 years Symply Pro Exchange (SPE) Service. Optional Warranty Extension to 5 years.
Key features
- Enterprise-Class 6RU Modular Library for Massive Scalability and Performance
- 6RU Expansion Chassis with 80 LTO Cartridge Slots, supports up to 6 HH (or 3 FH) LTO Drives
- SymplyPRO XTL 80 Supports up to a Maximum of 560 Slots and 21 Full-Height Tape Drives in 42RU
- Robotic MSBF 3,000,000
- Uncompressed Capacity From 2.4PB to 16.4PB with LTO-10 media
- 3 Years Return To Base (RTB) Warranty including Symply Pro Exchange (SPE) Service
Compatibility
SymplyPRO XTL 80 Library
Resources
Product information
| Manufacturer |
Symply |
| Part number |
SYXTL-E80XXXXXX-AT |
| Compatibility |
SymplyPRO XTL 80 Library |
| Manufacturer warranty |
3 Year |
SymplyPRO XTL 80 library
| Rack units |
6U per module (42U max) |
| LTO drives supported |
LTO-7, 8, 9, 10 |
| Tape slots |
80 per module (560 max) |
| Half-height drives |
6 per module (42 max) |
| Full-height drives |
3 per module (21 max) |
| Mail slots (import/export) |
10 per module (70 max) |
| Magazines |
2 per module (32 max) |
| Max configuration |
Base module + 6 expansion modules |
| Max partitions |
20 (dynamically configurable) |
| Barcode reader |
Yes |
| Rack mount kit |
Included |
| Native interface |
SAS (LTO-7/8: 6 Gb SFF-8088, LTO-9/10: 12 Gb SFF-8644) or Fibre Channel (8 Gb LC, LTO-10: 32 Gb LC) |
| Optional interface |
10GbE Ethernet or Thunderbolt 3 via internal module |
| Power supplies |
2 per module (redundant, included), 80 PLUS Gold, 100-240 VAC / 300 W |
| Robotic MSBF |
3,000,000 |
| Dimensions (H x W x D) |
268 x 482 x 895 mm (10.55 x 18.98 x 35.23 in) |
| Weight (no tape drives) |
41 kg (90.38 lb) |
Specifications from Symply; subject to change by the manufacturer.
– (1) 5m RJ45 Management Cable
– (2) Power Cable
– Rack Kit
– Quick Start Guide
