4-Channel Biderectional Audio A/D and D/A convertor, XLR

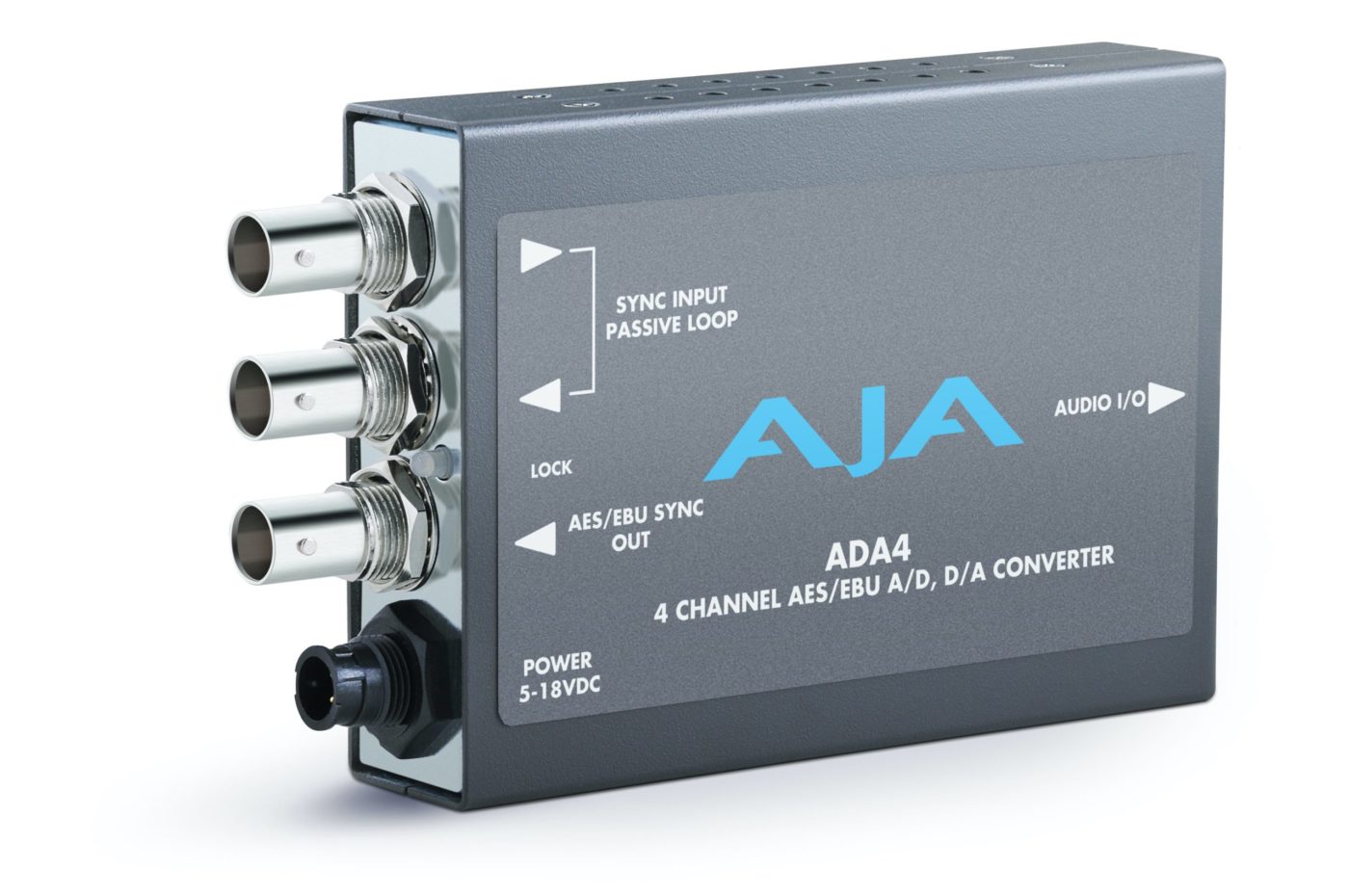

The AJA ADA4 is a 4-channel bidirectional audio converter that can be configured as a 4-channel A/D, a 4-channel D/A, 2-channel A/D plus 2-channel D/A, or an AES synchronizer.
The AJA ADA4 provides flexible analog and AES digital audio conversion in a compact Mini-Converter, with simultaneous A/D and D/A operation or AES synchronizer functionality and a full-time low-jitter AES11 reference output. Analog audio levels are selectable to common broadcast standards.
A universal power supply is included and the unit is backed by a five year warranty.
Audio I/O Analog
Balanced, XLR, one channel per XLR connector
Audio I/O AES
Balanced 110 ohm, XLR, two channels per XLR connector
Audio Levels (Analog)
Selectable with respect to full-scale digital: +24dBu (SMPTE RP155), +18dBu (EBU R68), +15dBu, +10dBV (consumer)
Reference
Full-time AES11 low-jitter reference output
Physical
Size (w x d x h): 5.8″ x 3.1″ x 1.0″ (147 x 79 x 25 mm)
Power
+5-18VDC, 3 watts, power supply required (included with purchase)
Environmental Specifications
Safe Operating Temperature: 0 to 40°C (32 to 104°F)
Safe Storage Temperature (Power OFF): -40 to 60°C (-40 to 140°F)
