Includes 6 crystal stabilized video reference outputs for referencing all the video equipment in your studio in either high definition Tri‑Sync or standard definition Blackburst television standards. Perfect for small studios and outside broadcasts!
Blackmagic Design
Mini Converter – Sync Generator
Includes 6 crystal stabilized video reference outputs for referencing all the video equipment in your studio in either high definition Tri‑Sync or standard definition Blackburst television standards. Perfect for small studios and outside broadcasts!
199,00€ (ex. VAT)
Connections

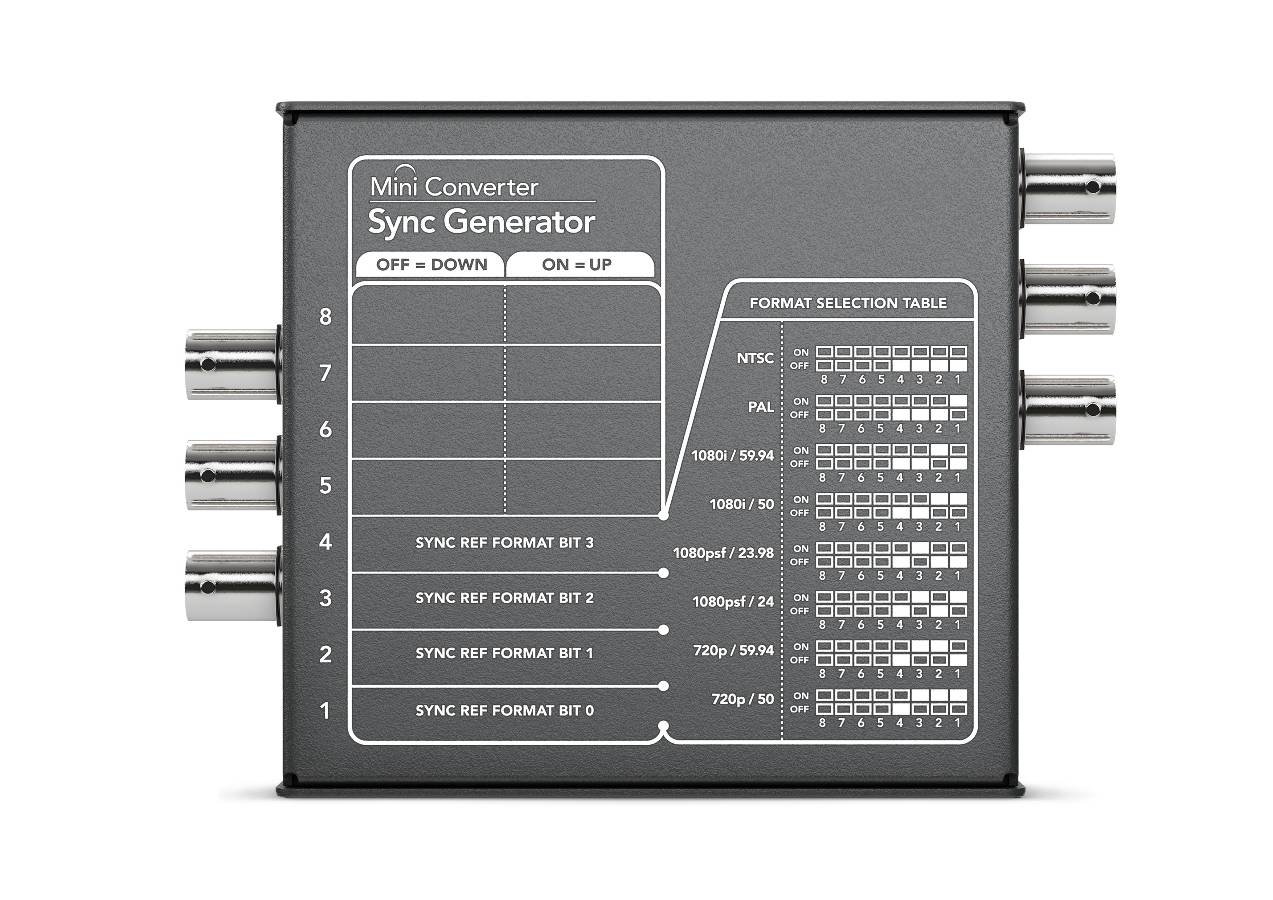

- Analog Video Outputs: 6 x common Blackburst or Tri Level reference outputs.
- SDI Rates: 270Mb, 1.5G.
- Multi Rate Support: Via mini switches
- Updates and Configuration: USB
Standards
- Analog Format Support: 525i29.97 NTSC, 625i50 PAL, 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080PsF23.98, 1080PsF24, 1080i50, 1080i59.94, 1080i60
Software
- Software Control: Mac™ and Windows™ software upgrade via USB.
- Internal Software Upgrade: Via included updater application.
Operating Systems
- Mac 10.15 Catalina,
Mac 11.1 Big Sur or later. - Windows 10, 64-bit.
Settings Control
Mini Switches or USB software.
Power Requirements
- Power Supply: +12V universal power supply included with international socket adapters for most countries. Cable tie point.
- Power Consumption: 3.00 Watts
- Operational Voltage Range: 12V DC
Environmental Specifications
- Operating temperature: 0° to 40° C (32° to 104° F)
- Storage temperature: -20° to 45° C (-4° to 113° F)
- Relative Humidity: 0% to 90% non‑condensing
Warranty
3 Year Limited Manufacturer’s Warranty.
Additional information
| Brand |
|---|
- Mini Converter Sync Generator
- 12V universal power supply with international socket adapters
Blackmagic software is available as a free download from the Blackmagic Design support website.
