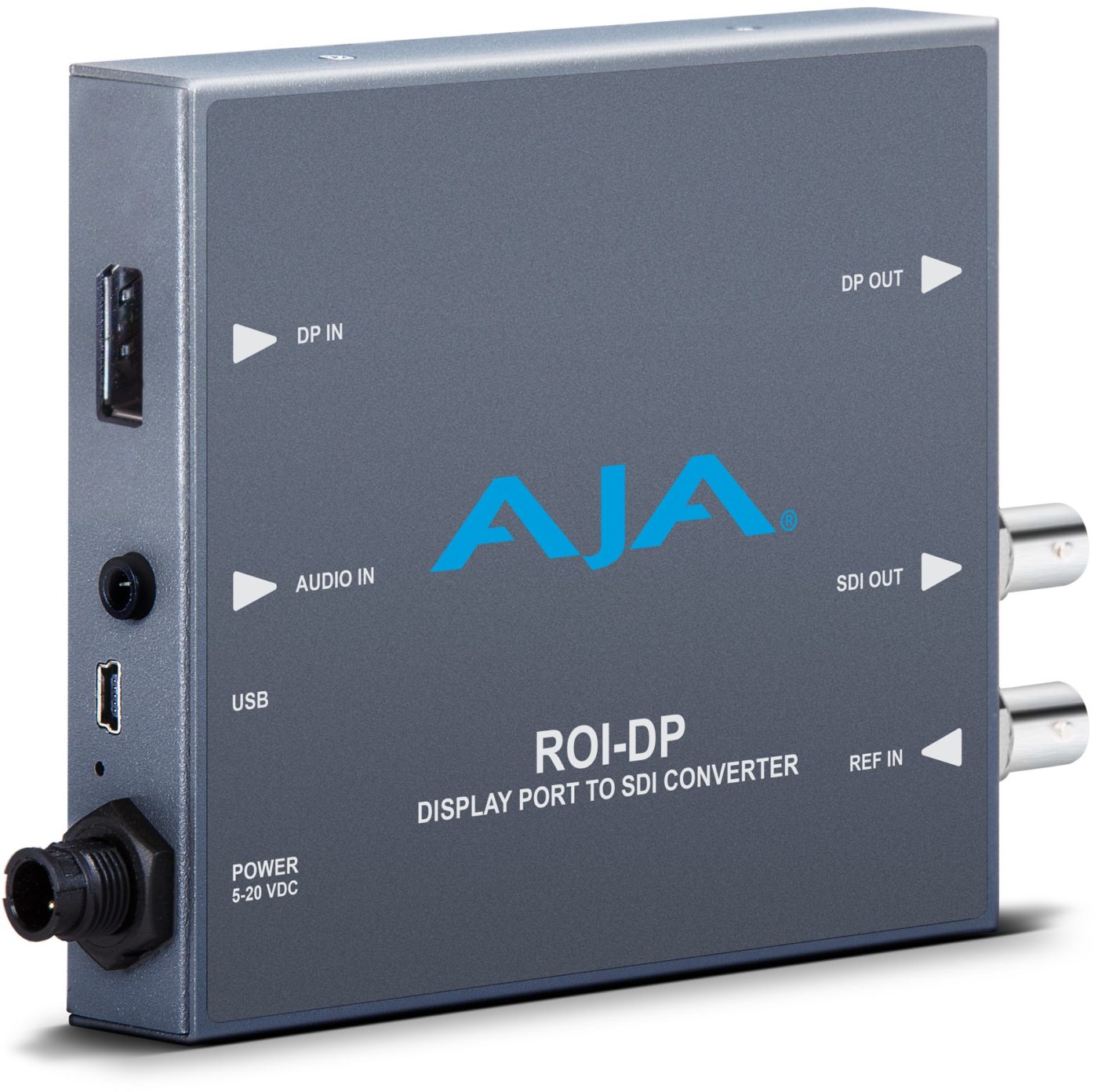

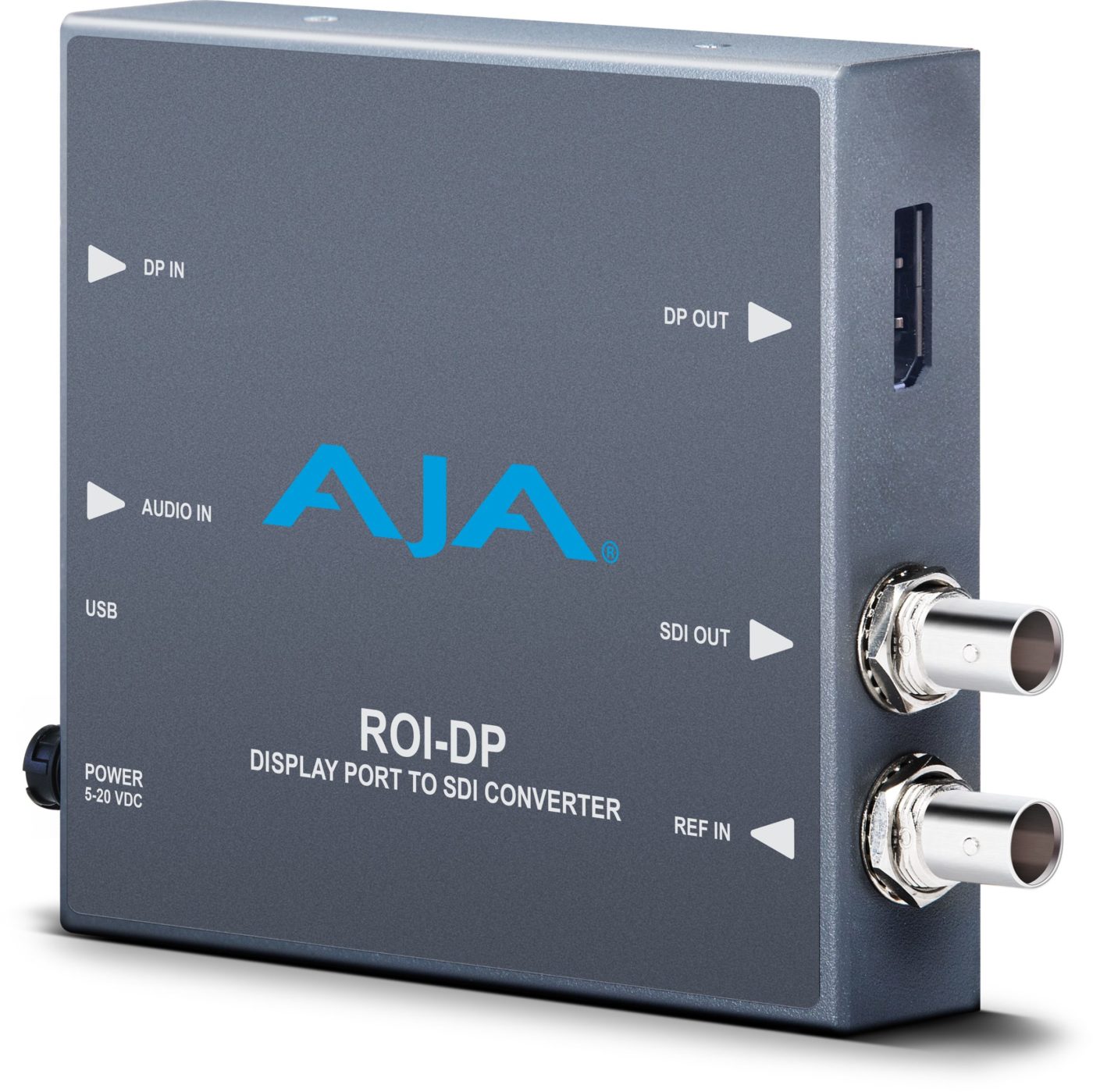

AJA ROI-DP SDI to DisplayPort converter with multiple input and output ports.
DP to 3G-SDI with Region of Interest Scaling, DP loop - Image 2
DP to 3G-SDI with Region of Interest Scaling, DP loop - Image 3
DP to 3G-SDI with Region of Interest Scaling, DP loop - Image 4
AJA

DP to 3G-SDI with Region of Interest Scaling, DP loop

The AJA ROI-DP is a scan converter that converts DisplayPort (computer and video) sources to baseband SDI with high-quality Region of Interest (ROI) scaling, plus aspect ratio and frame rate conversion.

1.308,00€ (ex. VAT)

SKU: ROI-DP Categories: , , Brand:

The AJA ROI-DP captures a DisplayPort source and converts it to SDI, with an exceptional scaling engine that lets you select a Region of Interest and perform aspect-ratio and frame-rate conversion. Computer resolutions up to WUXGA (1920 x 1200) and video up to 1080p are supported, with extensive audio functionality, in a compact, portable form factor.

A universal power supply is included and the unit is backed by a five year warranty.

Video Input

  • 1 x DisplayPort input
  • Computer signals: up to WUXGA (1920 x 1200) 60 Hz; video signals: up to 1080p

Video Output Digital

  • SDI output up to 1080p (SMPTE 425, 4:2:2 10-bit YCbCr); ROI scaling, aspect-ratio and frame-rate conversion

Physical

  • Size (w x d x h): 5.77″ x 4.02″ x 0.90″ (146.56 x 102.11 x 22.86 mm)
  • Weight: 0.6 lb (0.3 kg)

Power

  • Universal power supply included; 100-240VAC, 50/60 Hz universal input

Environmental Specifications

  • Safe Operating Temperature: 0 to 40°C (32 to 104°F)
  • Safe Storage Temperature (Power OFF): -40 to 60°C (-40 to 140°F)
  • Operating Relative Humidity: 10-90% noncondensing
  • Operating Altitude: <3,000 meters (<10,000 feet)

Warranty

  • Five year warranty

Additional information

Brand

  • AJA ROI-DP
  • Universal power supply
