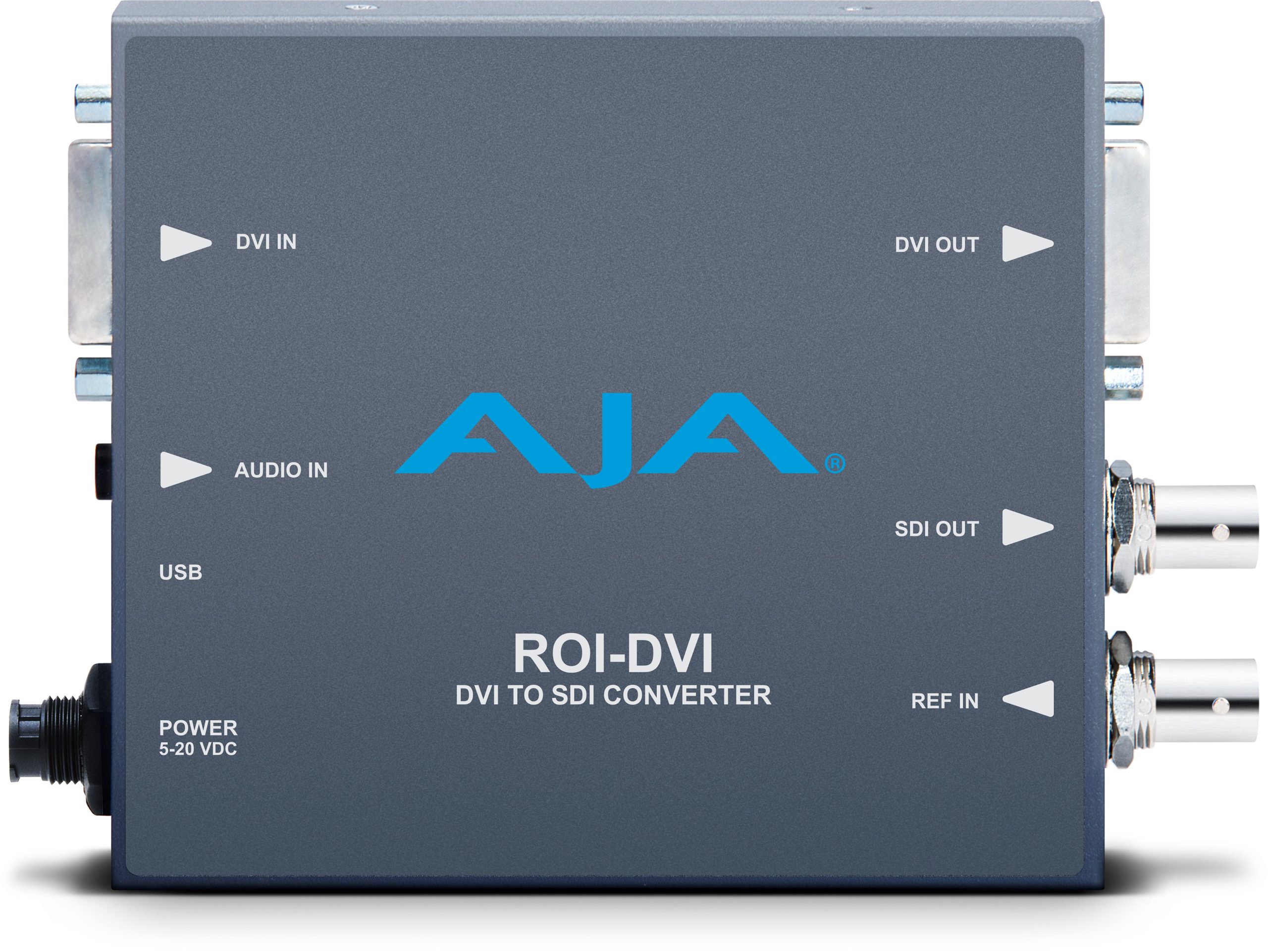

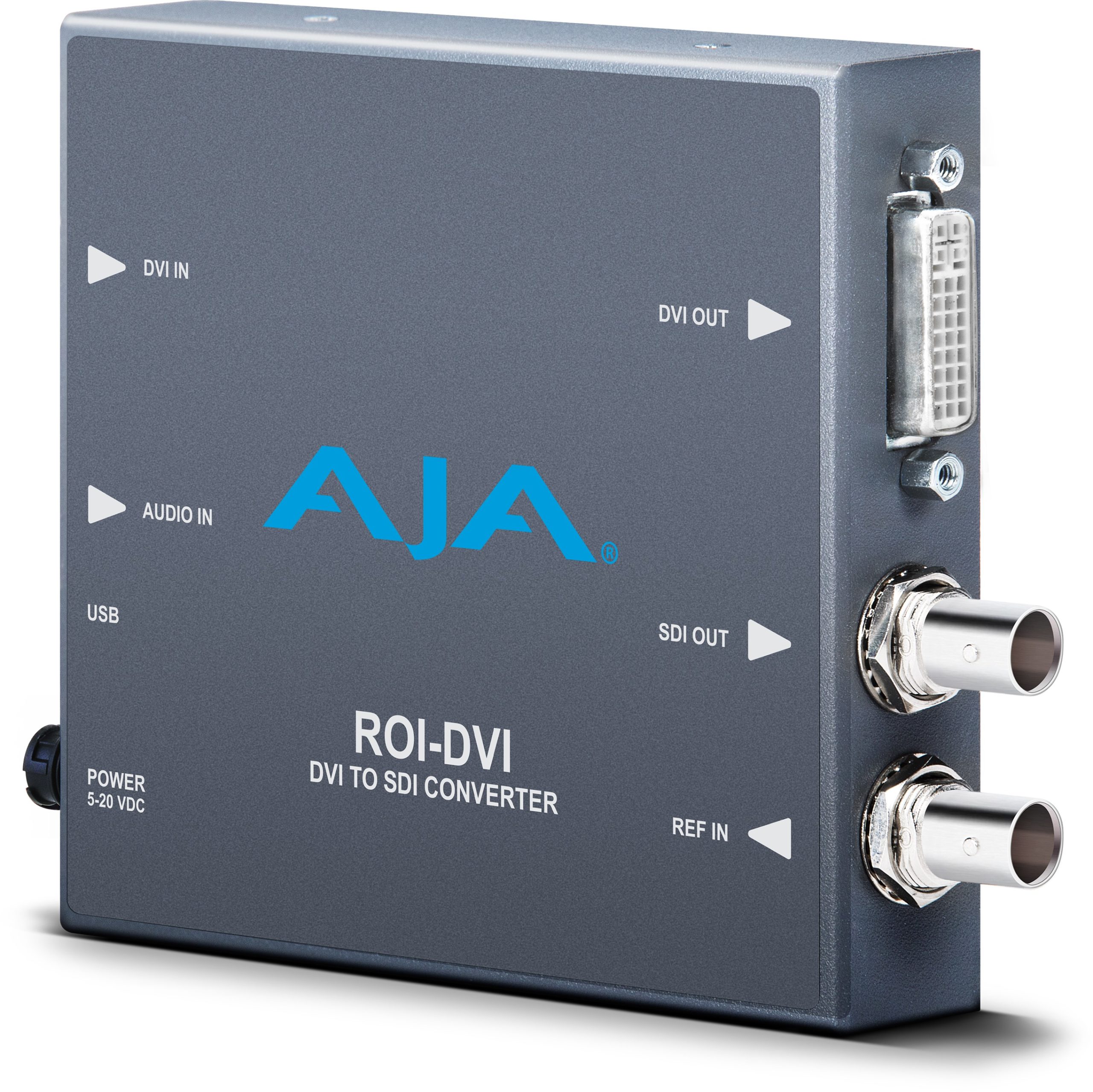

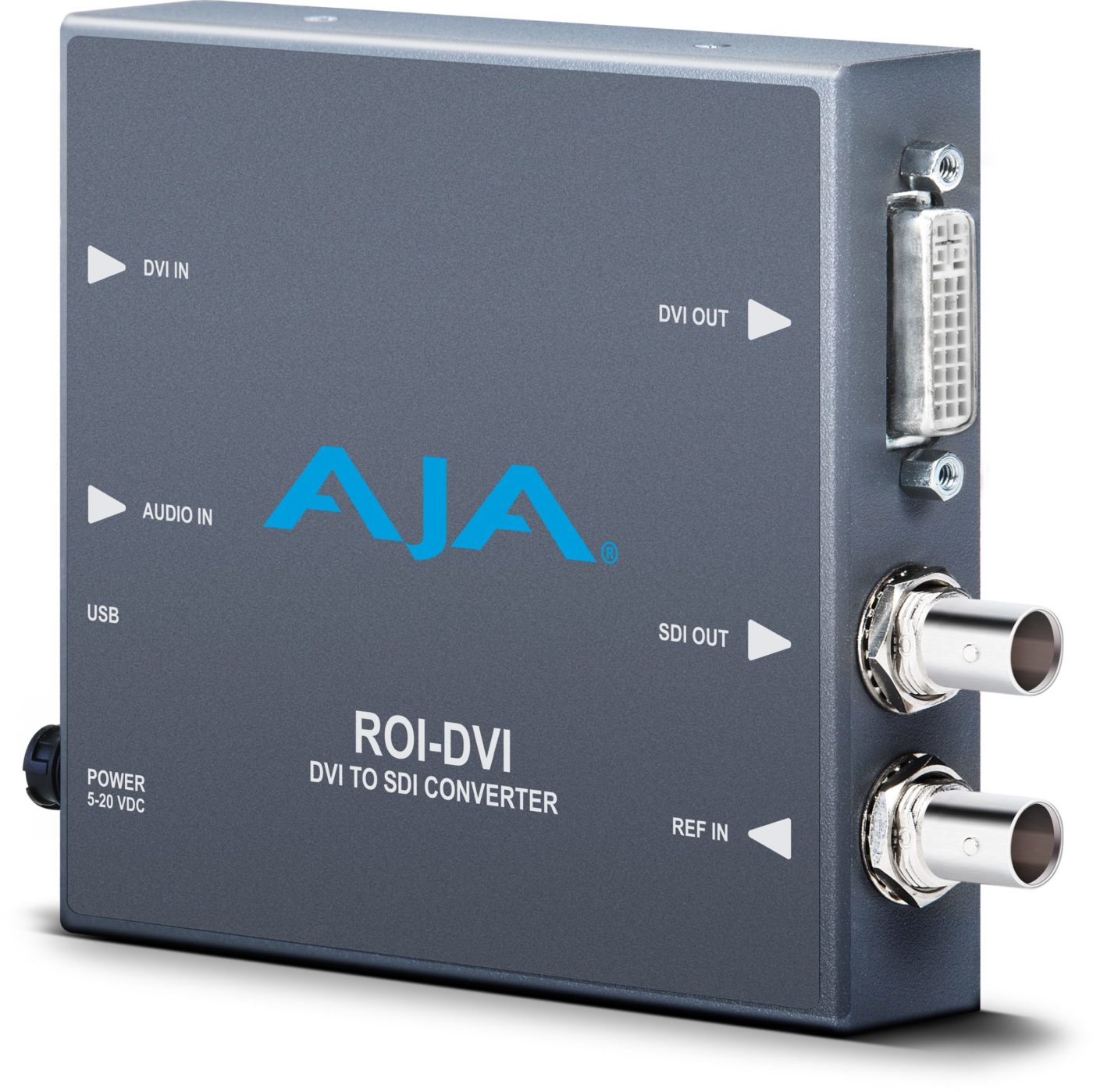

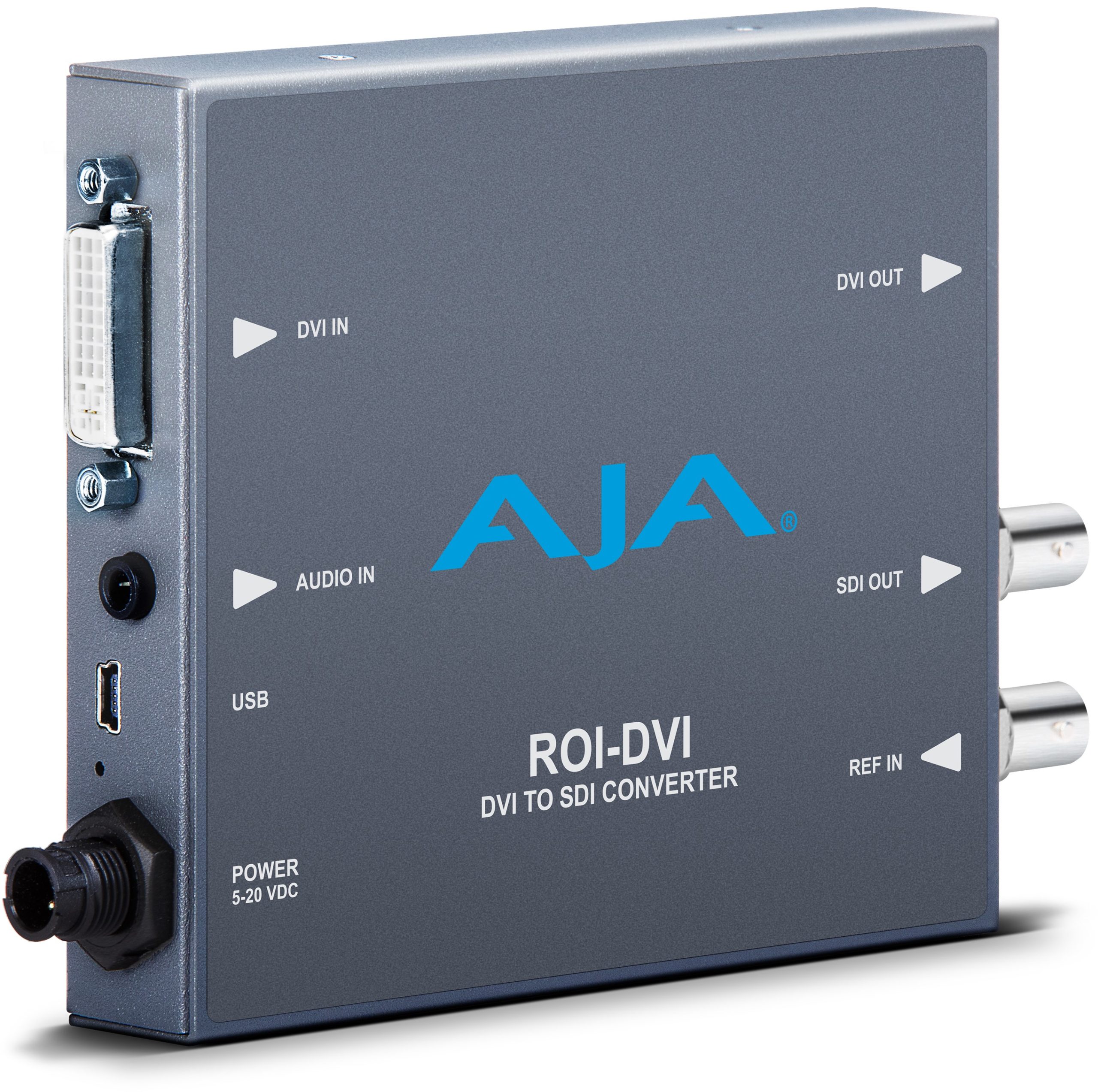

AJA’s ROI-DVI Mini-Converter allows exceptionally high quality conversion of computer DVI and HDMI outputs to baseband video over SDI at an affordable price and a very portable size. With extensive audio functionality, incredible image scaling as well as aspect and frame rate conversion, ROI-DVI fulfills the growing need to properly incorporate computer signals into the video world without sacrificing budget or space.
Features
- DVI to 3G-SDI conversion
- Frame Rate Conversion
- Conversion between Deinterlace and Progressive signals
- Region of Interest scaling
- DVI input with loop-through
- Accepts input DVI formats up to 1920 x 1200p 60 Hz
- Configurable SDI output formats from 525i 29.97 to 1920 x 1080p 60 Hz
- Aspect ratio conversion and image flip/rotation
- 2-channel embedding of balanced analog audio inputs or 2-channel or 8-channel DVI audio
- Reference Source (Free Run & Ext Ref)
- Genlock input
- Configure via USB port and supplied Mini-Config software
- Uses 5-18VDC power (universal power supply included)
- Five year warranty
Eliminate extra interface clutter and menu bars and extract only the portion of the computer screen you want.
Connecting a ROI Mini-Converter via USB to a computer running the free Mini-Config application lets you interactively select a Region of Interest from the incoming computer signal and have full control over how that region is scaled to the output resolution using AJA’s high quality scaling algorithms for the cleanest picture quality possible.
Watch this video to learn how to configure and control your ROI with AJA’s free Mini-Config control software.
Take full control of aspect ratio and frame rate conversion with on-screen controls in the Mini-Config software that show you exactly what your source and output will look like and what formats are coming in and going out. Simple menu controls let you quickly choose the proper output for any situation.
ROI utilizes a direct loop through, allowing it to be placed in-line so you still have a connection to an external monitor while extracting to SDI. The reference input ensures the SDI signal out of ROI is locked for use throughout a production or facility.
ROI accepts 2-channel audio from the 3.5mm analog audio input or embedded 8-channel audio from an HDMI input. The audio source and routing can be selected in the Mini-Config software and is embedded in the SDI output. This allows computer audio to be embedded within the SDI signal for easy, synchronized routing.
All AJA Mini-Converters ship with a universal power supply that includes international plug connections for use around the world.
AJA Mini-Converters are small enough to fit behind a monitor, in the back of a rack or directly on a camera rig. A locking power connector can’t accidentally pull loose and an optional P-TAP power cable allows for battery power in remote locations.
