12G-SDI & HDMI 2.0 Up, Down and Cross-Conversion, with FS
The AJA UDC-4K is a versatile, broadcast-quality 12G-SDI and HDMI 2.0 Up/Down/Cross-Converter with frame sync, seamlessly converting between 4K/UltraHD and 2K/HD formats.
The AJA UDC-4K is AJA’s most versatile Mini-Converter, performing raster and frame-rate conversion between 4K/UltraHD and 2K/HD over 12G-SDI and HDMI 2.0, with frame synchronization and HDR VPID handling. It provides a single 12G-SDI input with four 12G-SDI outputs plus HDMI in a rugged, compact enclosure.
A universal power supply is included and the unit is backed by a five year warranty.
Video Formats
4K/UltraHD and 2K/HD; up, down and cross conversion with frame sync

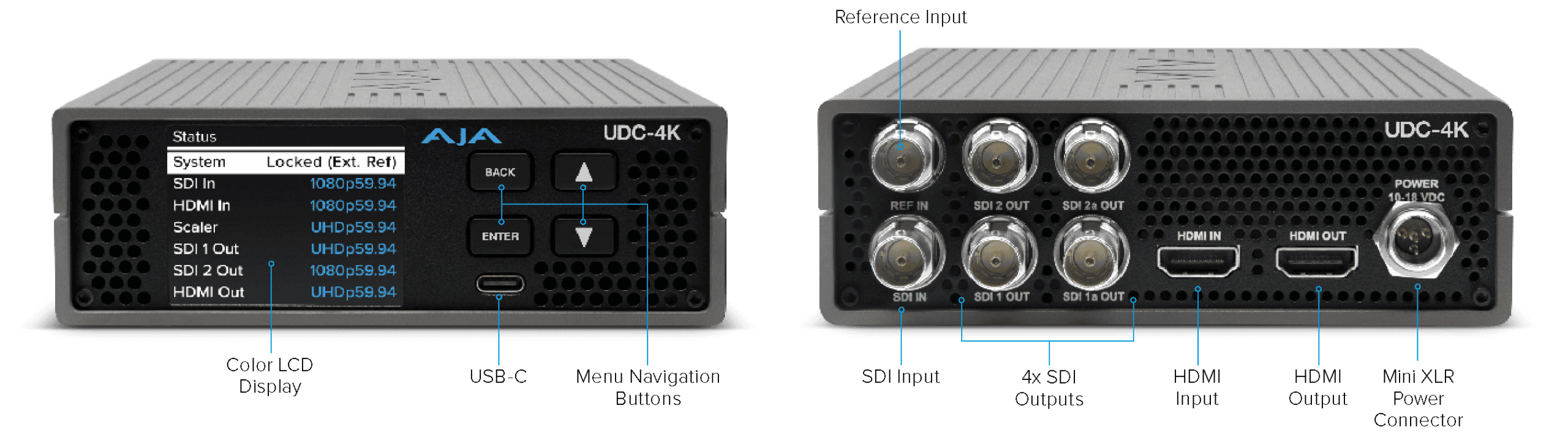

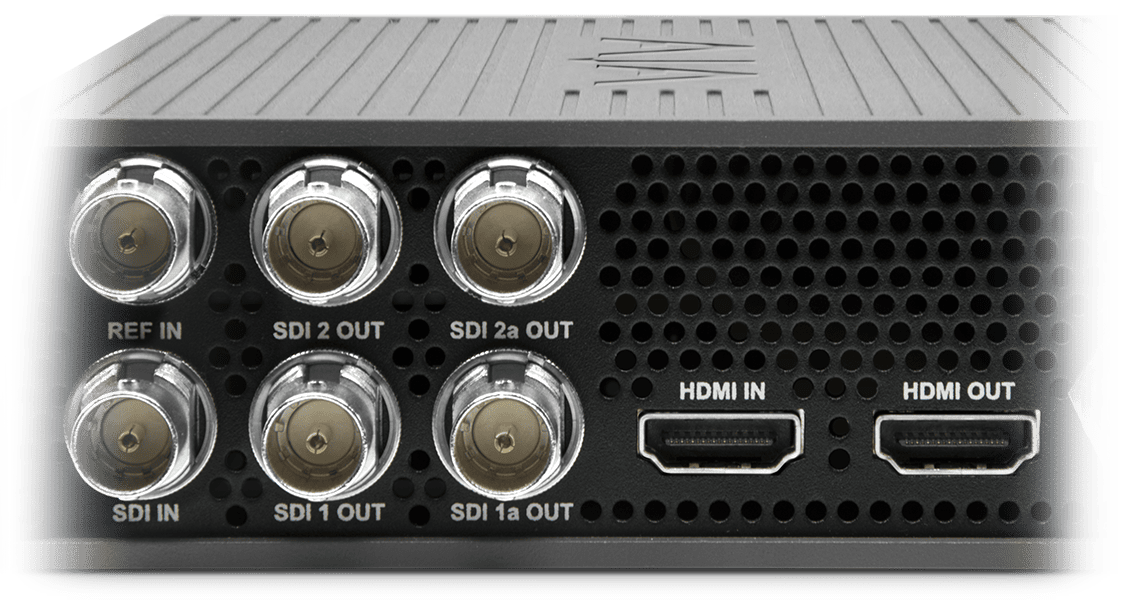

Video Input / Output Digital
1 x 12G-SDI input BNC, SMPTE ST 292/424/2081/2082
4 x 12G-SDI output BNC, SMPTE ST 292/424/2081/2082
HDMI input and output; HDR VPID decoder and generation with pass-through or override
Physical
Size (w x d x h): 5.0″ x 8.09″ x 1.65″ (127.0 x 205.5 x 41.8 mm)
Weight: 2.0 lb (0.9 kg)
Power
External power supply required; enclosure 10-18VDC regulated, 4-pin mini-XLR, 25W max; power supply included
Environmental Specifications
Safe Operating Temperature: 0 to 40°C (32 to 104°F)
Safe Storage Temperature (Power OFF): -40 to 60°C (-40 to 140°F)
