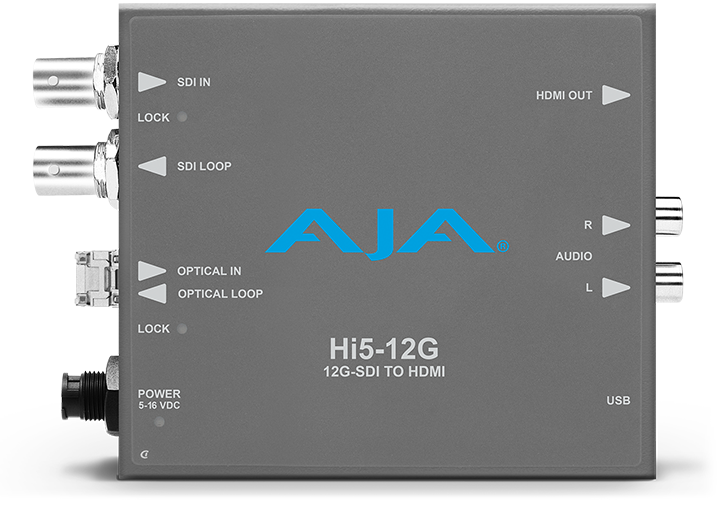

12G-SDI to HDMI 2.0 Conversion with LC fiber Transceiver

Video Formats

• SD, HD, 2K, UltraHD and 4K (4096/3840 x 2160), up to 60p
• YCbCr 4:2:2 / 4:4:4, RGB 4:4:4 (SMPTE or Full level), 8/10/12-bit

Video Input Digital

• 1 x 12G-SDI BNC, SMPTE-259/292/424/2081/2082
• Single link 12G / 6G / 3G-SDI (Level A or B Dual Link); Two Sample Interleave (2SI) 4K/UltraHD source mapping

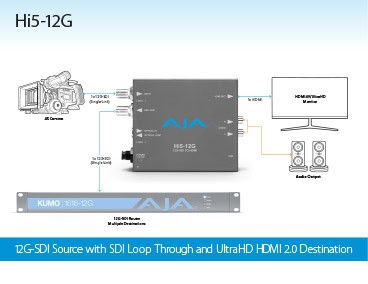

• Reclocked 12G-SDI loop-through output

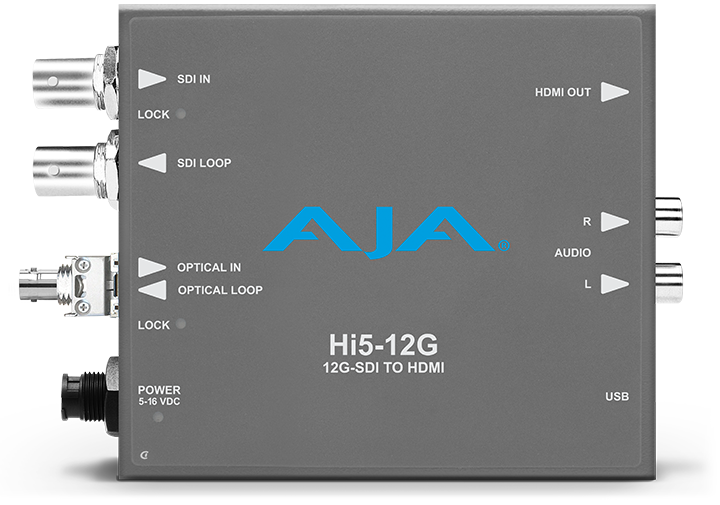

Fiber Input

• 1 x 12G-SDI Fiber LC connector, SMPTE 297/259/292/424/2081/2082
• Wavelength: Rx 1260 nm (Min), 1620 nm (Max)
• Optical Sensitivity: -10 dBm (Min 12 Gbps), -14 dBm (Min 3 Gbps)
• Overload Power: -2 dBm (Min)

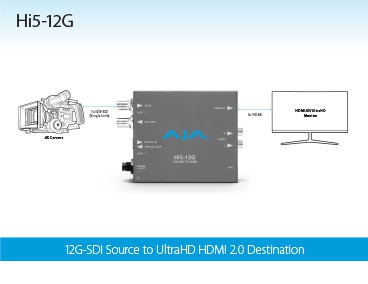

Video Output Digital (HDMI)

• 1 x HDMI Type A connector, HDMI v2.0b
• HDR InfoFrame generation with pass-through or override for colorimetry and transfer characteristic (HDMI v2.0 / CTA-861-G)
• YCbCr 4:2:2 / 4:4:4 / 4:2:0, RGB 4:4:4 (SMPTE or Full level); 24, 30 or 36 bits per pixel (HFR 4K/UltraHD 4:4:4 limited to 24 BPP)
• Automatically switches to DVI if the connected display does not support HDMI (DVI does not pass audio)

Fiber Output

• 1 x 12G-SDI Fiber LC connector, SMPTE 297/259/292/424/2081/2082
• Nominal Wavelength: Tx 1260 nm (Min), 1310 nm (Typ), 1360 nm (Max)
• Optical Power: -5 dBm (Min), 0.5 dBm (Max)
• Extinction Ratio: 5.4 dB (Min)

Audio

• SDI embedded audio, 24-bit (SD limited to 20-bit)
• HDMI audio pass-through: PCM, Dolby Digital (AC-3), Dolby Digital Plus (E-AC-3) including Dolby Atmos Immersive Sound (JOC)

Physical

• Size (w x d x h): 4.6″ x 4.02″ x 0.9″ (116.84 x 102.11 x 22.86 mm)
• Weight: 0.5 lb (0.3 kg)

Power

• 5-16VDC regulated, 11 watts, power supply required (included with purchase)
• AC Adapter: 100-240VAC, 50/60 Hz, universal input

Environmental Specifications

• Safe Operating Temperature: 0 to 40°C (32 to 104°F)
• Safe Storage Temperature (Power OFF): -40 to 60°C (-40 to 140°F)
• Operating Relative Humidity: 10-90% noncondensing
• Operating Altitude: <3,000 meters (<10,000 feet)

Warranty

• Five year warranty
