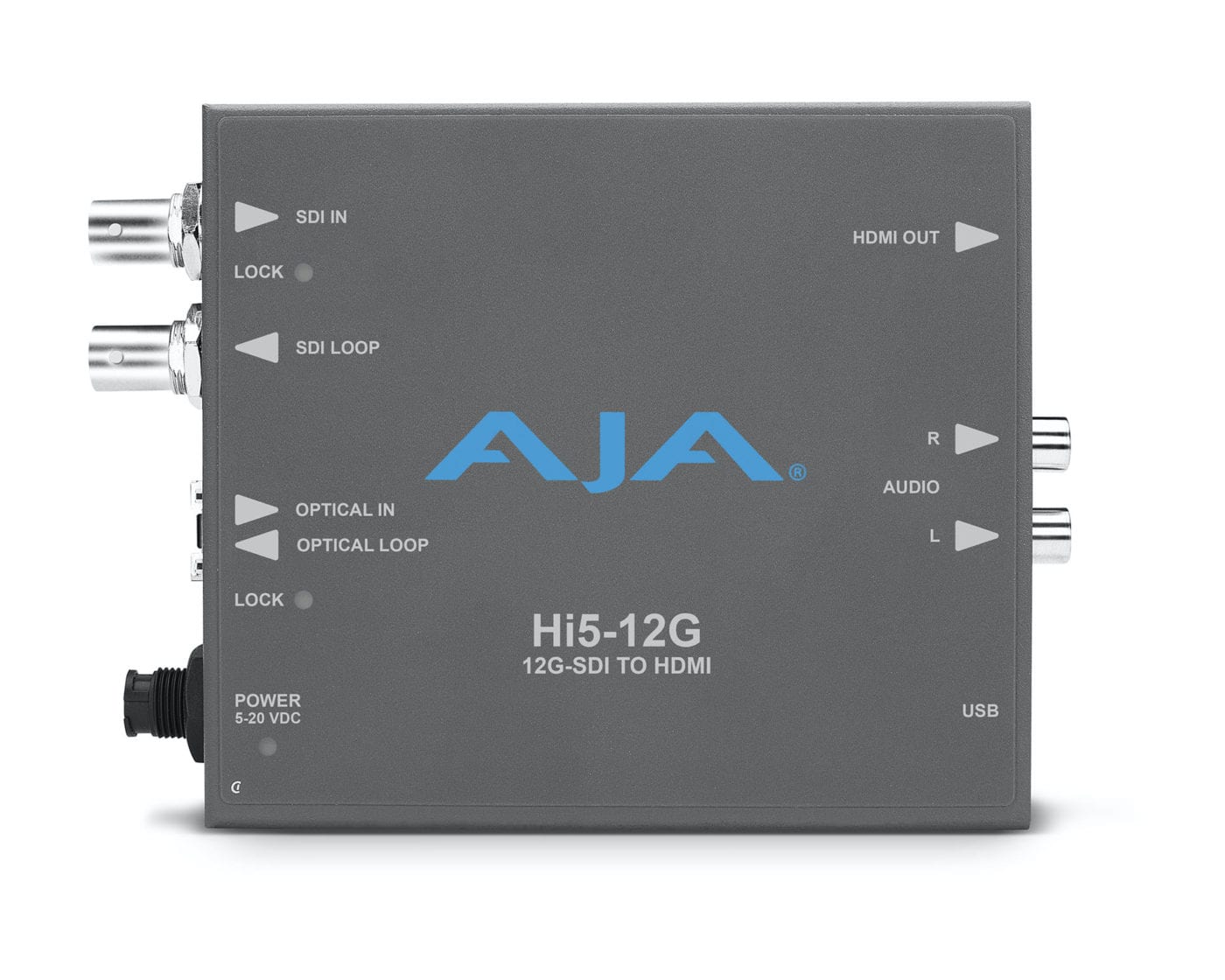

The AJA Hi5-12G converts 12G-SDI to HDMI 2.0 with HFR support up to 60p for 4K/UltraHD over a single cable. It provides an easy-to-deploy monitoring connection from professional 4K 12G-SDI devices to displays with HDMI 2.0 inputs.
The AJA Hi5-12G delivers pristine 12G-SDI to HDMI 2.0 conversion with high frame rate support up to 60p for 4K/UltraHD. It features a 12G-SDI single-link input with a reclocked SDI loop-out and can generate HDR metadata in accordance with HDMI v2.0 and CTA-861-G. HDMI audio pass-through supports PCM as well as Dolby Digital, Dolby Digital Plus and Dolby Atmos.
A universal power supply is included and the unit is backed by a five year warranty.
Video Formats
SD, HD, 2K, UltraHD and 4K (4096/3840 x 2160), up to 60p
YCbCr 4:2:2 / 4:4:4, RGB 4:4:4 (SMPTE or Full level), 8/10/12-bit
Video Input Digital
1 x 12G-SDI BNC, SMPTE-259/292/424/2081/2082
Single link 12G / 6G / 3G-SDI (Level A or B Dual Link); Two Sample Interleave (2SI) 4K/UltraHD source mapping
Reclocked 12G-SDI loop-through output
Video Output Digital (HDMI)
1 x HDMI Type A connector, HDMI v2.0b
HDR InfoFrame generation with pass-through or override for colorimetry and transfer characteristic (HDMI v2.0 / CTA-861-G)
YCbCr 4:2:2 / 4:4:4 / 4:2:0, RGB 4:4:4 (SMPTE or Full level); 24, 30 or 36 bits per pixel (HFR 4K/UltraHD 4:4:4 limited to 24 BPP)
Automatically switches to DVI if the connected display does not support HDMI (DVI does not pass audio)
Audio
SDI embedded audio, 24-bit (SD limited to 20-bit)
HDMI audio pass-through: PCM, Dolby Digital (AC-3), Dolby Digital Plus (E-AC-3) including Dolby Atmos Immersive Sound (JOC)
Physical
Size (w x d x h): 4.6″ x 4.02″ x 0.9″ (116.84 x 102.11 x 22.86 mm)
Weight: 0.5 lb (0.3 kg)
Power
5-16VDC regulated, 11 watts, power supply required (included with purchase)
AC Adapter: 100-240VAC, 50/60 Hz, universal input
Environmental Specifications
Safe Operating Temperature: 0 to 40°C (32 to 104°F)
Safe Storage Temperature (Power OFF): -40 to 60°C (-40 to 140°F)
