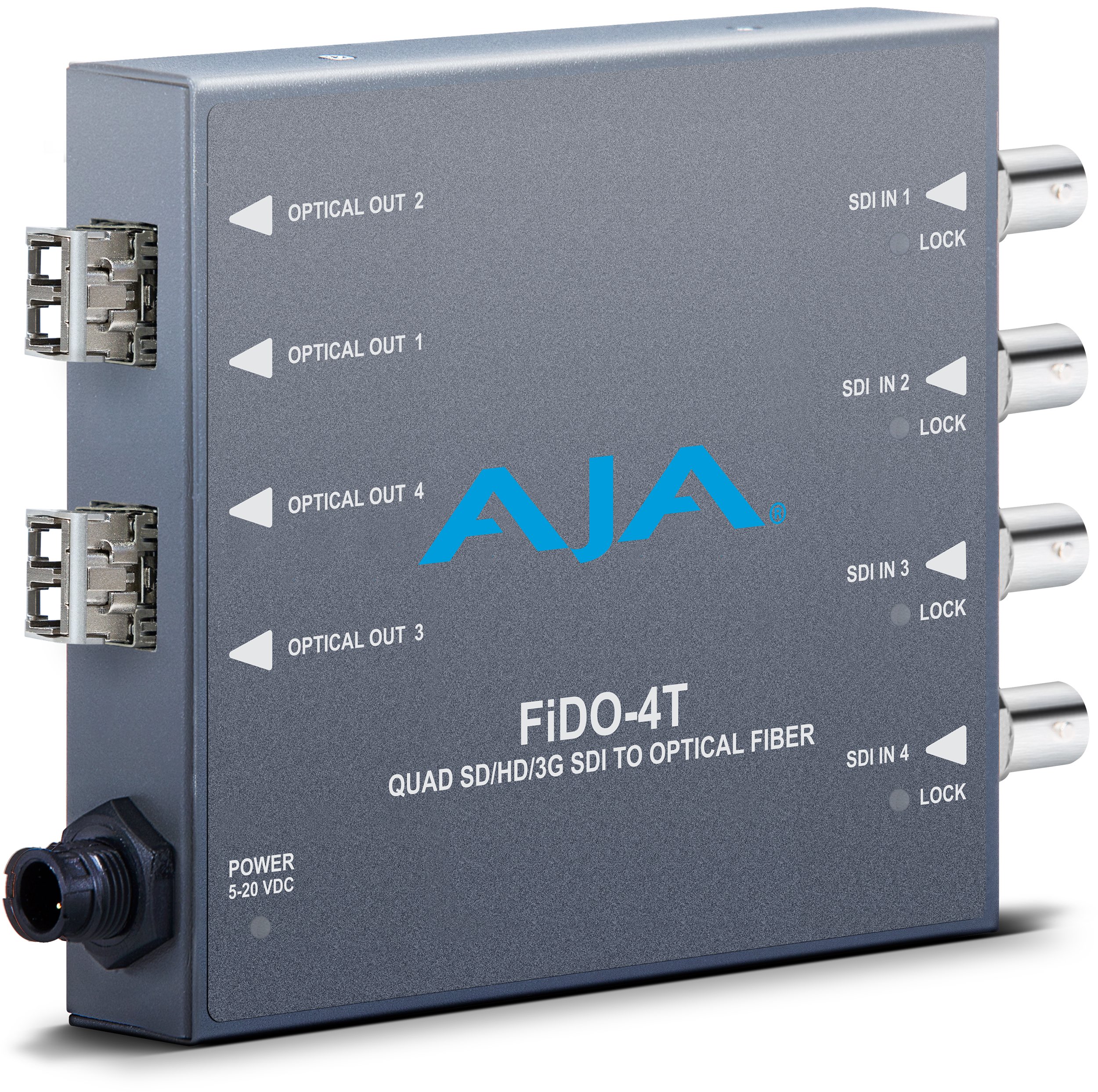

AXIS-ONE FiDO-4T quad SDI/HD/3G SDI to optical fiber converter.
AJA

4-Channel 3G-SDI to Multi-Mode LC Fiber Transmitter

The AJA FiDO-4T-MM is a 4-channel 3G-SDI to multi-mode LC fiber transmitter that delivers flexible, cost-efficient SDI-to-fiber conversion over multi-mode fiber, with electrical isolation that helps eliminate ground-loop problems.

2.491,00€ (ex. VAT)

SKU: FiDO-4T-MM Categories: , , Brand:

The AJA FiDO-4T-MM converts 4 independent 3G-SDI inputs to multi-mode LC fiber. It also supports 3G/HD/SD-SDI, passes through SDI metadata including HDR, and uses a compact, low-profile enclosure that works well in tight spaces around and behind equipment racks, in trucks and on camera.

A universal power supply is included and the unit is backed by a five year warranty.

Video Formats

  • 150 Mbps – 3 Gbps, format agnostic

Video Input Digital

  • 4-channel independent 3G-SDI BNC Inputs, SMPTE-259/292/424

Video Output Digital

  • 4-channel independent Multi-Mode LC Fiber Outputs, SMPTE-297
  • Nominal Wavelength: 850 nm
  • Optical Power: -7 dBm (Min), -2 dBm (Max)
  • Extinction Ratio: 7.5 dB (Typ)

Reclocking

  • 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.966 Gbps, 2.970 Gbps – Auto Select
  • All other rates are passed through and not reclocked

Physical

  • Size (w x d x h): 4.6″ x 4.02″ x 0.85″ (117.0 x 102.11 x 21.6mm)
  • Weight: 0.8 lb (0.4 kg)

Power

  • 2 watts, max
  • Uses 5-20VDC power, universal power supply included

Environmental Specifications

  • Safe Operating Temperature: 0 to 40°C (32 to 104°F)
  • Safe Storage Temperature (Power OFF): -40 to 60°C (-40 to 140°F)
  • Operating Relative Humidity: 10-90% noncondensing
  • Operating Altitude: <3,000 meters (<10,000 feet)

Warranty

  • Five year warranty

Additional information

Brand

  • AJA FiDO-4T-MM
  • Universal power supply
