4x 3G-SDI to HDMI 2.0 up to 4KP60
AJA

4x 3G-SDI to HDMI 2.0 up to 4KP60

The AJA Hi5-4K-Plus delivers pristine 3G-SDI to HDMI 2.0 conversion with HFR support up to 60p for 4K/UltraHD, with HDR metadata generation and HLG support.

877,00€ (ex. VAT)

SKU: Hi5-4K-Plus Categories: , , Brand:

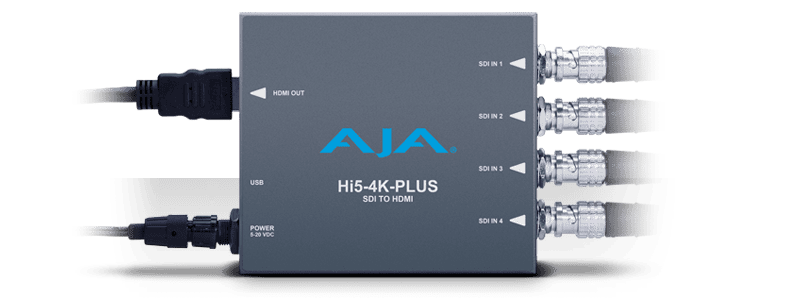

The AJA Hi5-4K-Plus converts quad-link 4x 3G-SDI to HDMI 2.0 for 4K/UltraHD monitoring, supporting Two Sample Interleave (2SI) or Square Division (Quadrant) pixel mapping. It generates HDR metadata in accordance with HDMI v2.0a / CTA-861.3 and includes HLG support.

A universal power supply is included and the unit is backed by a five year warranty.

Video Formats

  • SD, HD, 2K, UltraHD and 4K, up to 60p
  • YCbCr 4:2:2/4:4:4, RGB 4:4:4 (SMPTE or Full level), 8/10/12-bit

Video Input Digital

  • 4 x 3G-SDI BNC, SMPTE-259/292/424 (quad link)
  • Two Sample Interleave (2SI) or Square Division (Quadrant) pixel mapping

Video Output Digital (HDMI)

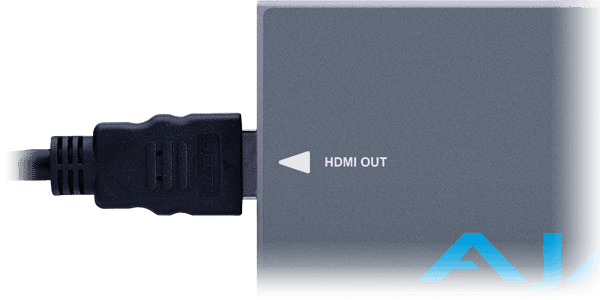

  • 1 x HDMI Type A, HDMI v2.0b
  • HDR InfoFrame generation with pass-through or override for colorimetry and transfer characteristic
  • YCbCr 4:2:2/4:4:4/4:2:0, RGB 4:4:4 (SMPTE or Full level)

Audio

  • SDI embedded audio passed through to HDMI

Physical

  • Size (w x d x h): 5.76″ x 4.02″ x 0.90″ (146.31 x 102.11 x 22.86 mm)
  • Weight: 0.6 lb (0.3 kg)

Power

  • 5-20VDC regulated, 12 watts, power supply required (included with purchase)

Environmental Specifications

  • Safe Operating Temperature: 0 to 40°C (32 to 104°F)
  • Safe Storage Temperature (Power OFF): -40 to 60°C (-40 to 140°F)
  • Operating Relative Humidity: 10-90% noncondensing
  • Operating Altitude: <3,000 meters (<10,000 feet)

Warranty

  • Five year warranty

Additional information

Brand

  • AJA Hi5-4K-Plus
  • Universal power supply
